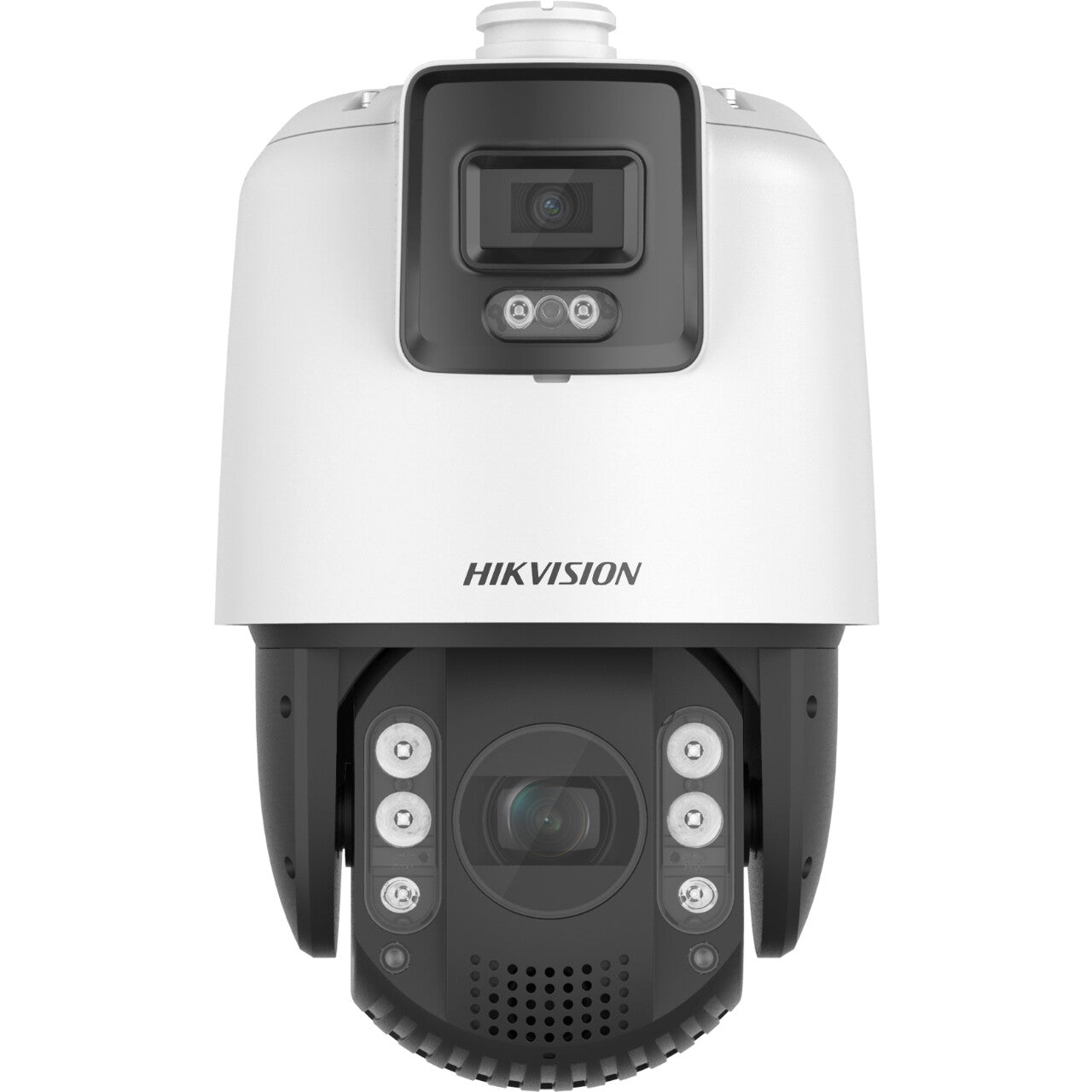

TandemVu 7-inch 4 MP 32X Colorful & IR Network Speed Dome, 1/1.8" Progressive Scan CMOS, 2560 × 1440, 3D DNR, WDR, H.265+, RJ45, IP66, IK10, Hi-PoE, 24 VAC
Hikvision DS-2SE7C432MW-AEB(14F1)(P3) 4 MP 32 × IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 32 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
| Performance |
|---|
| Dynamic range |
120 dB |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Preset points |
Yes |
| PTZ modes |
4 Pattern |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
|---|
| Weatherproof |
Yes |
| IK code |
IK10 |
| International Protection (IP) code |
IP66 |
| Product colour |
White |
| Mounting type |
Ceiling/Pole |
| Form factor |
Dome |
| Camera |
|---|
| Camera shutter speed |
1 - 1/30000 s |
| Preset programs quantity |
300 |
| White balance |
ATW, Auto, Fluorescent, Indoor, MWB, Outdoor, Sodium lamp |
| Pan speed |
160 °/sec |
| Pan preset speed |
240 °/sec |
| Pan range |
0 - 360° |
| Tilt speed |
120 °/sec |
| Tilt preset speed |
200 °/sec |
| Tilt angle range |
-15 - 90° |
| Lens viewing angle, vertical |
42.4° |
| Lens viewing angle, horizontal |
79° |
| Minimum illumination |
0 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
|---|
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors |
2 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Detect distance (tele) |
3060 m |
| Observe distance (tele) |
1214.3 m |
| Recognize distance (tele) |
612 m |
| Identify distance (tele) |
306 m |
| Fixed focal length |
4 mm |
| Maximum aperture number |
1.5 |
| Minimum aperture number |
1 |
| Focus |
Motorized/Manual |
| Auto focus |
Yes |
| Focal length range |
5.9 - 188.8 mm |
| Digital zoom |
16x |
| Optical zoom |
32x |
| Zoom capability |
Yes |
| Number of lenses |
2 |
| Night vision |
|---|
| Night vision distance |
200 m |
| Night vision |
Yes |
| Video |
|---|
| Bit rate |
32 Kbps - 16 Mbps |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Highlight Compensation (HLC) |
Yes |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Region of Interest (ROI) encoding |
Yes |
| Back Light Compensation (BLC) |
Yes |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Supported graphics resolutions |
352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440 |
| Video compression formats |
H.264, H.265 |
| Total megapixels |
4 MP |
| Maximum resolution |
2560 x 1440 pixels |
| Audio |
|---|
| Bit rate range |
32 - 192 Kbit/s |
| Sample rates |
8 - 48 kHz |
| Signal-to-Noise Ratio (SNR) |
52 dB |
| Audio formats supported |
G.711, G.722.1, G.726, MP2L2, PCM |
| Network |
|---|
| Client interoperability |
iVMS-4200, Hik-Connect |
| Number of simultaneous live view channels |
20 channels |
| Live view |
Yes |
| Quality of Service (QoS) support |
Yes |
| User access level |
Administrator, Operator, User |
| Number of users |
32 user(s) |
| Supported network protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Maximum memory card size |
256 GB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Privacy protection |
Yes |
| Mirror |
Yes |
| Automatic Network Replenishment (ANR) |
Yes |
| Intelligent Video Surveillance (IVS) system features |
Face detection |
| Digital watermark |
Yes |
| Password protection type |
User |
| Password protection |
Yes |
| Alarm output channels |
1 |
| Alarm input channels |
2 |
| Management features |
|---|
| Behavior analysis |
Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Reset button |
Yes |
| Web-based management |
Yes |
| Power |
|---|
| Power consumption (max) |
42 W |
| AC input voltage |
24 V |
| Power source type |
AC, PoE |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
-30 - 65 °C |
| Weight & dimensions |
|---|
| Weight |
6 kg |
| Diameter |
22 cm |
| Height |
382.1 mm |
| Packaging content |
|---|
| Number of cameras |
1 |
| Other features |
|---|
| Audio output |
1 |
| Browser supported |
IE 10+, Chrome 57+, Firefox 52+, Safari 12+ |
| Technical details |
|---|
| Audio input |
1 |
