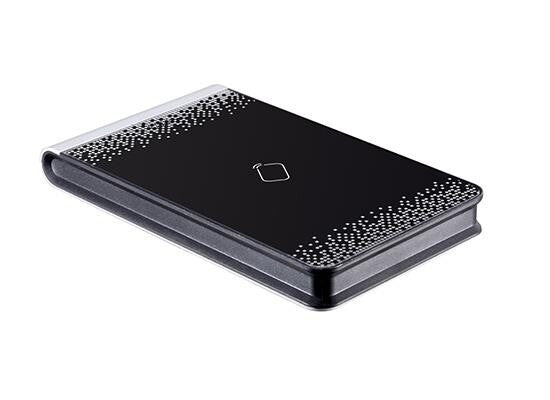

DS-K1F100-D8E, 13.56MHz + 125KHz, 2 PSAM, USB 2.0, 117x67.5x14.3 mm
D8E is a non-touch IC card enrollment station, used as a necessary non-touch card test machine by card issuers, chip suppliers, and testing organizations. The size of its PSAM card slot equals to that of two SIM cards. The card enrollment station can connect to PC or other devices via USB interface. No-driver USB is applied to facilitate the installation and operation of the card enrollment station. The card enrollment station can be widely applied in various industries and situations, such as business, telecommunication, post, insurance, medical treatment, bank, gasoline station, parking lot, and so on.
| Technical details |
|---|
| Type |
Basic access control reader |
| Authentication type |
Access chip/card |
| Supported protocols |
ISO 14443 A/B, ISO 7816 |
| Access chip/card reader |
Yes |
| Access code reader |
No |
| Fingerprint reader |
No |
| Product colour |
Black, Grey |
| Carrier frequency |
125 kHz |
| Windows operating systems supported |
Windows 7, Windows 8, Windows XP |
| Display |
|---|
| Built-in display |
No |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Power |
|---|
| Power consumption |
200 mA |
| Weight & dimensions |
|---|
| Weight |
87.6 g |
| Height |
14.3 mm |
| Depth |
67.5 mm |
| Width |
117 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 65 °C |
