Hikvision Digital Technology

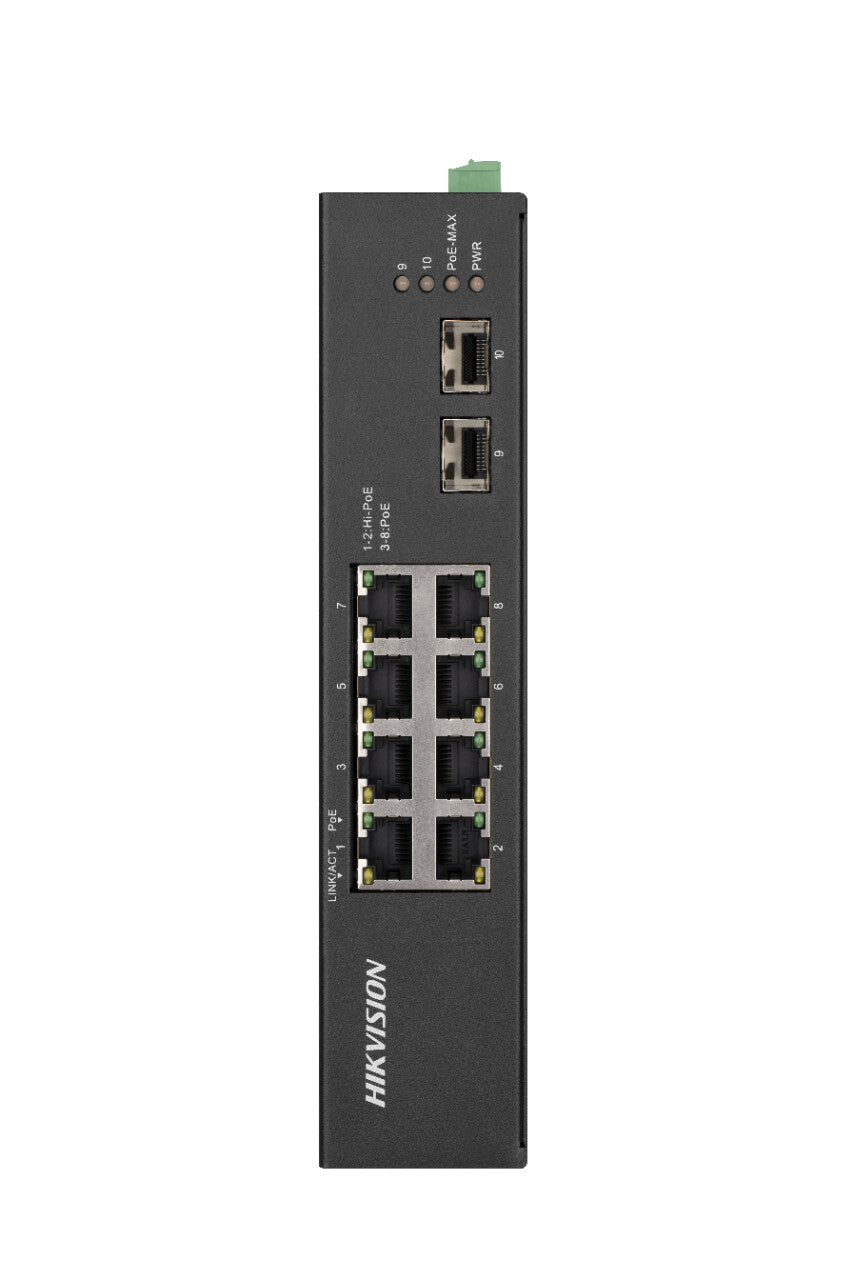

Hikvision DS-3T0510HP-E/HS network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

R 2,057.64

DS-3T0510HP-E/HS

14 in stock
R 2,057.64
R 2,057.64
Shipping calculated at checkout.

Incl VAT

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

    20 Gbps, 14.88 Mpps, 6x 1G RJ-45 PoE, 2x 1GHi-PoE RJ-45, 2x 1G SFP, 197x114.2x42.2 mm

    DS-3T0510HP-E/HS switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and wider temperature (-30 to 65 °C) design on the basis of high-performance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

    Management features
    Switch type Unmanaged
    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Fiber ports quantity 2
    Fiber optic connector SFP
    Network
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support No
    Full duplex Yes
    Auto MDI/MDI-X Yes
    Data transmission
    MAC address table 4000 entries
    Switching capacity 20 Gbit/s
    Forwarding rate 14.88 Mpps
    Store-and-forward Yes
    Design
    Rack mounting No
    Stackable No
    Product colour Black
    Housing material Metal
    Certification FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016)UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ((EC) 1907/2006)
    Power
    DC input voltage 48 - 57 V
    Input current 2.5 A
    Power consumption (max) 120 W
    Power over Ethernet (PoE)
    Power over Ethernet (PoE) Yes
    Power over Ethernet (PoE) ports quantity 8
    Total Power over Ethernet (PoE) budget 110 W
    Operational conditions
    Operating temperature (T-T) -30 - 65 °C
    Storage temperature (T-T) -40 - 85 °C
    Operating relative humidity (H-H) 5 - 95%
    Storage relative humidity (H-H) 5 - 95%
    Weight & dimensions
    Width 197 mm
    Depth 42.2 mm
    Height 114.2 mm
    Weight 585 g
    Packaging data
    Package weight 1.11 kg
    Logistics data
    Harmonized System (HS) code 85176990
