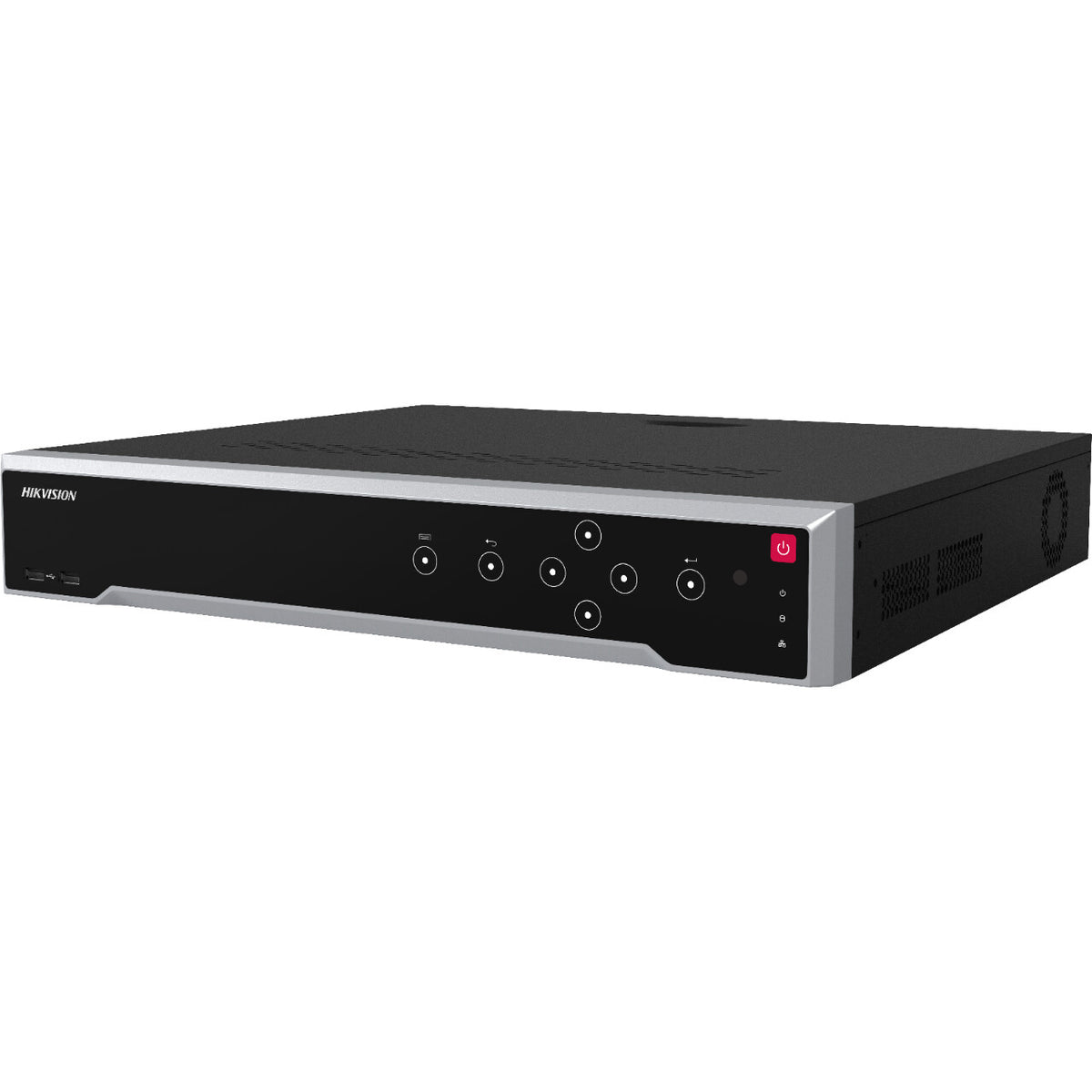

32-ch 1.5U 8K NVR, 4x SATA, eSATA, HDMI, VGA, BNC, RCA, RJ-45, USB 2.0/USB 3.0, 100 - 240 VAC, 50/60Hz
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution
- Dual 4K HDMI output resolution
Storage and Playback
- Up to 4 SATA interfaces for HDD connection
- 16-ch synchronous playback
Smart & POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
- 2 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in
| Performance |
|---|
| Video input channels |
32 channels |
| Alarm input channels |
16 |
| Number of simultaneously playbacked channels |
16 channels |
| Alarm output channels |
9 |
| Supported resolutions |
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/
2CIF/CIF/QCIF |
| Maximum resolution |
7680 x 4320 pixels |
| Two-way talk |
Yes |
| Audio formats supported |
AAC, G.711 A-law, G.711 μ-law, G.722, G.726 |
| Video formats supported |
H.264, H.264+, H.265, H.265+ |
| Output bandwidth |
400 Mbit/s |
| Input bandwidth |
320 Mbit/s |
| Wireless LAN features |
|---|
| Wi-Fi |
No |
| Hard drive |
|---|
| Number of HDDs supported |
5 |
| Maximum storage capacity |
14 TB |
| HDD interface |
eSATA, SATA |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Power over Ethernet (PoE) |
No |
| BNC video output |
Yes |
| HDMI output |
Yes |
| HDMI ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) output ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Audio RCA inputs |
1 |
| Audio RCA outputs |
1 |
| eSATA ports quantity |
1 |
| Internal SATA ports quantity |
4 |
| RS-232 ports |
1 |
| eSATA |
Yes |
| RS-232 interface |
Yes |
| RS-485 ports |
2 |
| Supported network protocols |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Features |
|---|
| Rack mounting |
Yes |
| Rack capacity |
1.5U |
| Brand compatibility |
Hikvision Digital Technology |
| On/off switch |
Yes |
| Product colour |
Black |
| Certification |
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (max) |
15 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Output voltage |
12 V |
| Output current |
1 A |
| Total Power over Ethernet (PoE) budget |
200 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 55 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
445 mm |
| Depth |
400 mm |
| Height |
75 mm |
| Weight |
5 kg |
