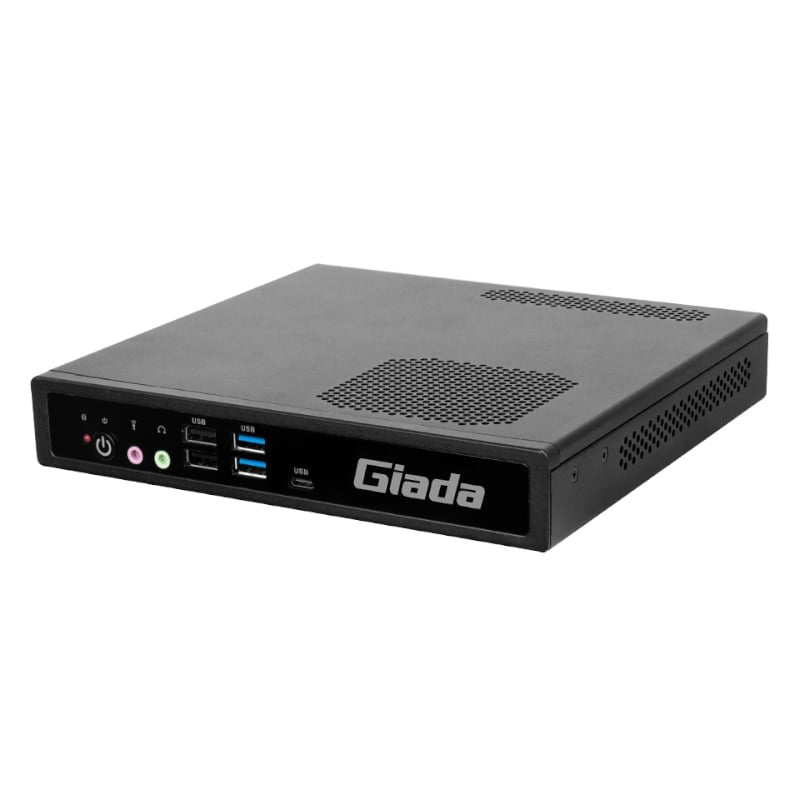

Giada BQ612 with H610 Barebone W/O CPU RAM and SSD

The GIADA BQ612 with H610 Barebone is a small yet powerful computer built to satisfy your demands. It has an Intel® LGA1700 Socket, which is compatible with 12th/13th Gen processors and ensures high-performance computing. It has two DDR4-3200 MHz memory slots and is capable of handling multitasking and demanding tasks. The barebone has one HDMI port that supports 4K resolution for amazing images.

With 2 x RJ45 Gigabit LAN connections and 1 x E-Key M.2 (2230) slot for WiFi/BT, you'll be able to stay connected in any setting. The GIADA BQ612 is distinguished by its lengthy life cycle, which ensures long-term performance and reliability for your computing demands. This barebone is ready to go, whether for business or play.

Note: CPU is not included.

FEATURES:

• 1 x HDMI supporting 4K


• Intel® LGA1700 Socket 12th/13th Gen. processors


• 2x DDR4-3200 MHz Memory


• 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for WiFi/BT


• Long life cycle

SPECIFICATIONS:

• Processor:


• CPU: Intel® LGA1700 Socket 12th/13th Gen. processors


• Turbo Frequency: by CPU


• Chipset: H610/B660


• Processing Units: by CPU


• TDP: ≤ 65 W


• Memory:


• Type: 2 x SO-DIMM DDR4-3200 MHz


• Size: Up to 64 GB


• Storage:


• Socket 1: 1 x M-Key M.2 (2242/2280) for PCIe SSD


• Socket 2: 1 x 2.5” SATAIII (7+15 pin)


• Graphics:


• GPU: Intel® UHD Graphics 730/770


• Graphic Engine: DirectX 12.0, OpenGL 4.5, OpenCL 3.0,


• VGA: 1 x VGA (Max. 2048 x 1536 @60 Hz)


• HDMI: 1 x HDMI (Max. 4096 x 2160 @60 Hz)


• Network:


• Controller: Realtek RTL 8111H Gigabit Ethernet


• Interface: 2 x RJ45


• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6


• Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot


• I/O:


• USB: 1 x USB Type-C3.2 Gen1 (H610), 2 x USB3.2 Gen1, 6 x USB2.0 (H610)


• Serial Port: 2 x RS232


• Audio: 1 x MIC-IN, 1 x AUDIO-OUT


• Antenna: 2 x Connector for Wi-Fi/BT


• Button: 1 x Power on, 1 x CLR-CMOS


• System:


• TPM: Optional: TPM2.0


• Watchdog Timer: Yes


• Auto Power on: Yes


• RTC: Set up independently every day


• Remo on: Yes


• Operation System:


• Windows: Windows 10 (64Bit), Windows 11 (64bit)


• Linux: Linux Ubuntu (64bit)


• Power:


• Power Type: DC-IN


• Input Voltage: 19V/4.74A


• Environment:


• Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow


• Relative Humidity: 95% @ 45°C (non-condensing)


• Certification: CE, FCC Class B


• Construction: Metal


• Colour: Black


• Dimensions: 20 x 18.5 x 3.5 cm

WHAT’S IN THE BOX:

• Giada BQ612 with H610 barebones embedded PC  – Black x1


• WiFi Antenna x2


• AC Power Adapter x1


• Power Cable x1


• User Manual x1
