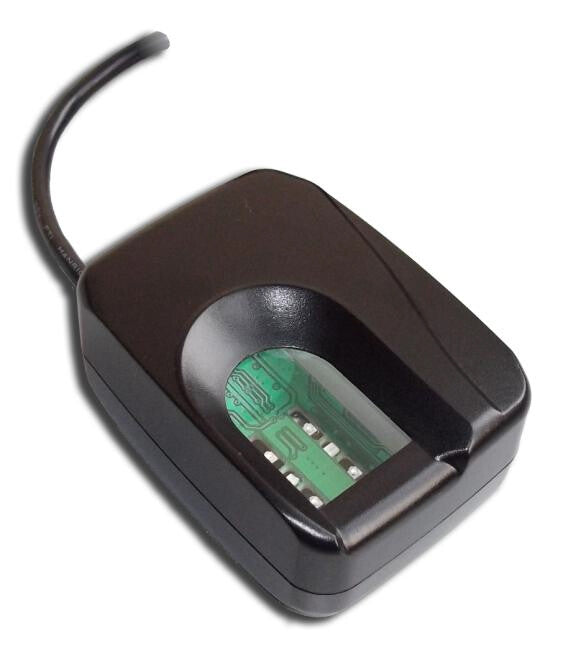

Futronic FS80H fingerprint reader 320 x 480 DPI Black

Futronic's FS80H USB2.0 Fingerprint Scanner uses advanced CMOS sensor technology and precise optical system to deliver high quality fingerprint image. It can capture an almost un-distorted raw fingerprint image into PC in 100ms. So it is good for any fingerprint recognition application.

Its finger scanning window is a crown glass with a thickness of 14mm. So it is much more reliable and robust compared to any semiconductor type fingerprint sensor.

The finger is illuminated by 4 infra-red LEDs during scanning and the light intensity is automatically adjusted according to scanning fingerprint's characteristics (wet, dry, blurred, etc) to optimize the quality of the captured fingerprint image.Special electronic circuit is built into FS80H to do Live Finger Detection (LFD). With appropriate software in PC, user can select this LFD feature so that only live finger's fingerprint will be scanned into PC. Fake fingers made from silicone rubber, play-doh, etc, will be rejected. And the LFD feature is included in all Futronic's standard software.

Futronic provides USB drivers and API for FS80H to capture a raw fingerprint image on the following platforms:

> Windows XP/2003, 32 bit and 64 bit.
> Windows Vista/2008/2012, 32 bit and 64 bit.
> Windows 7/8/10/11, 32 bit and 64 bit.
> Linux with kernel 2.4 or higher (for x86, x64 and ARM9)
> Windows CE 5.0 and 6.0 (for both x86 and ARM9)
> MAC OS(version 10.5 and higher)
> Android 3.1 and higher with USB Host port

• leaflet
