Themal Line, 250 mm/sec, 80 mm, 203 dpi, Ethernet, 55 dB, 1.7 kg

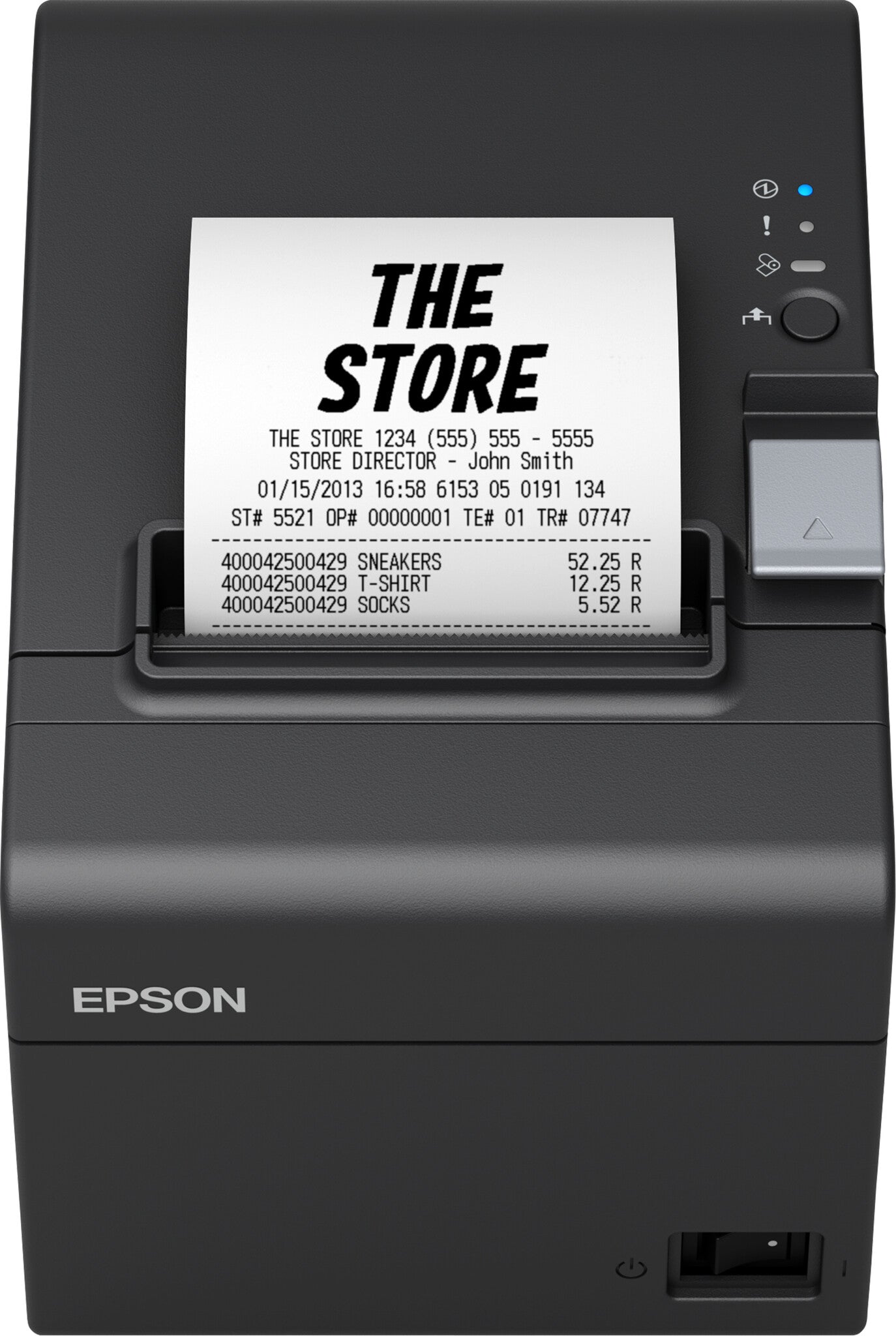

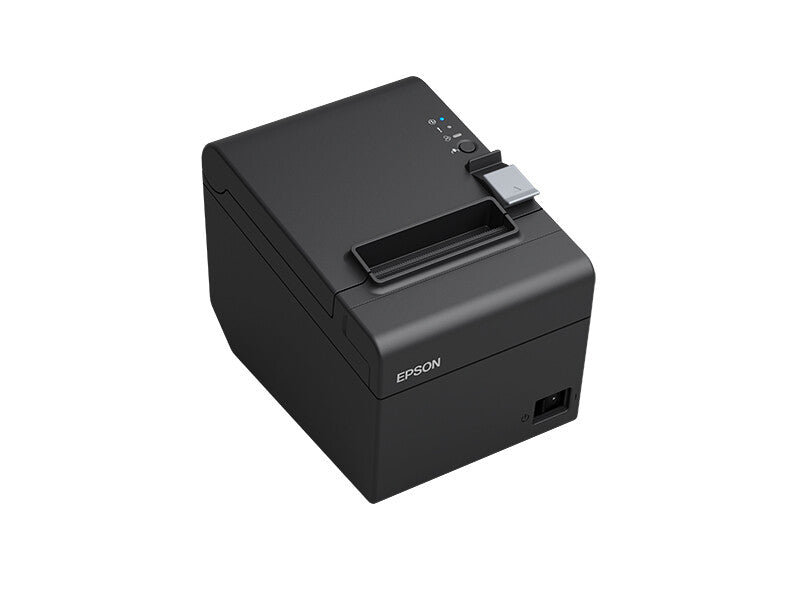

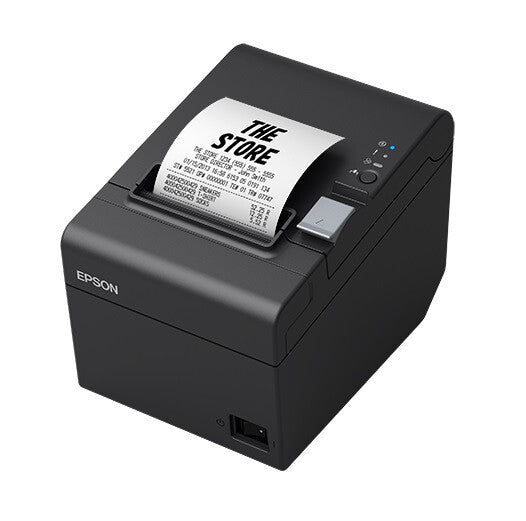

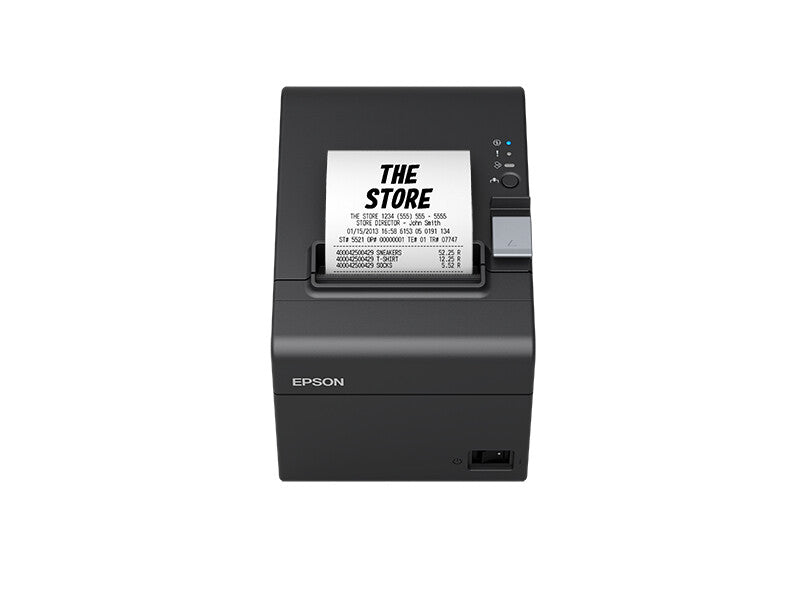

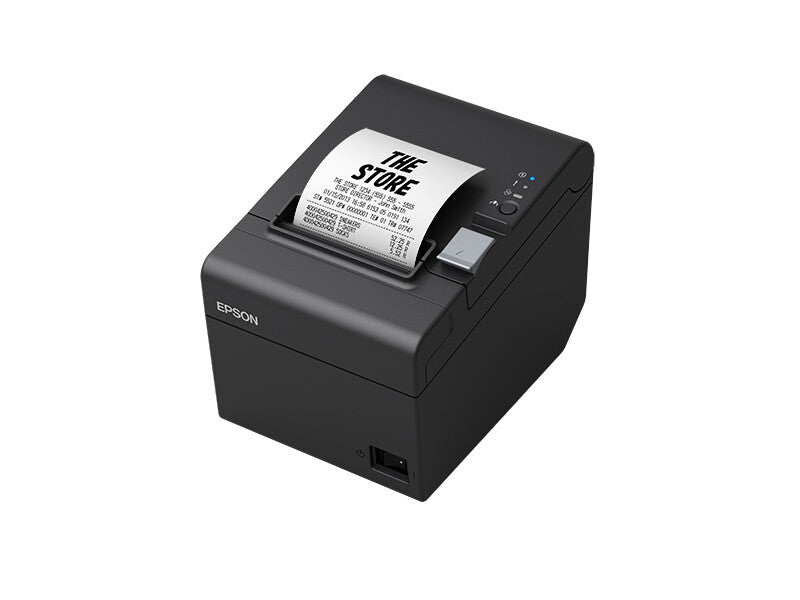

POS receipt printer
The combination of its fast print speeds, high reliability and economical operation, make this printer a must-have for small retail and speciality stores, hospitality venues and grocery stores.
Affordable
This easy-to-use model is our entry-level POS receipt printer and has an 80mm printing width. Its Automatic Paper Reduction feature reduces top and bottom margins, line feed width and barcode height, allowing for flexible receipt printing. This monitors and controls the amount of paper used. Paper costs are minimised by printing the top logo of the next receipt before cutting, so the top margin is further reduced by 12mm.
Reliable
With the mean time between failures (MTBF) of 360,000 hours and a mechanism life of 15 million lines, you can rely on the TM-T20III in high-volume printing environments.
Flexible

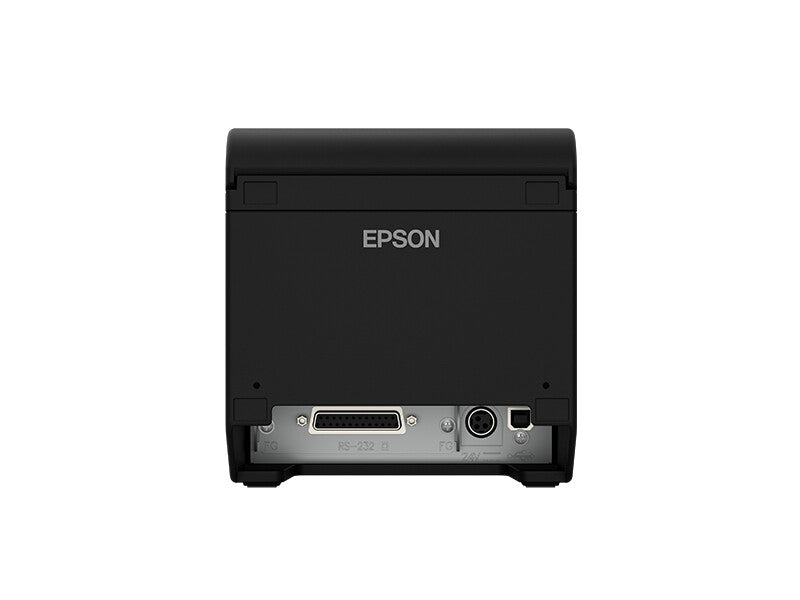

The TM-T20III comes with a built-in USB interface. You can select from two models: 1) USB + Serial, 2) Ethernet, making the model a long-term investment as it is possible to switch connectivity at any time.
Fast
Its print speed of 250mm/sec can save you time and its competitive price and running costs can save you money; ideal for when you need to beat queues quickly.
| Printing |
|---|
| Print technology |
Thermal |
| Type |
POS printer |
| Maximum resolution |
203 x 203 DPI |
| Print speed |
250 mm/sec |
| Character density |
22.6 cpi |
| Character sets |
ANK |
| Paper handling |
|---|
| Supported paper width |
48, 64, 80 mm |
| Maximum roll diameter |
8.3 cm |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Interface |
Ethernet interface (100 Base-TX / 10 Base-T), Drawer kick-out |
| Standard interfaces |
Ethernet |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Features |
|---|
| Sound pressure level (printing) |
55 dB |
| Mean time between failures (MTBF) |
360000 h |
| Cutter |
Yes |
| Autocutter durability |
1.5 million cuts |
| Print head life |
150 km |
| Country of origin |
Philippines |
| Built-in sensors details |
Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor |
| Certification |
FCC class A, CE marking, EN55022 Class A, UL, CSA, TÜV |
| Design |
|---|
| Product colour |
Black |
| Power |
|---|
| Power source type |
AC |
| AC input voltage |
24 V |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-10 - 50 °C |
| Operating temperature (T-T) |
5 - 45 °C |
| Weight & dimensions |
|---|
| Width |
140 mm |
| Depth |
199 mm |
| Height |
146 mm |
| Weight |
1.7 kg |
| Packaging data |
|---|
| Cables included |
AC |
| Quantity per pack |
1 pc(s) |
| Package width |
195 mm |
| Package depth |
235 mm |
| Package height |
285 mm |
| Package weight |
2.55 kg |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Drivers included |
Yes |
| Logistics data |
|---|
| Pallet weight (UK) |
0 g |
| Harmonized System (HS) code |
84433210 |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case width |
400 mm |
| Master (outer) case length |
490 mm |
| Master (outer) case height |
295 mm |
| Master (outer) case gross weight |
0 g |
| Products per pallet |
96 pc(s) |
| Products per pallet layer |
16 pc(s) |
| Pallet gross weight |
0 g |
| Products per pallet (UK) |
144 pc(s) |
| Products per pallet layer (UK) |
24 pc(s) |
| Technical details |
|---|
| Technology |
Thermal Line |
| Box contents |
AC adapter, C1, CD Manual, EURO AC cable, Main unit, Paper roll spacer, Power switch cover, Roll paper, Rubber feet, Setup guide, Wall hanging bracket, Warranty document |
| Other features |
|---|
| Print head life |
150 million characters |
| Mean cycles between failures (MCBF) |
60000000 |
| Buffer size |
45 KB |
