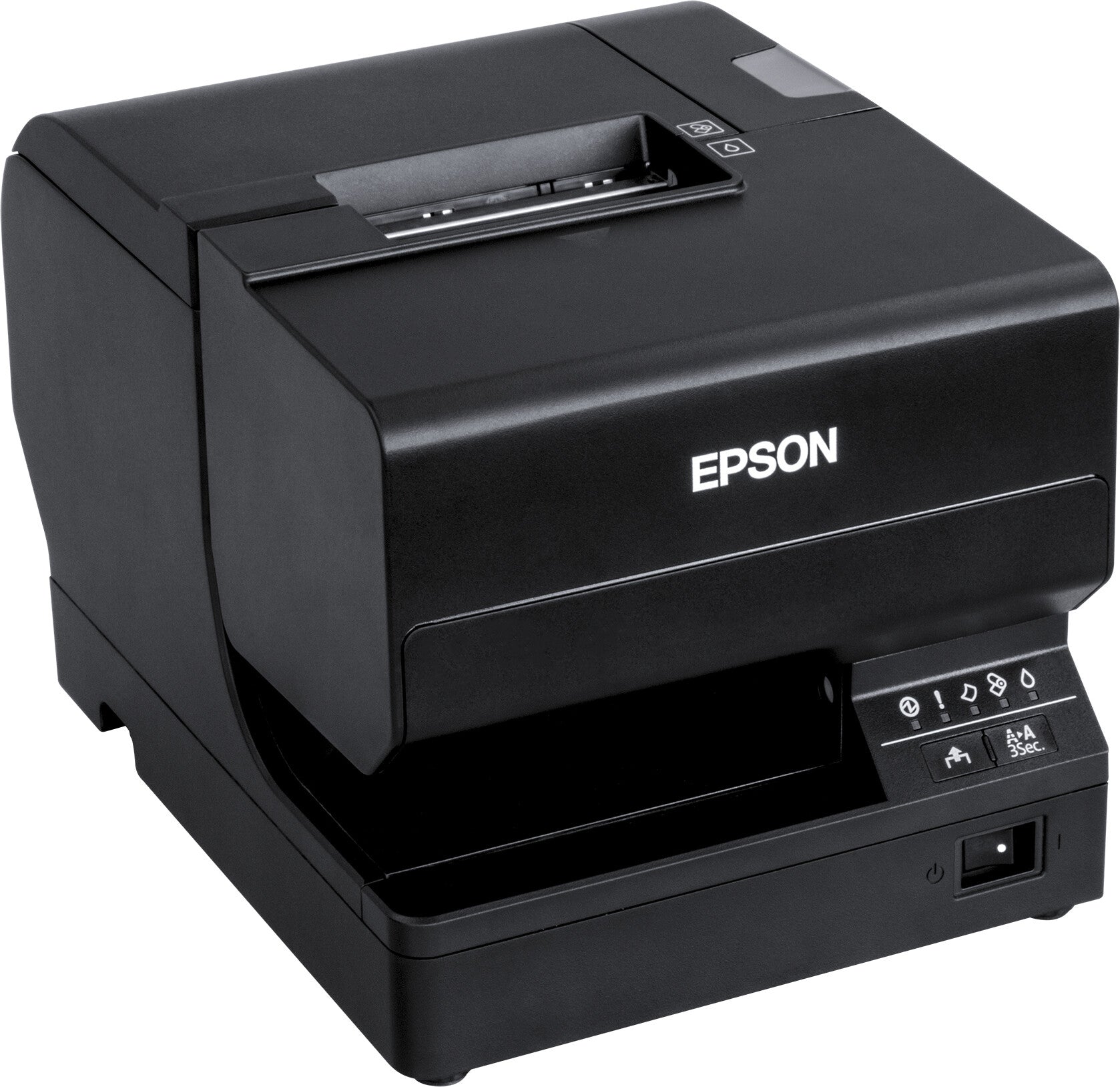

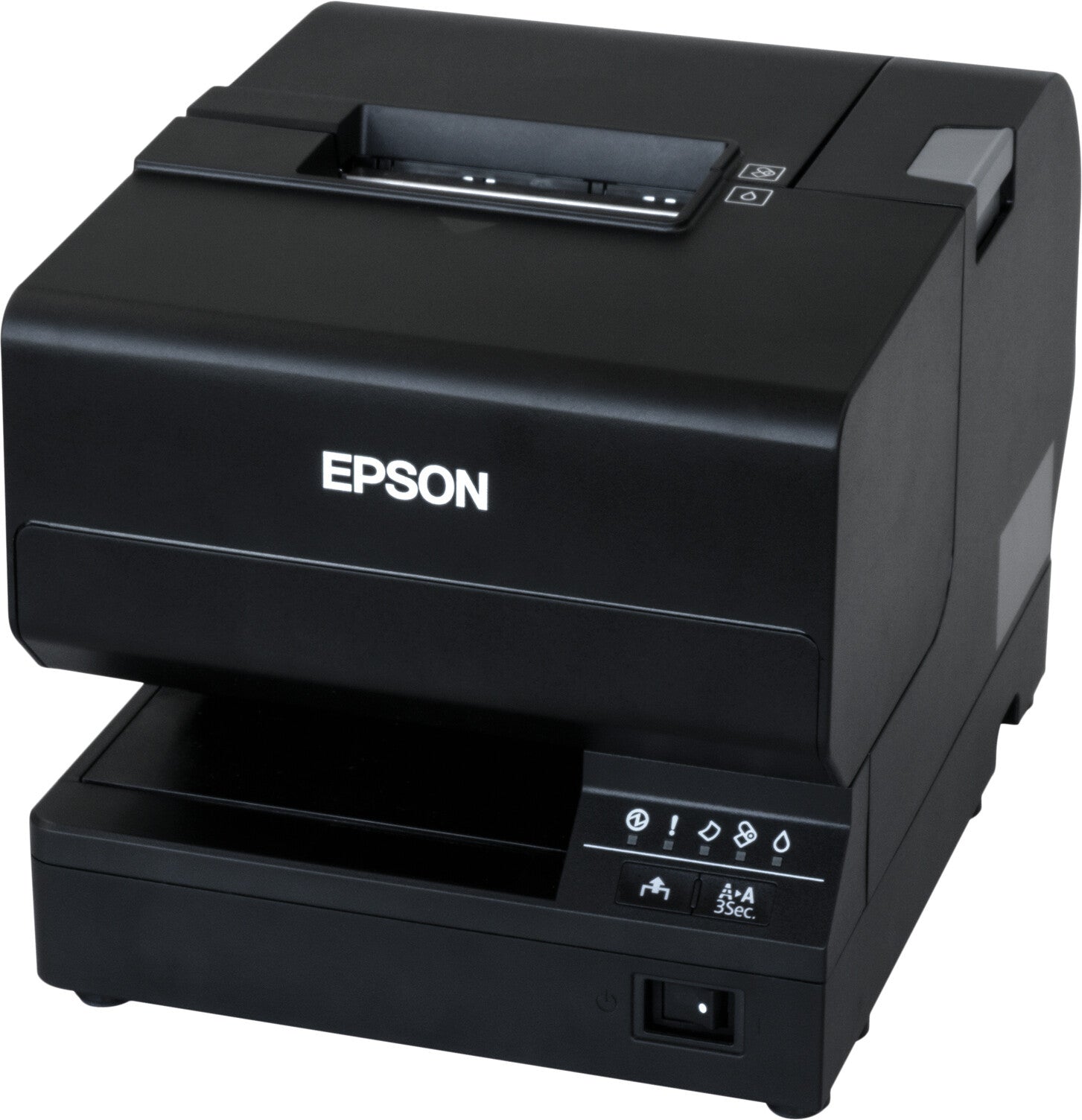

Epson TM-J7200 (301) W/O MICR,BLACK,INC PSU,EU
Versatile POS printer
The TM-J7200 multifunctional inkjet printer has been designed for use in retail environments where the facility to print receipts as well as slips, forms and coupons is required. This model uses inkjet technology for faster, higher quality printing, while maintaining a low TCO and backwards compatibility.
Faster, better inkjet technology
Inkjet technology means that not only are printouts more detailed (600dpi compared to 180dpi for existing models), they’re around twice as fast too, with a print speed of 100mm/s (23.2lps) compared to 43mm/s (13.5lps) for previous models.
Low TCO
Epson has managed to incorporate inkjet technology into this new model while retaining a similar low total cost of ownership to previous dot matrix units.
Simple maintenance
The new ink cartridges have an easy-install design ideal for busy retail counters, as well as drop-in paper roll for quick loading, and the ink formulation used offers better water and light resistance than dot matrix, so receipts and documents will last longer.
Backwards compatible
To make upgrading from existing models incredibly easy, the TM-J7200 is fully backwards-compatible with the TM-J7000 and has exactly the same footprint, so it can simply be swapped in. However to integrate smoothly with the latest ePOS systems, the new model offers both USB and Ethernet connection options.
| Printing |
|---|
| Print technology |
Inkjet |
| Type |
POS printer |
| Colour |
No |
| Print speed |
98 mm/sec |
| Print speed (graphic) |
98 mm/sec |
| Print speed (slip) |
85 mm/sec |
| Print speed (receipt) |
98 mm/sec |
| Printing characters |
Text, Graphic, Barcode |
| Character sets |
ANK |
| Alphanumeric memory |
95 |
| Paper handling |
|---|
| Maximum paper size (slip) |
230 x 297 mm |
| Media thickness |
0.06 - 0.09 mm |
| Supported paper width |
58 - 83 mm |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| USB port |
Yes |
| USB 2.0 ports quantity |
1 |
| USB connector |
USB Type-B |
| Ethernet LAN (RJ-45) ports |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Features |
|---|
| Sound pressure level (printing) |
55 dB |
| Mean time between failures (MTBF) |
180000 h |
| Half-cutter |
No |
| Autocutter durability |
1.5 million cuts |
| Country of origin |
China |
| Printer receipt unit life |
3700000000 lines |
| Printer slip unit life |
5000000 lines |
| Safety |
TÜV, TÜV (EN60950-1) |
| Certification |
CE, EN55024, EN55032 Class A, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11 |
| Design |
|---|
| Product colour |
Black |
| Power |
|---|
| Power source type |
DC |
| AC input voltage |
24 V |
| Power consumption (standby) |
70000 mA |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
20 - 85% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 40 °C |
| Operating temperature (T-T) |
10 - 35 °C |
| Weight & dimensions |
|---|
| Width |
195 mm |
| Depth |
260 mm |
| Height |
188 mm |
| Weight |
5.1 kg |
| Packaging data |
|---|
| Cables included |
AC |
| Quantity per pack |
1 pc(s) |
| Package width |
297 mm |
| Package depth |
390 mm |
| Package height |
305 mm |
| Package weight |
7.2 kg |
| Logistics data |
|---|
| Pallet weight (UK) |
0 g |
| Harmonized System (HS) code |
84433210 |
| Products per pallet |
48 pc(s) |
| Products per pallet layer |
8 pc(s) |
| Pallet gross width |
80 cm |
| Pallet gross length |
120 cm |
| Pallet gross height |
171 cm |
| Pallet gross weight |
0 g |
| Products per pallet (UK) |
60 pc(s) |
| Products per pallet layer (UK) |
10 pc(s) |
| Pallet width (UK) |
100 cm |
| Pallet length (UK) |
120 cm |
| Pallet height (UK) |
171 cm |
| Technical details |
|---|
| Voltage |
24 V |
| Font styles |
ANK |
| Other features |
|---|
| Paper dimensions |
58 mm - 83 mm |
| Mean cycles between failures (MCBF) |
5000000 |
