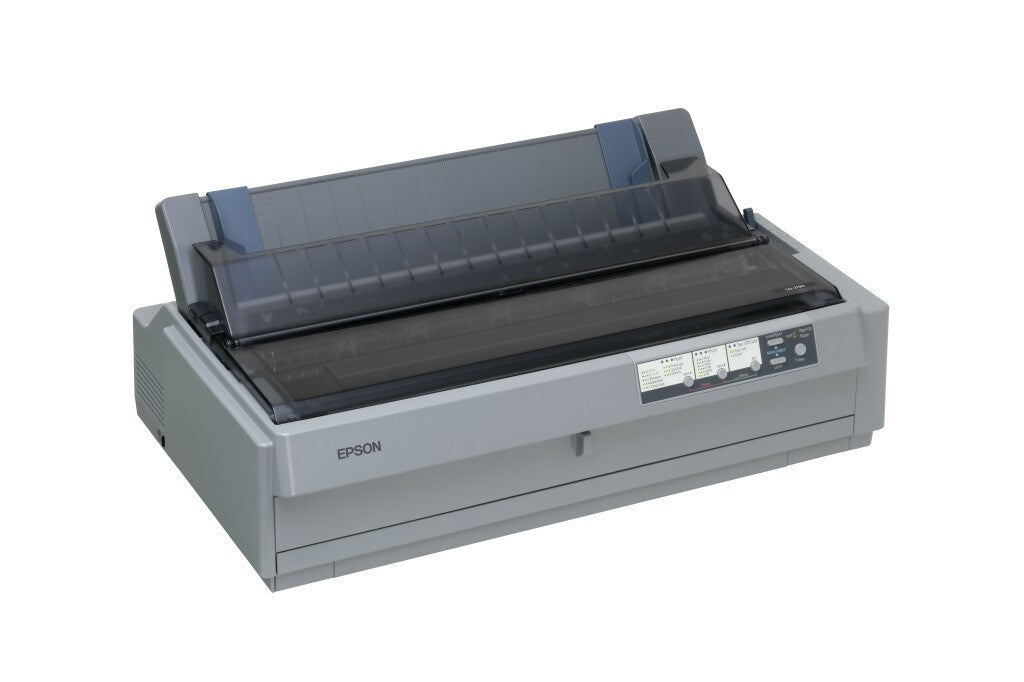

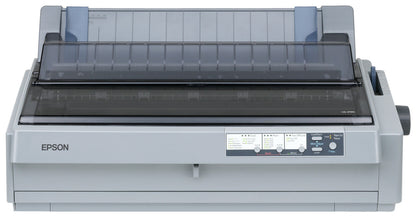

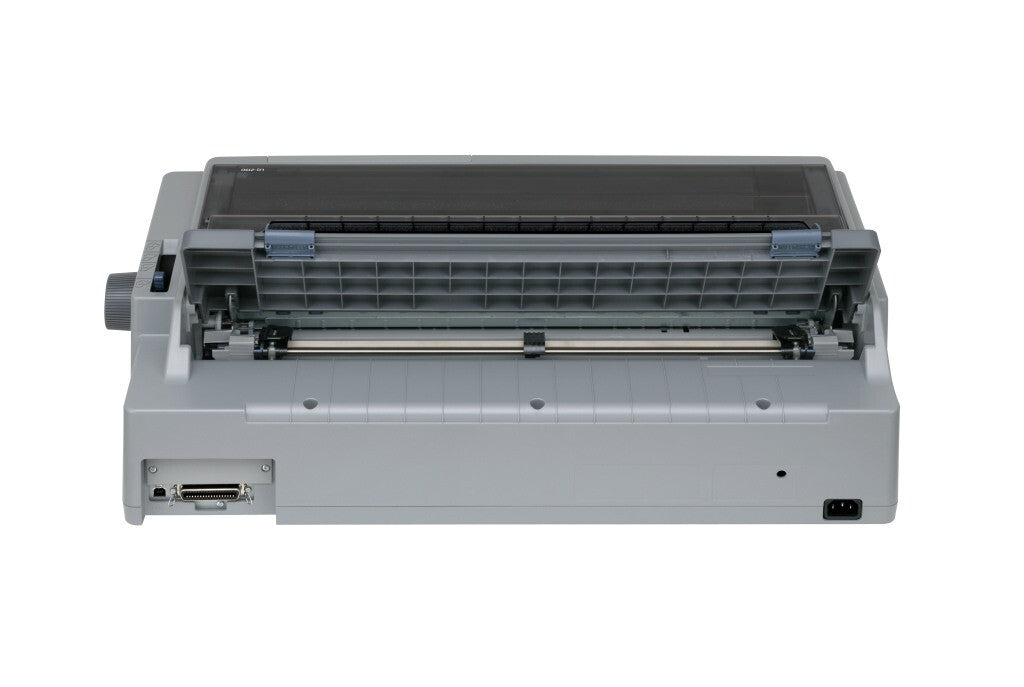

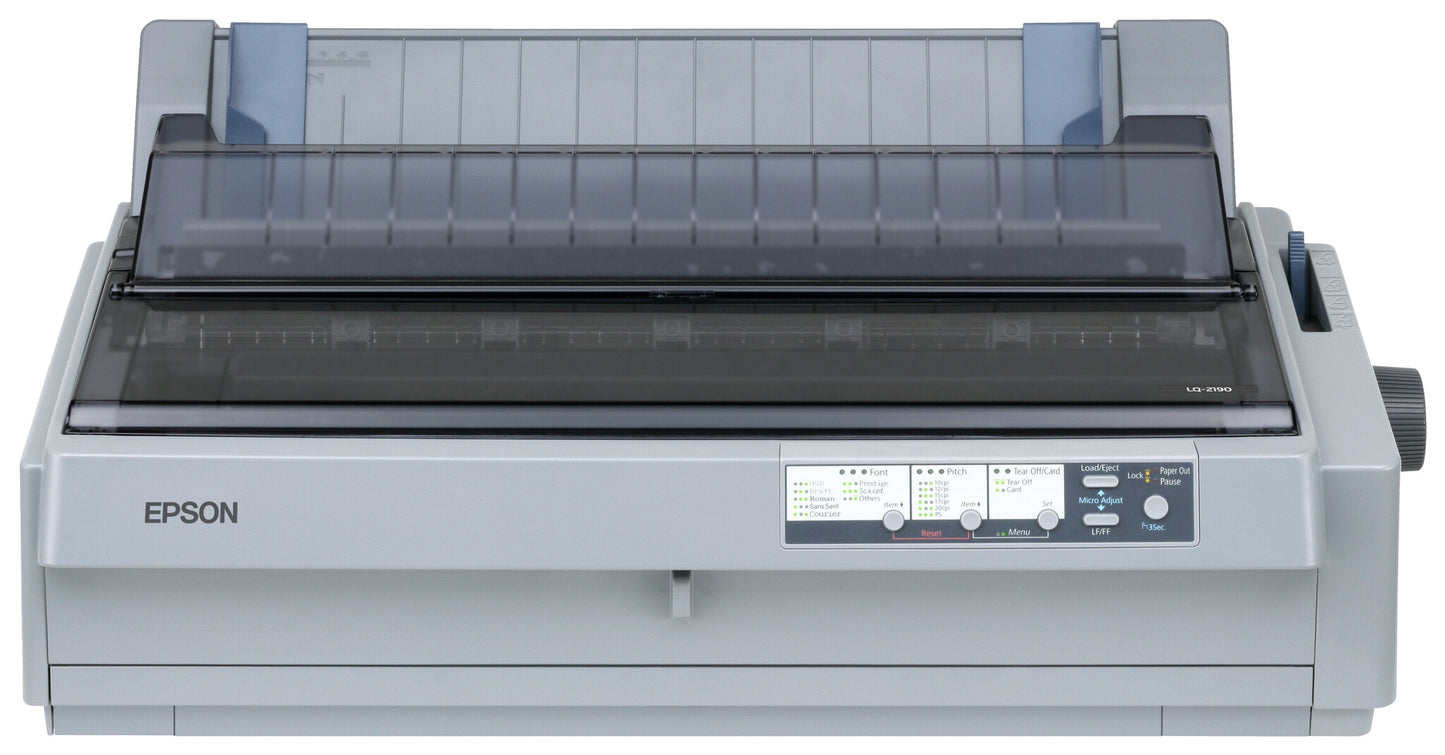

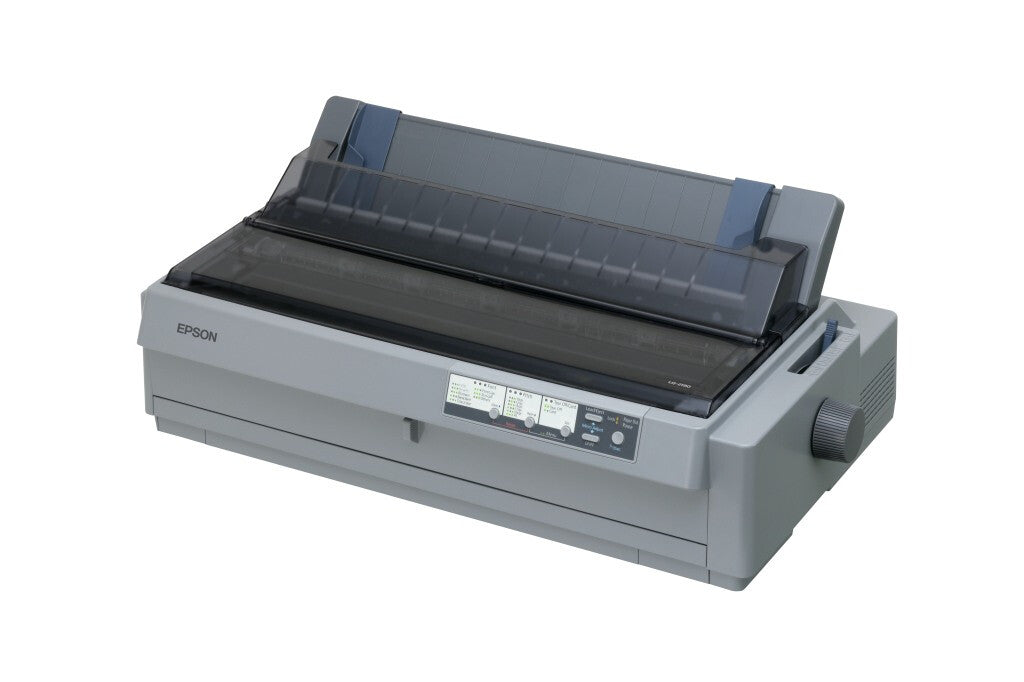

LQ-2190, 576cps, USB 2.0, 54dB
Fast and economical, the Epson LQ-2190 is a flexible and reliable printing solution that achieves a perfect balance between large print volumes and first-class quality. Cost effective and dependable, this is ideal for producing invoices, delivery notes, inventory listings and labels.
Reliability and speed
This 24-pin wide carriage printer takes care of big print jobs without a fuss. You can rely on high quality results on a wide range of paper types while the impressive 576 cps (at 12 cpi) print speed is perfect for large volume tasks. This robust device is very dependable and has a print head life of 400 million strokes per wire, plus a meant time between failure of 20,000 power-on hours.
Flexibility
Choice of front, top, bottom and rear paper paths gives you even more control over desk space management. And the addition of a USB interface means more flexibility in connectivity.
Longer ribbon life
With a ribbon life of around 15 million characters, the ribbon replacement cycles are longer, which brings down running costs and maintenance time.
| Printing |
|---|
| Scalable fonts |
Roman, Roman T, Sans Serif, Sans Serif H |
| Bitmap fonts |
Courier, Draft, OCR-B, Orator, Orator-S, Prestige, Roman, Script, Script C |
| Built-in barcodes |
Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E |
| Maximum number of copies |
6 copies |
| Character pitch |
10,12 cpi |
| Maximum print speed (LQ) |
144 cps |
| Maximum print speed (draft) |
432 cps |
| Maximum print speed |
576 cps |
| Maximum printing width (columns) |
136 |
| Maximum resolution |
360 x 180 DPI |
| Colour |
No |
| Paper handling |
|---|
| Paper tray media types |
Envelopes, Labels, Roll |
| Maximum print size |
A3 (297 x 420 mm) |
| Features |
|---|
| Country of origin |
Indonesia |
| Page description languages |
Epson ESC/P2, PPDS |
| Sound pressure level (printing) |
54 dB |
| Buffer size |
128 KB |
| Product colour |
Grey |
| Ports & interfaces |
|---|
| Optional connectivity |
Ethernet |
| Standard interfaces |
Parallel, USB 2.0 |
| Endurance |
|---|
| Mean time between failures (MTBF) |
20000 h |
| Ribbon life (black, draft) |
15 million characters |
| Print head life |
400 million characters |
| Print direction |
Bidirectional |
| Print head |
24-pin |
| Power |
|---|
| Power consumption (typical) |
46 W |
| Power consumption (standby) |
3 W |
| AC input voltage |
220 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
5 - 35 °C |
| System requirements |
|---|
| Windows operating systems supported |
Windows 2000, Windows 7, Windows 8, Windows 98, Windows Vista, Windows XP, Windows XP Home x64 |
| Bundled software |
Epson Status Monitor |
| Weight & dimensions |
|---|
| Weight |
13 kg |
| Height |
268 mm |
| Depth |
405 mm |
| Width |
693 mm |
| Packaging data |
|---|
| Package weight |
15.48 g |
| Package height |
520 mm |
| Package depth |
750 mm |
| Package width |
295 mm |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Other features |
|---|
| Needles |
24 |
| Print technology |
Dot matrix |
| Logistics data |
|---|
| Products per pallet |
14 pc(s) |
| Pallet gross length |
120 cm |
| Pallet gross width |
80 cm |
| Pallet gross height |
2.21 m |
| Products per pallet layer |
2 pc(s) |
| Products per pallet layer (UK) |
2 pc(s) |
| Products per pallet (UK) |
14 pc(s) |
| Pallet length (UK) |
120 cm |
| Pallet width (UK) |
100 cm |
| Pallet height (UK) |
2.21 m |
| Harmonized System (HS) code |
84433210 |
