9-pins, 80 columns, 2 x 9needles, 612chars/s, 240 x 144DPI, 55W, 128kB
Network dot matrix printer
Fast nine-pin dot matrix printer offering outstanding reliability and extremely low TCO, as well as network capability.

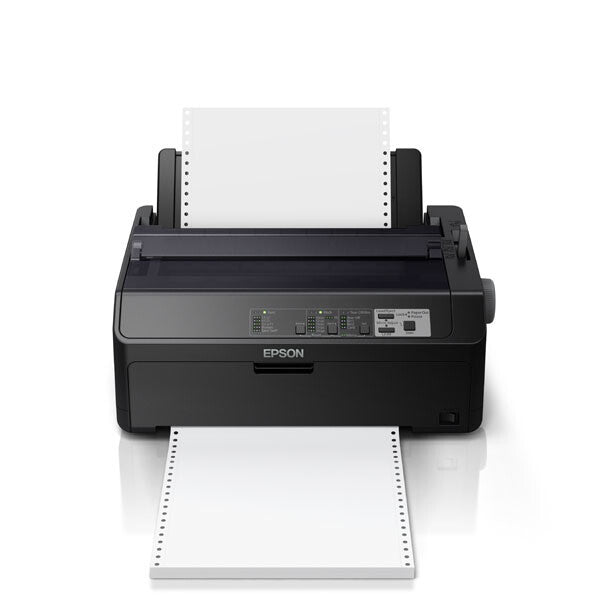

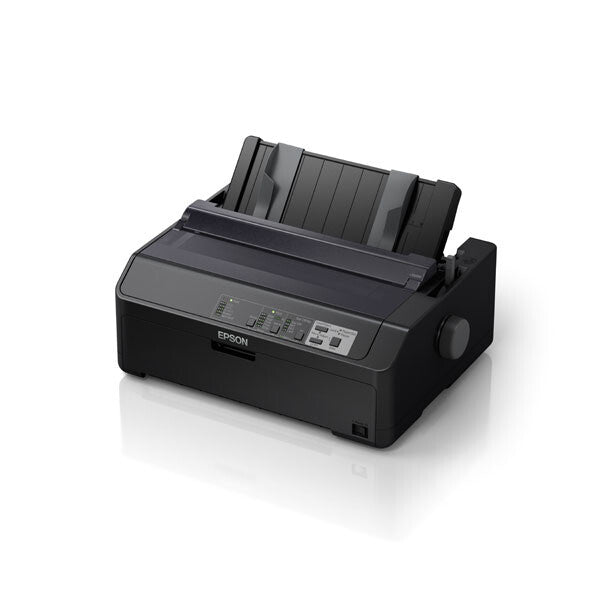

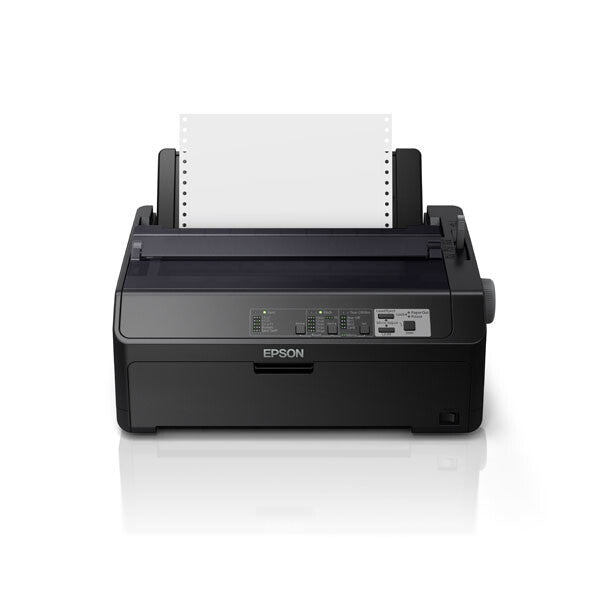

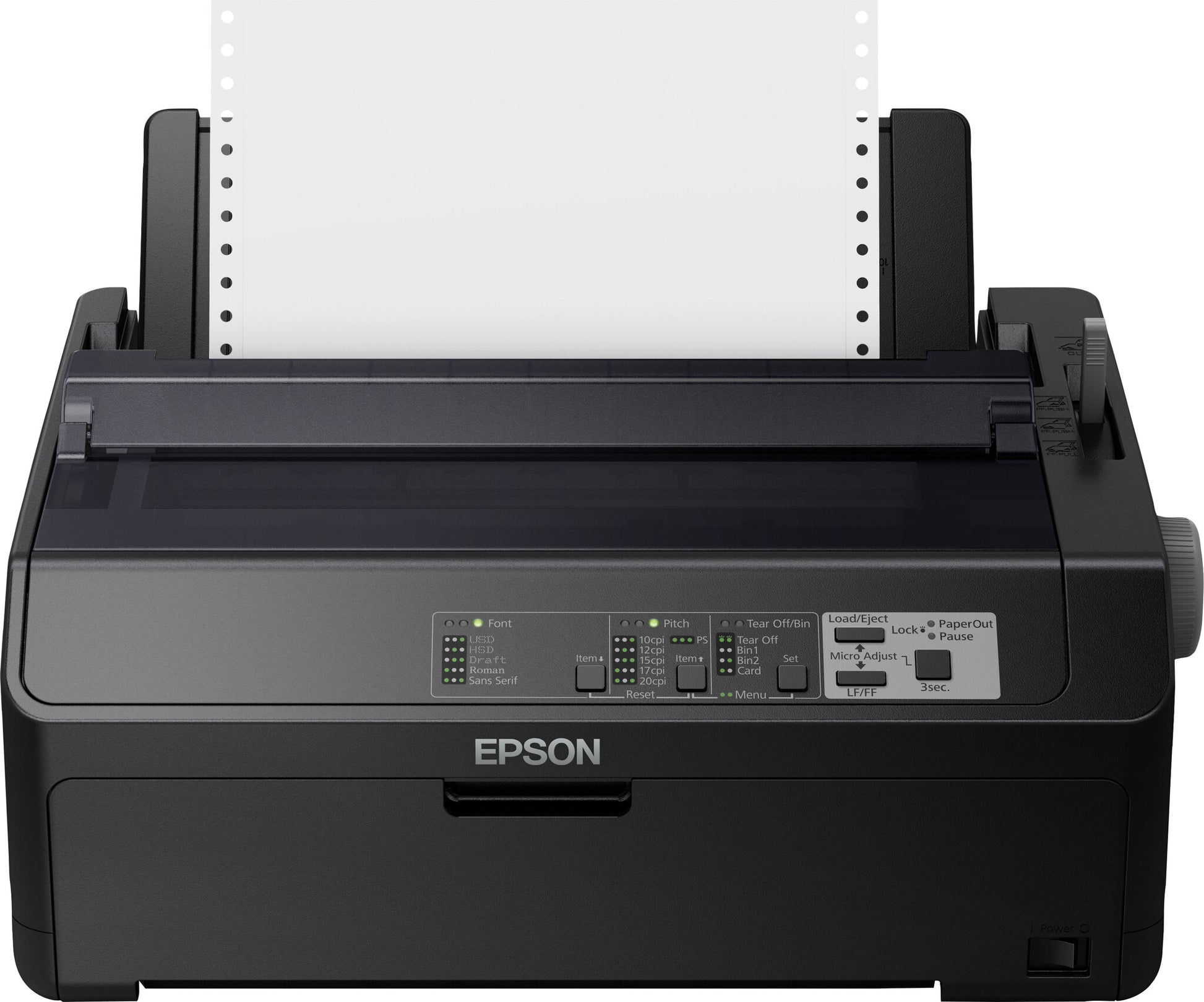

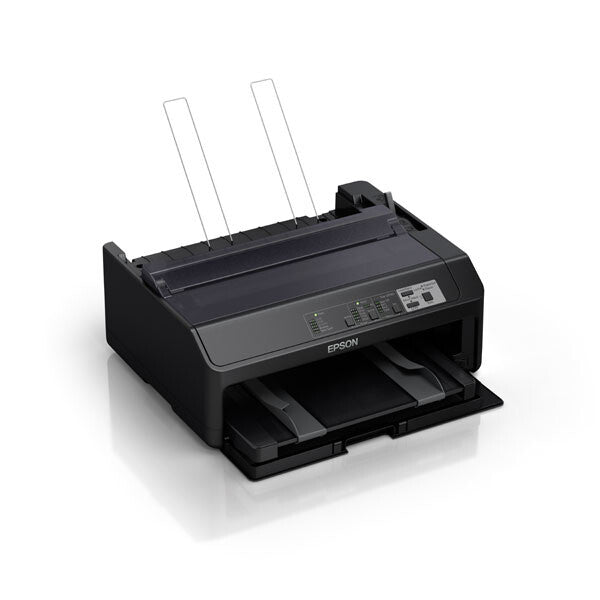

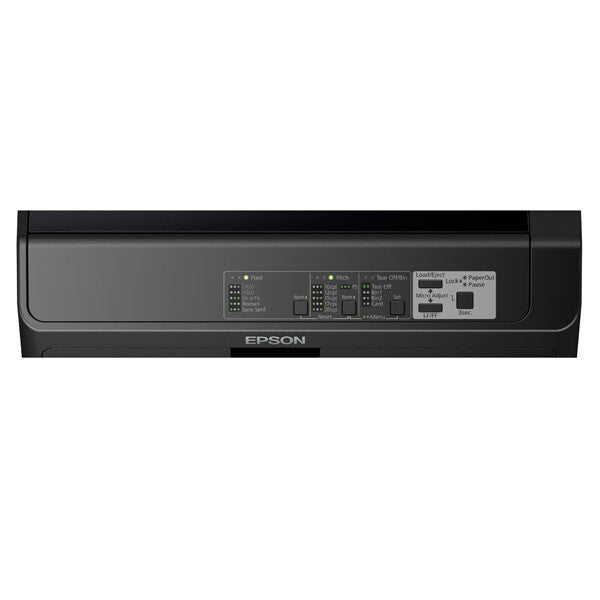

FX-890IIN
The FX-890II is a high-volume, low TCO 80-column dot matrix printer designed for fast, reliable network printing. A contemporary new design and smaller footprint make upgrading easy and add a range of new features for unprecedented flexibility.
Market-leading print speeds¹
The FX-890IIN offers an improved USD (ultra speed draft) speed of 735 characters per second at 12 characters per inch, making a real difference to high-volume print runs such as stock reports and large batches of invoices or freight documents.
Outstanding reliability
Epson's dot matrix technology is already mature and very reliable, and these new printers improve the mean time between failure by 25% to 25,000 power-on hours, ideal for challenging conditions or where regular maintenance is not practical.
Smaller footprint
Epson's new range of dot matrix printers has a refreshed design with a smaller footprint - depth has been reduced to just 320mm - making it easy to place into a business environment.
Network capability
This is a network model which supports both serial and Ethernet connections for enhanced connectivity.
| Printing |
|---|
| Print speed |
HighSpeed-Draft: 10 cpi: 612 chars/s, Draft: 10 cpi: 463 chars/s, NLQ: 10 cpi: 115 chars/s |
| Character sets |
Italic, PC437, PC850, PC858, Roman 8 |
| Number of characters |
42 |
| Bitmap fonts |
Draft, OCR-B, Roman, Sans Serif |
| Built-in barcodes |
CODABAR (NW-7), Code 128 (A/B/C), Code 39, Industrial 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E |
| Maximum number of copies |
6 copies |
| Character pitch |
10 cpi |
| Maximum print speed (draft) |
463 cps |
| Maximum print speed |
612 cps |
| Maximum printing width (columns) |
80 |
| Maximum resolution |
240 x 144 DPI |
| Paper handling |
|---|
| Single sheet thickness range |
0.06 - 0.14 mm |
| Label thickness range |
0.46 - 0.46 mm |
| Multi-part paper thickness range |
0.12 - 0.46 mm |
| Continuous paper thickness range |
0.46 - 0.46 mm |
| Paper tray media types |
Envelopes |
| Features |
|---|
| Country of origin |
Vietnam |
| Sound pressure level (printing) |
55 dB |
| Buffer size |
128 KB |
| Product colour |
Black |

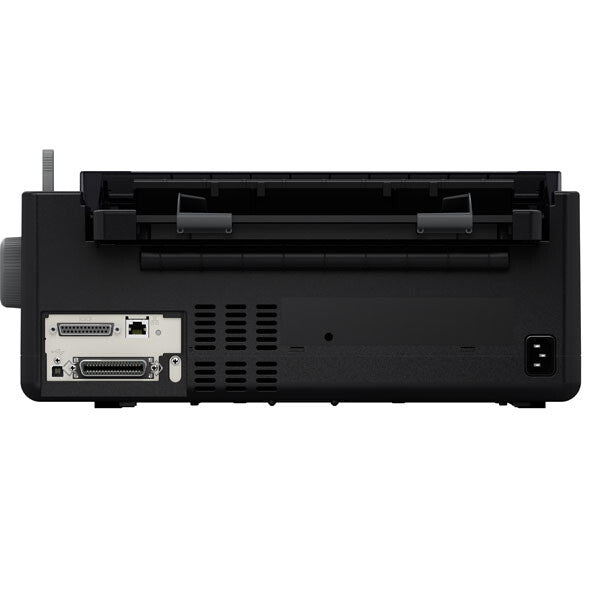

| Ports & interfaces |
|---|
| Standard interfaces |
Ethernet, Parallel, USB |
| Endurance |
|---|
| Mean time between failures (MTBF) |
25000 h |
| Print yield |
7 characters |
| Print head life |
400 million characters |
| Print direction |
Bidirectional |
| Print head |
9-pin |
| Power |
|---|
| Power consumption (typical) |
55 W |
| Power consumption (standby) |
10 W |
| AC input voltage |
198-264 V |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
30 - 60% |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-30 - 60 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Weight & dimensions |
|---|
| Weight |
7.2 kg |
| Height |
177 mm |
| Depth |
375 mm |
| Width |
414 mm |
| Packaging data |
|---|
| Package weight |
9 kg |
| Package height |
280 mm |
| Package depth |
540 mm |
| Package width |
440 mm |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Other features |
|---|
| Needles |
18 Needles (2 x 9) |
| Standard media sizes |
Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Envelopes, Cardboard |
| Box contents |
AC cable, Driver and utilities (CD), Ribbon, User guide |
| Connectivity technology |
Wired |
| Print technology |
Dot matrix |
| Logistics data |
|---|
| Pallet gross weight |
0 g |
| Pallet weight (UK) |
0 g |
| Products per pallet |
14 pc(s) |
| Pallet gross length |
120 cm |
| Pallet gross width |
80 cm |
| Pallet gross height |
3.09 m |
| Products per pallet layer |
2 pc(s) |
| Products per pallet layer (UK) |
4 pc(s) |
| Products per pallet (UK) |
28 pc(s) |
| Pallet length (UK) |
120 cm |
| Pallet width (UK) |
100 cm |
| Pallet height (UK) |
3.09 m |
| Harmonized System (HS) code |
84433210 |
