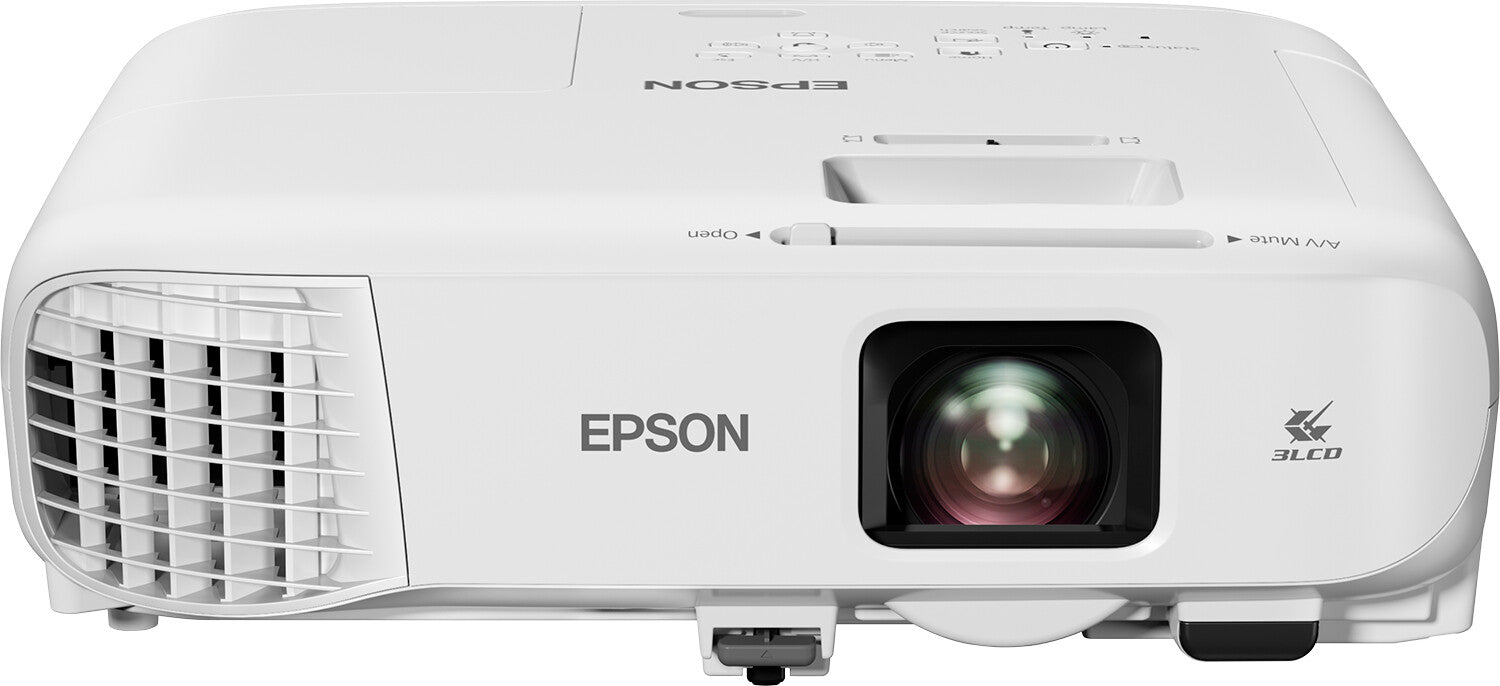

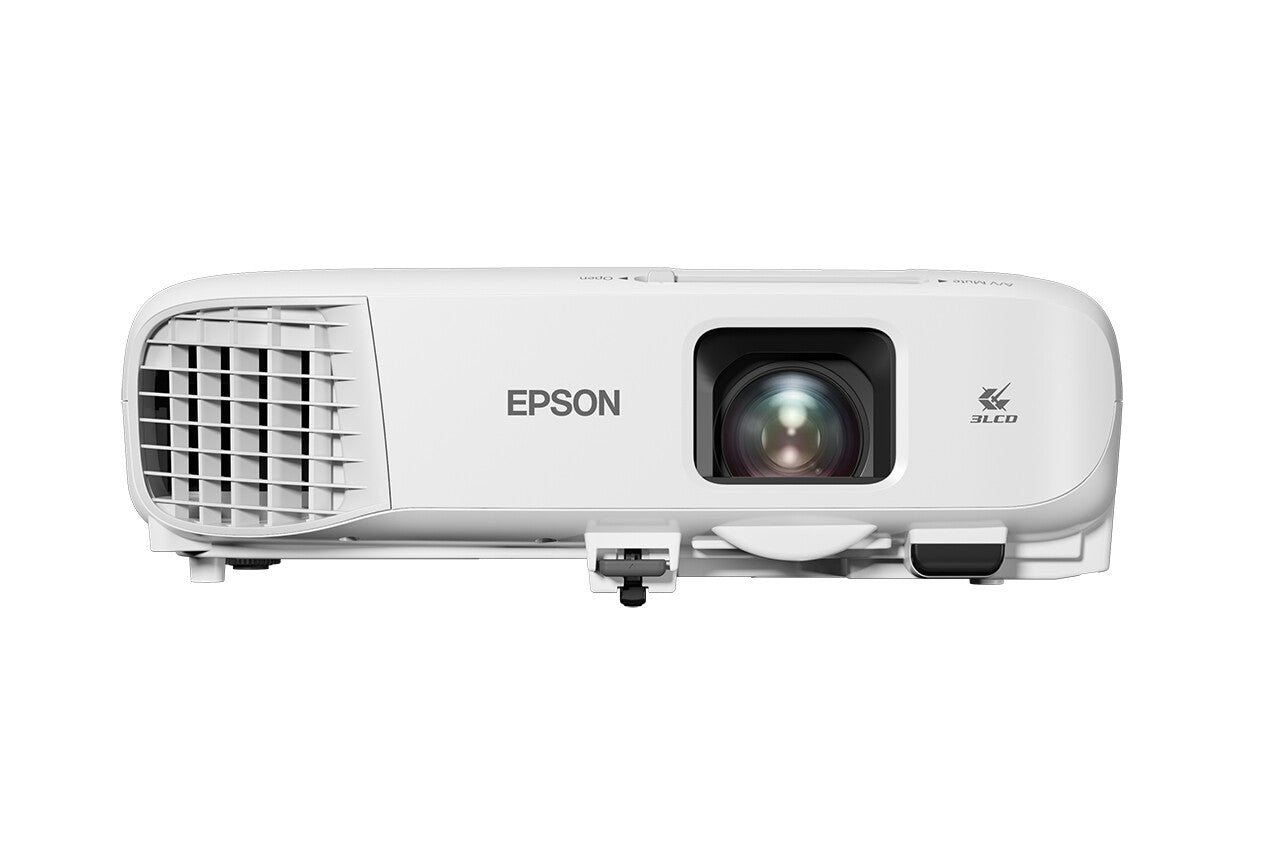

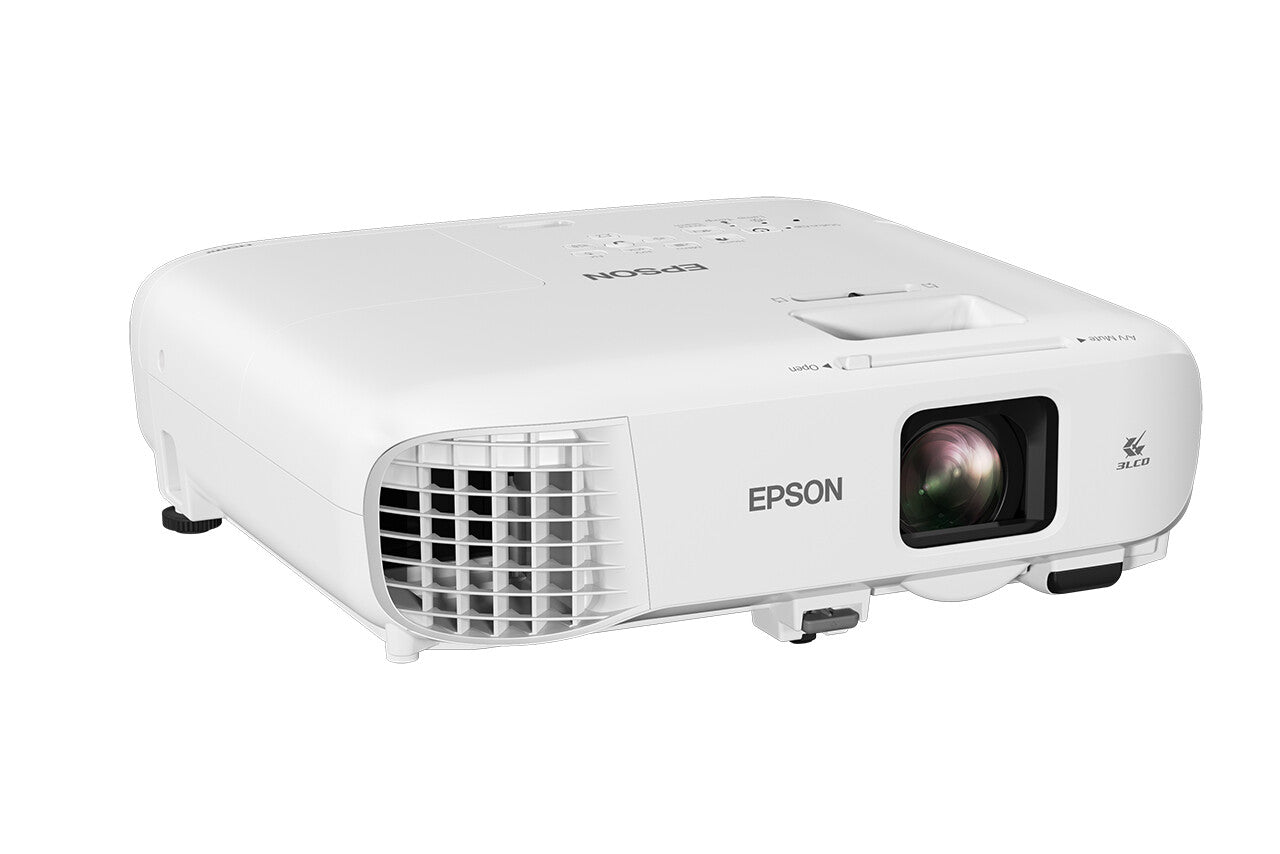

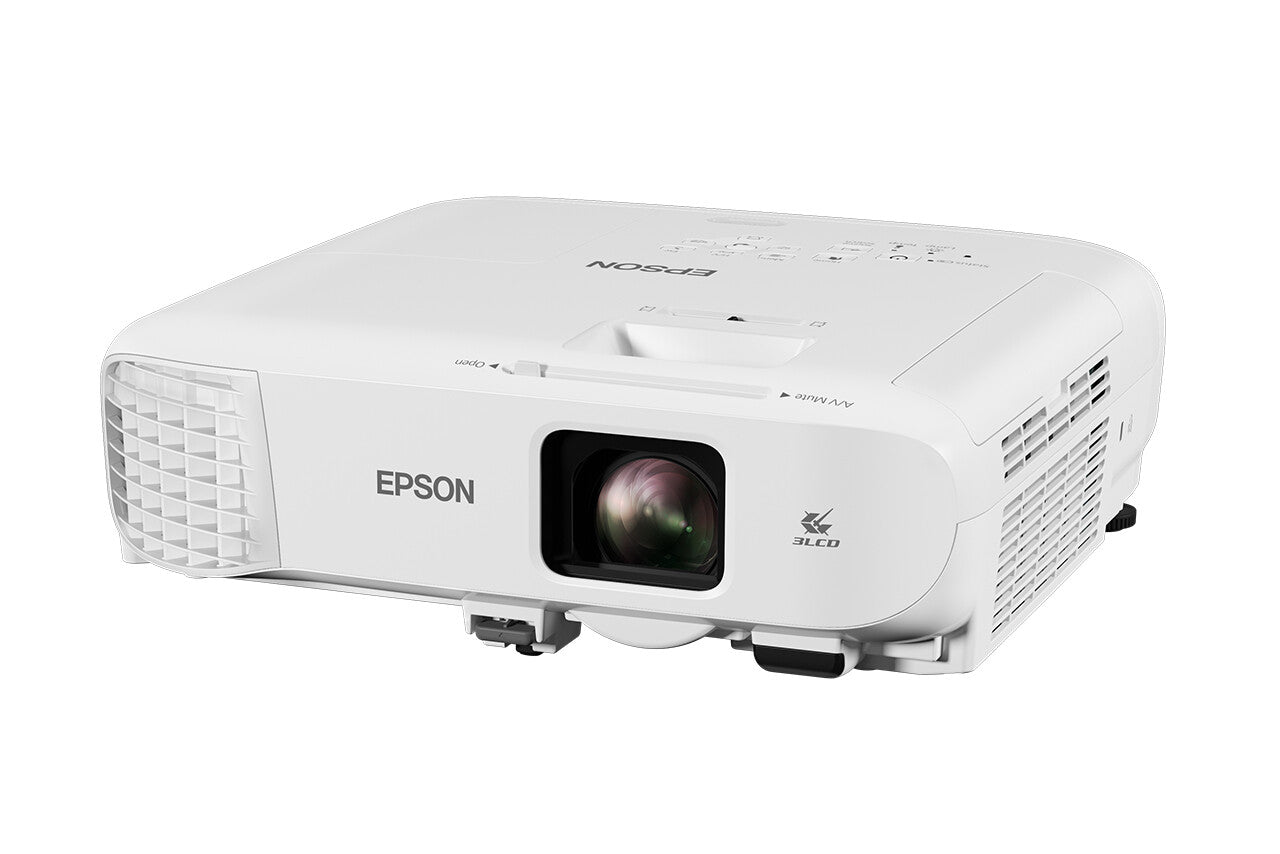

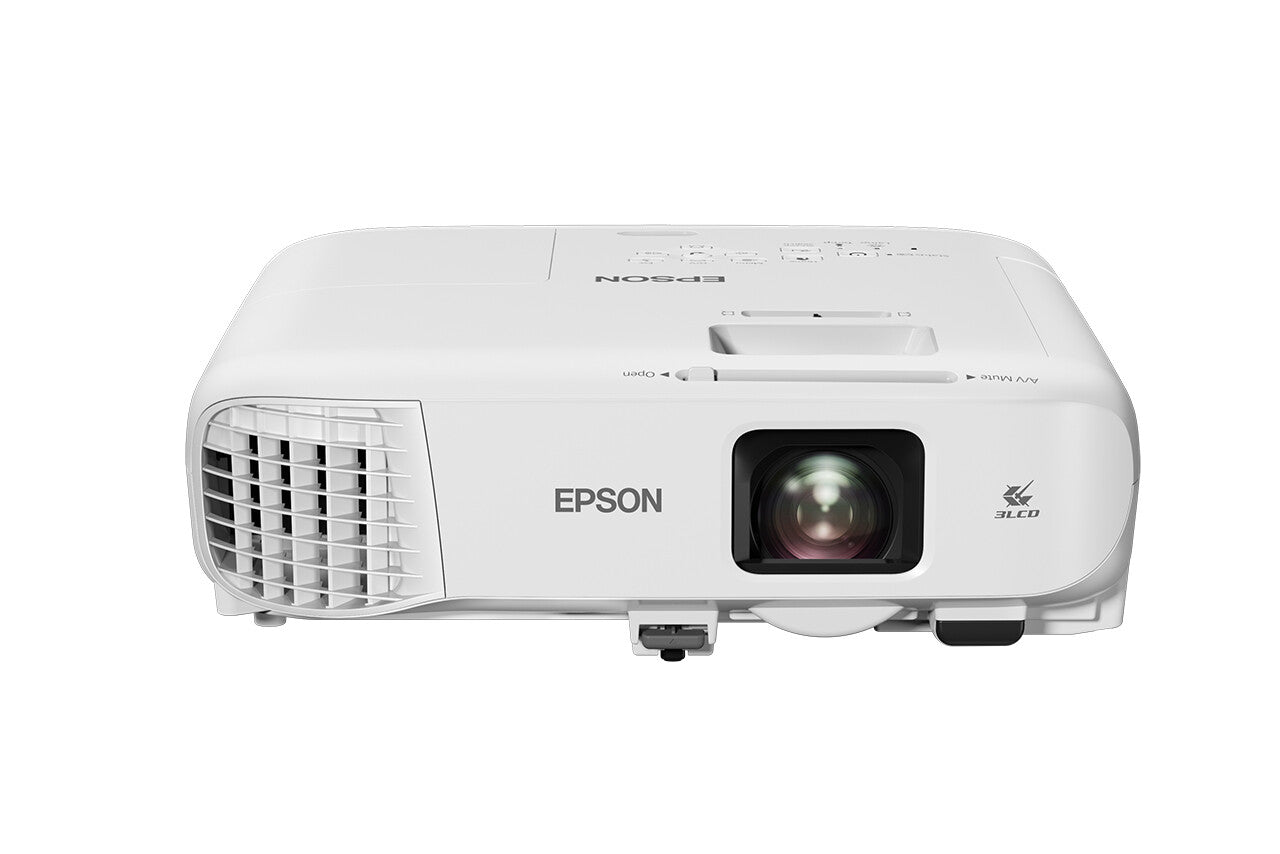

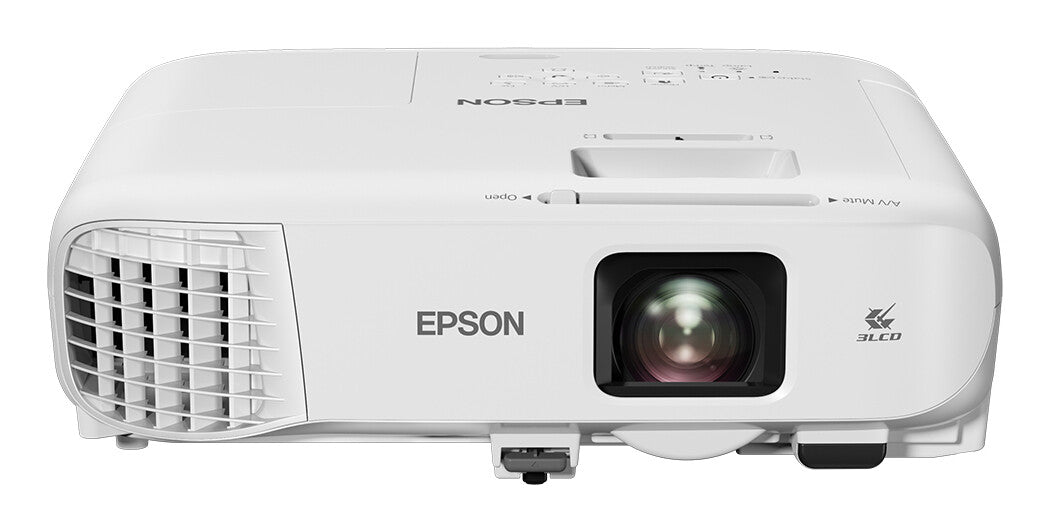

3LCD, 4200 lm, WXGA, 1280 x 800, 16:10, 16.000 : 1
Bright HD-Ready WXGA display
Optimise your presentation's potential with this bright WXGA projector that’s capable of producing a large and scalable screen size. Excessive downtime is a thing of the past with this reliable projector that can deliver years of use before a replacement lamp is required or the air filter needs attention. It has a range of connectivity solutions and is fuss free to set up.
| Projector |
|---|
| Projector brightness |
4200 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WXGA (1280x800) |
| Contrast ratio (typical) |
16000:1 |
| Native aspect ratio |
16:10 |
| Screen size compatibility |
736.6 - 7112 mm (29 - 280") |
| Projection distance (wide) |
0.9 - 8.5 m |
| Projection distance (tele) |
1.4 - 13.7 m |
| Number of colours |
1.07 billion colours |
| Projector brightness (economic mode) |
2600 ANSI lumens |
| Vertical scan range |
100 - 120 Hz |
| Matrix size |
1.5 cm (0.59") |
| Keystone correction, vertical |
±30° |
| Keystone correction, horizontal |
±30° |
| Light source |
|---|
| Light source type |
Lamp |
| Service life of light source |
6500 h |
| Service life of light source (economic mode) |
17000 h |
| Lamp type |
UHE |
| Lamp power |
230 W |
| Lens system |
|---|
| Focal length range |
18.2 - 29.2 mm |
| Aperture range (F-F) |
1.51 - 1.99 |
| Zoom capability |
Yes |
| Zoom type |
Manual |
| Zoom ratio |
1.6:1 |
| Throw ratio |
1.38 - 2.24:1 |
| Video |
|---|
| Full HD |
No |
| 3D |
No |
| Colour modes (2D) |
Cinema, Dynamic |
| Video processing |
10 bit |
| Video colour modes |
Blackboard, Cinema, Dynamic, Sports, sRGB |
| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
2 |
| Composite video in |
1 |
| DVI port |
No |
| USB 2.0 ports quantity |
1 |
| USB 2.0 Type-B ports quantity |
1 |
| Serial interface type |
RS-232C |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
|---|
| Noise level |
37 dB |
| Noise level (economic mode) |
28 dB |
| Country of origin |
Philippines |
| Password protection |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
16 W |
| Design |
|---|
| Product type |
Standard throw projector |
| Market positioning |
Portable |
| Product colour |
White |
| Placement |
Ceiling, Desktop |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
327 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (economy mode) |
225 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Software |
|---|
| Software support |
via: AMX, Crestron (Network), Control4, Extron |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
3.1 kg |
| Width |
309 mm |
| Depth |
282 mm |
| Height |
90 mm |
| Package width |
385 mm |
| Package depth |
395 mm |
| Package height |
175 mm |
| Package weight |
4.68 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Batteries included |
Yes |
| WLAN adapter included |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC, HDMI |
| Bundled software |
EasyMP Multi PC Projection, Epson Projector Management |
| Technical details |
|---|
| Mobile app support |
Yes |
| Other features |
AV Mute Slide, Automatic keystone correction, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, Wireless LAN capable, iProjecton set-up by scanning a code |
| Power consumption |
286 Watt (Normal On-Mode), 180 Watt (Eco On-Mode), 327 Watt (Normal Peak-mode), 225 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) |
| USB display function |
2 in 1: Image/ Sound |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Pallet weight (UK) |
0 g |
| Pallet gross weight |
0 g |
| Harmonized System (HS) code |
85286200 |
| Products per pallet (UK) |
72 pc(s) |
| Products per pallet |
72 pc(s) |
| Other features |
|---|
| Security features |
Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Password protection |
| Interface |
USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in (2x), Composite in, Jack plug out, Jack plug in (2x), Cinch audio out, Wireless LAN IEEE 802.11a/b/g/n/ac (optional) |
| Supported network protocols |
PJLink |
| Option type |
Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Spare lamp, Suspension adapter, WP System - ELPWP20, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Box contents |
HDMI Cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User Manual (CD-ROM), Warranty document |
| Control panel |
0.59 inch with MLA (D9) |
