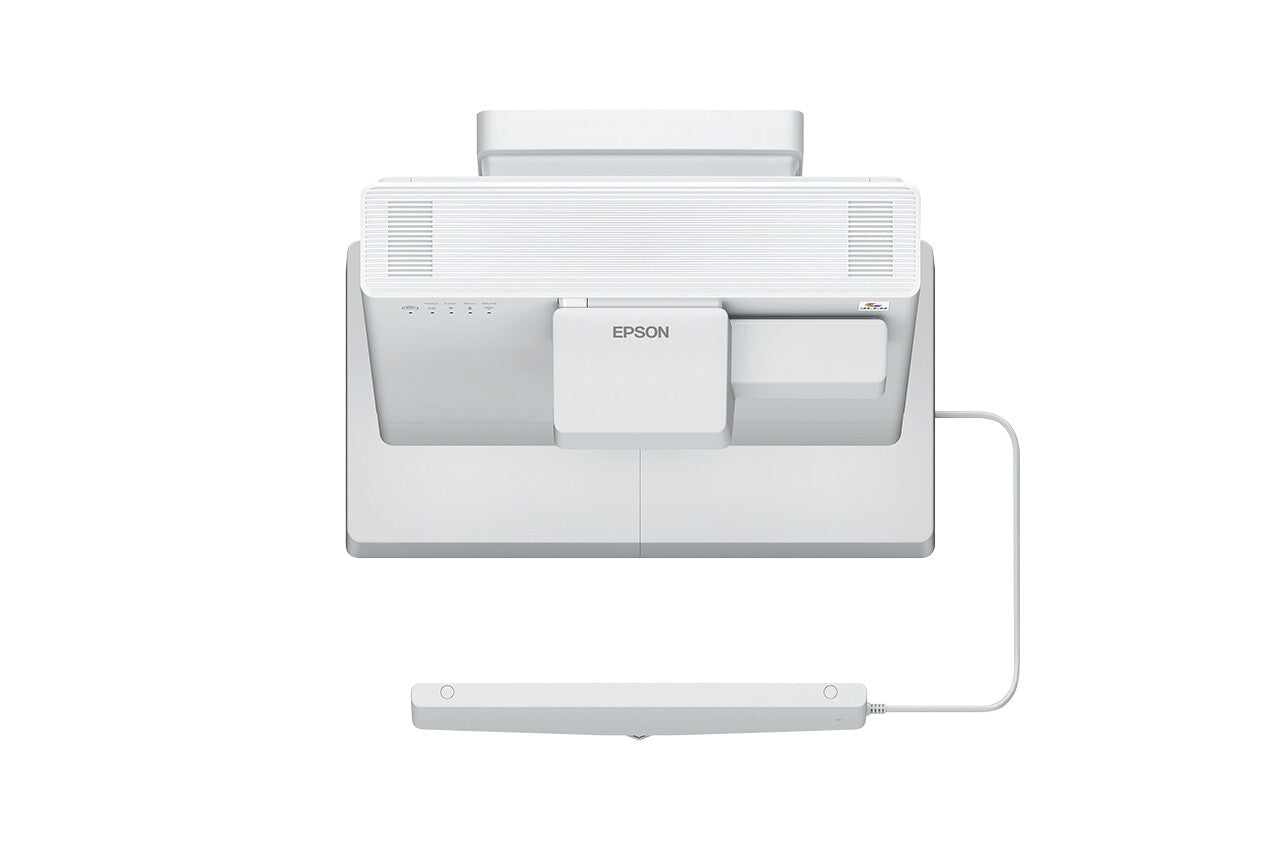

Laser, 3LCD, LCD Panel 0.62", 5000 Lumen, Full HD, 16:9, 2500000:1, 10 Bits, 192Hz-240Hz, Optical Lens, 8.68 : 1, 366W, 9.8kg
Transform your workplace with this large, scalable display that enriches collaboration and engagement, and promotes greater knowledge sharing with colleagues, clients or delegates using the latest and most versatile connectivity options. The EB-1485Fi has been designed to be easy to use, enriching collaborative and agile working environments.
Flexible display options and sizes
Deliver impactful sessions with a multi-touch display of up to 100 inches (16:9 standalone), 120 inches (16:6 standalone), or 155 inches using Epson's DuoLink feature, which combines two interactive display using built-in Edge Blending.
Sliding split screen
Combine up to four sources, such as video conference systems from multiple video sources and presentations, to optimise meeting interactions.
Transform your workplace with this large, scalable display that enriches collaboration and engagement, and promotes greater knowledge sharing with colleagues, clients or delegates using the latest and most versatile connectivity options. The EB-1485Fi has been designed to be easy to use, enriching collaborative and agile working environments.
Promotes collaboration and connectivity
The intuitive and easy-to-use UI, new touch home screen and new interactive OSD menu make it simple to set up and navigate across functions. Featuring multi-touch pen and finger capabilities, wireless BYOD connectivity and screen mirroring (Miracast). It also has secure user collaboration tools and an array of powerful connectivity options, both wireless and wired, including HDBaseT and HDMI out. The Epson iProjection App is available to download for free, providing seamless wireless connectivity and collaboration control from multiple devices and platforms. It's compatible with Windows, Office 365 suite and iOS, allowing the use of Office applications via PCs and tablets.
Fit and forget technology
Once installed, use for up to 20,000 hours without any maintenance, with the additional peace of mind of a five-year warranty. Helping to reduce running costs, and meaning you can 'fit and forget' and continue with the job in hand.
| Projector |
|---|
| Projector brightness |
5000 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
1080p (1920x1080) |
| Contrast ratio (typical) |
2500000:1 |
| Native aspect ratio |
16:9 |
| Supported aspect ratios |
16:9 |
| Screen size compatibility |
1651 - 2540 mm (65 - 100") |
| Projection distance |
0 - 0.78 m |
| Projection distance (wide) |
0 - 0.4 m |
| Projection distance (tele) |
0 - 0.6 m |
| Number of colours |
1.07 billion colours |
| Projector brightness (economic mode) |
3500 ANSI lumens |
| Vertical scan range |
192 - 240 Hz |
| Matrix size |
1.57 cm (0.62") |
| Keystone correction, vertical |
-3 - 3° |
| Keystone correction, horizontal |
-3 - 3° |
| Heat dissipation |
1244 BTU/h |
| Light source |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Lens system |
|---|
| Focus |
Manual |
| Fixed focal length |
3.9 mm |
| Zoom capability |
Yes |
| Zoom type |
Auto |
| Zoom ratio |
1.35:1 |
| Throw ratio |
0.27 - 0.37:1 |
| Video |
|---|
| Full HD |
Yes |
| 3D |
No |
| Supported video modes |
1080p |
| Video processing |
10 bit |
| Video colour modes |
Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Adjustable colour temperature |
Yes |
| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
3 |
| HDMI connector type |
Full-size |
| Component video (YPbPr/YCbCr) in |
1 |
| DVI port |
No |
| HDBaseT port |
Yes |
| USB 2.0 ports quantity |
2 |
| USB 2.0 Type-B ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Serial interface type |
RS-232C |
| PC Audio in |
Yes |
| PC Audio out |
Yes |
| DC-in jack |
Yes |
| Network |
|---|
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast |
Yes |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Interactive |
Yes |
| Interactive input supported |
Interactive pen/Touch |
| Noise level |
36 dB |
| Noise level (economic mode) |
27 dB |
| On Screen Display (OSD) |
Yes |
| Screen mirroring |
Yes |
| Composite sync |
Yes |
| Air filter |
Yes |
| Country of origin |
China |
| Password protection |
Yes |
| Compatible operating systems |
Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Windows 10, Windows 10 (32/64 bit), Windows 2000 |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
16 W |
| Design |
|---|
| Product type |
Ultra short throw projector |
| Market positioning |
Business |
| Product colour |
White |
| Placement |
Wall |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
366 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (economy mode) |
262 W |
| AC input voltage |
220-240 V |
| AC input frequency |
50 - 60 Hz |
| Software |
|---|
| Software support |
via: AMX, Crestron (Network), Extron, Crestron (RS-232C only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Windows operating systems supported |
Windows 10, Windows 10 x64, Windows 2000 |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 60 °C |
| Weight & dimensions |
|---|
| Weight |
9.3 kg |
| Width |
458 mm |
| Depth |
375 mm |
| Height |
210 mm |
| Package width |
472 mm |
| Package depth |
590 mm |
| Package height |
640 mm |
| Package weight |
27.7 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Batteries included |
Yes |
| Mounting brackets included |
Yes |
| AC adapter included |
Yes |
| WLAN adapter included |
Yes |
| Cables included |
AC |
| Manual |
Yes |
| Bundled software |
Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projektor Management |
| Technical details |
|---|
| Sustainability certificates |
TCO |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Pallet weight (UK) |
0 g |
| Pallet gross weight |
0 g |
| Harmonized System (HS) code |
85286200 |
| Products per pallet (UK) |
12 pc(s) |
| Products per pallet |
6 pc(s) |
| Other features |
|---|
| Supported network protocols |
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
