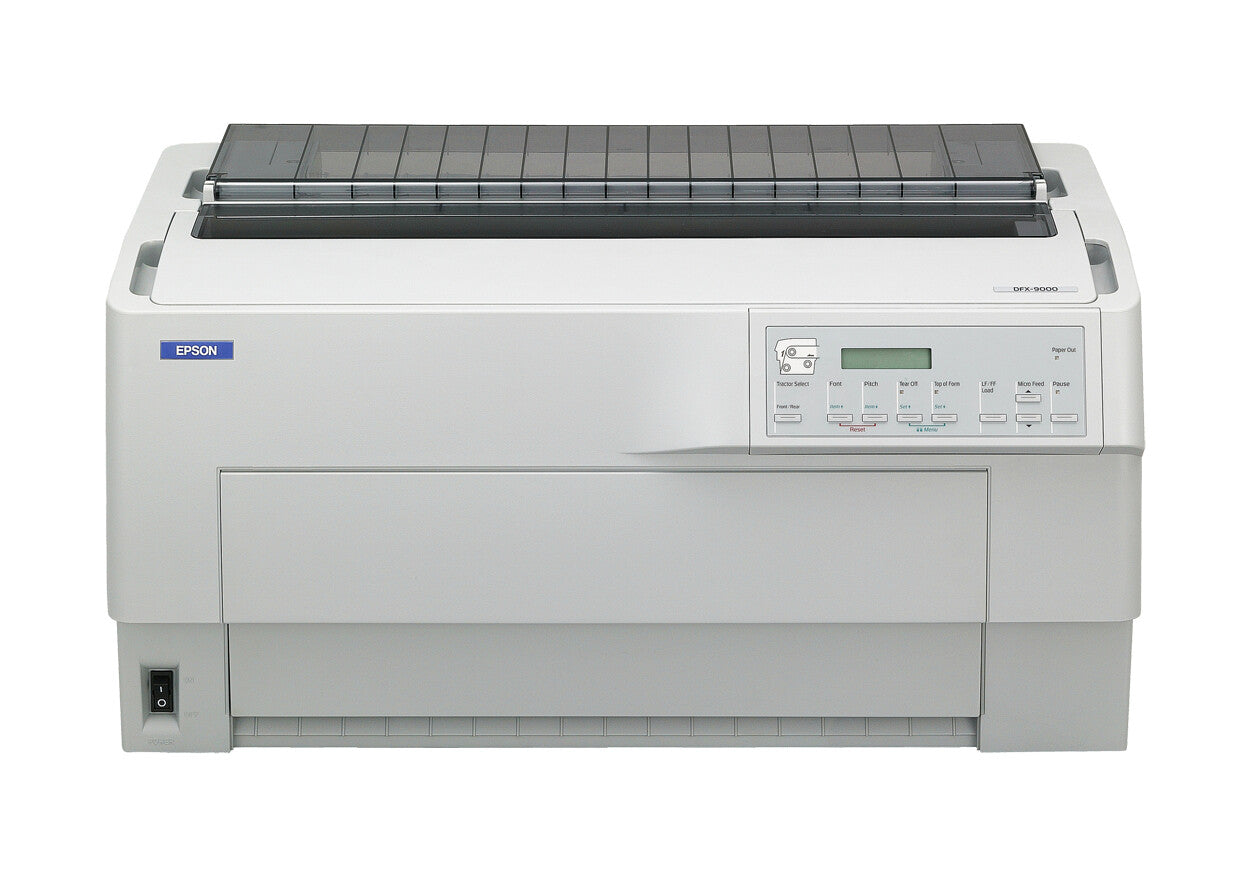

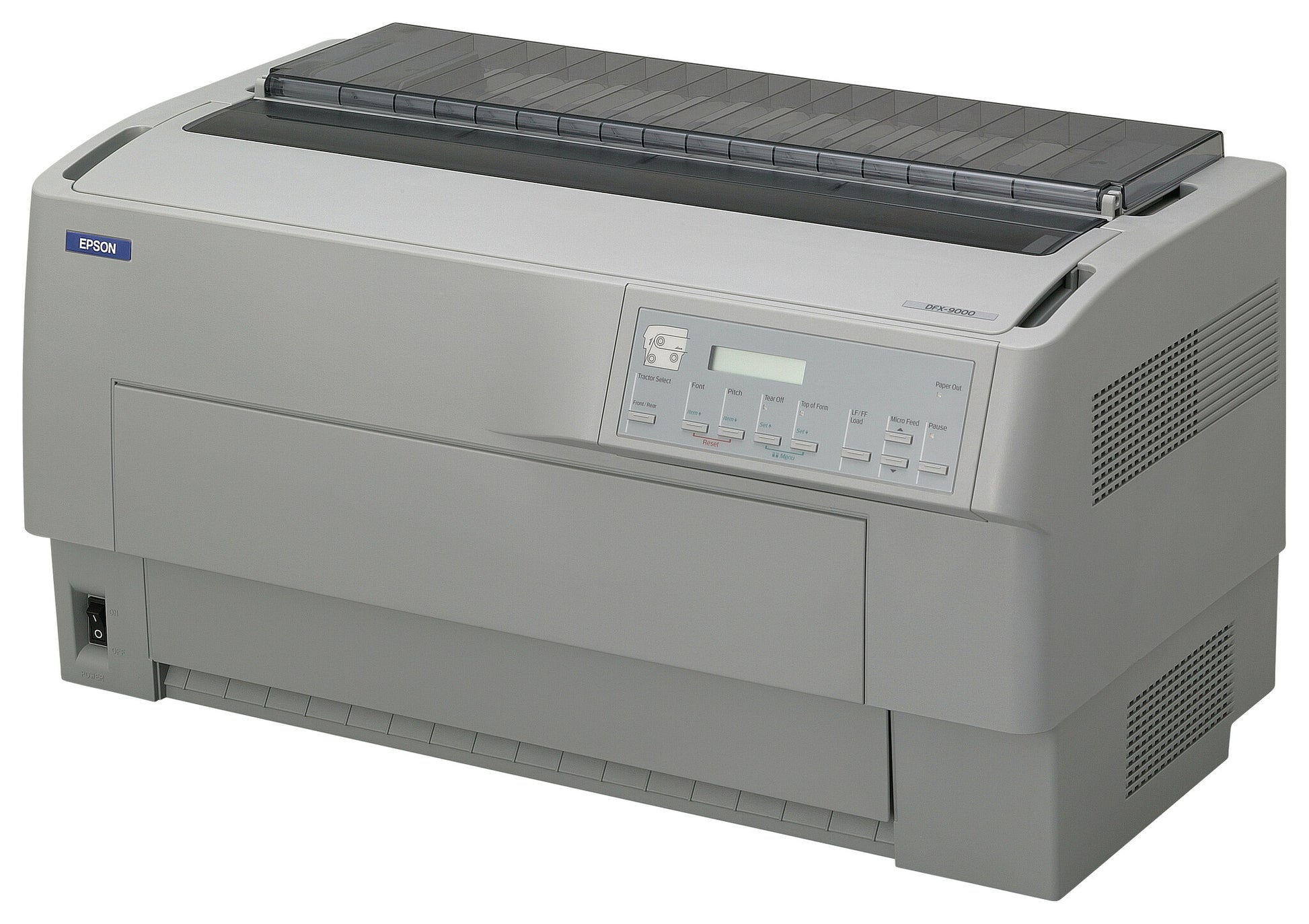

DFX-9000, Matrix Printer, 1550cps, A4
The heavy duty dot matrix printer you can rely on
The Epson DFX-9000 is the fastest 9-pin heavy duty dot matrix printer in its class. Built to bring your business speed and reliability, it gives you the power to handle the most demanding workloads quickly and at exceptional value.
Built for demanding workloads, always ready for action
Working at high speeds
Take advantage of the fastest 9-pin heavy duty dot matrix printer in its class. With a 1,550cps print speed, the Epson DFX-9000 will deliver exceptional performance in all data processing and drafting tasks.
Working reliably
You can rely on the ongoing support of a print volume of 133 million lines MVBF*, an MTBF** of 20,000 power on hours and a 15 million characters ribbon life. Durability that keeps your business working.
Working in any environment
You can integrate the Epson DFX-9000 with existing equipment, using standard USB, Parallel and Serial interfaces (optional network, twinax, coax).
Working for your business
Utilise extensive paper handling solutions to deal with a wide range of commercial, industrial and logistic printing tasks.
Print up to 10 part forms on paper from 76.2 to 406.4mm wide. And extend your printing capabilities with the optional perforation cutter.
Key Features:
- Prints up to 10 part forms (1 original + 9 copies).
- Long ribbon life of 15 million characters.
- Standard USB, Serial and Parallel interfaces (optional network, twinax, coax).
- Flexible paper handling with two tractors as standard.
- Optional perforation cutter for automatic job separation, or for remote switching between paper sources.
| Printing |
|---|
| Colour |
No |
| Maximum resolution |
240 x 144 DPI |
| Maximum printing width (columns) |
136 |
| Maximum print speed |
1550 cps |
| Maximum print speed (draft) |
1320 cps |
| Maximum print speed (LQ) |
330 cps |
| Character pitch |
10,12 cpi |
| Maximum number of copies |
10 copies |
| Built-in barcodes |
Code 39, POSTNET, UPC-A, UPC-E |
| Paper handling |
|---|
| Maximum print size |
A4 (210 x 297 mm) |
| Paper tray media types |
Labels |
| Features |
|---|
| Buffer size |
128 KB |
| Sound pressure level (printing) |
58 dB |
| Page description languages |
ESC P, PPDS |
| Country of origin |
Japan |
| Ports & interfaces |
|---|
| Standard interfaces |
Parallel, RS-232, USB 2.0 |
| Optional connectivity |
Ethernet |
| Endurance |
|---|
| Print head |
9-pin |
| Print direction |
Bidirectional |
| Print head life |
200 million characters |
| Ribbon life (black, draft) |
15 million characters |
| Mean time between failures (MTBF) |
20000 h |
| Power |
|---|
| Power consumption (standby) |
75 W |
| Power consumption (typical) |
185 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| System requirements |
|---|
| Bundled software |
Epson Status Monitor |
| Windows operating systems supported |
Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP |
| Weight & dimensions |
|---|
| Width |
700 mm |
| Depth |
378 mm |
| Height |
363 mm |
| Weight |
34 kg |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package width |
485 mm |
| Package depth |
840 mm |
| Package height |
505 mm |
| Package weight |
35.5 g |
| Other features |
|---|
| Print technology |
Dot matrix |
| Connectivity technology |
Wired |
| Needles |
36 (4 x 9) |
| Logistics data |
|---|
| Harmonized System (HS) code |
84433210 |
| Pallet height (UK) |
2.1 m |
| Pallet width (UK) |
100 cm |
| Pallet length (UK) |
120 cm |
| Products per pallet (UK) |
8 pc(s) |
| Products per pallet layer (UK) |
2 pc(s) |
| Products per pallet layer |
1 pc(s) |
| Pallet gross height |
100 cm |
| Pallet gross width |
120 cm |
| Products per pallet |
4 pc(s) |
