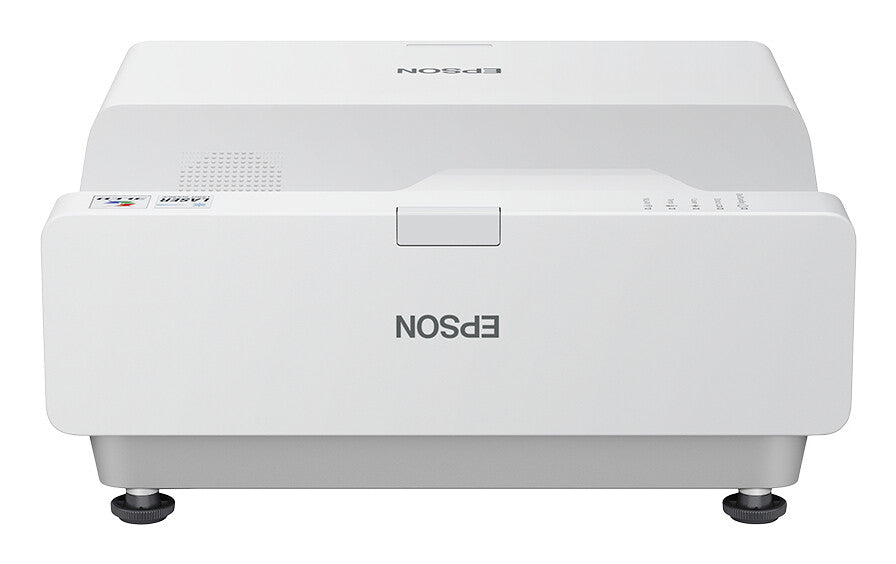

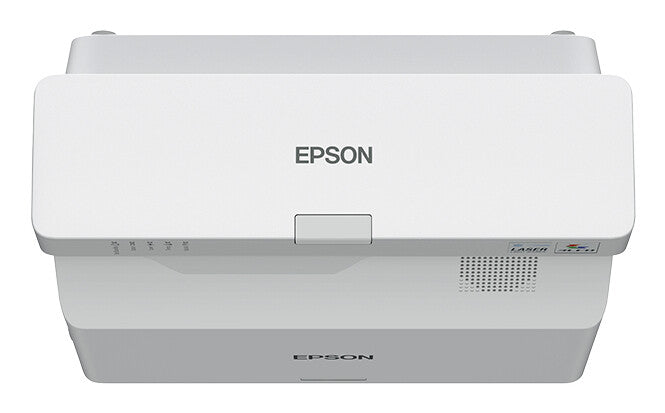

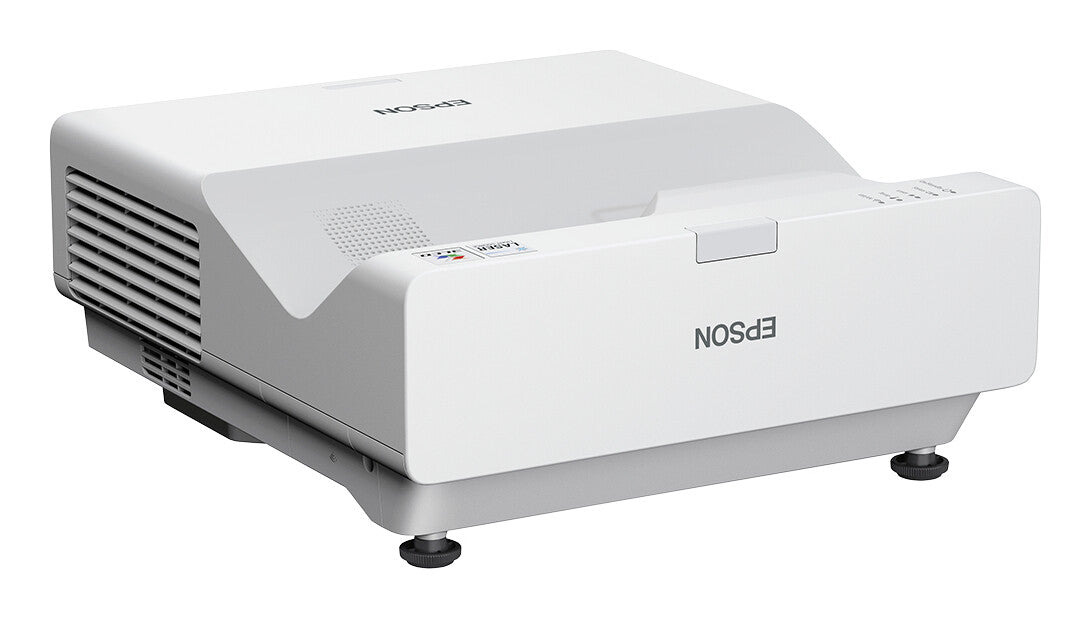

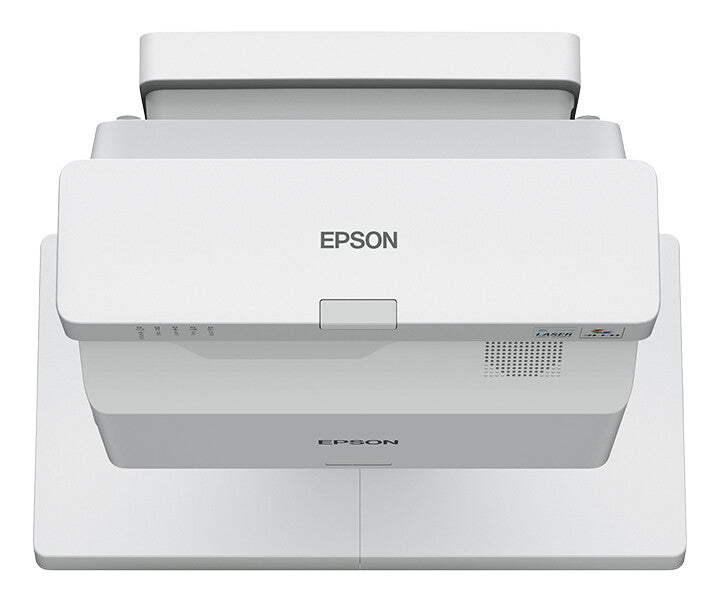

EB-770F
Agile UST laser display

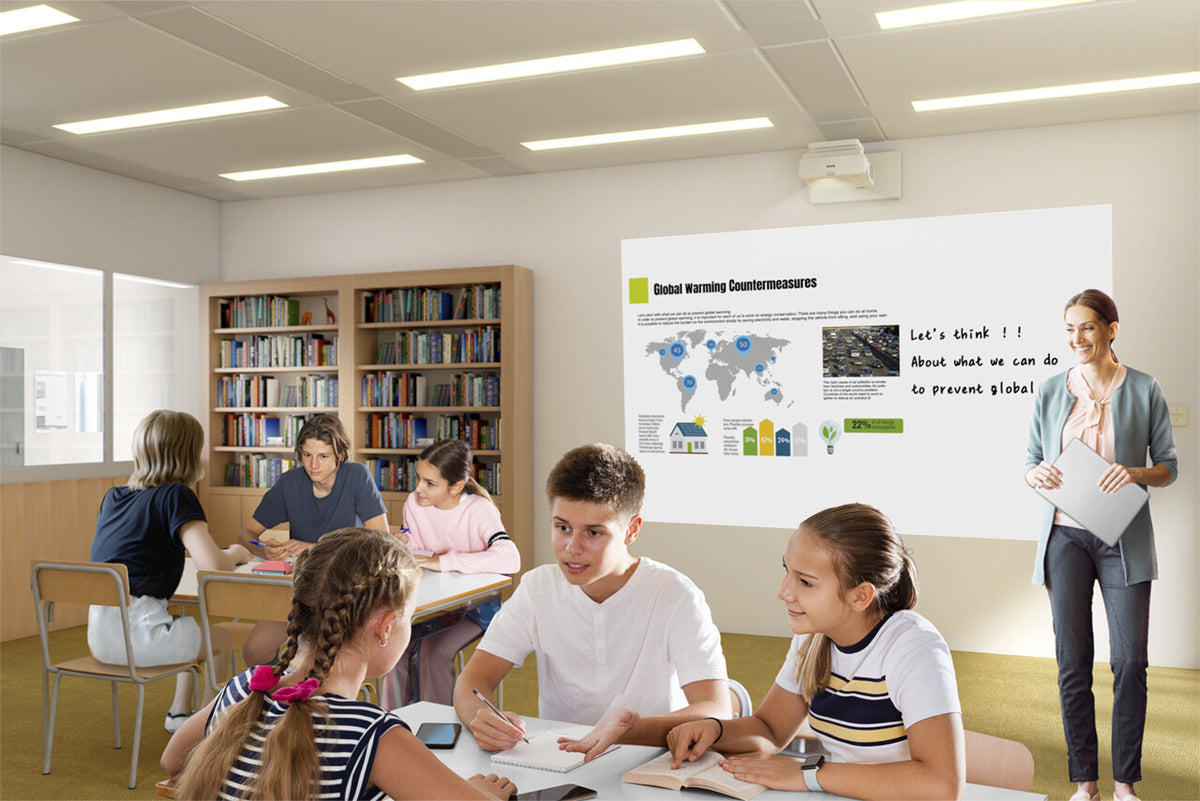

Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.
The EB-770F's bright, 1080p image, scalable up to 150", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.
The EB-770F's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.
With 4,100 lumens CLO and 3LCD technology, the display is bright and vibrant up to 150", clearly visible from all angles and at a distance. The experience is immersive and user-friendly.
Scalable from 49-150", display sizes can be optimised for each room with one product and a fixed cost, and the EB-770F supports multi-projection edge-blending for a low cost, large, seamless, energy efficient 3780x1080p image.

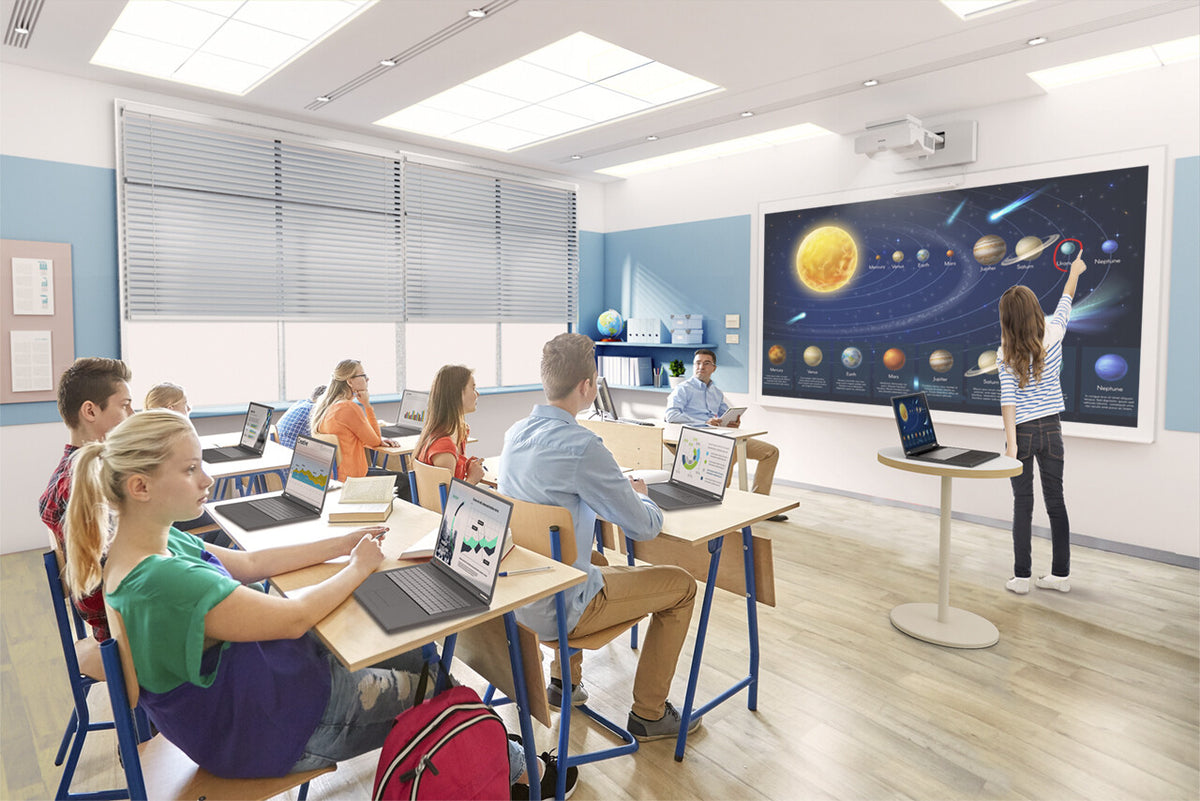

Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensures effortless, multi-device content sharing, and with a connected optional Epson visualiser, documents, presentations or 3D objects can be projected in incredible detail to the whole room.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.
| Projector |
|---|
| Projector brightness |
4100 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
1080p (1920x1080) |
| Contrast ratio (typical) |
2500000:1 |
| Native aspect ratio |
16:9 |
| Screen size compatibility |
1524 - 3810 mm (60 - 150") |
| Contrast ratio (dynamic) |
5000000:1 |
| Number of colours |
1.07 billion colours |
| Projector brightness (economic mode) |
2800 ANSI lumens |
| Vertical scan range |
192 - 240 Hz |
| Keystone correction, vertical |
±3° |
| Keystone correction, horizontal |
±3° |
| Heat dissipation |
895 BTU/h |
| Light source |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Lens system |
|---|
| Focus |
Manual |
| Focal length range |
3.7 mm |
| F-number (relative aperture) |
1.6 |
| Zoom capability |
Yes |
| Zoom ratio |
1.35:1 |
| Throw ratio |
0.25 - 0.35:1 |
| Video |
|---|
| Video processing |
10 bit |
| Video colour modes |
Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB |
| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
3 |
| Composite video in |
1 |
| USB 2.0 Type-A ports quantity |
2 |
| USB 2.0 Type-B ports quantity |
1 |
| Headphone outputs |
1 |
| Audio Return Channel (ARC) |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
No |
| Features |
|---|
| Noise level |
37 dB |
| Noise level (economic mode) |
27 dB |
| HDCP |
No |
| Screen mirroring |
Yes |
| Country of origin |
Philippines |
| High Dynamic Range (HDR) supported |
No |
| Password protection |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
16 W |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
White |
| Placement |
Ceiling, Desktop, Wall |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
197 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
5.9 kg |
| Width |
356 mm |
| Depth |
395 mm |
| Height |
133 mm |
| Package width |
450 mm |
| Package depth |
485 mm |
| Package height |
325 mm |
| Package weight |
8.73 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC |
| Bundled software |
Epson Creative Projection, EasyMP Multi PC Projection, Epson BarCode Fonts, Epson Classroom Connect |
| Technical details |
|---|
| Mobile app support |
Yes |
| Other features |
21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Point correction, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Power consumption |
197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Pallet height (UK) |
2.1 m |
| Pallet length (UK) |
120 cm |
| Products per pallet layer (UK) |
4 pc(s) |
| Products per pallet layer |
2 pc(s) |
| Pallet gross height |
2.1 m |
| Pallet gross width |
80 cm |
| Pallet gross length |
120 cm |
| Products per pallet (UK) |
24 pc(s) |
| Products per pallet |
12 pc(s) |
| Other features |
|---|
| Security features |
Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Interface |
USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, Microphone input |
| Supported network protocols |
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Option type |
Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Box contents |
Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, Warranty document |
| Control panel |
0.62 inch with C2 Fine |
