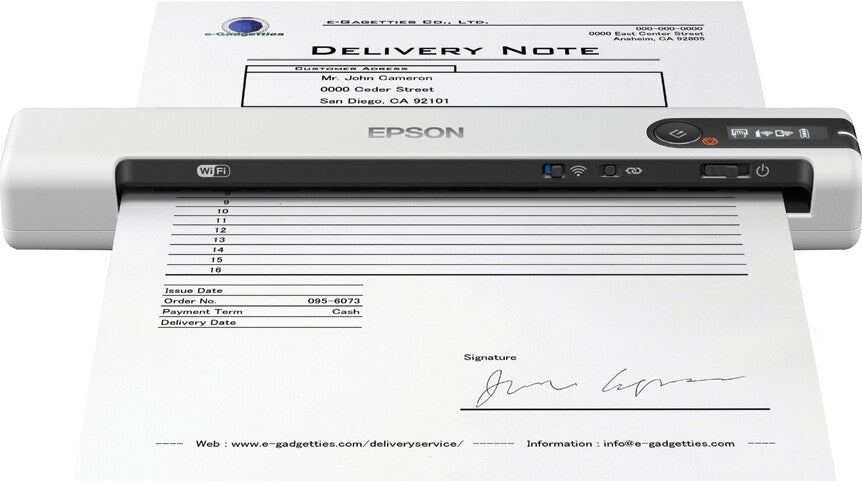

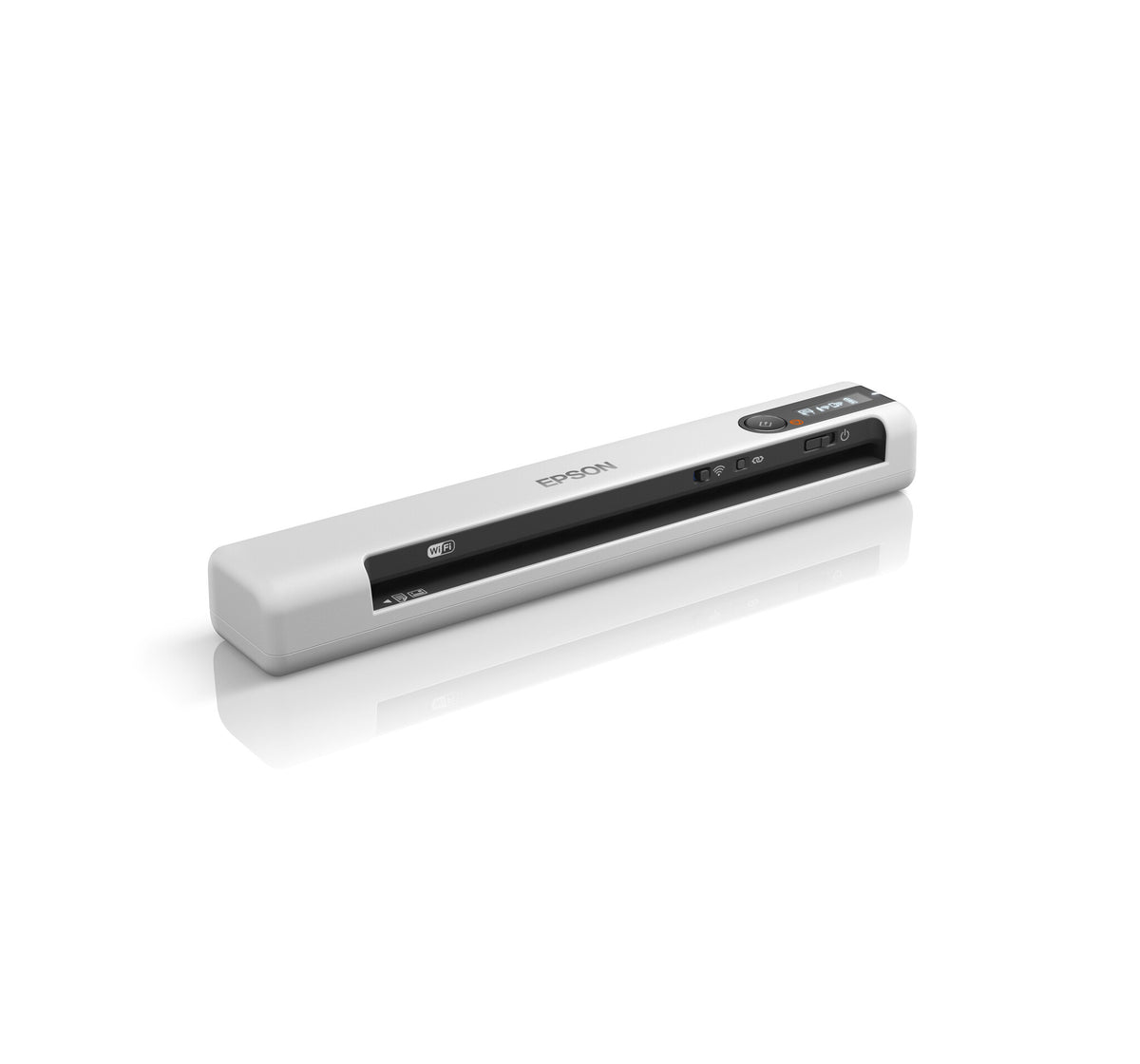

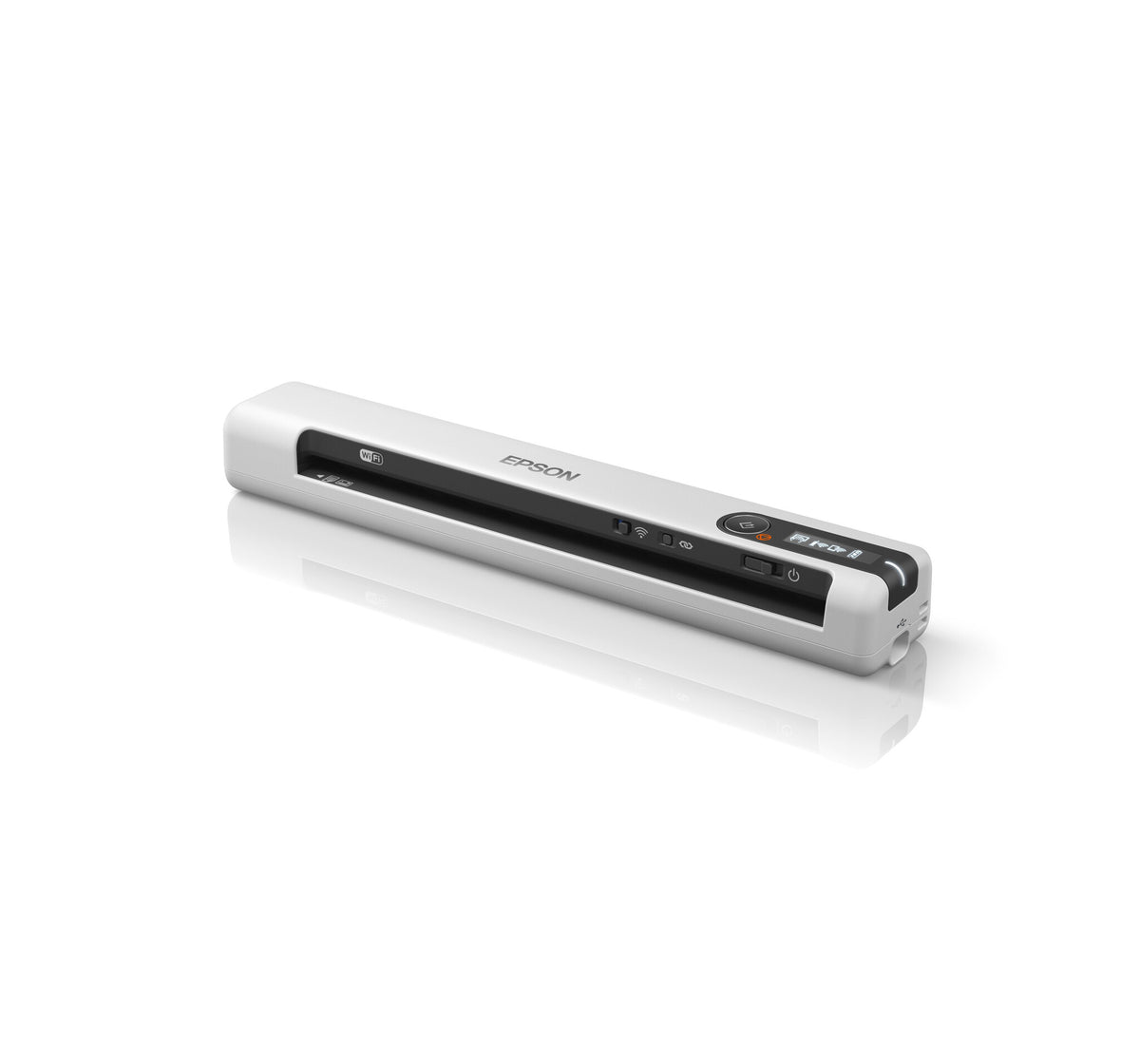

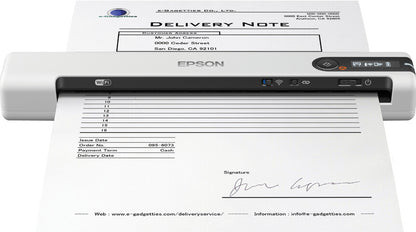

WorkForce DS-80W
The DS-80W is easy to use, set up and transport with its space-saving design, and can be used without a power source, making it even easier to stay highly organised. It detects whether it’s in wireless or USB mode - no intervention required. Included OCR and document capture software creates editable text and searchable PDFs while TWAIN drivers enable seamless integration to third party applications.

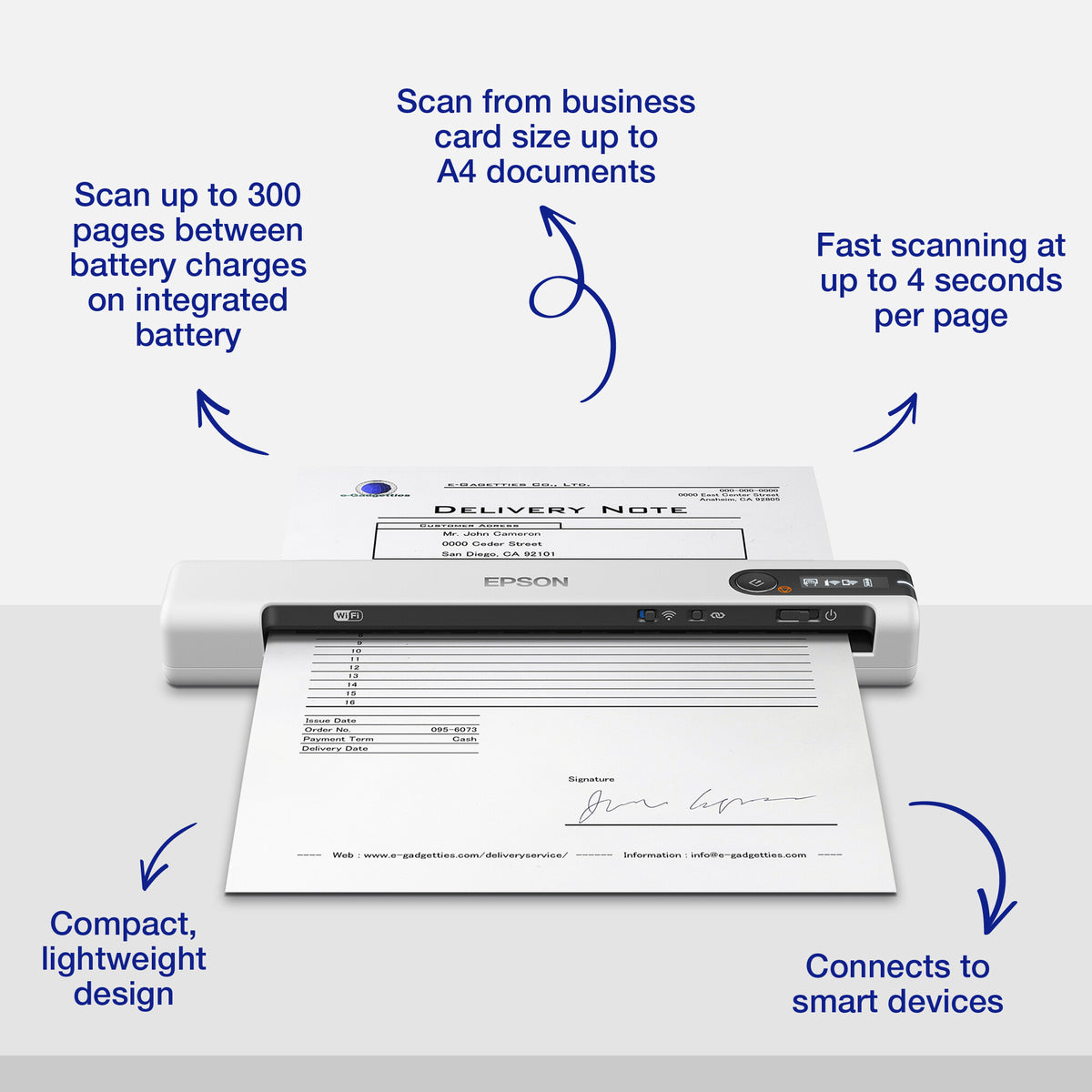

Scan anywhere
The DS-80W has built-in Wi-Fi and battery with an LCD Panel, providing true mobility to scan anywhere at speeds of just 4 seconds per page. When fully charged, scan up to 300 pages without the need for a power source. This makes it ideal for mobile workers who need to scan on the move or in areas with limited space.
Highly organised
Software provided with the DS models includes Document Capture Pro 2 and Epson Scan 2.0, and TWAIN driver support, making it easier to scan, save and share information around the business. Advanced features for naming, separating and routing documents makes scanning easy – and logical. Users can save and send files in common formats like PDF, JPEG, TIFF and many more. Continuous scanning with automatic feed mode speeds up scanning process, while the CIS sensor delivers instant scanning with no warm up time. The new LCD panel makes it easy to define job tasks when working remotely.
Flexible
The ability to scan a wide range of document and media types makes this model a reliable asset. It handles paper from 35gsm to 270gsm, and long paper up to 1.8 metres.
| Scanning |
|---|
| Maximum scan size |
216 x 1828 mm |
| Optical scanning resolution |
600 x 600 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
No |
| Input colour depth |
48 bit |
| Input greyscale depth |
16 bit |
| Output colour depth |
24 bit |
| Output greyscale depth |
8 bit |
| Output monochrome depth |
8 bit |
| Scan speed (colour, low res, A4) |
4 sec/page |
| Scan speed (b/w, low res, A4) |
4 sec/page |
| Design |
|---|
| Scanner type |
Handheld scanner |
| Built-in display |
Yes |
| Product colour |
White |
| Display |
LCD |
| Colour display |
No |
| Performance |
|---|
| Sensor type |
CIS |
| Light source |
ReadyScan LED |
| Scan file formats |
BMP, JPEG, PDF, PNG, TIFF |
| Daily duty cycle (max) |
300 pages |
| Scan drivers |
TWAIN, SANE, WIA, ICA |
| Input capacity |
|---|
| Standard input capacity |
1 sheets |
| Auto document feeder (ADF) input capacity |
1 sheets |
| Paper handling |
|---|
| Maximum ISO A-series paper size |
A4 |
| Scanning media types supported |
Business Card, Plastic Card, Post Card(JPN) |
| Paper tray media weight |
35 - 270 g/m² |
| Auto Document Feeder (ADF) media weight |
35 - 270 g/m² |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB version |
2.0 |
| Standard interfaces |
USB 2.0, Wireless LAN |
| Power |
|---|
| Power supply type |
USB |
| General |
|---|
| Product family |
WorkForce |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package width |
141 mm |
| Package depth |
330 mm |
| Package height |
67 mm |
| Package weight |
597 g |
| Features |
|---|
| Country of origin |
China |
| System requirements |
|---|
| Compatible operating systems |
Mac OS 10.6+, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported |
Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016 |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-25 - 60 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
272 mm |
| Depth |
47 mm |
| Height |
34 mm |
| Weight |
300 g |
| Packaging content |
|---|
| Cables included |
USB |
| Bundled software |
Document Capture Pro, Epson Scan 2 |
| Other features |
|---|
| Interface |
Wi-Fi Direct, USB 2.0 Micro-B |
| Image formats supported |
BMP, JPEG, TIFF, MTIFF, PNG |
| Linear scan speed (metric) |
Monochrome:4 s/page - Color:4 s/page measured with Size: A4 , Resolution: 200 / 300 dpi |

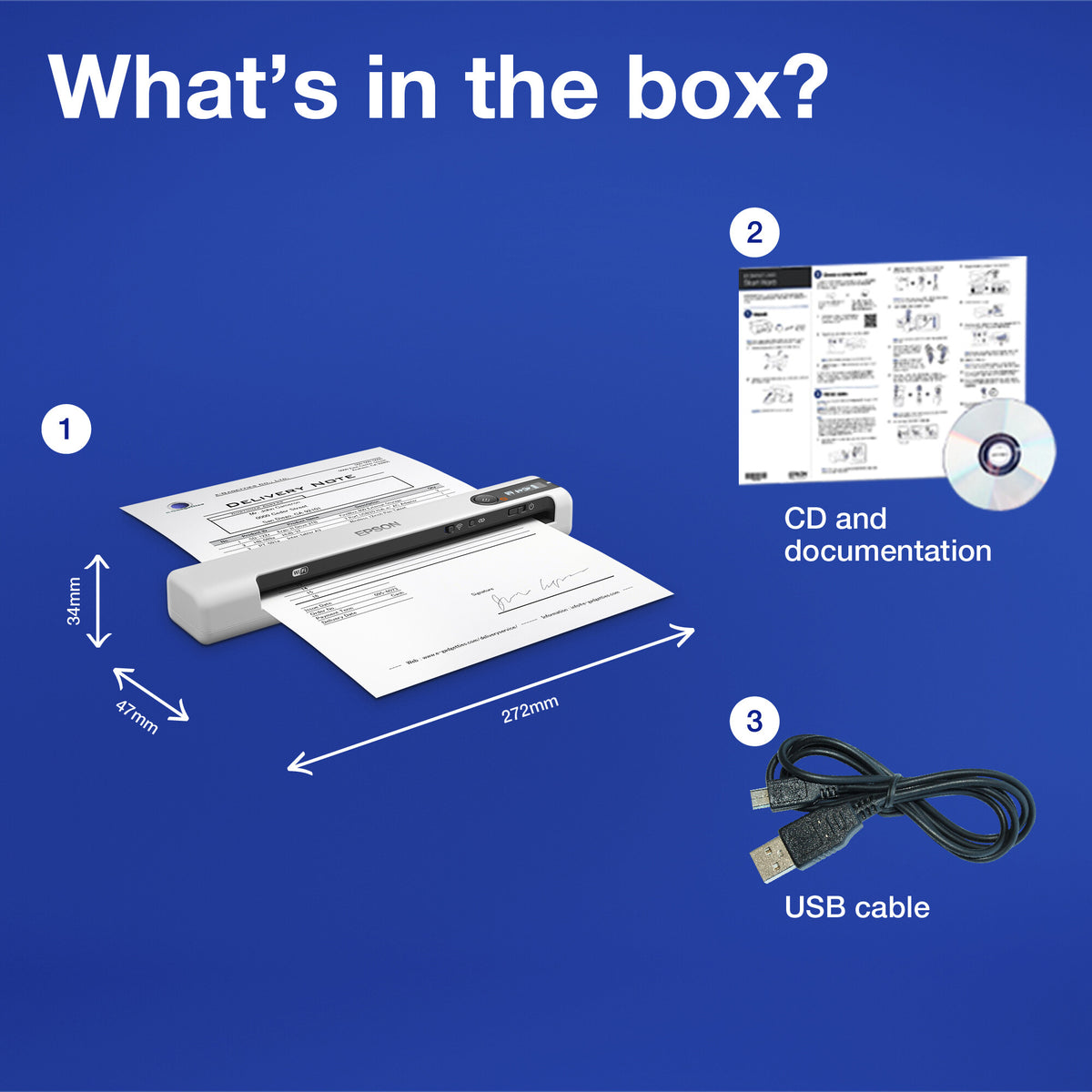

| Box contents |
USB cable |
| Scanner features |
One keypress, RGB colour dropout, Skip blank page, Punch holes removal, Advanced editing, Pre-defined scanning settings, Automatic area segmentation, Automatic de-skew, Automatic B/W colour original detection, RGB colour enhance, Auto-rotation, Text enhancement, Edge fill, Advanced cropping feature for Auto size, Descreening |
| Printer features |
One keypress, RGB colour dropout, Skip blank page, Punch holes removal, Advanced editing, Pre-defined scanning settings, Automatic area segmentation, Automatic de-skew, Automatic B/W colour original detection, RGB colour enhance, Auto-rotation, Text enhancement, Edge fill, Advanced cropping feature for Auto size, Descreening |
| Output resolutions |
600 DPI |
| Logistics data |
|---|
| Products per pallet |
360 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
8715946663005 |
| Pallet weight (UK) |
0 g |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case gross weight |
0 g |
| Master (outer) case width |
350 mm |
| Master (outer) case height |
320 mm |
| Master (outer) case length |
360 mm |
| Pallet gross weight |
0 g |
| Pallet height (UK) |
171 cm |
| Pallet width (UK) |
100 cm |
| Pallet length (UK) |
120 cm |
| Products per pallet (UK) |
360 pc(s) |
| Products per pallet layer (UK) |
60 pc(s) |
| Products per pallet layer |
60 pc(s) |
| Pallet gross height |
171 cm |
| Pallet gross width |
80 cm |
| Pallet gross length |
120 cm |
| Harmonized System (HS) code |
84716070 |
