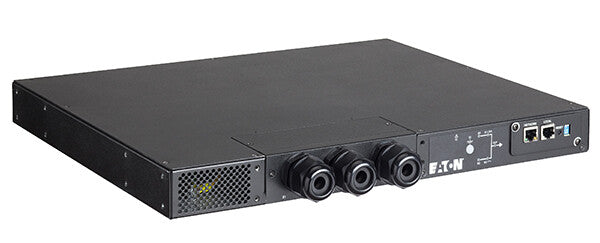

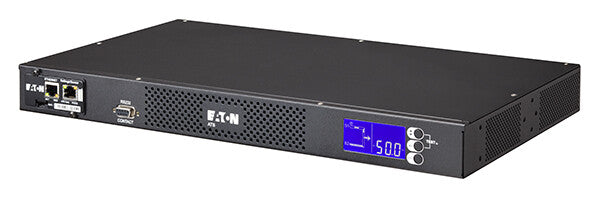

Eaton ATS16N uninterruptible power supply (UPS) 9 AC outlet(s)

R 21,500.40
R 21,500.40
R 21,500.40
Shipping calculated at checkout.

Sorry, it's out of stock.

But we can let you know when it's back in.

Out of stock
208-240 V, 50/60 Hz, 16 A, 8 ms

The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.

Features
- Provides power redundancy to IT equipment
- Alternative to expensive redundant power supplies available from networking equipment vendors
- Compact, 1U rack form factor
- Seamlessly switches from one power source to the other
- Network management on ATS 30 and ATS 16 Netpack versions

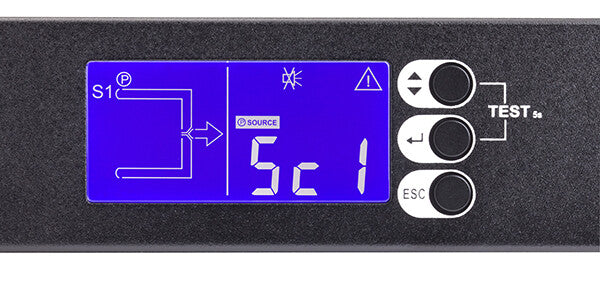

- LCD with metering and basic configuration capabilities

Features
Web-based management Yes
Number of output phases 1
Number of input phases 1
Response time 8 ms
Maximum current 16 A
Output frequency 50/60 Hz
Input frequency 50/60 Hz
Input operation voltage (max) 240 V
Input operation voltage (min) 208 V
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Number of output IEC jumpers 8
AC outlets quantity 9 AC outlet(s)
Power plug C20 coupler
AC outlet types C13 coupler, C19 coupler
Design
Certification IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE
Safety IEC/EN 62310-1, IEC/EN 60950-1
LED indicators Yes
Display type LED
Rack capacity 1U
Product colour Black
Form factor Rackmount
Packaging content
Rack mount kit Yes
Weight & dimensions
Weight 3.5 kg
Height 43 mm
Depth 250 mm
Width 440 mm
Logistics data
Harmonized System (HS) code 85078000
Other features
Nominal input voltage 230 V
Mounting Horizontal
Number of phases 1
