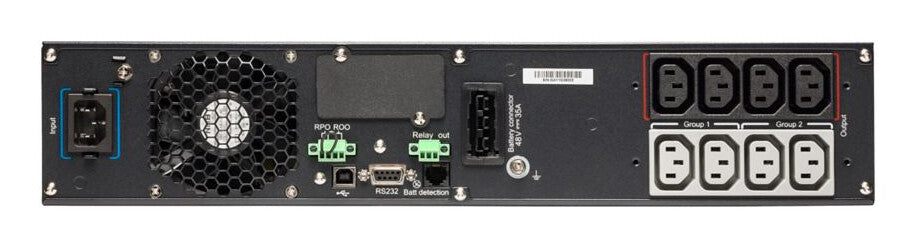

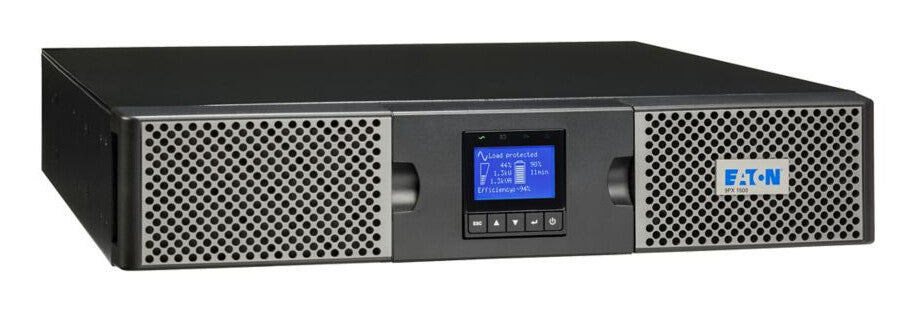

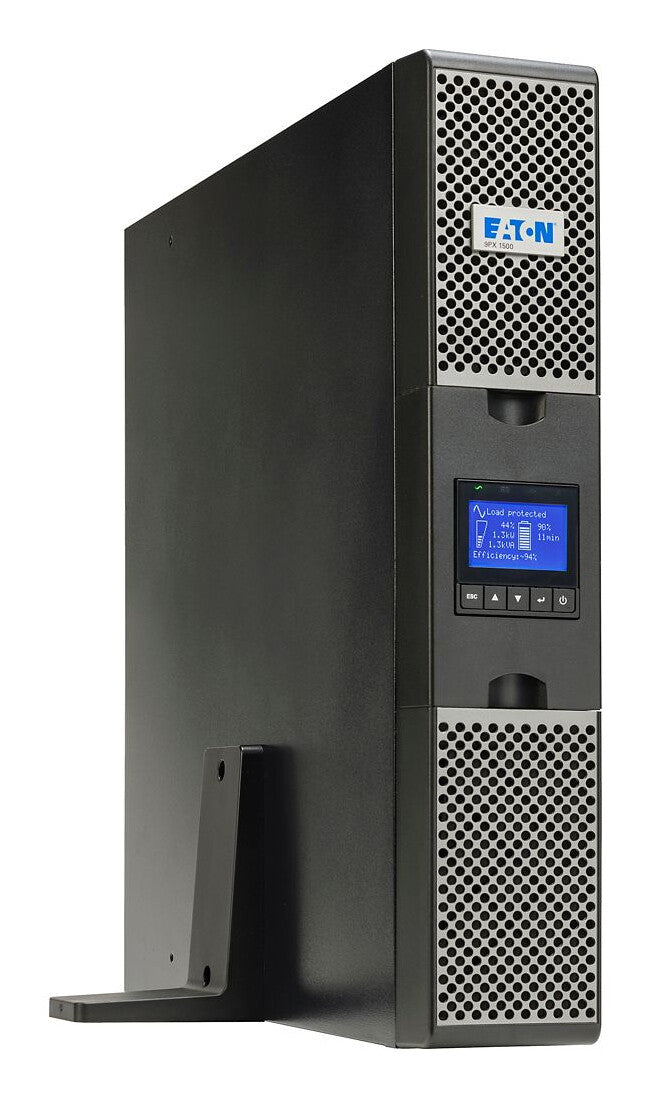

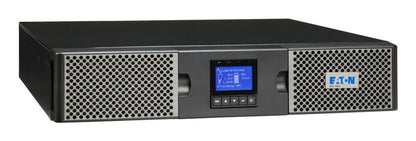

Eaton 9PX UPS, 1500 VA, 1500 W, Input: C14, Outputs: (8) C13, Rack/tower, 2U
Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.
| Features |
|---|
| Power protection features |
Battery discharge |
| Noise level |
35 dB |
| Power factor |
1 |
| Efficiency |
92.5% |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
176 V |
| Waveform |
Pure sine |
| Output power |
1500 W |
| Output power capacity |
1.5 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
|---|
| RS-232 ports |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
|---|
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Typical backup time at half load |
14 min |
| Typical backup time at full load |
5 min |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
|---|
| Certification |
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
| Safety |
IEC/EN 62040-1, UL 1778, CSA 22.2 |
| LED indicators |
Yes |
| Display type |
LCD |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Weight & dimensions |
|---|
| Weight |
19.5 kg |
| Height |
86.5 mm |
| Depth |
450 mm |
| Width |
440 mm |
| Packaging data |
|---|
| Bundled software |
Intelligent Power Software suite |
| Management card included |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
