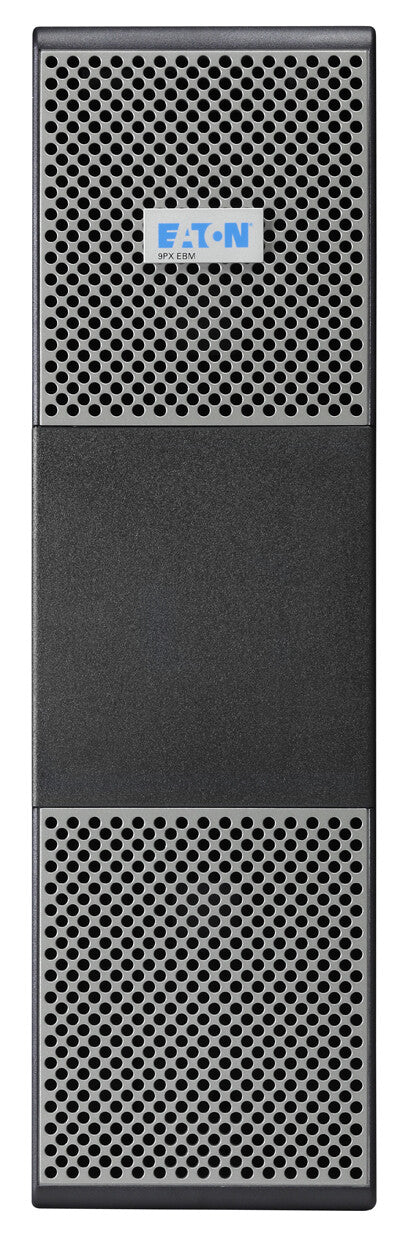

9PX 11kVA 3:1, Power Module
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
11 kVA |
| Output power |
10000 W |
| Waveform |
Pure sine |
| Input operation voltage (min) |
305 V |
| Input operation voltage (max) |
480 V |
| Input frequency |
40/70 Hz |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Output frequency |
50/60 Hz |
| Number of input phases |
3 |
| Efficiency |
0.95% |
| Power factor |
0.9 |
| Input power factor |
0.99 |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Input current Total Harmonic Distortion (THD) |
5% |
| Noise level |
50 dB |
| Ports & interfaces |
|---|
| AC outlet types |
Terminal |
| Power plug |
Terminal |
| AC outlets quantity |
1 AC outlet(s) |
| USB port |
Yes |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at full load |
0 min |
| Typical backup time at half load |
13 min |
| Hot-swap battery |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Rack capacity |
6U |
| Display type |
LCD |
| LED indicators |
Yes |
| Safety |
IEC/EN 62040-1 |
| Certification |
IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
700 mm |
| Height |
260 mm |
| Weight |
23 kg |
| Package weight |
27.5 kg |
| Packaging data |
|---|
| Management card included |
No |
| Bundled software |
Intelligent Power Software suite |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Nominal output voltage |
230 V |
| Nominal input voltage |
400 V |
