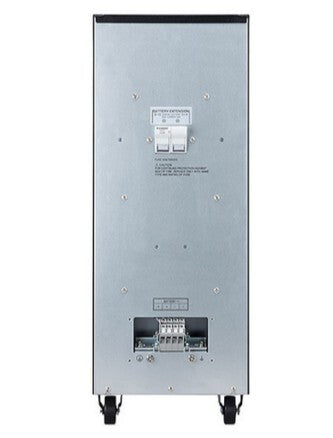

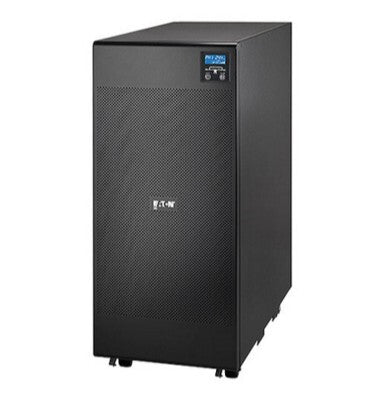

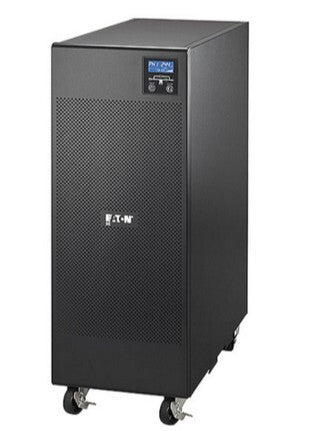

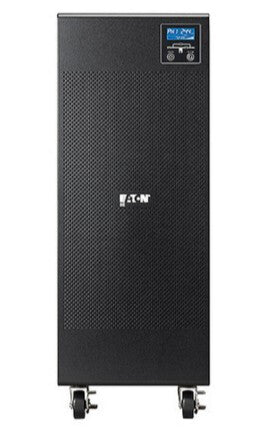

9E15KI - 15kVA/12kW, 1x USB, 1x RS232
The Eaton 9E is an online double-conversion power protection at an affordable price with compact yet robust construction. This UPS an ideal choice for industrial, medical and information technology (IT) applications and telecommunications.
Features
- Online double conversion topology.
- Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status.
- Provides more real power (watts) to protect more equipment with a 0.8 power factor.
- Internal bypass and maintenance bypass are available as standards.
- Combo input (3:1 and 1:1) on the 10kVA, 15kVA, 20 kVA.
- XL models with internal supercharger for extra-long runtime.
- Communication through USB, RS232 serial or over the network with an optional network card.
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat).
- CE compliance certified by external agency (CB report from the TUV).
| Features |
|---|
| Noise level |
55 dB |
| Efficiency |
93% |
| Maximum current |
205 A |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
45/66 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
176 V |
| Output power |
12000 W |
| Output power capacity |
15 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
|---|
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
1 |
| AC outlet types |
Terminal |
| Battery |
|---|
| Typical backup time at full load |
5 min |
| Design |
|---|
| Certification |
IEC/EN 62040 -2, CE, CB |
| Safety |
IEC/EN 62040-1 |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
145.3 kg |
| Height |
815.5 mm |
| Depth |
706 mm |
| Width |
350 mm |
