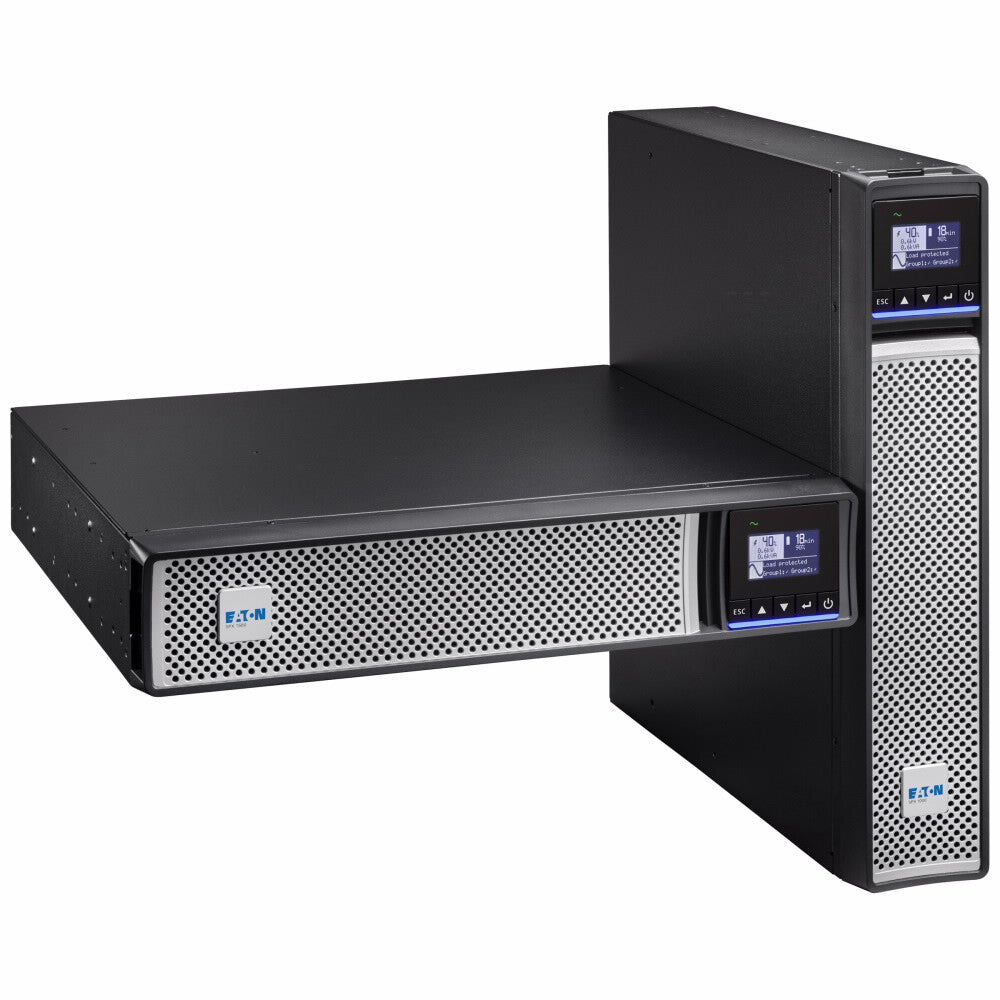

Line-Interactive, 3000VA / 3000W, 8 x IEC C13 & 2 x IEC C19 Out, LCD, Rack/tower, 2U
Exceptional efficiency, manageability and energy metering capabilities for IT managers
Performance and efficiency
- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs.
- When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size /runtime ratio.
Management and Cybersecurity
- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
- 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
- Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.
Availability and flexibility
- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
- Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.
| Features |
|---|
| UPS topology |
Line-Interactive |
| Output power capacity |
3 kVA |
| Output power |
3000 W |
| Waveform |
Pure sine |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
294 V |
| Input frequency |
47/70 Hz |
| Noise level |
40 dB |
| Power protection features |
Overdischarge |
| Ports & interfaces |
|---|
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| AC outlets quantity |
10 AC outlet(s) |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| Serial ports quantity |
1 |
| Battery |
|---|
| Hot-swap battery |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Rack capacity |
2U |
| Display type |
LCD |
| LED indicators |
Yes |
| Safety |
IEC/EN 62040-1, UL1778, CSA22.2 |
| Certification |
IEC/EN 62040-2, FCC B, CISPR22 B
CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Sustainability compliance |
Yes |
| Certificates |
|---|
| Compliance certificates |
CE |
| Weight & dimensions |
|---|
| Width |
438 mm |
| Depth |
603 mm |
| Height |
85.5 mm |
| Weight |
31.7 kg |
| Packaging data |
|---|
| Management card included |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Output connections |
8 x IEC C13 (10A)
2 x IEC C19 (16A) |
| Nominal output voltage |
230 V |
