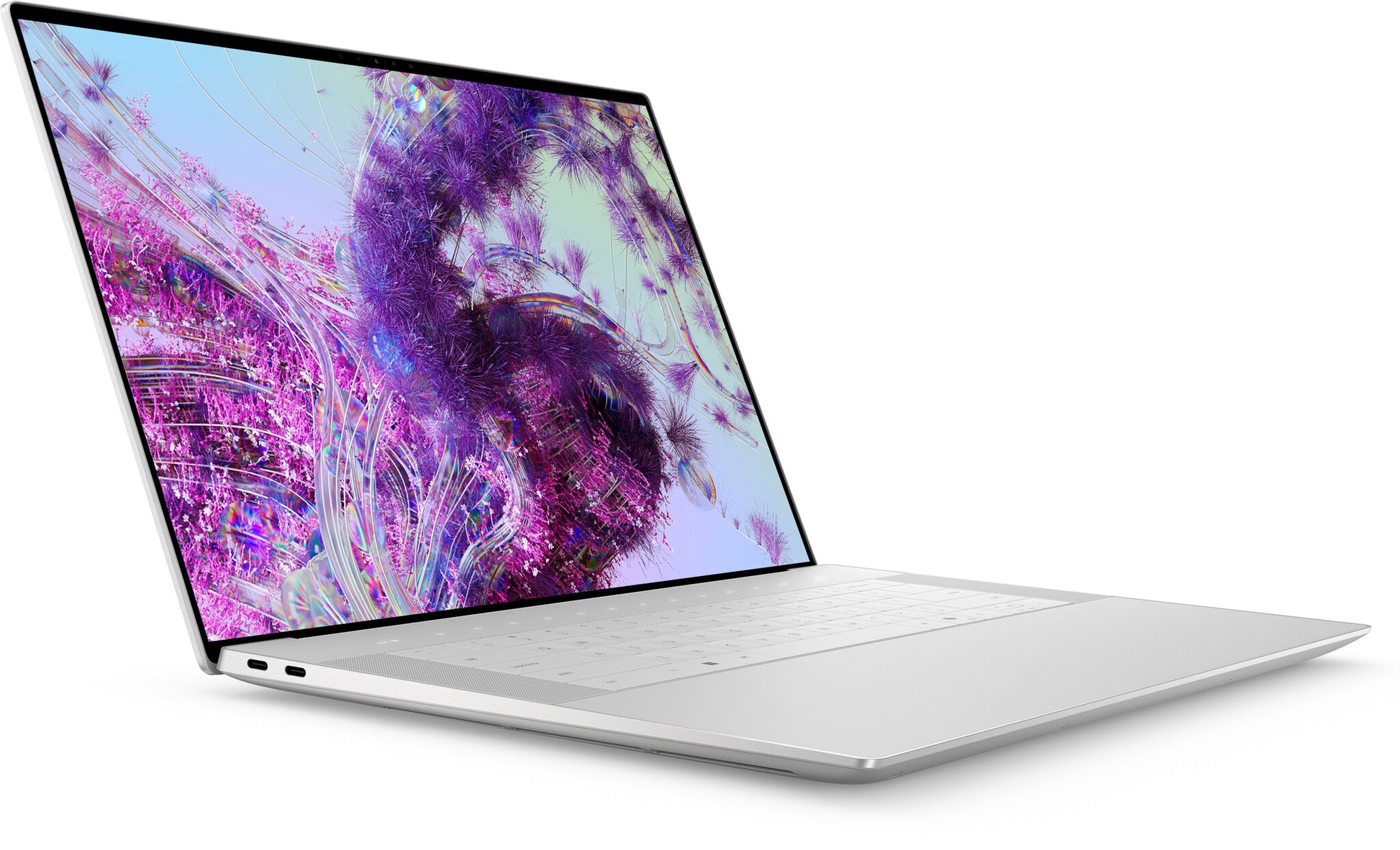

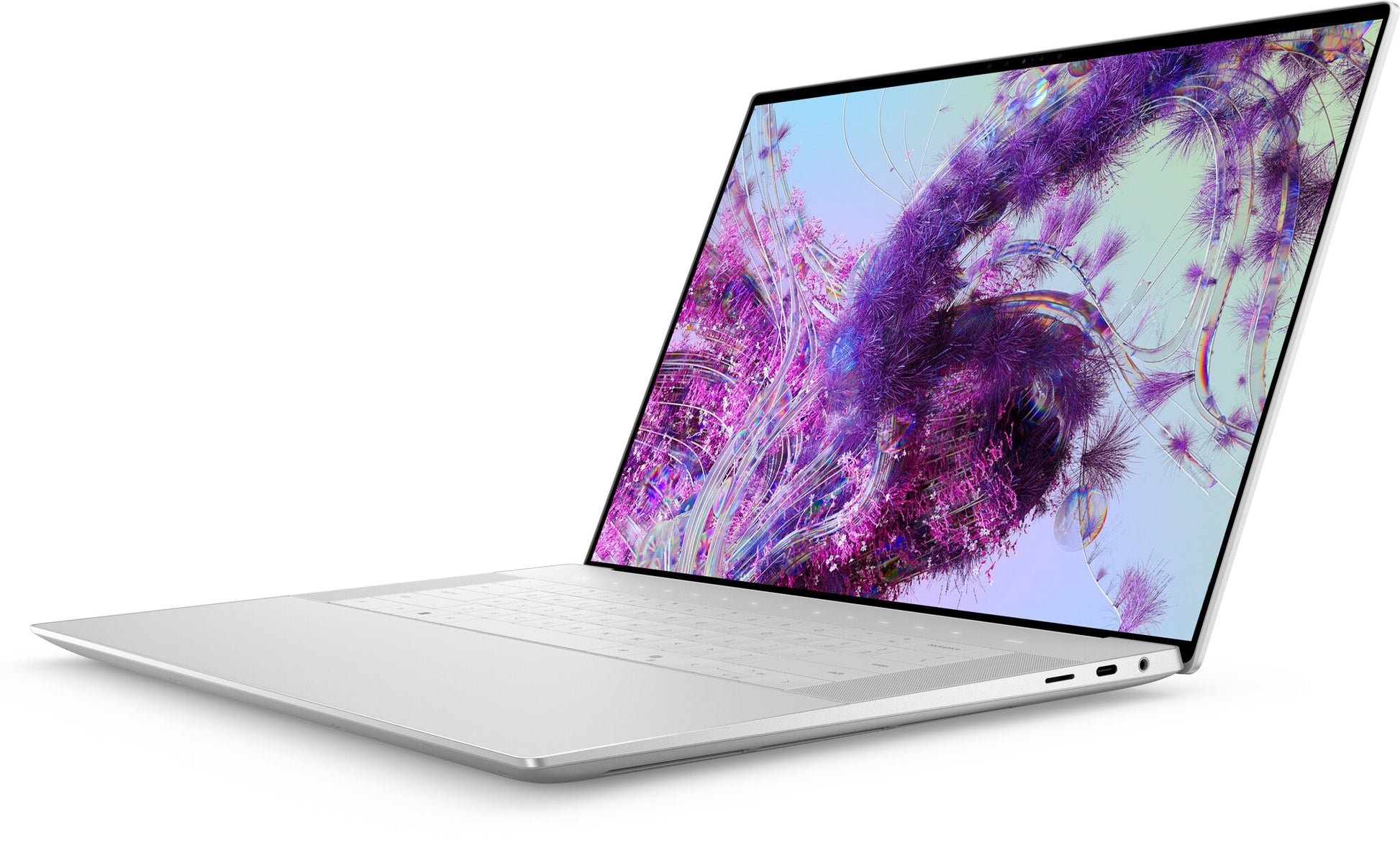

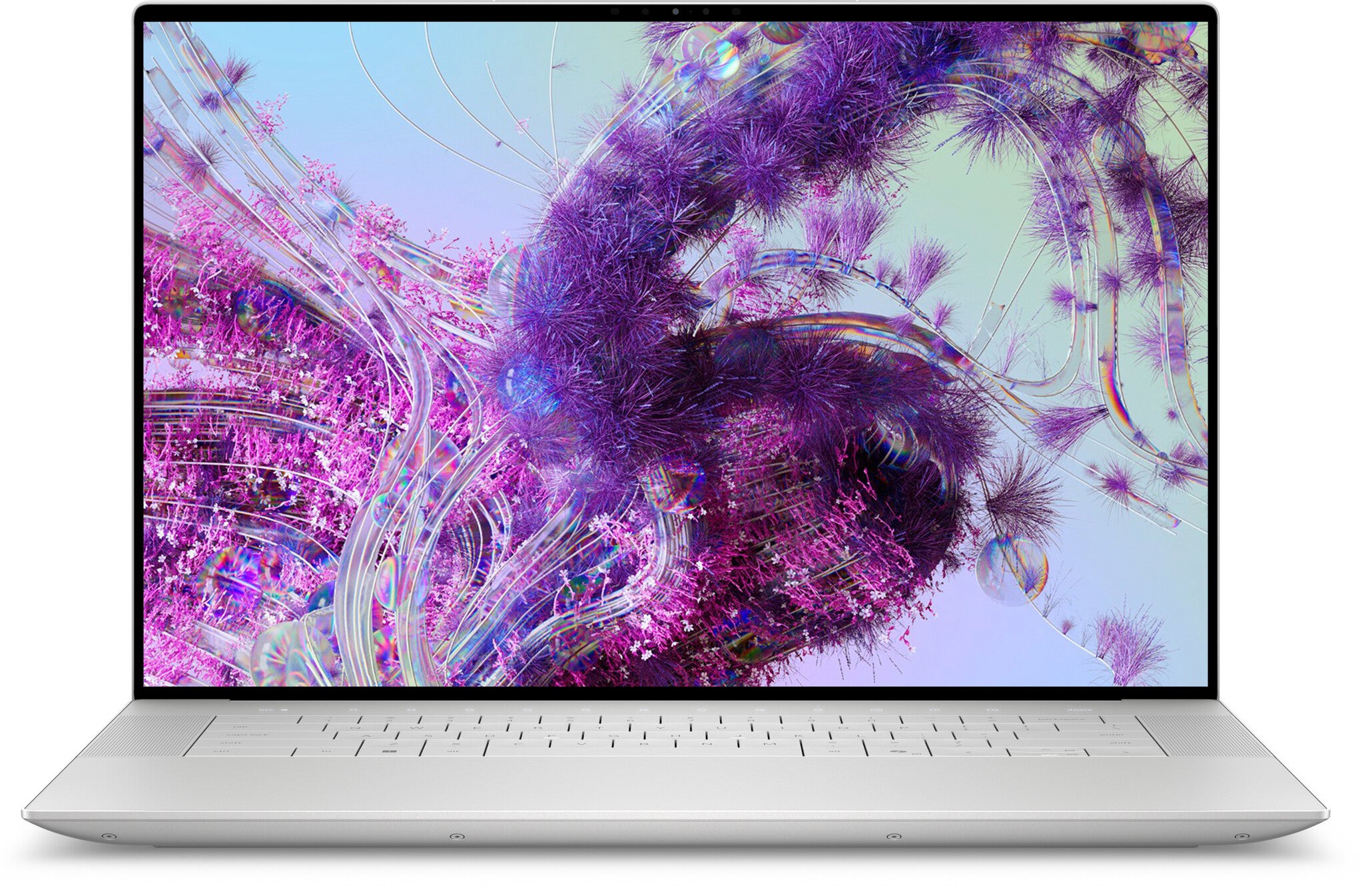

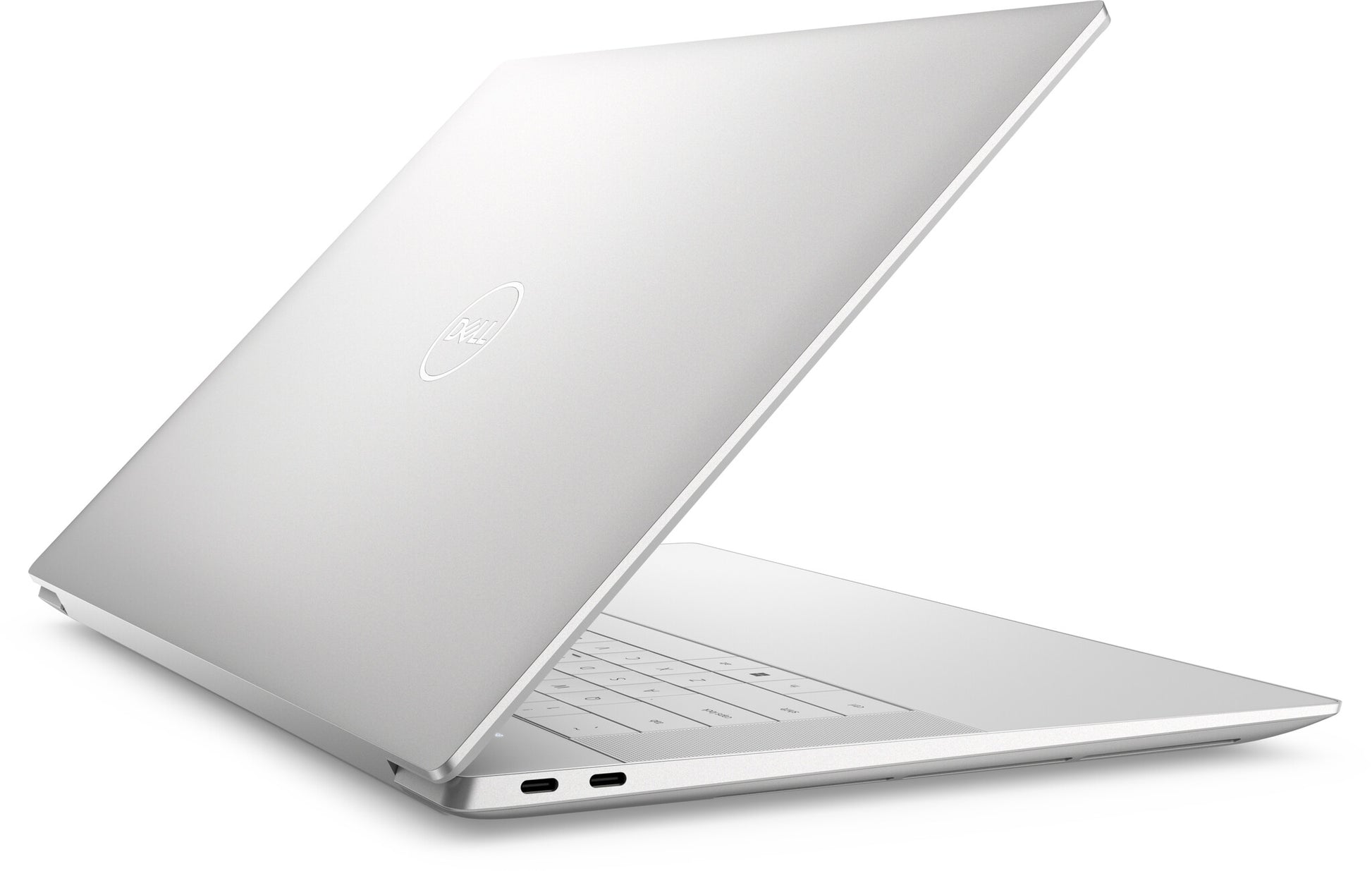

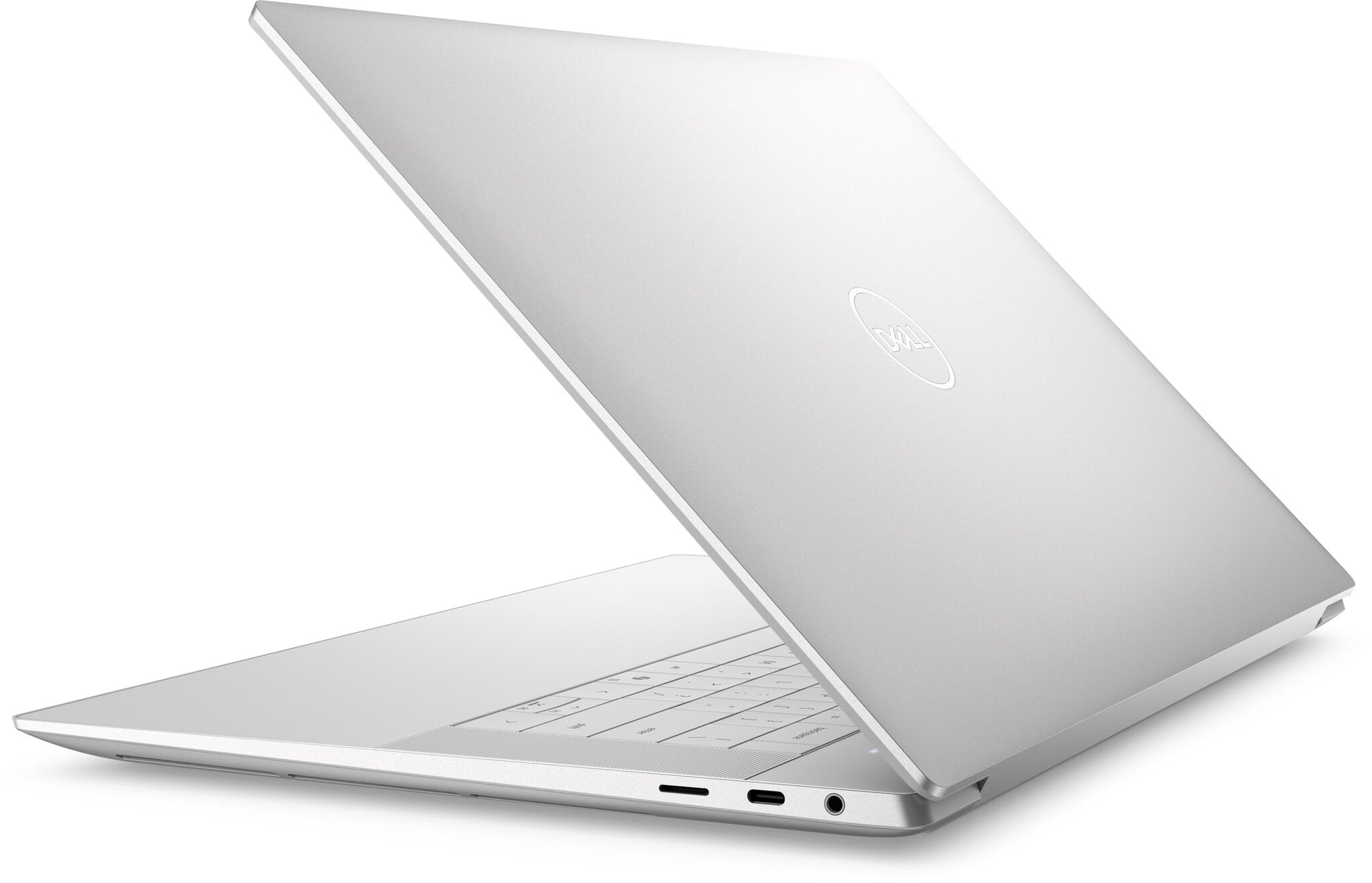

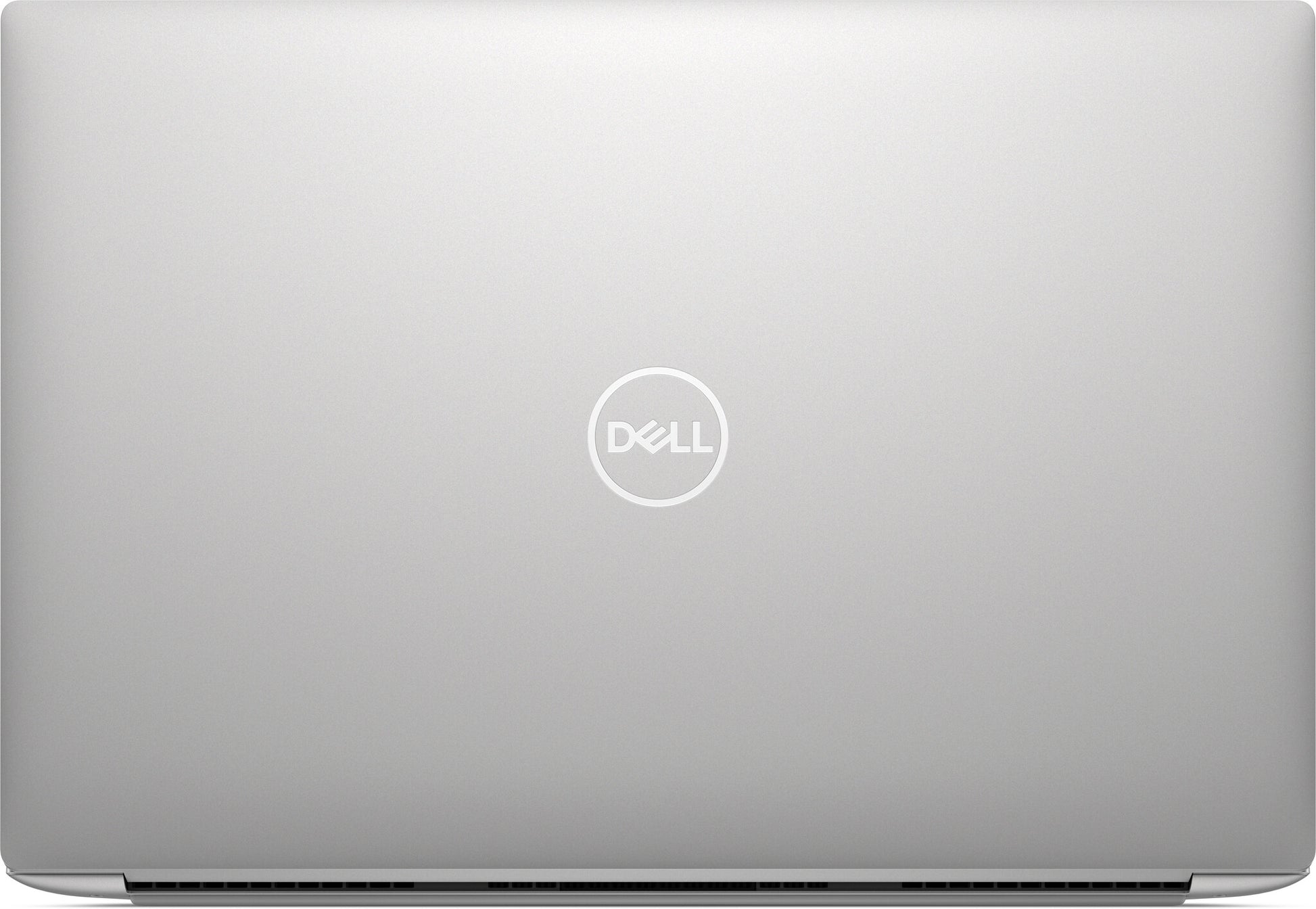

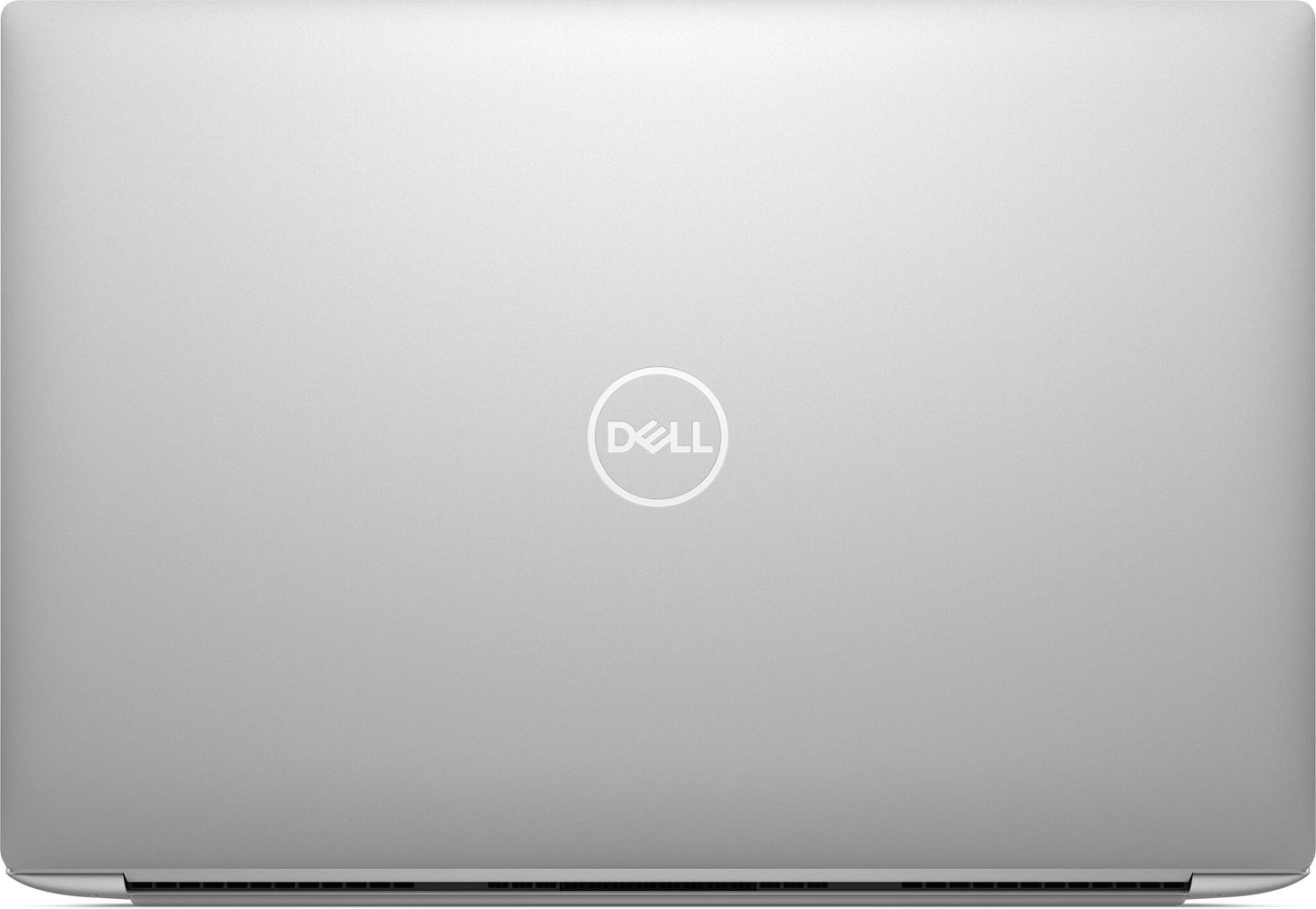

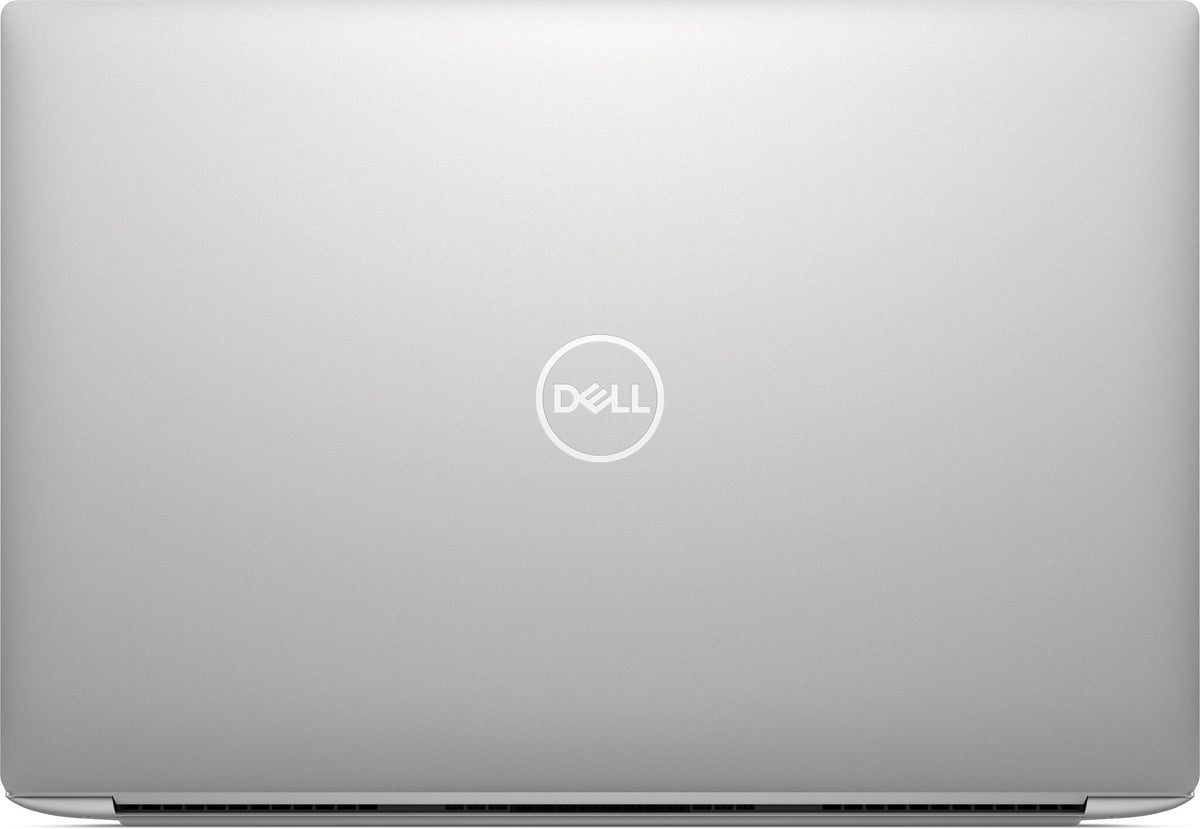

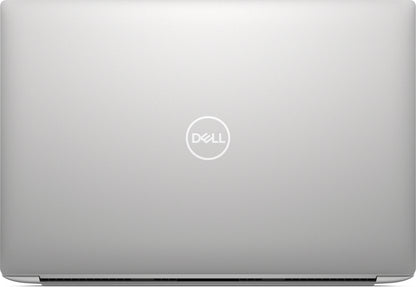

XPS 16 9640/Ultra 7 155H/16GB/1TB SSD/16.3” FHD+/GeForce RTX 4050/WLAN + BT/Backlit Kb/6 Cell/W11Home/ 1Y Basic Onsite
| Design |
|---|
| Product type |
Laptop |
| Product colour |
Platinum |
| Form factor |
Clamshell |
| Housing material |
Aluminium |
| Display |
|---|
| Display diagonal |
41.4 cm (16.3") |
| Display resolution |
1920 x 1200 pixels |
| Touchscreen |
No |
| HD type |
Full HD+ |
| Panel type |
WLED |
| LED backlight |
Yes |
| Native aspect ratio |
16:10 |
| Anti-glare screen |
Yes |
| Display brightness |
500 cd/m² |
| Pixel density |
139 ppi |
| Colour gamut |
100% |
| RGB colour space |
sRGB |
| Maximum refresh rate |
120 Hz |
| Contrast ratio (typical) |
2000:1 |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel Core Ultra 7 |
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor model |
155H |
| Processor cores |
16 |
| Processor boost frequency |
4.8 GHz |
| Performance cores |
6 |
| Efficient cores |
8 |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core base frequency |
1.4 GHz |
| Efficient-core base frequency |
0.9 GHz |
| Processor cache |
24 MB |
| Processor cache type |
Smart Cache |
| Maximum turbo power |
115 W |
| Processor base power |
28 W |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| Maximum frequency NPU |
1.4 GHz |
| Sparsity support |
Yes |
| Windows Studio effects support |
Yes |
| AI datatype support on NPU |
FP16, FP32, Int8 |
| AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory |
|---|
| Internal memory |
16 GB |
| Internal memory type |
LPDDR5x-SDRAM |
| Memory form factor |
On-board |
| Maximum internal memory |
16 GB |
| Memory data transfer rate |
6400 MT/s |
| Storage |
|---|
| Total storage capacity |
1 TB |
| Storage media |
SSD |
| Total SSDs capacity |
1 TB |
| Number of SSDs installed |
1 |
| SSD capacity |
1 TB |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD form factor |
M.2 |
| Optical drive type |
No |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card model |
NVIDIA GeForce RTX 4050 |
| Discrete graphics card memory |
6 GB |
| Discrete graphics memory type |
GDDR6 |
| On-board GPU manufacturer |
Intel |
| On-board graphics card family |
Intel Arc Graphics |
| On-board graphics card model |
Intel Arc Graphics |
| Audio |
|---|
| Audio system |
MaxxAudio Pro |
| Number of built-in speakers |
2 |
| Speakers manufacturer |
Waves |
| Number of microphones |
2 |
| Built-in microphone |
Yes |
| Camera |
|---|
| Front camera |
Yes |
| Front camera resolution (numeric) |
2.07 MP |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Video capturing speed |
30 fps |
| Infrared (IR) camera |
Yes |
| Network |
|---|
| Mobile network connection |
No |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Antenna type |
2x2 |
| WLAN controller model |
Intel Wi-Fi 7 BE200 |
| WLAN controller manufacturer |
Intel |
| Bluetooth |
Yes |
| Ports & interfaces |
|---|
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
3 |
| Combo headphone/mic port |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Power Delivery |
Yes |
| Performance |
|---|
| Ambient light sensor |
Yes |
| Keyboard |
|---|
| Pointing device |
Touchpad |
| Keyboard backlit |
Yes |
| Numeric keypad |
No |
| Software |
|---|
| Operating system installed |
Windows 11 Home |
| Operating system architecture |
64-bit |
| Trial software |
McAfee 12 Months Business Security,Microsoft Office Trial |
| Battery |
|---|
| Battery technology |
Lithium Polymer (LiPo) |
| Number of battery cells |
6 |
| Battery voltage |
11.7 V |
| Battery capacity |
99.5 Wh |
| Battery recharge time |
4 h |
| Fast charging |
Yes |
| Battery weight |
380 g |
| Power |
|---|
| AC adapter power |
130 W |
| AC adapter frequency |
50 - 60 Hz |
| AC adapter input voltage |
100 - 240 V |
| USB Type-C charging port |
Yes |
| USB charging voltage |
5,9,15,20 V |
| USB charging current |
6.5 A |
| Security |
|---|
| Fingerprint reader |
Yes |
| Windows Hello |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
-15.2 - 3048 m |
| Non-operating altitude |
-15.2 - 10668 m |
| Operating shock |
110 G |
| Non-operating shock |
160 G |
| Operating vibration |
0.66 G |
| Non-operating vibration |
1.3 G |
| Weight & dimensions |
|---|
| Weight |
2.13 kg |
| Width |
358.2 mm |
| Depth |
240.1 mm |
| Height |
18.7 mm |
| General |
|---|
| Product series |
16 |
| Product family |
XPS |
| Carbon footprint |
|---|
| PAIA version |
PAIA 1.4.0, 2024 |
| Carbon emissions (End-of-Life) |
2.54 |
| Carbon emissions (Use) |
45.38 |
| Carbon emissions (Logistics) |
18.88 |
| Carbon emissions (Manufacturing) |
296.21 |
| Total carbon emissions (Standard deviation) |
62 |
| Total carbon footprint |
363 |
| Packaging content |
|---|
| Cables included |
AC |
