68.6cm (27") Quad HD 2560 x 1440 Edge LED IPS, 16:9, 350cd/m², 1.07B, 8ms, 178°/178°, 2000:1
Experience a new level of visual comfort and productivity with this hub monitor certified by TÜV for 5-star eye comfort. Designed with extensive connectivity and the power of Thunderbolt 4.
| Display |
|---|
| Display diagonal |
68.6 cm (27") |
| Display resolution |
2560 x 1440 pixels |
| Native aspect ratio |
16:9 |
| Display technology |
LCD |
| Touchscreen |
No |
| HD type |
Quad HD |
| Panel type |
IPS |
| Backlight type |
Edge LED |
| Display brightness (typical) |
350 cd/m² |
| Response time |
8 ms |
| Anti-glare screen |
Yes |
| Screen shape |
Flat |
| Supported graphics resolutions |
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1600 x 900, 1920 x 1080 (HD 1080), 2048 x 1080, 2560 x 1440 |
| Supported video modes |
480p, 576p, 720p, 1080i, 1080p |
| Contrast ratio (typical) |
2000:1 |
| Maximum refresh rate |
120 Hz |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.07 billion colours |
| Response time (fast) |
5 ms |
| Pixel pitch |
0.2331 x 0.2331 mm |
| Pixel density |
108.97 ppi |
| Viewable size, horizontal |
59.7 cm |
| Viewable size, vertical |
33.6 cm |
| Digital horizontal frequency |
30 - 178 kHz |
| Digital vertical frequency |
48 - 120 Hz |
| Display diagonal (metric) |
68.47 cm |
| High Dynamic Range (HDR) supported |
No |
| Surface hardness |
3H |
| Colour depth |
8 bit |
| Colour gamut |
98% |
| sRGB coverage (typical) |
100% |
| Colour gamut standard |
DCI-P3 |
| Performance |
|---|
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| Flicker-free technology |
Yes |
| Low Blue Light technology |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Design |
|---|
| Market positioning |
Business |
| Product colour |
Black, Silver |
| Front bezel colour |
Black |
| Feet colour |
Silver |

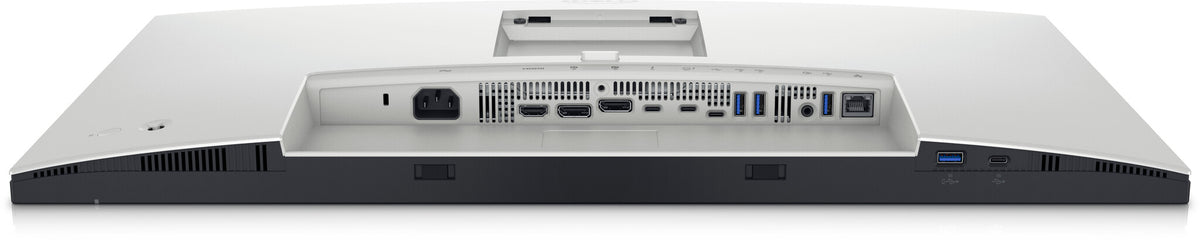

| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB upstream port type |
USB Type-C |
| Number of upstream ports |
1 |
| Number of USB Type-C upstream ports quantity |
1 |
| USB Type-A downstream ports quantity |
4 |
| USB Type-C downstream ports quantity |
1 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
90 W |
| HDMI |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4 |
| Thunderbolt 4 ports quantity |
2 |
| Headphone out |
Yes |
| Microphone in |
No |
| PC Audio in |
No |
| HDCP |
Yes |
| HDCP version |
1.4 |
| AC (power) in |
Yes |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Cable management |
Yes |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Height adjustment |
Yes |
| Adjustable height (max) |
15 cm |
| Pivot |
Yes |
| Pivot angle |
-90 - 90° |
| Swivelling |
Yes |
| Swivel angle range |
-45 - 45° |
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 - 21° |
| On Screen Display (OSD) |
Yes |
| Plug and Play |
Yes |
| Power |
|---|
| Energy efficiency class (SDR) |
F |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
24 kWh |
| Power consumption (typical) |
24.4 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (max) |
225 W |
| Power consumption (off) |
0.3 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
2.65 A |
| Power supply type |
Internal |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating altitude |
0 - 5000 m |
| Non-operating altitude |
5000 - 12192 m |
| Packaging content |
|---|
| Stand included |
Yes |
| Cables included |
AC, DisplayPort, Thunderbolt, USB Type-A to USB Type-C |
| Power adapter included |
Yes |
| Remote control included |
No |
| Stylus included |
No |
| Quick start guide |
Yes |
| Weight & dimensions |
|---|
| Width (with stand) |
612.2 mm |
| Depth (with stand) |
192.3 mm |
| Height (with stand) |
535.6 mm |
| Weight (with stand) |
6.98 kg |
| Width (without stand) |
612.2 mm |
| Depth (without stand) |
50.1 mm |
| Height (without stand) |
352.5 mm |
| Weight (without stand) |
5.23 kg |
| Bezel width (side) |
7.75 mm |
| Bezel width (top) |
7.75 mm |
| Bezel width (bottom) |
9.1 mm |
| Packaging data |
|---|
| Package weight |
10.2 kg |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, TCO |
| Doesn't contain |
PVC/BFR |
| General |
|---|
| Product family |
UltraSharp |
| Carbon footprint |
|---|
| PAIA version |
PAIA 1.3.2, 2022 |
| Carbon emissions (End-of-Life) |
5.84 |
| Carbon emissions (Use) |
181.72 |
| Carbon emissions (Logistics) |
49.32 |
| Carbon emissions (Manufacturing) |
412.76 |
| Total carbon emissions (Standard deviation) |
152 |
| Total carbon footprint |
649 |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Other features |
|---|
| RJ-45 ports quantity |
1 |
