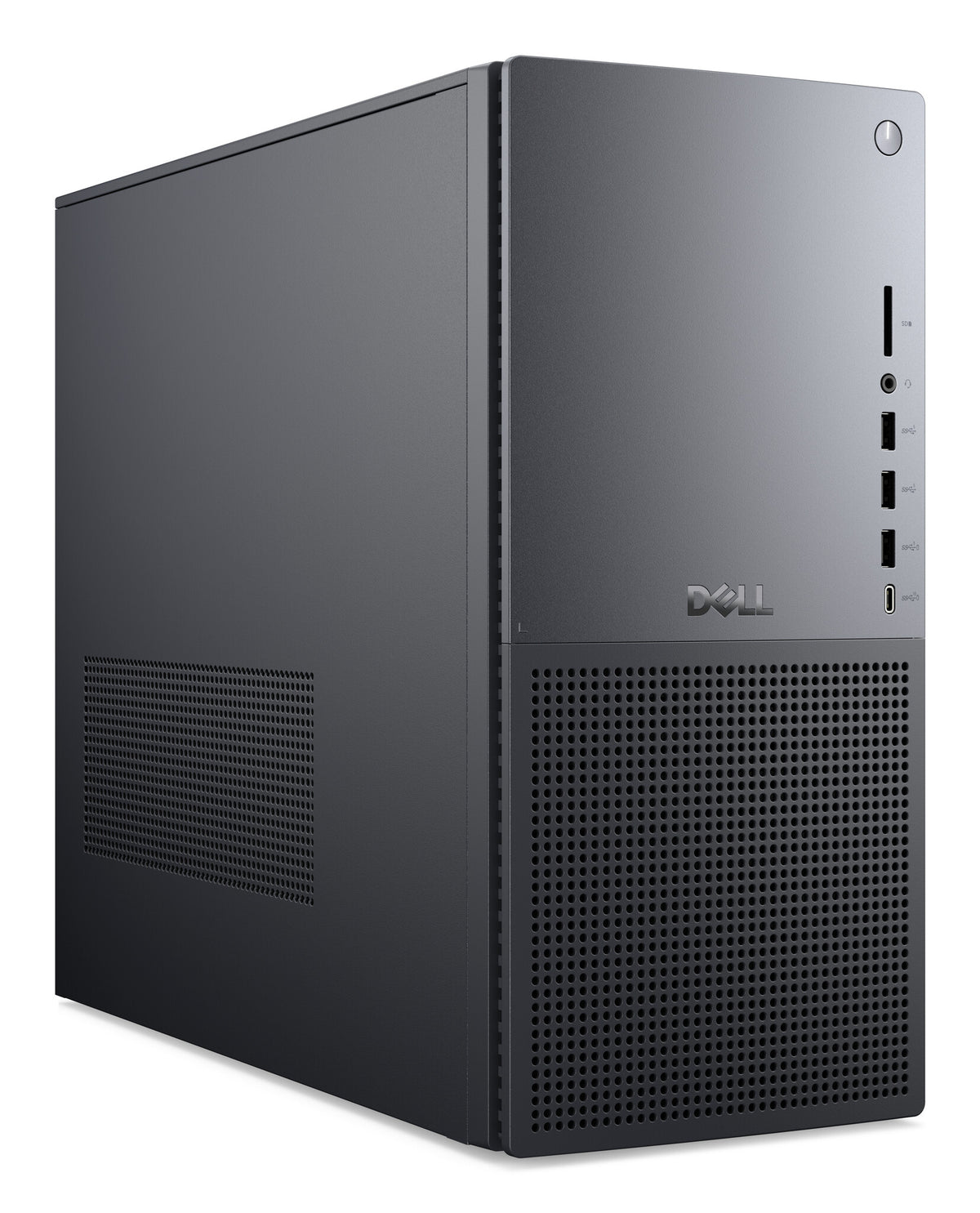

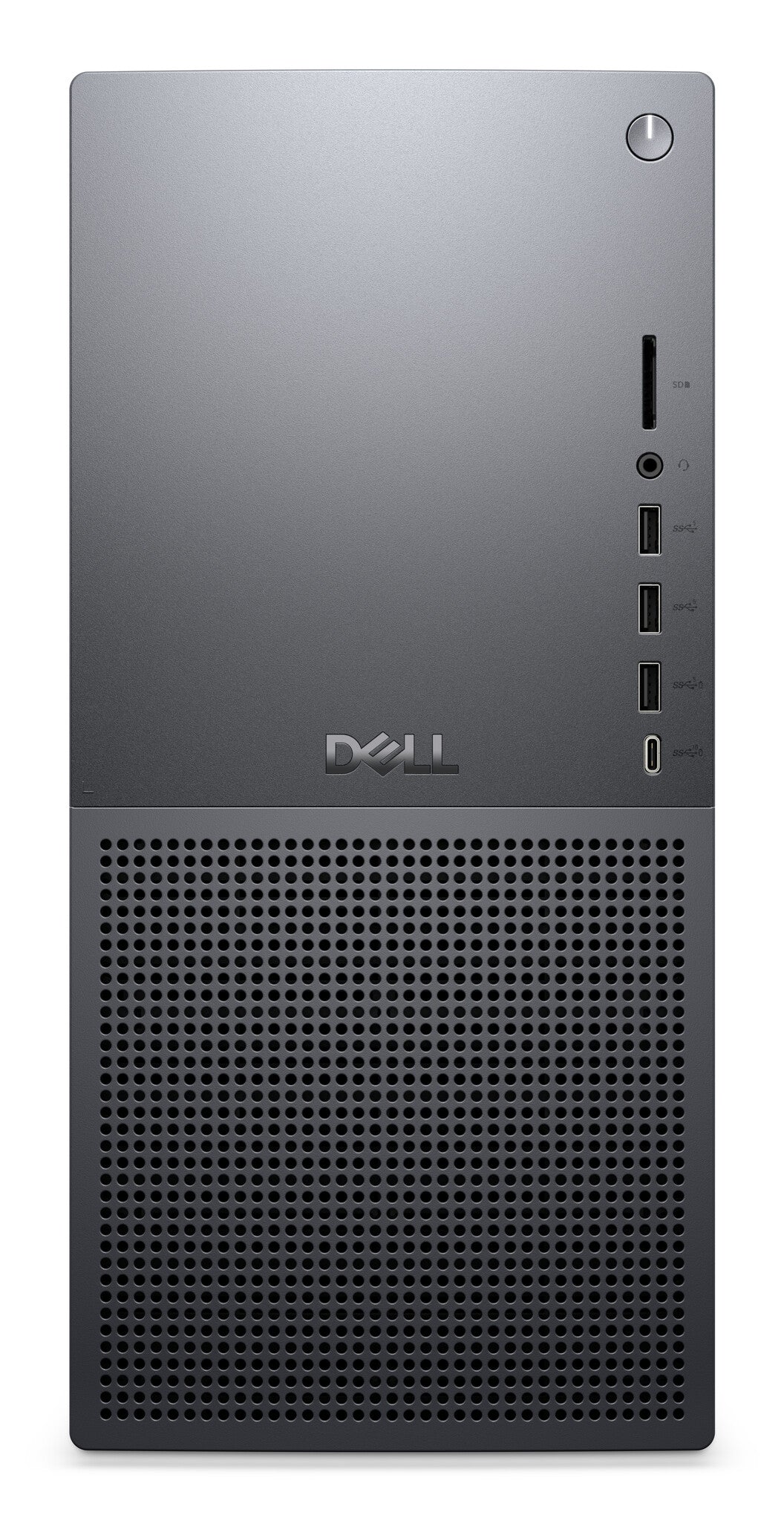

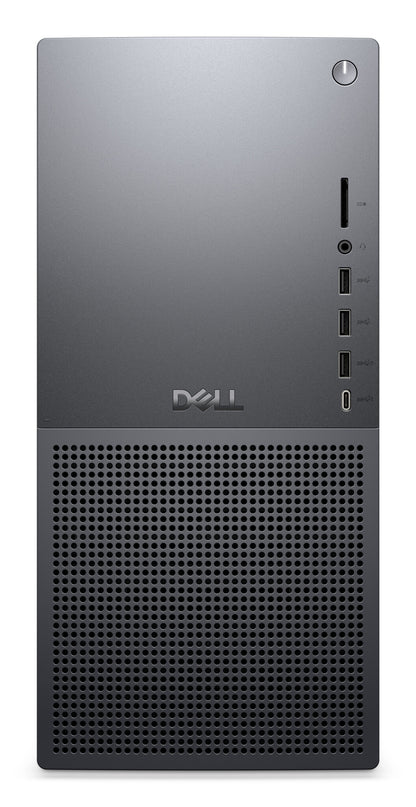

Dell Tower Plus|U9 285K|32GB|2TB SSD|NVIDIA GeForce RTX 5080|W11 Pro|WLAN|Wireless Kb & Mouse ProSupport Next Business Day Onsite Service after remote diagnosis with HW-SW Support, 36 Month(s)
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel Core Ultra 9 |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor model |
285K |
| Processor cores |
24 |
| Processor threads |
24 |
| Processor boost frequency |
5.7 GHz |
| Performance cores |
8 |
| Efficient cores |
16 |
| Performance-core Max Turbo Frequency |
5.5 GHz |
| Efficient-core Max Turbo Frequency |
4.6 GHz |
| Performance-core base frequency |
3.7 GHz |
| Efficient-core base frequency |
3.2 GHz |
| Processor cache |
76 MB |
| Number of processors installed |
1 |
| Maximum turbo power |
250 W |
| Processor base power |
125 W |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| Sparsity support |
Yes |
| Windows Studio effects support |
Yes |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to |
36 TOPs |
| NPU performance up to |
13 TOPs |
| GPU performance up to |
8 TOPs |
| Memory |
|---|
| Internal memory |
32 GB |
| Maximum internal memory |
64 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory slots |
2x DIMM |
| Memory data transfer rate |
5600 MT/s |
| Memory channels |
Dual-channel |
| Storage |
|---|
| Total storage capacity |
2 TB |
| Optical drive type |
No |
| Storage media |
SSD |
| Number of storage drives installed |
2 |
| Total SSDs capacity |
2 TB |
| Number of SSDs installed |
2 |
| SSD capacity |
1 TB |
| NVMe |
Yes |
| SSD interface |
PCI Express |
| SSD form factor |
M.2 |
| Card reader integrated |
Yes |
| Compatible memory cards |
SD, SDHC, SDXC |
| Graphics |
|---|
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card model |
NVIDIA GeForce RTX 5080 |
| Discrete graphics card memory |
16 GB |
| Discrete graphics memory type |
GDDR7 |
| Number of discrete graphics cards |
1 |
| On-board GPU manufacturer |
Intel |
| On-board graphics card family |
Intel® Graphics |
| On-board graphics card model |
Intel® Graphics |
| Graphics card DisplayPorts quantity |
3 |
| Graphics card HDMI ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer |
Intel |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 7 BE200 |
| Bluetooth |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Number of USB ports with PowerShare support |
2 |
| PowerShare |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Line-in |
Yes |
| Line-out |
Yes |
| Combo headphone/mic port |
Yes |
| S/PDIF out port |
Yes |
| Total number of SATA connectors |
3 |
| Expansion slots |
|---|
| PCI Express x4 (Gen 3.x) slots |
2 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Design |
|---|
| Chassis type |
Tower |
| Volume |
27.1 L |
| Placement supported |
Vertical |
| Number of 3.5" bays |
2 |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Product colour |
Graphite |
| Performance |
|---|
| Product type |
PC |
| Motherboard chipset |
Intel Z890 |
| Audio chip |
Realtek ALC1220 |
| Audio system |
High Definition Audio |
| Audio output channels |
7.1 channels |
| Password protection |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Operating system architecture |
64-bit |
| Trial software |
McAfee Premium 1Yr,No Microsoft Office License included (Fed and Premier, Exception Only) |
| Power |
|---|
| Power supply |
1000 W |
| Power supply input voltage |
90 - 264 V |
| Power supply input frequency |
47 - 63 Hz |
| 80 PLUS certification |
80 PLUS Platinum |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 35 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
-15.2 - 3048 m |
| Non-operating altitude |
-15.2 - 10668 m |
| Operating vibration |
0.26 G |
| Non-operating vibration |
1.37 G |
| Operating shock |
40 G |
| Non-operating shock |
105 G |
| Weight & dimensions |
|---|
| Width |
173 mm |
| Depth |
426.9 mm |
| Height |
372.9 mm |
| Weight |
12.9 kg |
| Packaging content |
|---|
| Display included |
No |
| General |
|---|
| Product family |
Tower Plus |
| Carbon footprint |
|---|
| PAIA version |
PAIA 1.4.3, 2025 |
| Carbon emissions (End-of-Life) |
7.32 |
| Carbon emissions (Use) |
139.64 |
| Carbon emissions (Logistics) |
31.38 |
| Carbon emissions (Manufacturing) |
344.66 |
| Total carbon emissions (Standard deviation) |
136 |
| Total carbon footprint |
523 |
