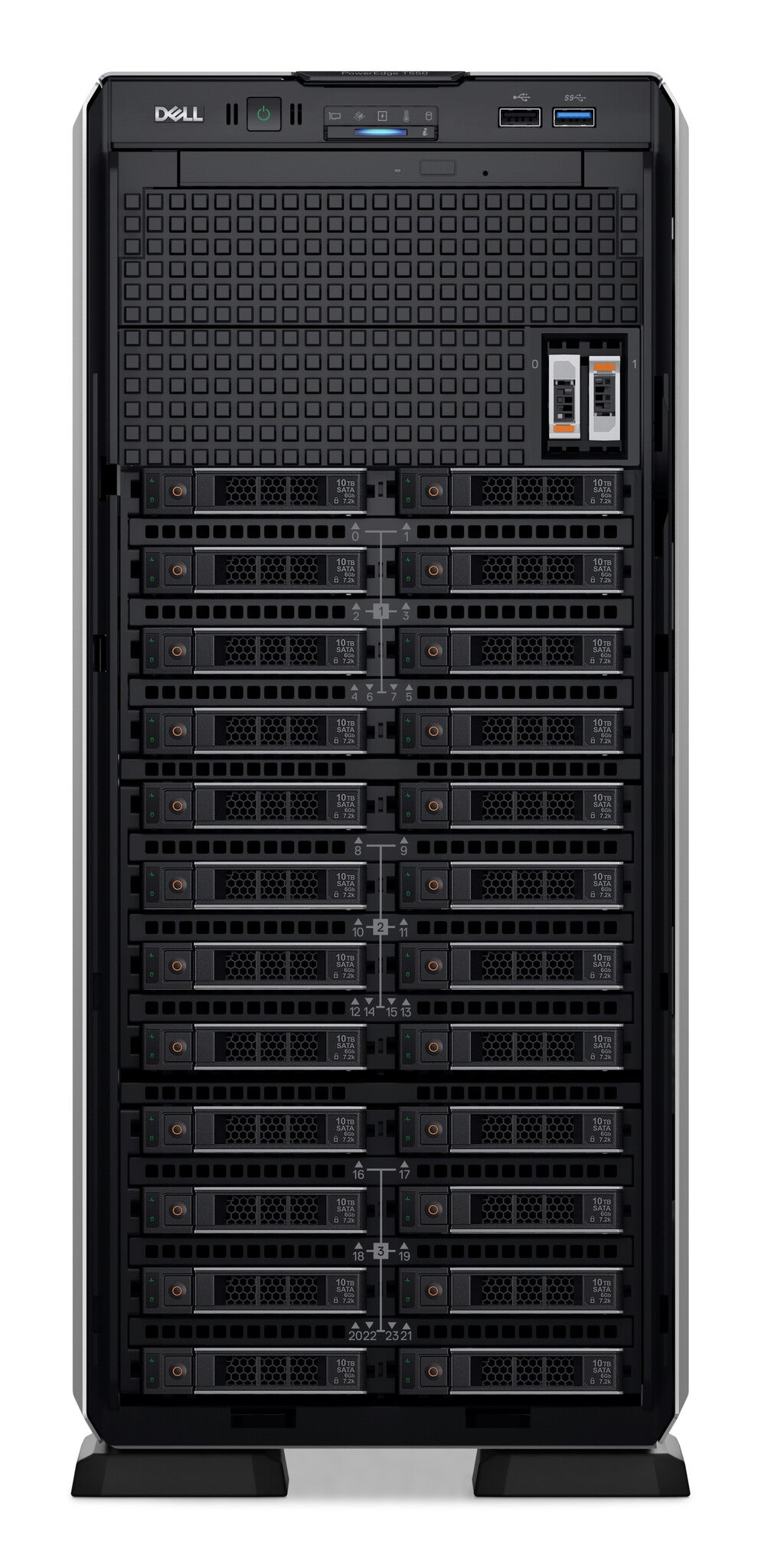

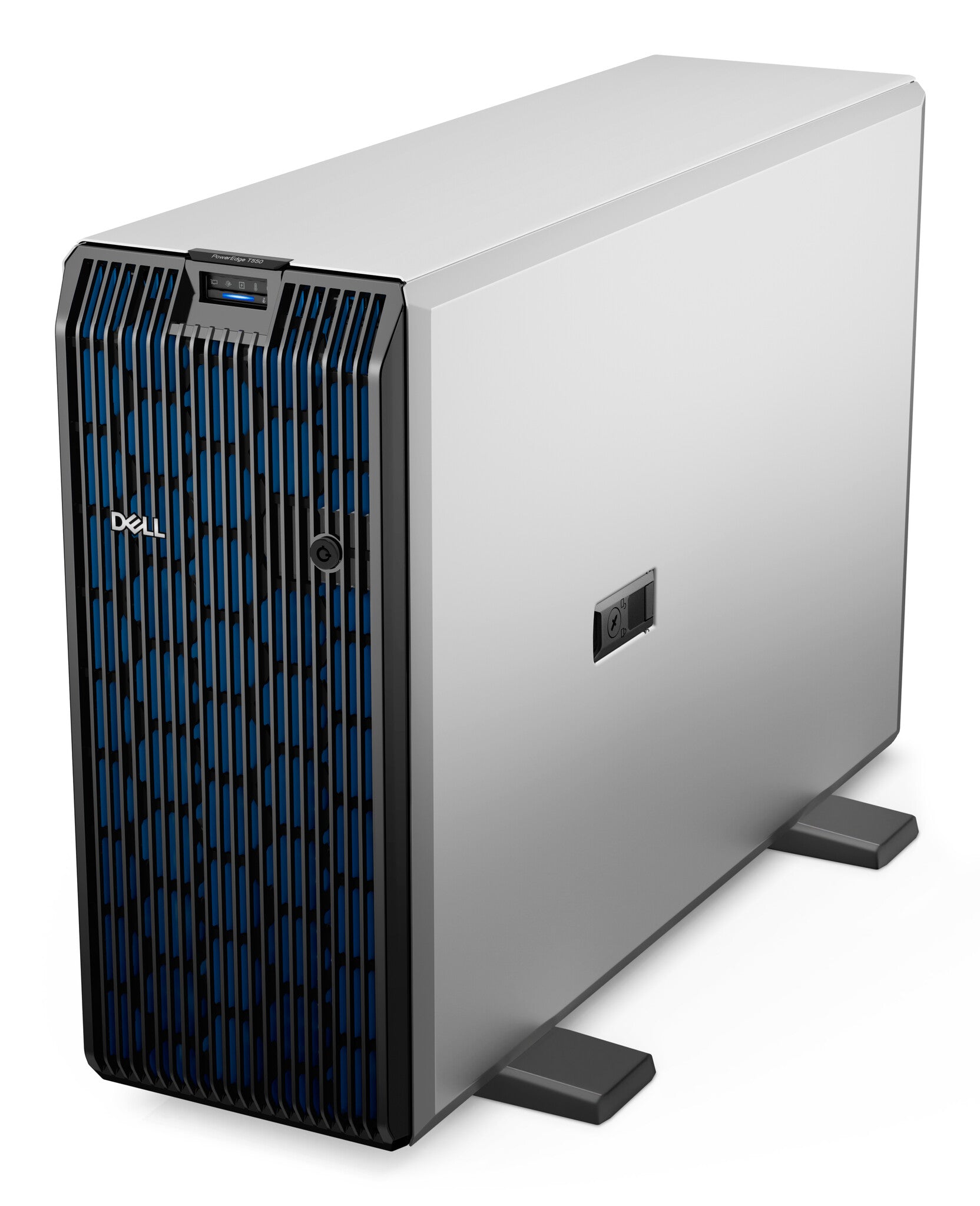

Dell PE T550/Chassis 8 x 3.5”/Intel Xeon Silver 4309Y/16GB/1x480GB SSD SATA Read Intensive/Parallax Security Bezel/Broadcom 5720/PERC H755/iDRAC9 Enterprise 15G/Dual 700W Titanium/3Y Basic Onsite
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel Xeon Silver |
| Processor generation |
3rd Generation Intel® Xeon® Scalable |
| Processor model |
4309Y |
| Processor frequency |
2.8 GHz |
| Processor boost frequency |
3.6 GHz |
| Efficient-core base frequency |
0.0028 GHz |
| Performance-core base frequency |
2.8 GHz |
| Processor cores |
8 |
| Processor cache |
12 MB |
| Number of processors installed |
1 |
| Maximum internal memory supported by processor |
32 GB |
| Memory |
|---|
| Internal memory |
16 GB |
| Internal memory type |
DDR4-SDRAM |
| Buffered memory type |
Registered (buffered) |
| Memory ranking |
2 |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory slots |
16x DIMM |
| Memory data transfer rate |
3200 MT/s |
| Maximum internal memory |
64 GB |
| Storage |
|---|
| Total storage capacity |
480 GB |
| Number of SSDs installed |
1 |
| SSD capacity |
480 GB |
| SSD interface |
SATA III |
| SSD size |
2.5" |
| RAID support |
Yes |
| Supported RAID controllers |
PERC H755 |
| Hot-Plug support |
Yes |
| Drive writes per day (DWPD) |
1 |
| Supported storage drive interfaces |
SAS, Serial ATA |
| Internal drive bays |
8 |
| Optical drive type |
No |
| Storage drive adapter included |
Yes |
| Storage drive adapter type |
2.5" - 3.5" |
| Graphics |
|---|
| On-board graphics card |
No |
| Network |
|---|
| Ethernet interface type |
Gigabit Ethernet |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Design |
|---|
| Chassis type |
Tower (5U) |
| Product colour |
Black |
| Bezel |
Yes |
| Performance |
|---|
| Remote administration |
iDRAC9 Enterprise 15G |
| Software |
|---|
| Operating system installed |
No |
| Compatible operating systems |
Canonical Ubuntu Server LTS
● Citrix Hypervisor
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi |
| Power |
|---|
| Redundant power supply (RPS) support |
Yes |
| Power supply |
700 W |
| Number of redundant power supplies supported |
2 |
| Number of redundant power supplies installed |
2 |
| Power cable length |
2 m |
| Power cable connector 1 |
C13 coupler |
| Power cable connector 2 |
C14 coupler |
| Power cable current |
10 A |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 35 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3048 m |
| Non-operating altitude |
0 - 12000 m |
| General |
|---|
| Product family |
PowerEdge |
| Carbon footprint |
|---|
| PAIA version |
PAIA 1.3.2, 2022 |
| Carbon emissions (End-of-Life) |
90.9 |
| Carbon emissions (Use) |
7362.9 |
| Carbon emissions (Logistics) |
545.4 |
| Carbon emissions (Manufacturing) |
1090.8 |
| Total carbon emissions (Standard deviation) |
4620 |
| Total carbon footprint |
9090 |
| Weight & dimensions |
|---|
| Width |
200 mm |
| Height |
459 mm |
| Depth |
680.5 mm |
| Technical details |
|---|
| Supported storage drives form factor (internal) |
3.5" |
| Other features |
|---|
| Bytes per sector |
512 |
| Data transfer rate |
6 Gbit/s |
