DeepCool

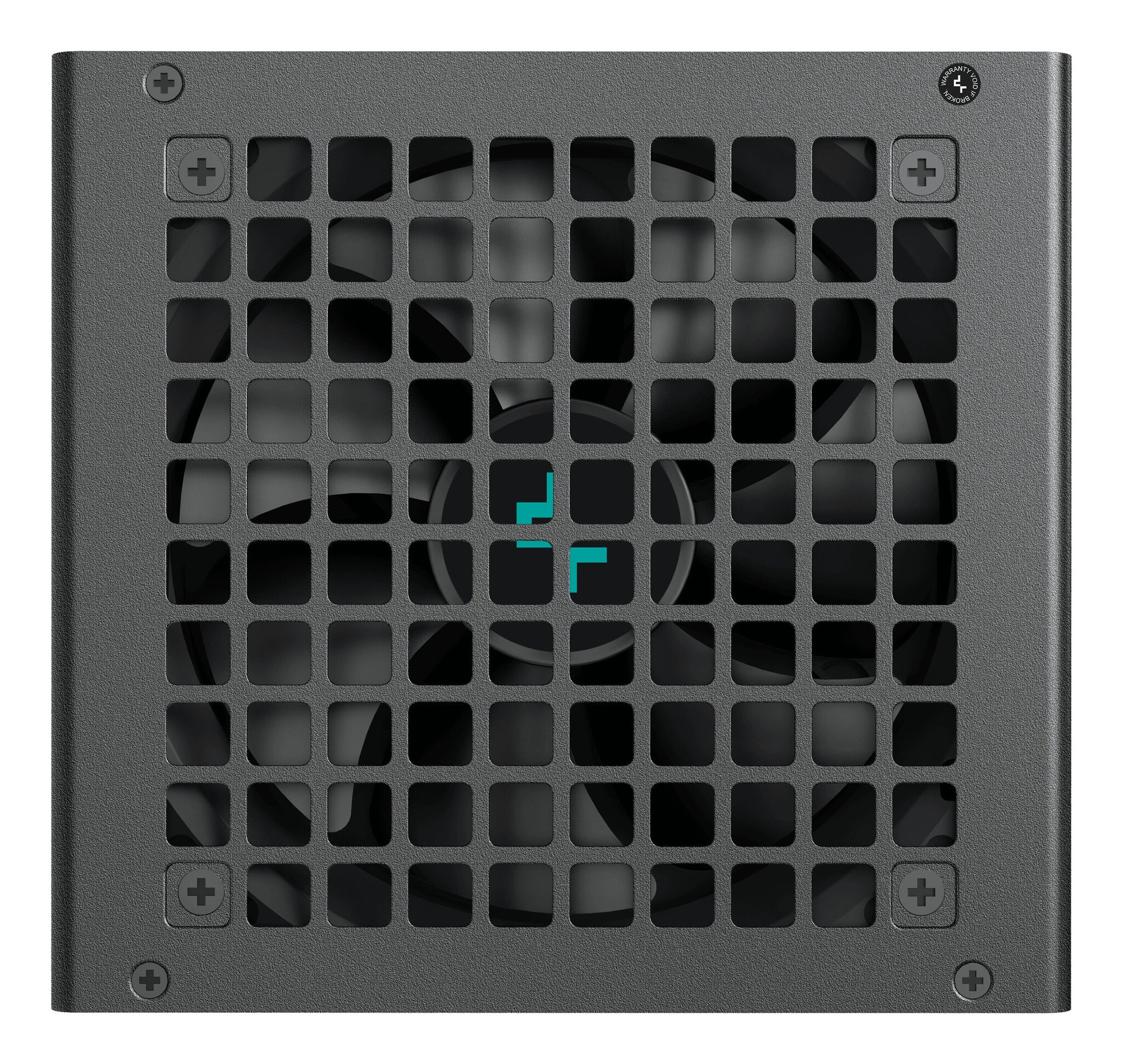

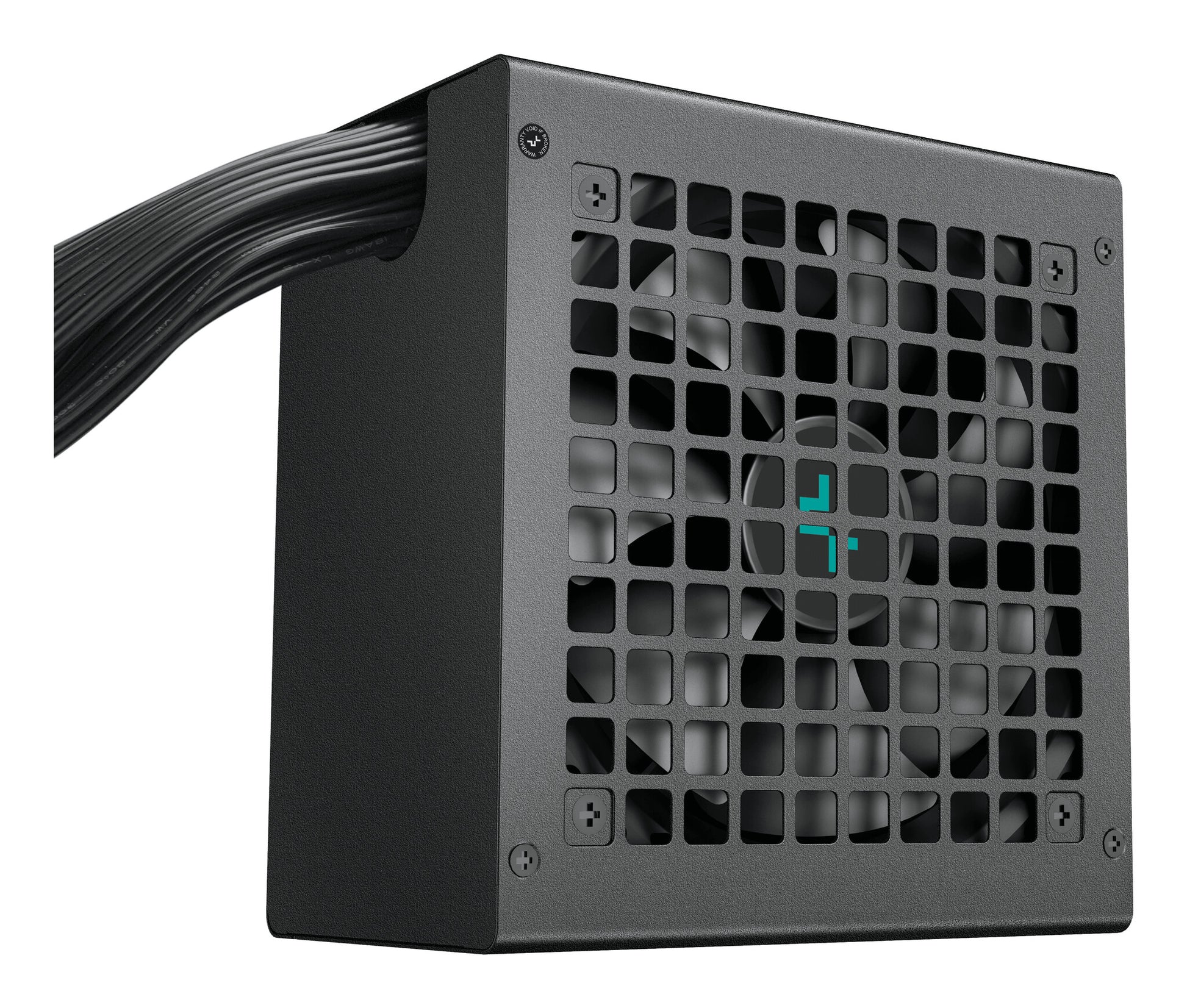

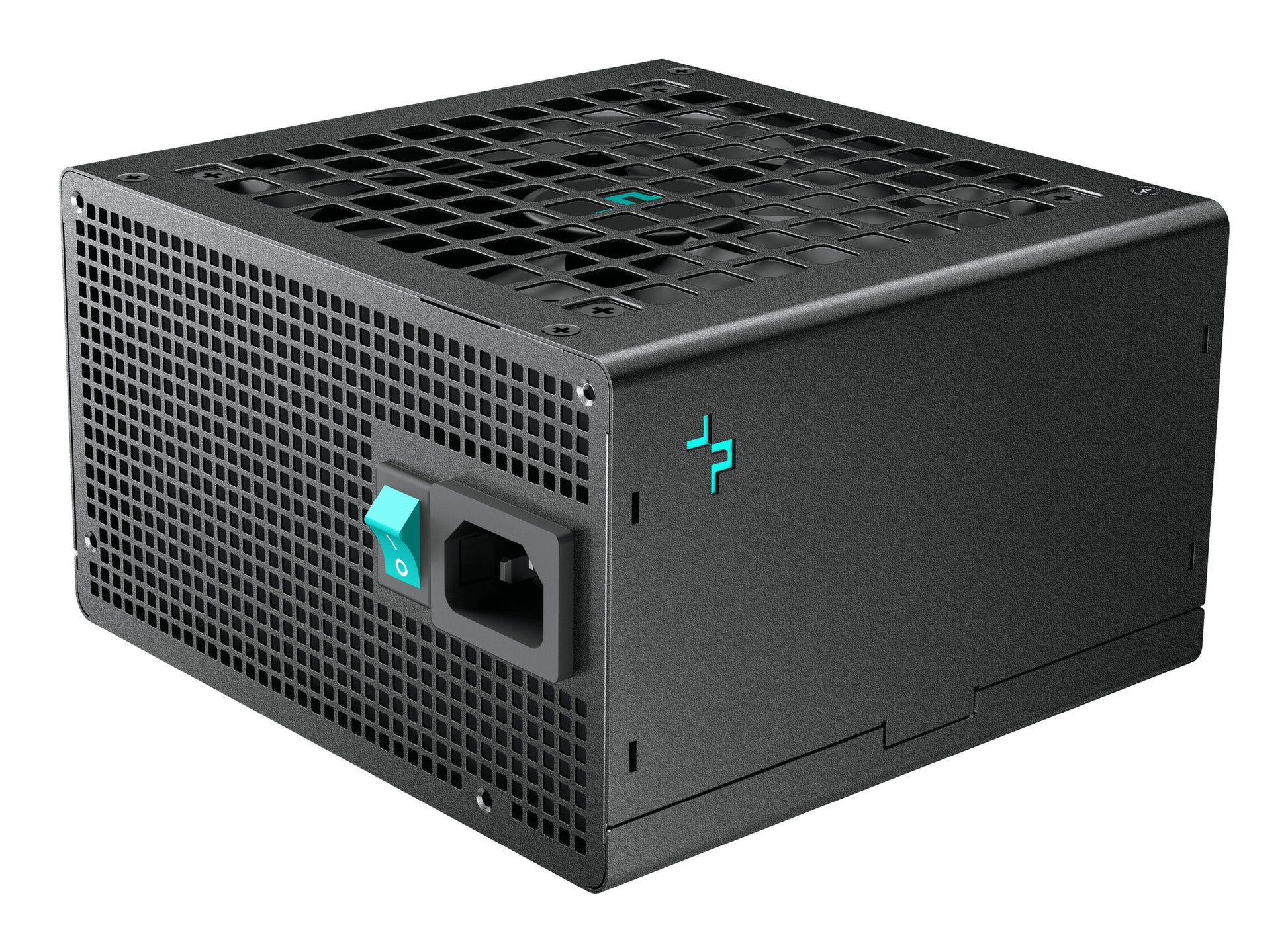

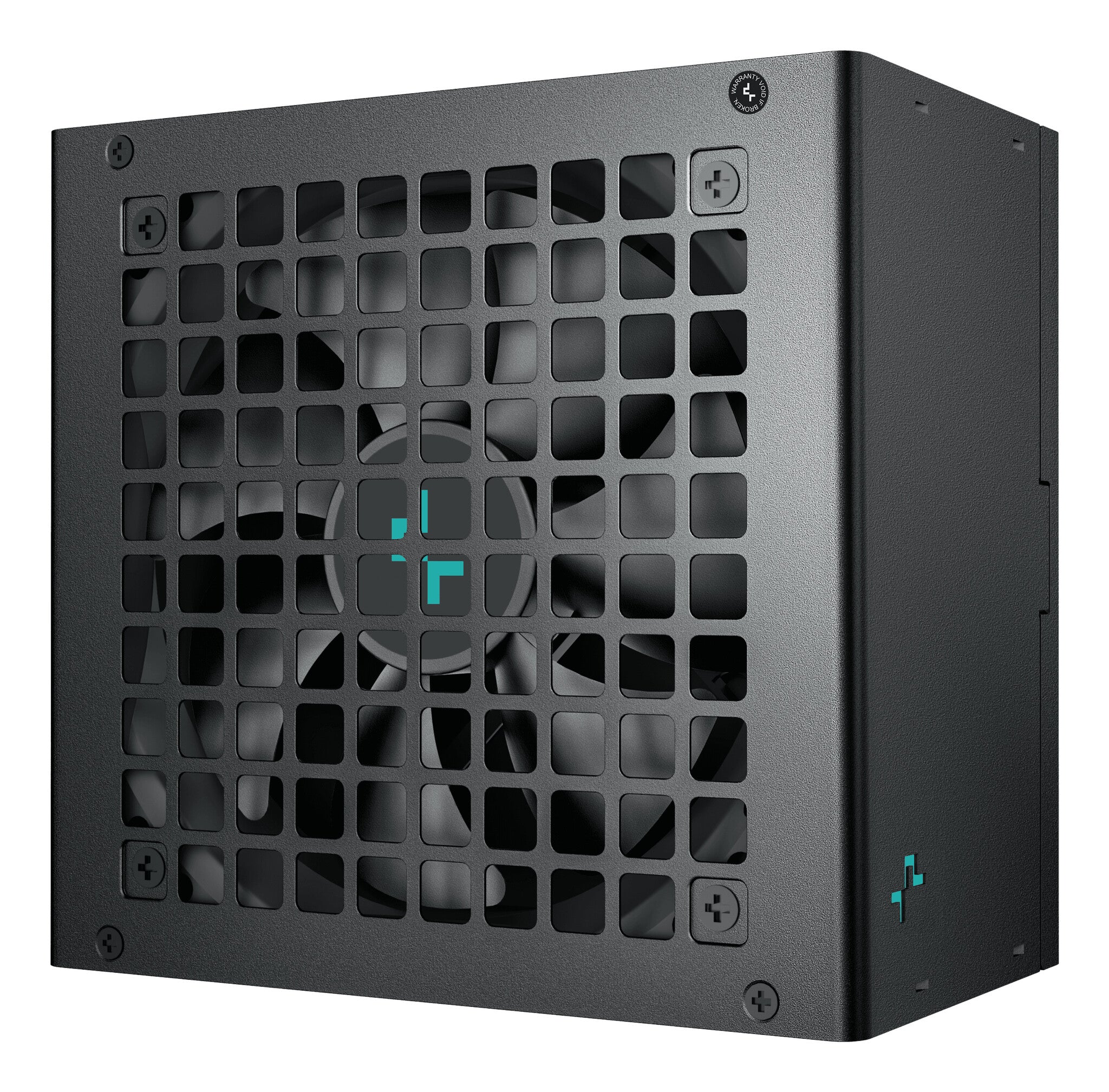

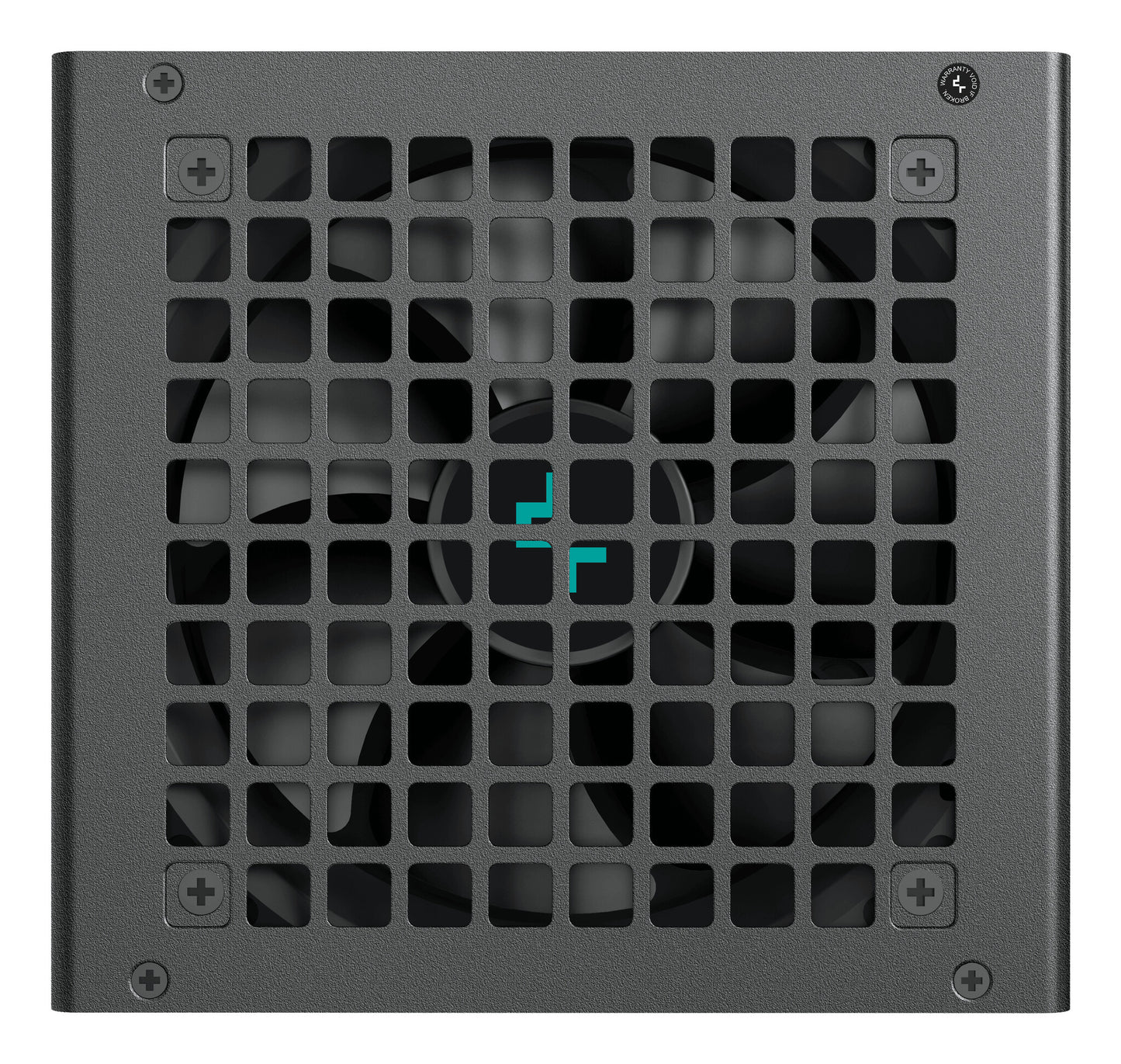

DeepCool PL750D power supply unit 750 W 20+4 pin ATX ATX Black

R 1,120.56
R 1,120.56
R 1,120.56
Shipping calculated at checkout.

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
133 in stock
750W, ATX12V V3.0, APFC, 120 mm, 20+4 Pin, 2x 4+4 Pin, 3x PCI-E 6+2 Pin, 8x SATA, 12VHPWR, 150 × 140 × 86 mm, Black, EU

The PL750D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL's ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.

PL750D
Native ATX3.0 Power Supply

NATIVE ATX3.0
Based on INTEL's latest ATX3.0 standard, the PL750D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.0 power connector is included and has been rated up to 300 watts.

PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.

ROCK SOLID RELIABILITY

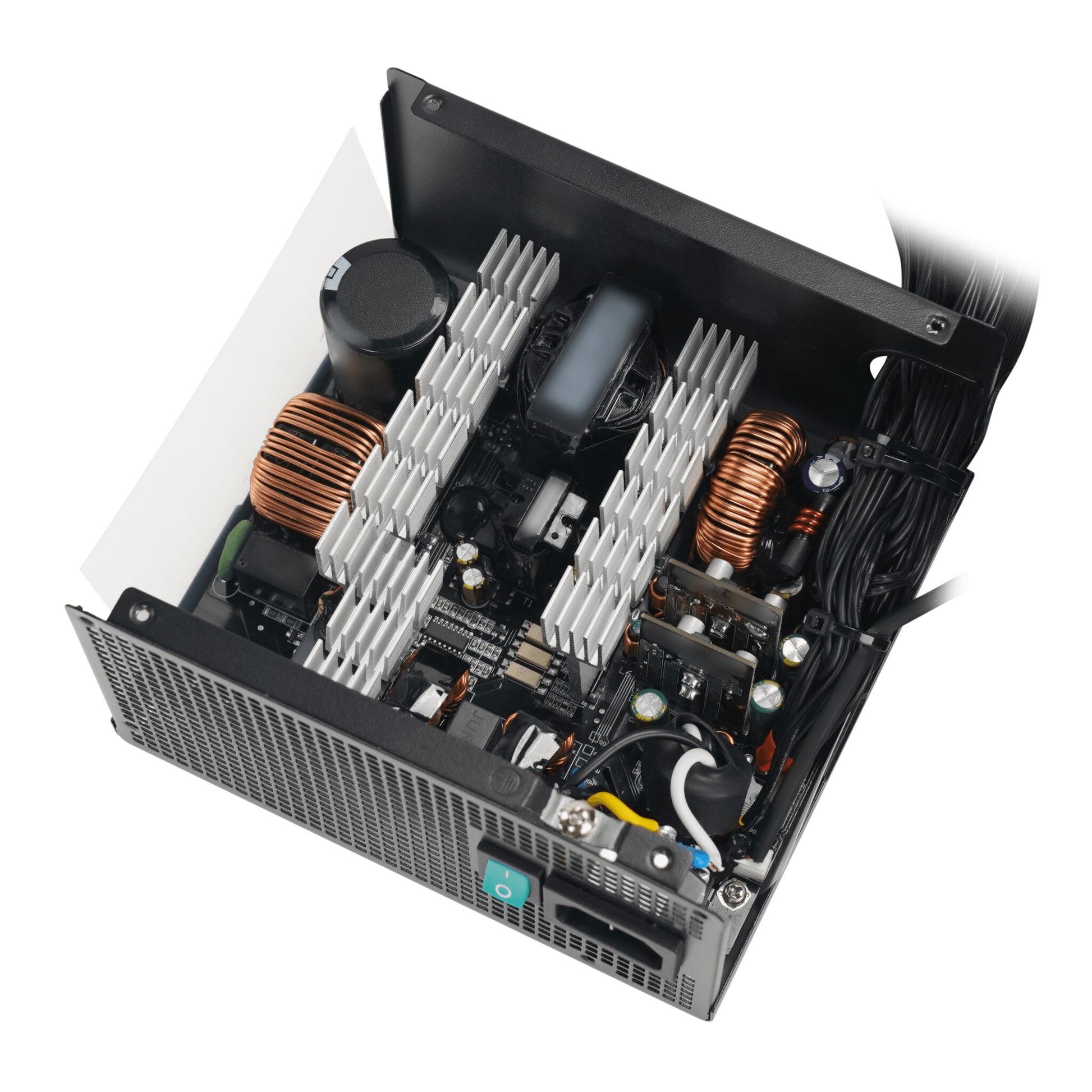

Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.

PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12VHPWR cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).

PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.

EXCEPTIONAL WARRANTY
Standing behind the high standards DeepCool has set for our products, a 5-year limited warranty is included to ensure worry-free service.

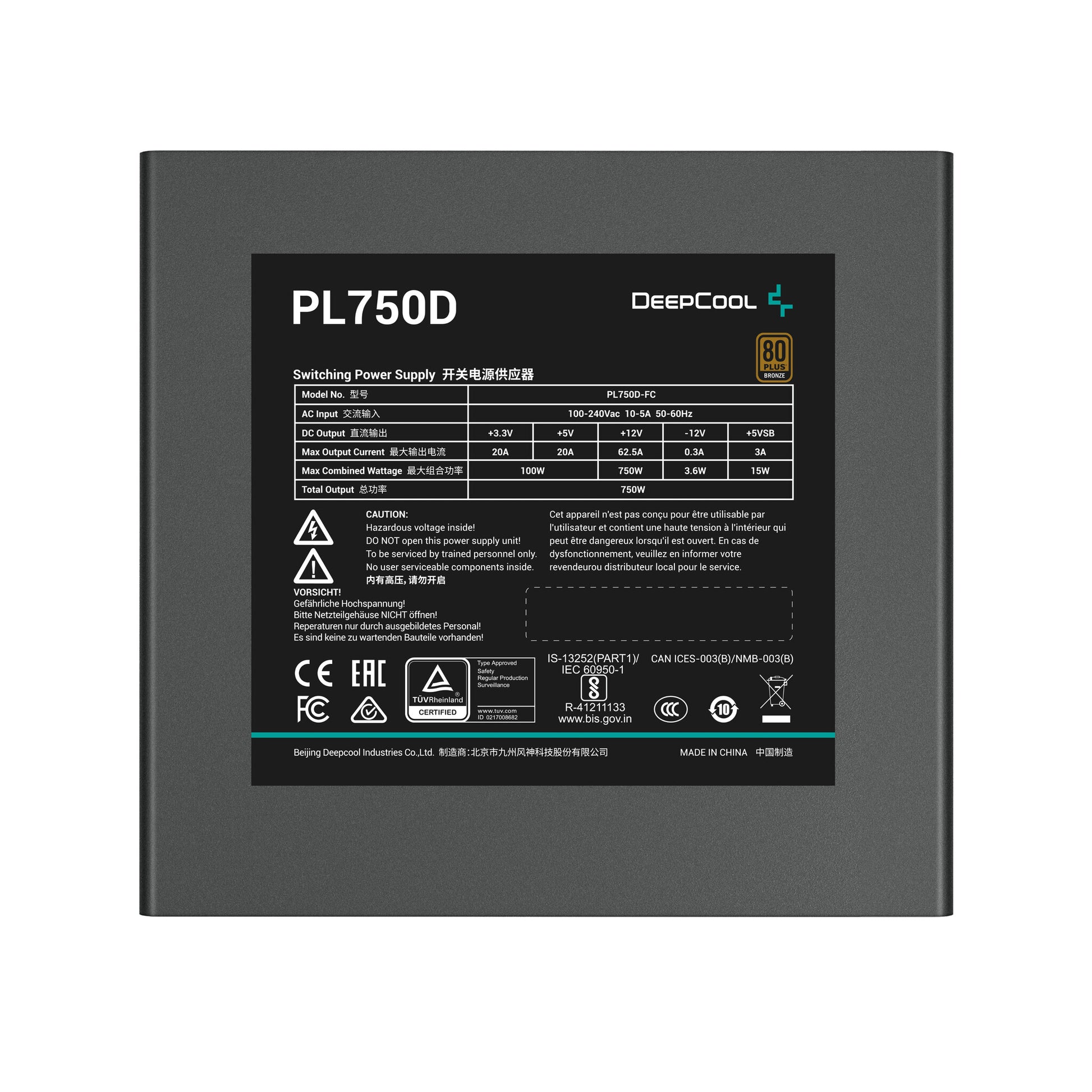

Power
Power protection features No load operation, Over current, Over power, Over voltage, Overheating, Surge & inrush protection (SIP), Surge protection, Under voltage
Power Good signal delay range 100 - 150 ms
Hold time 16 ms
Efficiency 85%
Max output current (+5Vsb) 3 A
Max output current (-12V) 0.3 A
Max output current (+5V) 20 A
Max output current (+12V) 62.5 A
Max output current (+3.3V) 20 A
Combined power (+5Vsb) 15 W
Combined power (-12V) 3.6 W
Combined power (+5V) 100 W
Combined power (+12V) 750 W
Combined power (+3.3V) 100 W
Power Factor Correction (PFC) type Active
Input current 10 - 5 A
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Total power 750 W
Ports & interfaces
Cabling type Non-Modular
ATX power connector (20+4 pin) Yes
CPU power connector (4+4 pin) Yes
PCI Express power connectors (16-pin) 1
PCI Express power connectors (6+2 pin) 3
Peripheral (Molex) power connectors (4-pin) 2
SATA power cable length 450,550,650,750 mm
Number of SATA power connectors 8
Motherboard power cable length 55 cm
Motherboard power connector 20+4 pin ATX
Performance
Certification CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Mean time between failures (MTBF) 100000 h
Bearing technology HYB
ATX version 3.0
80 PLUS certification 80 PLUS Bronze
Power supply unit (PSU) form factor ATX
Purpose PC
Design
On/off switch Yes
Fan location Top
Number of fans 1 fan(s)
Fan diameter 12 cm
Cooling type Active
Product colour Black
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 86 mm
Depth 140 mm
Width 150 mm
Packaging data
Package type Box
Technical details
Sustainability certificates ErP, Triman
Compliance certificates RoHS, WEEE
Sustainability compliance Yes
Logistics data
Country of origin China
DeepCool PL750D power supply unit 750 W 20+4 pin ATX ATX Black
