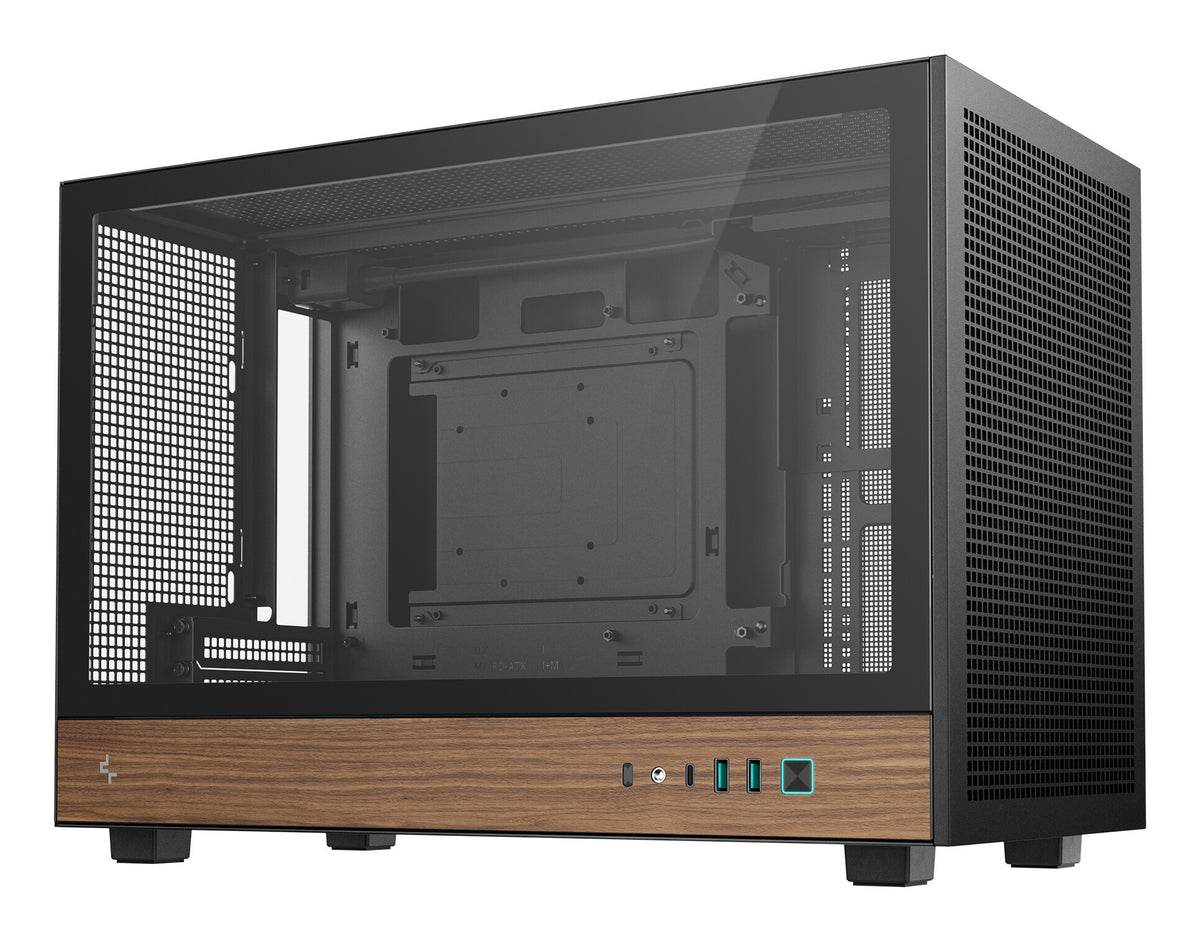

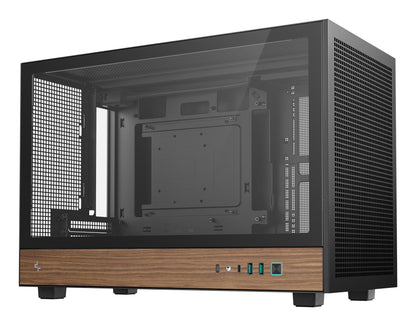

Mini-ITX / Micro-ATX / Micro-ATX(Rear Connector), ATX PS2, 438 x 225 x 312.5 mm, Black/Wood
The CH260 series is an expanded version of the classic DeepCool ITX case CH160, capable of containing up to M-ATX motherboard and inheriting its high airflow legacy thanks to the full steel mesh panel, now available in a wood-grain option.
GO MICRO
The Micro Form Factor CH260 WOOD comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance of 29.6mm in the backplane.
NATURAL AESTHETIC
The wood-grain I/O panel adds a natural elegance to the CH260 WOOD, giving your build a furniture-like presence that fits beautifully into modern living spaces.
SMALL SIZE OUTSIDE, FULL SIZE INSIDE
The CH260 WOOD provides multiple options in key components compatibility which can support full-size GPU up to 388mm in length or goes even longer to 413mm without front fan placement. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.
UNCOMPROMISED VENTILATION
The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on top or a 174mm high tower heat sink on the CPU.
| Design |
|---|
| Form factor |
Micro Tower |
| Type |
PC |
| Material |
Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass |
| Product colour |
Black, Wood |
| Supported motherboard form factors |
micro ATX, Mini-ITX |
| Number of 3.5" bays |
1 |
| Number of 2.5" bays |
1 |
| Number of internal 3.5" bays |
1 |
| Number of expansion slots |
4 |
| Side window |
Yes |
| Suitable for |
Gaming |
| On/off button |
Yes |
| Maximum CPU cooler height |
17.4 cm |
| Maximum graphics card length |
41.3 cm |
| Maximum PSU length |
15 cm |
| Power supply |
|---|
| Power supply included |
No |
| Supported power supply form factors |
PS2 |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Combo headphone/mic port |
Yes |
| Cooling |
|---|
| Number of front fans supported (max) |
2 |
| Front fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120 mm |
| Number of top fans supported (max) |
3 |
| Top fans diameters supported |
120,140 mm |
| Liquid cooling capability |
Yes |
| Rear radiator sizes supported |
120 mm |
| Top radiator sizes supported |
120,240,360 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
|---|
| Width |
225 mm |
| Depth |
438 mm |
| Height |
312.5 mm |
| Weight |
5.3 kg |
