DeepCool CG590 MESH 2F Midi Tower Black

Serious airflow for serious builds | Two 160mm ARGB fans included | Dual-chamber thermal design | 360mm radiator support | Full ATX gaming chassis

Serious airflow for serious builds | Two 160 mm ARGB fans included | Dual-chamber thermal design | 360 mm radiator support | Full ATX gaming chassis

Quick Specs

• Achieve maximum airflow with two pre-installed 160mm ARGB front fans creating a bold visual centrepiece.


• Experience efficient cooling through a dual-chamber layout that keeps your GPU's intake path clear of PSU and drive heat.


• Dominate thermal performance with support for up to a 360 mm radiator on the top, side, or bottom.


• Accommodate your most powerful hardware — GPUs up to 410 mm long and CPU coolers up to 160mm tall fit with ease.


• Connect everything at your fingertips via the front I/O panel with two USB 3.0 ports, a Gen2 Type-C port, and HD Audio.

Built to Breathe, Built to Perform

The DeepCool CG590 Mesh 2F is a mid-tower ATX gaming chassis engineered for builders who refuse to compromise on airflow or aesthetics. With two pre-installed 160mm ARGB forward-curved blade fans at the front, large ventilated mesh panels, and a dual-chamber interior, it is the foundation for a high-performance gaming PC that runs cool and looks the part.

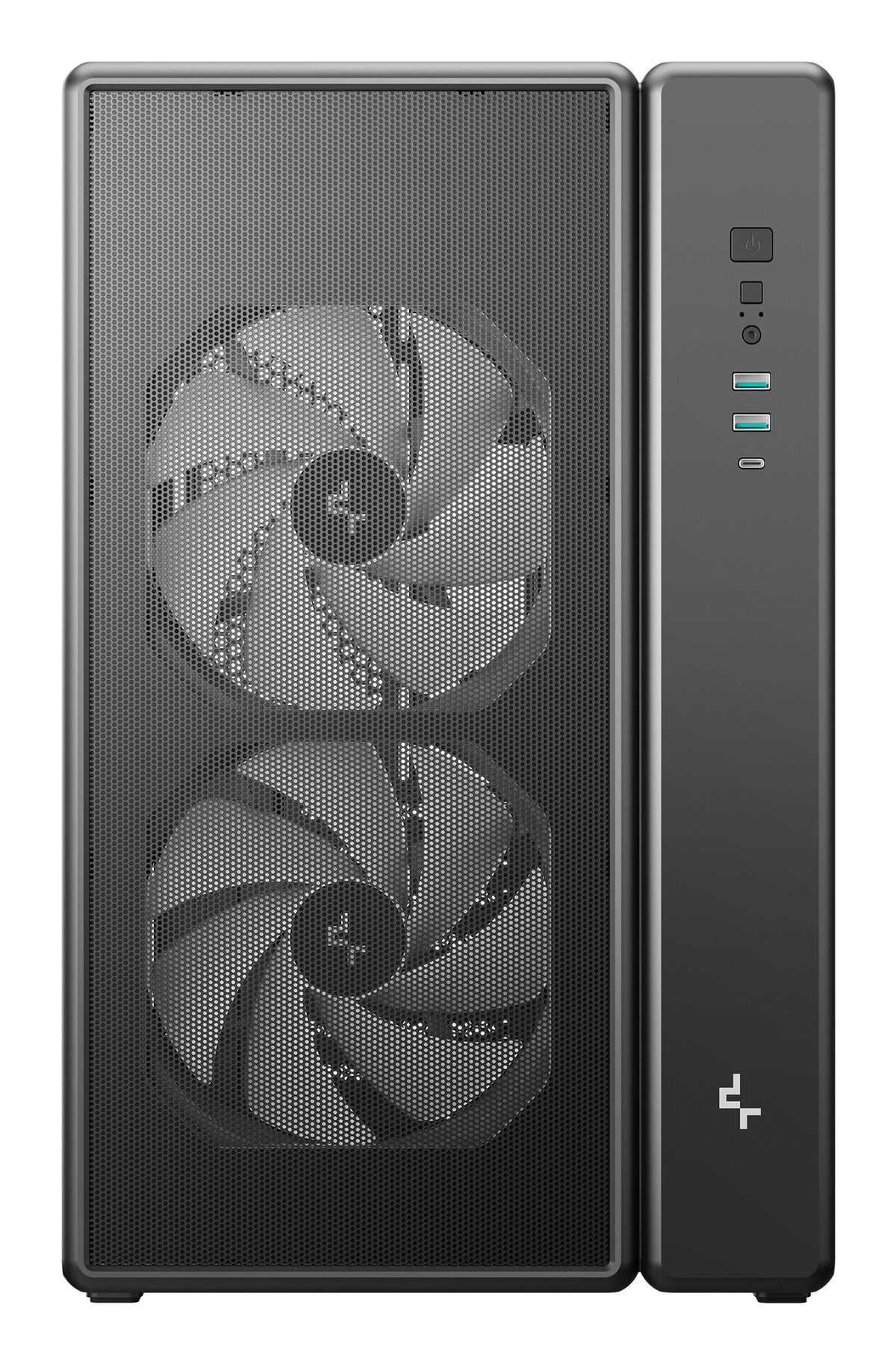

Large Fans, Serious Airflow — From the Moment You Power On

Tired of cases that throttle your components before you even start gaming? The CG590 Mesh 2F puts two 160mm ARGB fans at the front intake, delivering stronger, more efficient airflow than the smaller fans found in most mid-tower cases. Large ventilated panels on the front and top further enhance circulation throughout the entire chassis, ensuring cool, dense air reaches your GPU and CPU without restriction.

A Smarter Interior That Keeps Your GPU Cool

The dual-chamber layout separates the power supply and drives into their own dedicated zone, keeping that heat well away from your GPU's intake path. With a GPU clearance of up to 410mm and support for PSUs up to 210mm, the CG590 Mesh 2F accommodates today's largest graphics cards without compromise. A removable drive cage adds further flexibility, while 45mm of cable management clearance keeps the interior tidy behind the right side panel.

Flexible Cooling for Air and Liquid Builds

Whether you are running an all-air configuration or planning a custom liquid cooling loop, the CG590 Mesh 2F has you covered. It supports 360mm radiators at the top, side, and bottom — giving you genuine freedom in how you route your cooling. The top accepts radiators from 120mm up to 360 mm, while the side and bottom each support up to 360mm as well. A rear 120mm radiator position rounds out the options. In full air-cooling mode, the chassis can house fans across the top, front, side, rear, and bottom positions.

Broad Hardware Compatibility and Practical Details

The spacious interior supports Mini-ITX, Micro-ATX, and ATX motherboards — including ATX and Micro-ATX boards with rear connectors — giving you flexibility across current and future platform choices. Seven PCIe expansion slots, storage for up to two 3.5-inch HDDs and three 2.5-inch SSDs, and a quick-release top panel round out a chassis that is as practical to build in as it is rewarding to own. The tempered glass side panel puts your build on display, while the front I/O provides two USB 3.0 ports, a Gen2 Type-C port, and HD Audio for everyday convenience.

Features

• Two pre-installed 160 mm ARGB forward-curved blade fans provide strong front intake airflow and a striking visual effect.


• Dual-chamber layout isolates the PSU and drives, keeping the GPU intake path free from unwanted heat.


• 360mm radiator support at the top, side, and bottom for full liquid cooling flexibility.


• Supports CPU coolers up to 160mm tall and GPUs up to 410mm long.


• Compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including ATX and Micro-ATX rear-connector variants.


• Seven PCIe expansion slots with storage for up to 2x 3.5-inch HDDs and 3x 2.5-inch SSDs.


• Front I/O: 2x USB 3.0, 1x Gen2 Type-C, 1x HD Audio jack.


• Tempered glass side panel for a clear view of your build.


• Quick-release top panel and removable drive cage for easier access and flexible configuration.


• 45mm cable management clearance behind the motherboard tray.

Specifications

• Brand: DeepCool


• Colour: Black


• Warranty: 24 Months


• Product Weight: 6.8 kg


• Product Dimensions (L x W x H): 45.0 cm x 28.5 cm x 45.8 cm


• Motherboard Support: Mini-ITX, Micro-ATX, ATX


• Side Panel: Tempered Glass


• Included Fans: 2


• Max GPU Length: 410 mm


• Max CPU Cooler Height: 160 mm


• Radiator Support: Top: 120/140/240/280/360mm, Side: 120/240/360mm, Bottom: 120/240/360mm, Rear: 120mm


• Front I/O: USB 3.0 x2,Gen2 Type-C x1,HD Audio x1


• RGB Lighting: Yes

What's in the Box

• DeepCool CG590 Mesh 2F ATX Gaming Chassis - Black x1


• Top Module x1


• Right Side Panel x1


• Tempered Glass Side Panel x1


• Front Panel x1


• Bottom Dust Filter x1


• Forward-Curved Blade Fan (160mm ARGB) x2


• Hard Disk Bracket x1


• PSU Screws x6


• Motherboard Screws x18


• HDD Screws x9


• Stand Off x3


• Sleeve Screws x1


• Cable Ties x5

Why DeepCool

DeepCool has built its reputation on delivering thermal engineering and chassis design that empowers PC builders to achieve more — whether they are chasing competitive frame rates or building a powerful workstation. The CG590 Mesh 2F is a testament to that commitment: a thoughtfully designed gaming chassis that gives South African builders the airflow, flexibility, and visual impact their builds deserve.

• manual pdf
