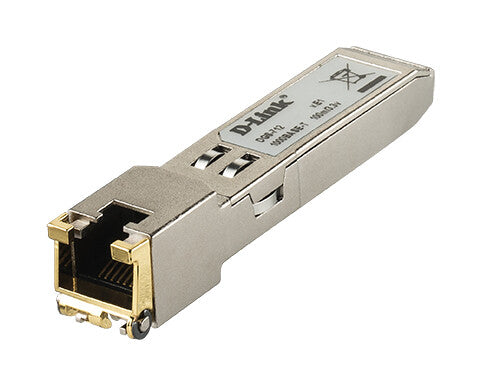

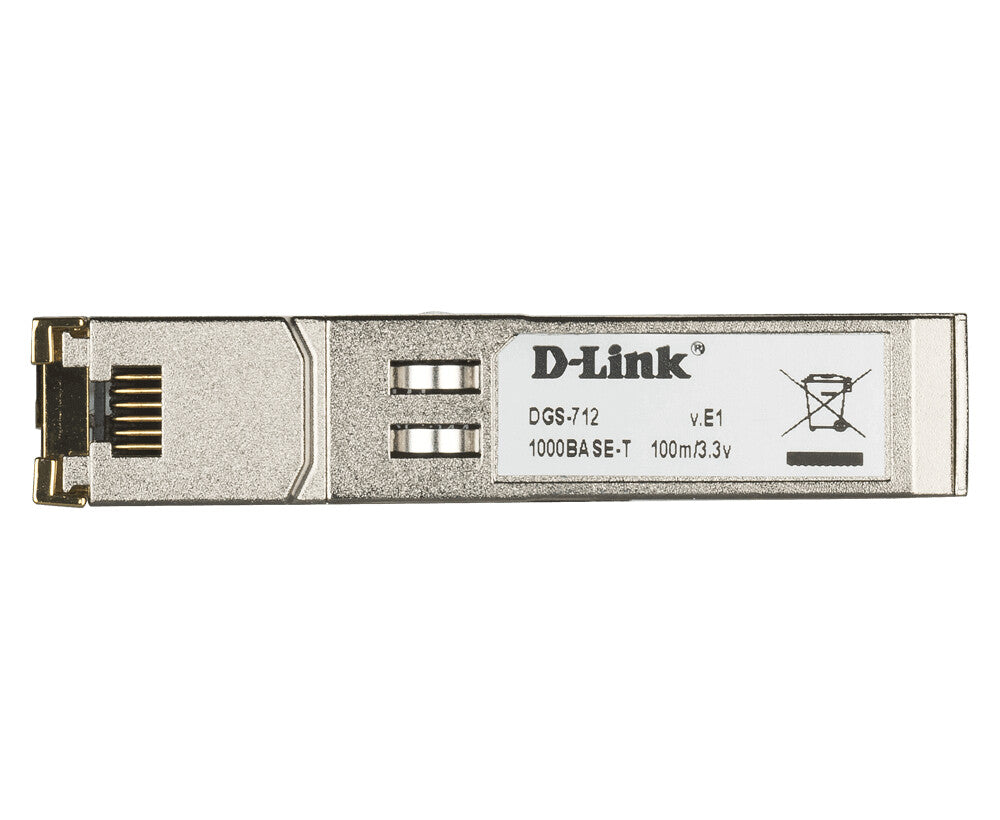

1000Base-T Copper SFP Transceiver
Gigabit Ethernet connectivity for data centers, enterprise wiring closets, and service provider transport applications
The D-Link DGS-712 1000Base-T Copper SFP Transceiver Module is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver that plugs into standard SFP slots on switches and supports Gigabit Ethernet. The DGS-712 offers a wide variety of Gigabit Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The DGS-712 is an external transceiver designed for insertion into SFP slots of network devices for transmission and reception of data signals from fiber ports. These transceivers provide Gigabit operation and physical compactness to deliver the speed, reliable data transfer, and deployment flexibility that today’s networks require.
| Performance | |
|---|---|
| Copper ethernet cabling technology | 10BASE, 100BASE, 1000BASE |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Maximum transfer distance | 100 m |
| SFP transceiver standard | T, TX |
| Interface type | SFP |
| Maximum data transfer rate | 1000 Mbit/s |
| SFP transceiver type | Copper |
| Features | |
|---|---|
| Certification | FCC Class ACE Class AVCCI Class A |
| Safety | CSA, TUV |
| Mean time between failures (MTBF) | 5617000 h |
| Product colour | Metallic |
| Power | |
|---|---|
| Maximum voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 80% |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 85 °C |
| Weight & dimensions | |
|---|---|
| Weight | 20 g |
| Height | 13.4 mm |
| Depth | 70.2 mm |
| Width | 13.7 mm |
| Packaging data | |
|---|---|
| Package weight | 64 g |
| Package height | 49 mm |
| Package depth | 131 mm |
| Package width | 74 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Products per shipping (inner) case | 50 pc(s) |
| Pallet gross weight (air) | 246.8 kg |
| Master (outer) cases per pallet (air) | 54 pc(s) |
| Products per pallet (air) | 2700 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 246.8 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 2700 pc(s) |
| Pallet height (sea) | 199 cm |
| Shipping (inner) case gross weight | 4.2 kg |
