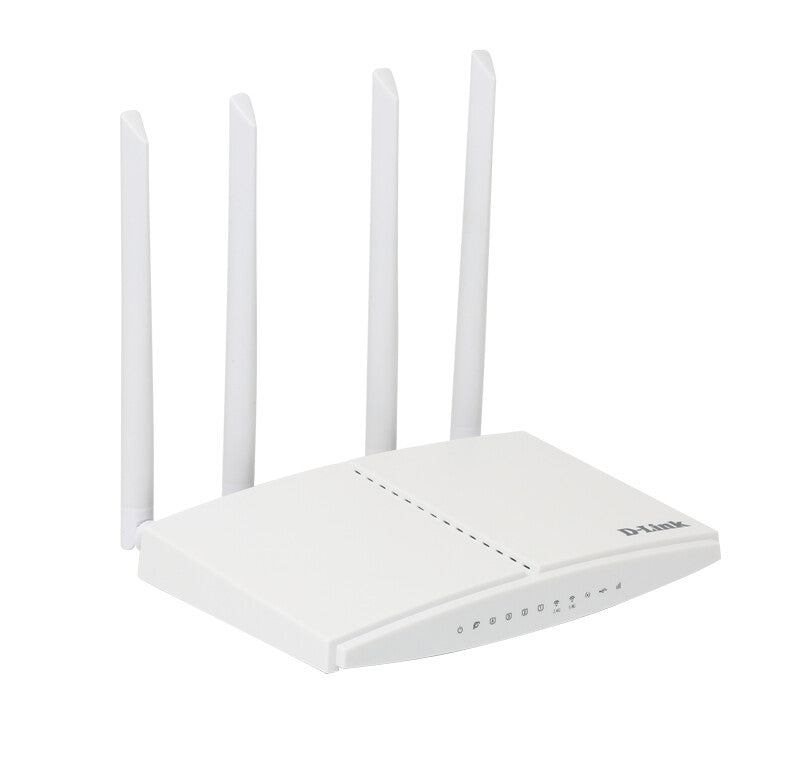

4G AC1200 LTE Router
D-Link’s DWR-M961 E1 4G CAT6 AC1200 LTE Router allows you to access mobile broadband networks from anywhere. Once connected, you can check e-mail, surf the web, stream media and make phone calls. Use your carrier’s SIM/UICC card to share your 3G/4G Internet connection through a secure wireless network or by using any of the four Gigabit ports.
Fast Mobile Internet
The DWR-M961 lets you connect to your 3G/4G mobile connection with fast downlink speeds of up to 300 Mbps and uplink speeds up to 50 Mbps, giving you the speed you need for fast, responsive Internet access. Surf the web with ease and stream music and video over the Internet to your PCs and mobile devices.
Secure Wired and Wireless Connections
The DWR-M961 utilizes dual-active firewalls (SPI and NAT) to prevent potential attacks across the Internet. Industry standard WPA/WPA2 wireless encryption keeps your wireless network secure and your traffic safe, allowing you to share your 3G/4G connection without worrying about unauthorized users accessing your network.
Easy to Set Up and Use
The DWR-M961 can be installed quickly and easily almost anywhere. It can be configured through almost any web browser without the need for special software. This router makes it possible to stay connected, even when conventional broadband services are unavailable
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
Yes |
| SIM card slot |
Yes |
| DSL WAN |
Yes |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
1167 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| Static route |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Flow control support |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Mobile network |
|---|
| 4G standard |
LTE-TDD & LTE-FDD |
| 3G standards |
WCDMA |
| 2G standards |
GSM |
| Dual SIM support |
Yes |
| 3G |
Yes |
| 4G |
Yes |
| Mobile network generation |
4G |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Memory card slot(s) |
No |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| WPS push button |
Yes |
| Reset button |
Yes |
| Security |
|---|
| Network address translation (NAT) |
Yes |
| DMZ support |
Yes |
| URL filtering |
Yes |
| MAC address filtering |
Yes |
| Filtering |
Yes |
| DoS attack prevention |
Yes |
| Stateful Packet Inspection (SPI) |
Yes |
| Security algorithms |
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols |
|---|
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| Product colour |
White |
| Product type |
Tabletop router |
| Antenna |
|---|
| Antennas quantity |
4 |
| Antenna gain level (max) |
5 dBi |
| Antenna design |
External |
| Features |
|---|
| Certification |
RoHS, CCC, CE, FCC |
| Safety |
UL |
| Flash memory |
8 MB |
| Internal memory |
64 MB |
| Processor frequency |
1000 MHz |
| Built-in processor |
Yes |
| Power |
|---|
| Output current |
1.5 A |
| Output voltage |
12 V |
| Power source type |
DC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 90 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Packaging data |
|---|
| Number of products included |
1 pc(s) |
