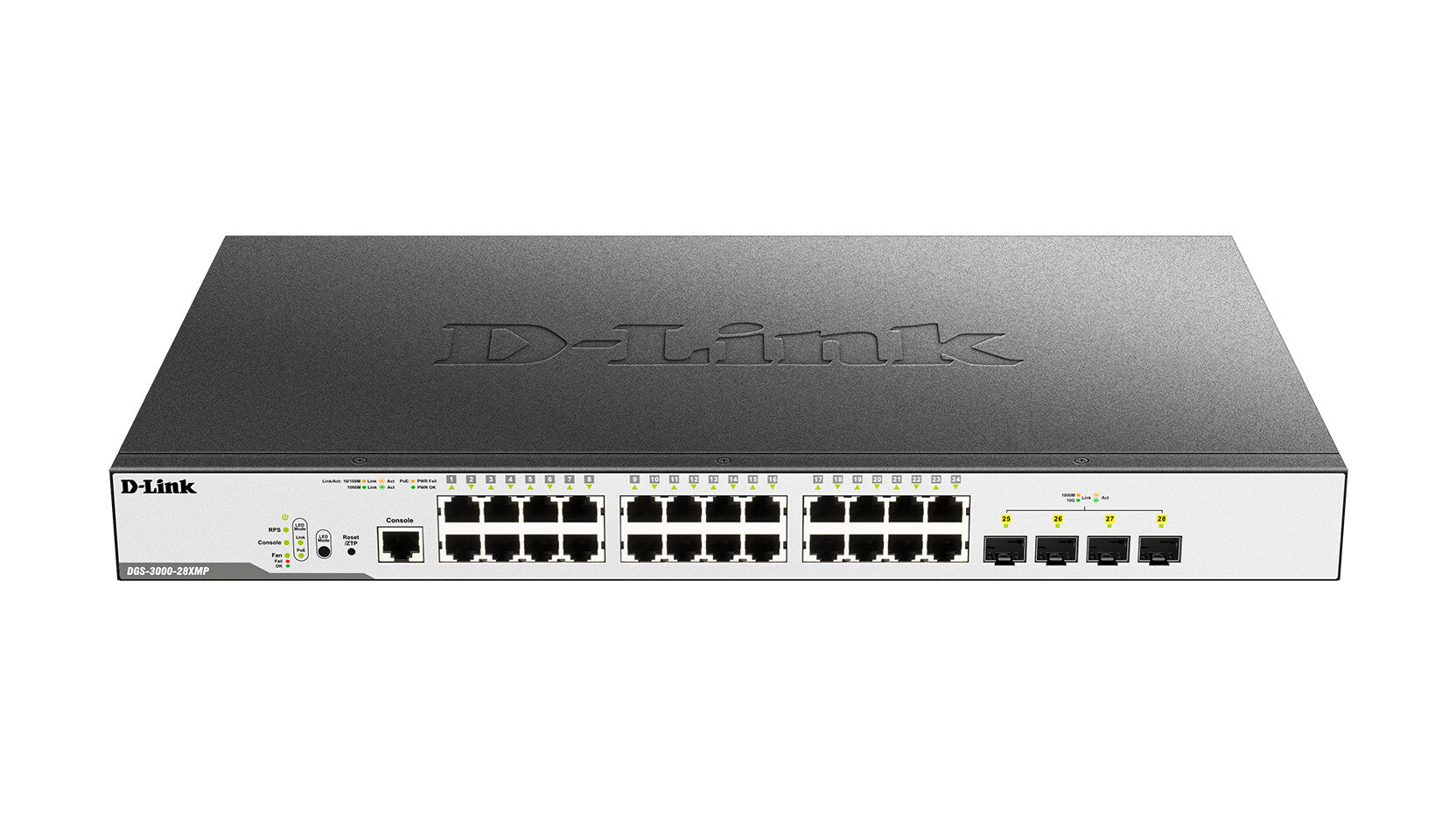

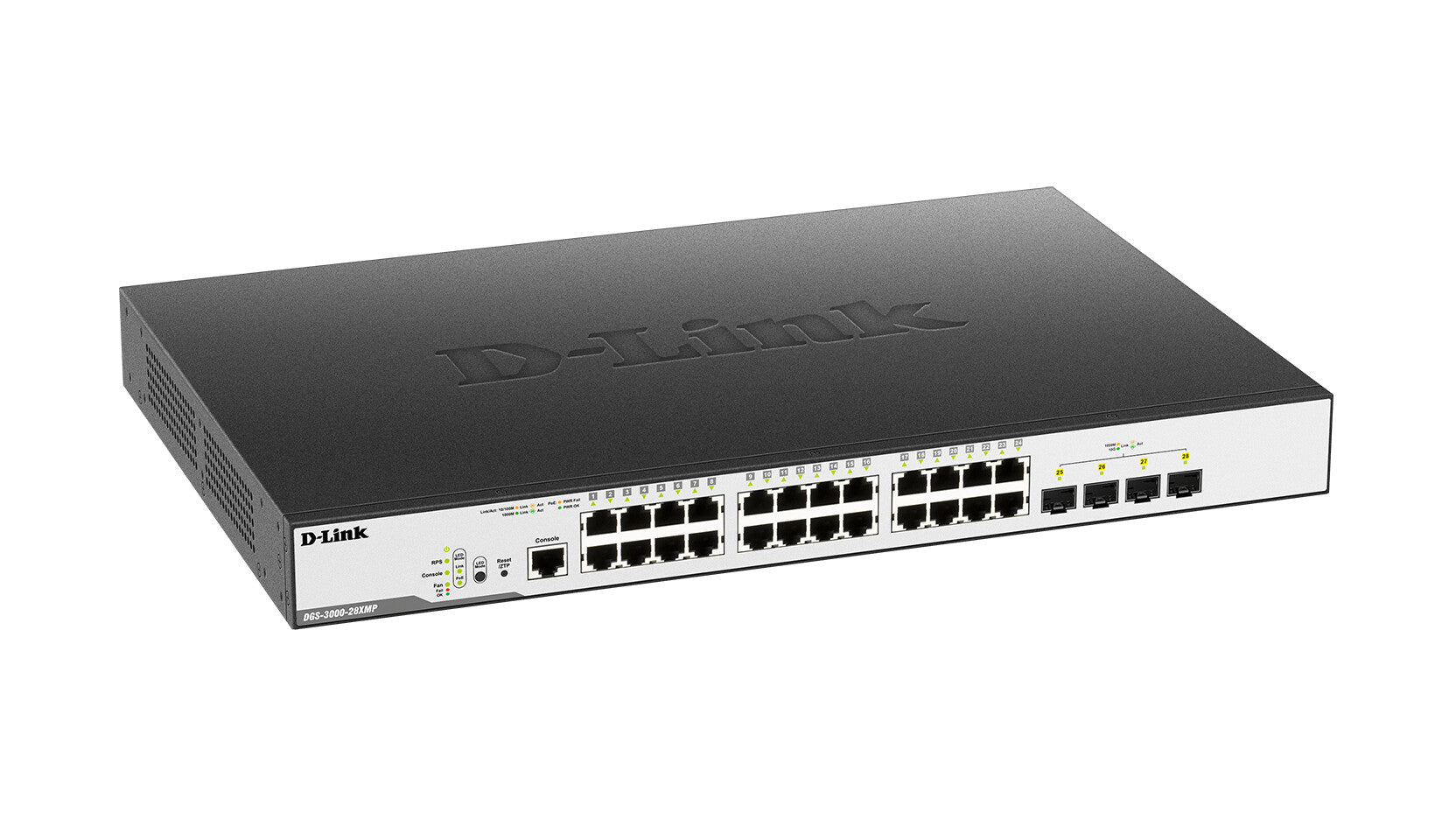

128 Gbps, 24x 10/100/1000 Mbps RJ-45, 4x 10G SFP+, PoE, VLAN, QoS, 1U, 19", 440 x 210 x 44 mm
Comprehensive Controllable Network.
The DGS-3000 Series Gigabit L2 Managed Switches provide wired Gigabit speeds, featuring a variety of ports for increased network bandwidth.
Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-3000 Series Gigabit L2 Managed Switches ideal for Metro Ethernet and campus applications.
Multi-Gigabit Performance
The DGS-3000 series come with a variety of port types, including 1 G RJ-45 ports, 1 G SFP ports, and 10G SFP+ ports, with all models offering a minimum of at least 2 1 G SFP ports.
Efficient and Resilient Networking
The DGS-3000 Series supports:
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS), which allows 50-millisecond failover, minimising service disruption.
- Up to 6 kV surge protection on all Ethernet ports.
- IEEE 802.1AX and 802.3ad Link Aggregation allows grouping of multiple ports to provide redundancy and load balancing in mission-critical environments.
Manageability
All switches can be managed as a virtual stack, allowing physically separate switches to be managed using a single IP address. The DGS-3000 Series also supports management tools such as a Web UI, SSH, Telnet, and console, and standards-based protocols such as SNMP, RMON, and SSL.
D-Link Single IP Management (SIM) simplifies and speeds up management tasks, allowing multiple switches to be configured, monitored, and maintained from any workstation, wherever the location.
Security & Authentication
The DGS-3000 Series offers user and device authentication, including host-based authentication and authorization, which provide the option to finely control network access for each device on the network.
Secure Network Environment
Advanced features such as RADIUS accounting allow the switches to be integrated with back-end systems for billing or advanced access control.
The DGS-3000 Series also supports address and interface binding features such as IP-MAC-Port Binding and ARP Spoofing Prevention to protect against Man-in-the-Middle or ARP Spoofing attacks.
Quality of Service
The DGS-3000 Series implements a rich set of multilayer QoS/CoS features to ensure that critical network services such as VoIP, video conferencing, IPTV, and IP surveillance are given high priority.
Administrators can prioritise network traffic with Traffic Shaping features guaranteeing bandwidth for critical services when the network is busy.
| Management features |
|---|
| ARP inspection |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Console port |
RJ-45 |
| Fiber optic connector |
SFP+ |
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
|---|
| Number of VLANs |
4094 |
| Virtual LAN features |
Private VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN |
| VLAN support |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| Spanning tree protocol |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| Cable types supported |
Cat5, Cat5e |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1af, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3at |
| Data transmission |
|---|
| Packet buffer memory |
1.5 MB |
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
95.24 Mpps |
| Switching capacity |
128 Gbit/s |
| MAC address table |
16000 entries |
| Security |
|---|
| Security algorithms |
802.1x RADIUS, SNMP, SNMPv3, SSH, SSH-2, SSL/TLS |
| IP-MAC-Port binding |
Yes |
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| IGMP snooping |
Yes |
| Access Control List (ACL) rules |
1024 |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP server, DHCP client |
| Multicast features |
|---|
| Multicast Listener Discovery (MLD) snooping |
MLD v1, MLD v2 |
| Multicast support |
Yes |
| Design |
|---|
| Certification |
CE, FCC, C-Tick, VCCI, BSMI |
| Safety |
cUL, CB |
| Number of fans |
2 fan(s) |
| LED indicators |
Activity, Fan fail, Link, Power, Speed, Uplink |
| Product colour |
Black |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
268693 h |
| Noise level |
54.1 dB |
| Built-in processor |
Yes |
| Virtual stacking (units) |
32 |
| Technical details |
|---|
| Shipping (inner) case height |
48.5 cm |
| Shipping (inner) case width |
38.5 cm |
| Shipping (inner) case length |
53 cm |
| Shipping (inner) case net weight |
14.8 kg |
| Products per shipping (inner) case |
3 pc(s) |
| Pallet gross weight (air) |
513.1 kg |
| Master (outer) cases per pallet (air) |
24 pc(s) |
| Products per pallet (air) |
72 pc(s) |
| Pallet gross length |
110 cm |
| Pallet gross width |
120 cm |
| Pallet height (air) |
2.08 m |
| Pallet gross weight (sea) |
513.1 kg |
| Master (outer) cases per pallet (sea) |
24 pc(s) |
| Products per pallet (sea) |
72 pc(s) |
| Pallet height (sea) |
2.08 m |
| Shipping (inner) case gross weight |
20.6 kg |

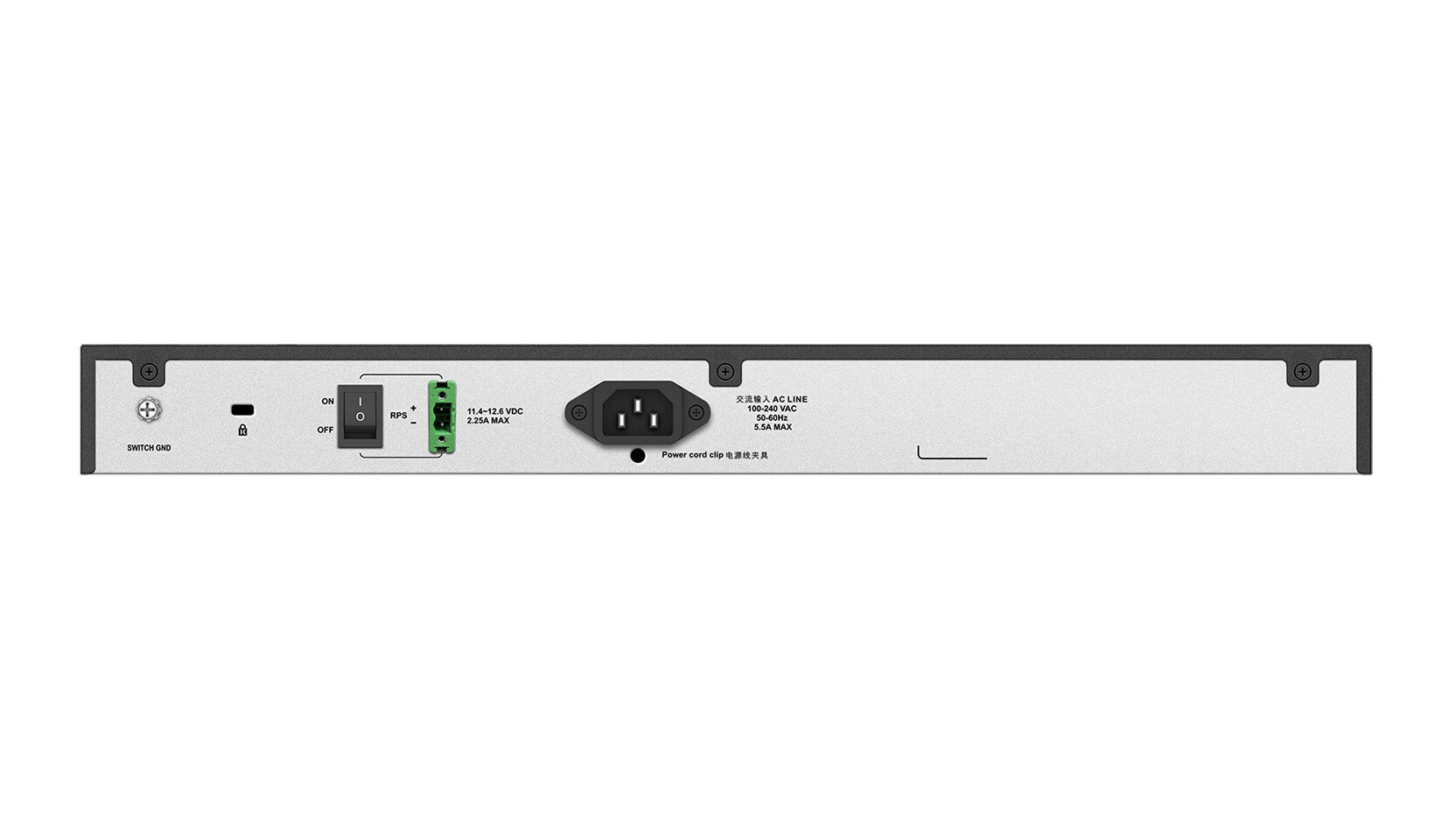

| Power |
|---|
| Surge protection voltage |
6 kV |
| Power consumption (max) |
445.2 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Redundant power supply (RPS) support |
Yes |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
370 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Heat dissipation |
1518.132 BTU/h |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
-5 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
4.25 kg |
| Height |
44 mm |
| Depth |
308 mm |
| Width |
440 mm |
| Packaging data |
|---|
| Package weight |
4.94 kg |
| Package height |
121 mm |
| Package depth |
510 mm |
| Package width |
450 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
