DGE-528T - PCI, Gigabit Ethernet, CSMA/CD

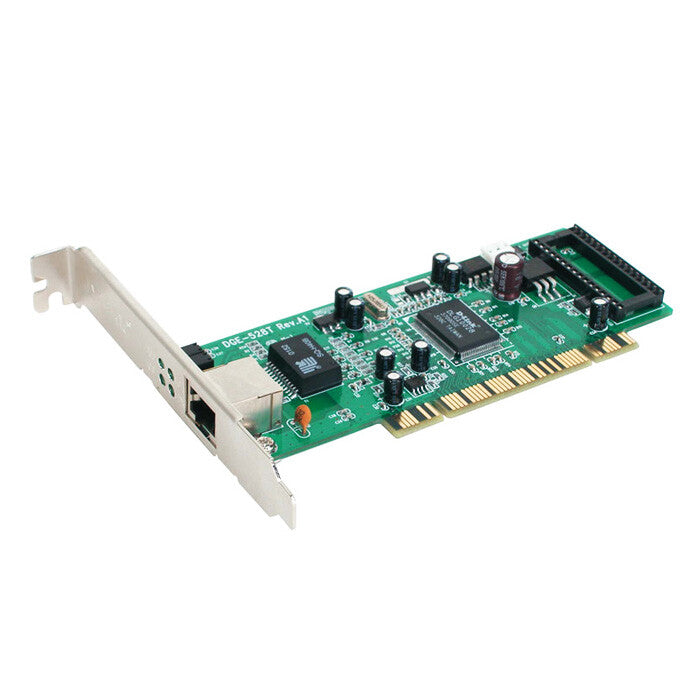

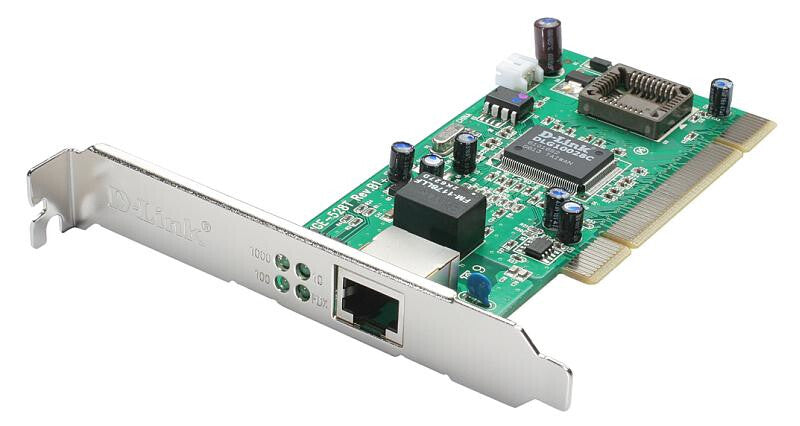

The D-Link DGE-528T is a high-performance 10/100/1000Mbps copper Gigabit PCI card for desktop PC. Installable in a PC equipped with PCI expansion slots, this card turns a desktop computer into a high-bandwidth Gigabit workstation or a server running at 2000Mbps full-duplex speed..
High-performance Gigabit Speed
Capable of running at full-duplex Gigabit speed, this card gives your PC 2000Mbps data transmission on your existing Cat. 5 twisted-pair network cable. As an inexpensive alternative solution to fiber-optic, the card allows you to instantly upgrade to Gigabit without requiring you to install new, expensive fiber cables. The card supports 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation.
VLAN to Improve Performance and Security
The card provides on-board screening of VLANs Tagged Ethernet frames, allowing your PC to be configured with VLAN-supported switch. Your PC can be part of a VLAN network, where domains are segmented up to enhance performance and security.
Wake-On-LAN for Power Management
Wake-On-LAN (WOL) is an Advanced Configuration Power Interface (ACPI) function allowing a powered OFF computer to be powered ON from a remote station. This function allows the administrator to send wake-up signals to a computer. The WOL function provides a great utility for power management of the PC and allows users to initiate action at irregular times and from distant locations.
Flow Control to Minimize Packet Loss
The card's embedded flow control and independent FIFO provide a means to protect against possible data loss during transmission on the network. When connected to a Gigabit switch supporting flow control, the card receives signals from the switch regarding buffer overrun during peak usage periods. The card then delays transmission until the switch is ready again to accept new data.
Small Form Factor, Lower Power Requirement
Using a single chip solution, this card is very small in size and consumes very little power of your computer system.
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | PCI |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Data link protocols | CSMA/CD |
| Full duplex | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Maximum data transfer rate | 2000 Mbit/s |
| Design | |
|---|---|
| Certification | FCC Class B, CE, ICES-003 |
| LED indicators | Yes |
| Plug and Play | Yes |
| Product colour | Green |
| Internal | Yes |
| System requirements | |
|---|---|
| Other operating systems supported | DOS, Novell NetWare 5.x, Novell NetWare 6.x |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98, Windows ME, Windows NT, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 46.6 g |
| Packaging data | |
|---|---|
| Package weight | 150 g |
| Package height | 36 mm |
| Package depth | 137 mm |
| Package width | 208 mm |
| Logistics data | |
|---|---|
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Shipping (inner) case net weight | 7.6 kg |
| Shipping (inner) case length | 39.5 cm |
| Shipping (inner) case height | 43.5 cm |
| Shipping (inner) case width | 29 cm |
| Products per shipping (inner) case | 40 pc(s) |
| Pallet gross weight (air) | 344.5 kg |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Products per pallet (air) | 1440 pc(s) |
| Pallet height (air) | 193.5 cm |
| Pallet gross weight (sea) | 344.5 kg |
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Products per pallet (sea) | 1440 pc(s) |
| Pallet height (sea) | 193.5 cm |
| Shipping (inner) case gross weight | 8.98 kg |
| Harmonized System (HS) code | 85176990 |
