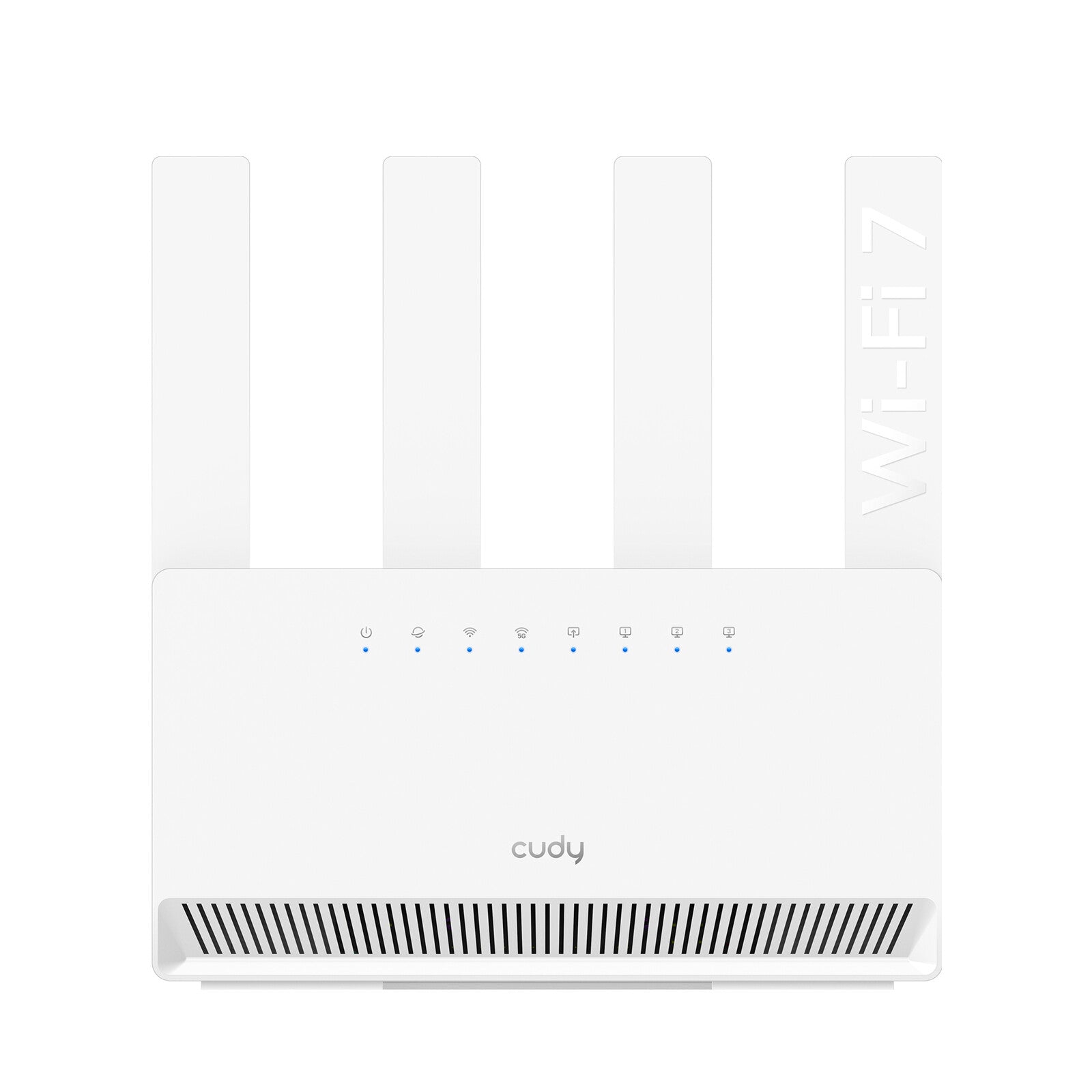

BE3600 Gigabit Wi-Fi 7 Router
Connect 200 Devices and Stay Fast
The upgrade OFDMA in Wi-Fi 7 features Multi-RU that provide 25 smarter frequency allocation to improve capacity. The Preamable Puncturing technology makes the most of available channel resources to keep connections fast regardless of interference in other channels.
Cudy Mesh
Create same-name Wi-Fi coverage throughout your home and enjoy fast roaming between Wi-Fi zones. Compatible with other Cudy Mesh routers and repeaters.
Parental Control
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| WAN connection type |
RJ-45 |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) |
2882 Mbit/s |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) |
688 Mbit/s |
| WLAN data transfer rate (second band) |
2882 Mbit/s |
| Modulation |
4096-QAM |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Port triggering |
Yes |
| Port forwarding |
Yes |
| Number of guest networks (5 GHz) |
1 |
| Number of guest networks (2.4 GHz) |
1 |
| VPN server |
WireGuard OpenVPN IPsec Zerotier PPTP L2TP |
| Ports & interfaces |
|---|

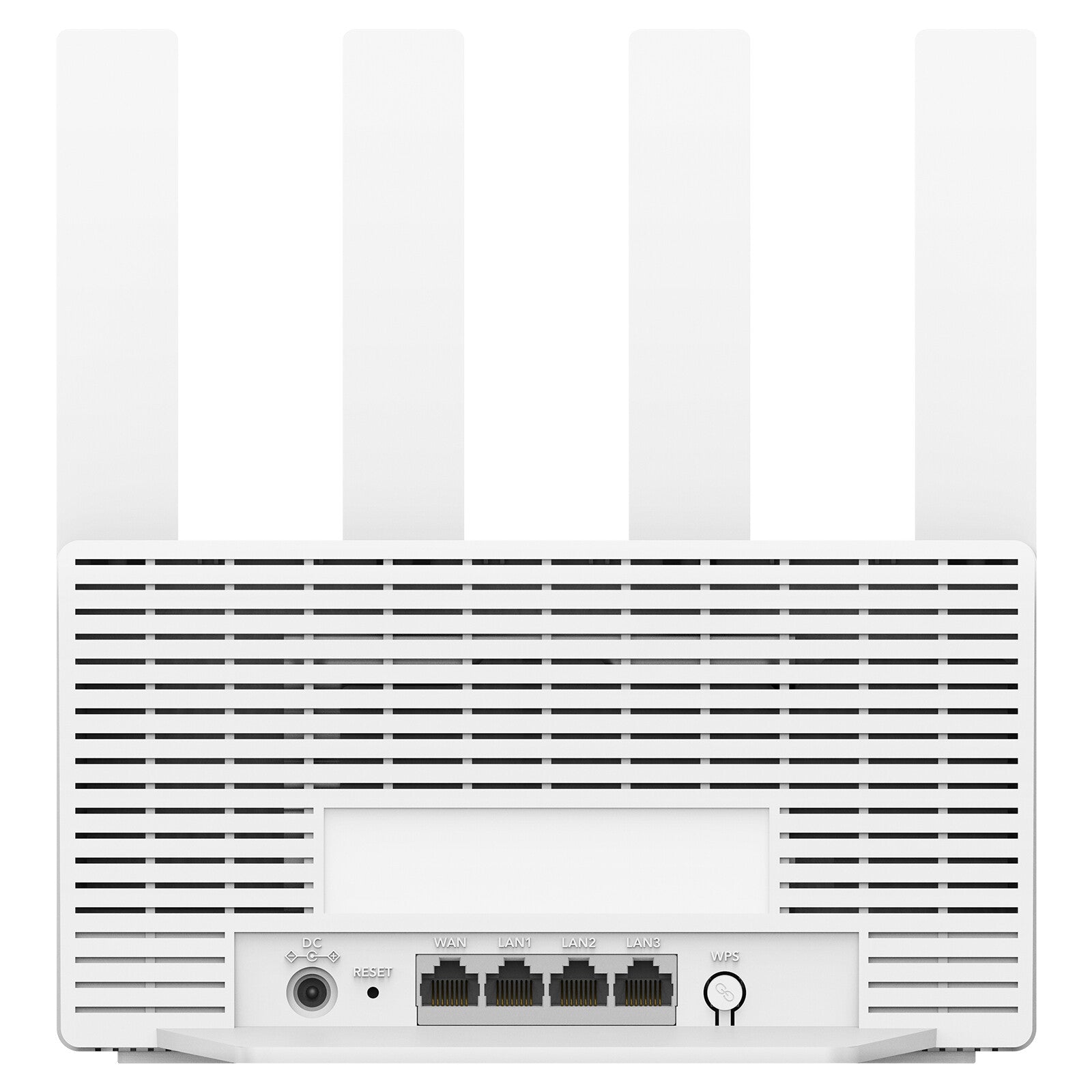

| Ethernet LAN (RJ-45) ports |
3 |
| USB port |
No |
| DC-in jack |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Wake-on-LAN ready |
Yes |
| Reset button |
Yes |
| WPS push button |
Yes |
| MIMO |
Yes |
| MU-MIMO technology |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA3 |
| Firewall |
Yes |
| Guest access |
Yes |
| Filtering |
Yes |
| MAC address filtering |
Yes |
| IP address filtering |
Yes |
| URL filtering |
Yes |
| IGMP snooping |
Yes |
| DMZ support |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| DHCP server |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
White |
| LED indicators |
LAN, System, WAN, WLAN |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |

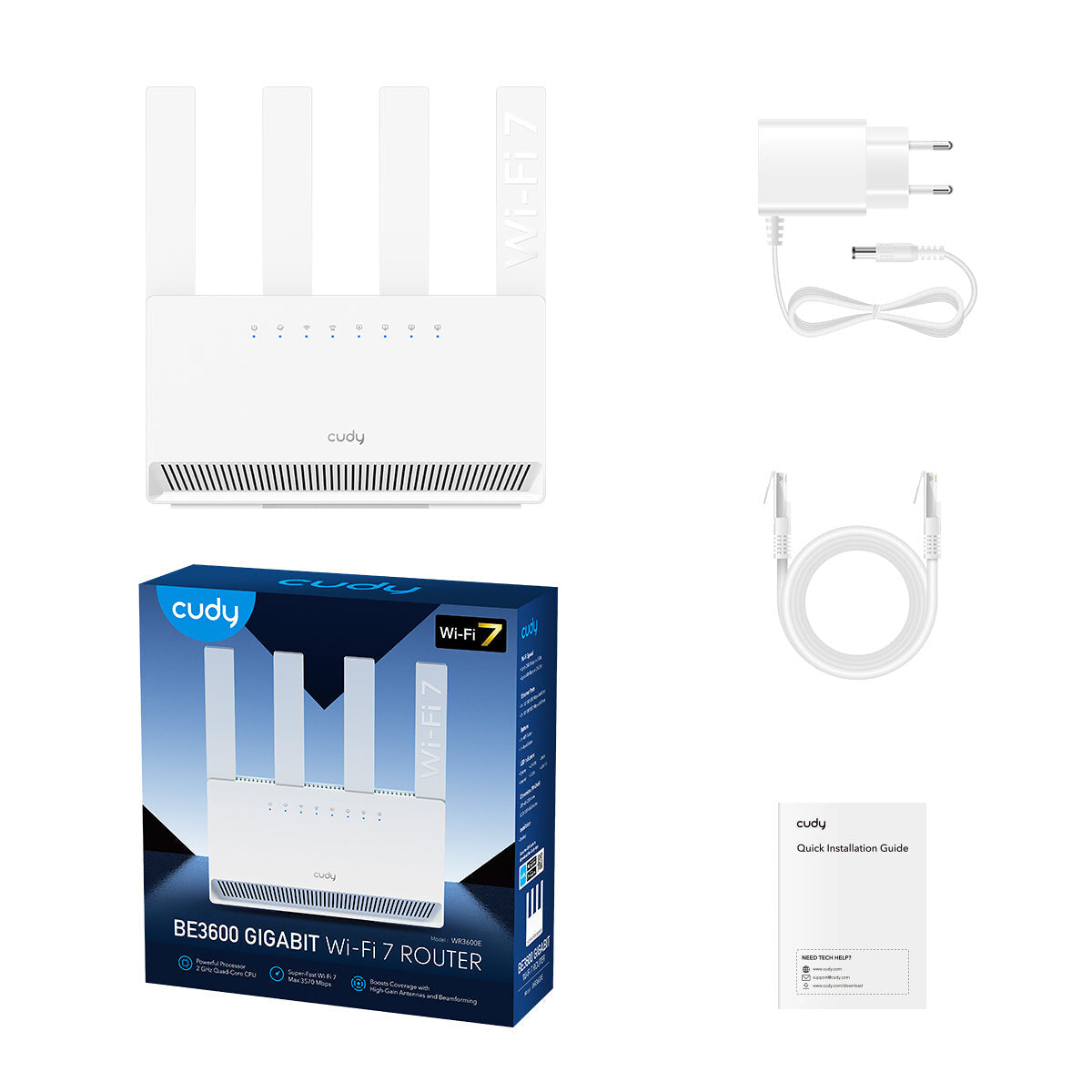

| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antenna gain level (max) |
6.8 dBi |
| Antennas quantity |
4 |
| Features |
|---|
| Built-in processor |
Yes |
| Processor architecture |
ARM Cortex A7 |
| Processor frequency |
2000 MHz |
| Processor cores |
4 |
| Internal memory |
512 MB |
| Flash memory |
128 MB |
| Power |
|---|
| Power source type |
DC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Output voltage |
12 V |
| Output current |
1 A |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
339.8 g |
| Height |
220.4 mm |
| Depth |
48 mm |
| Width |
209 mm |
| Packaging data |
|---|
| Package width |
221 mm |
| Package depth |
231.5 mm |
| Package height |
73 mm |
| Package weight |
736.8 g |
