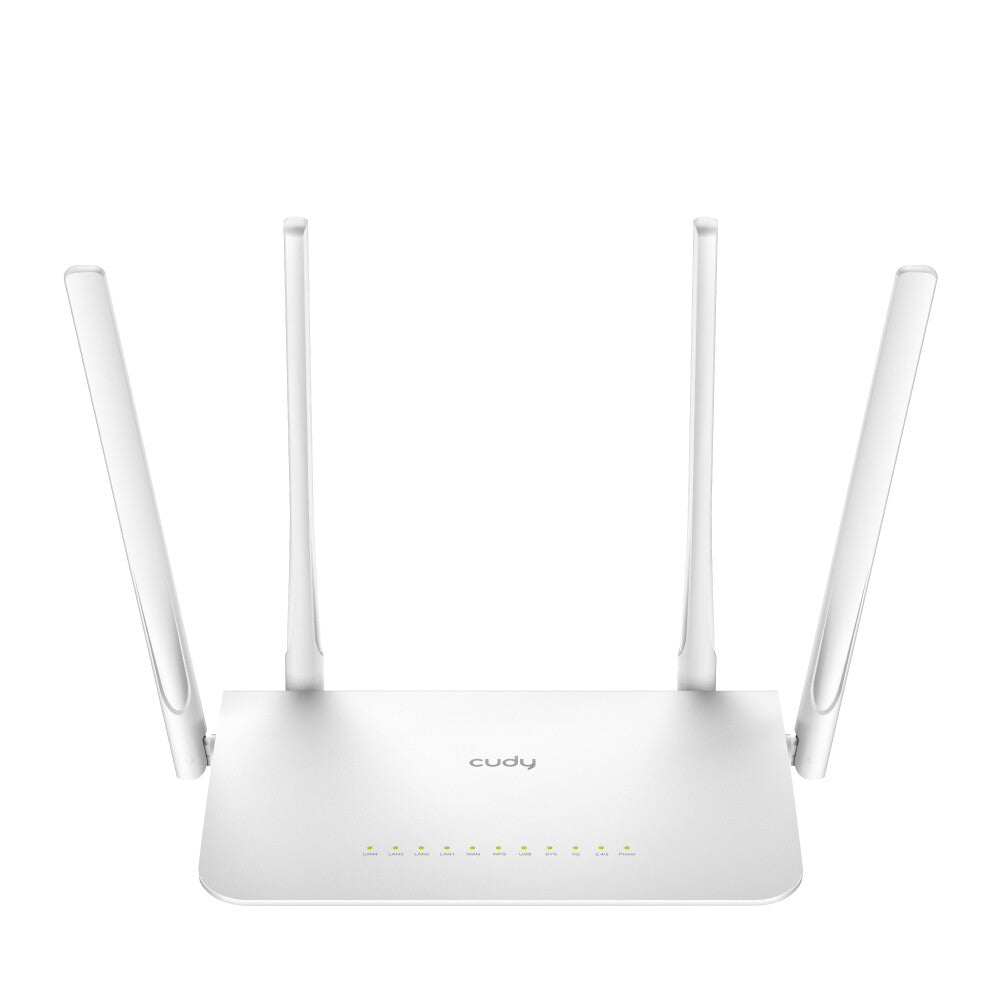

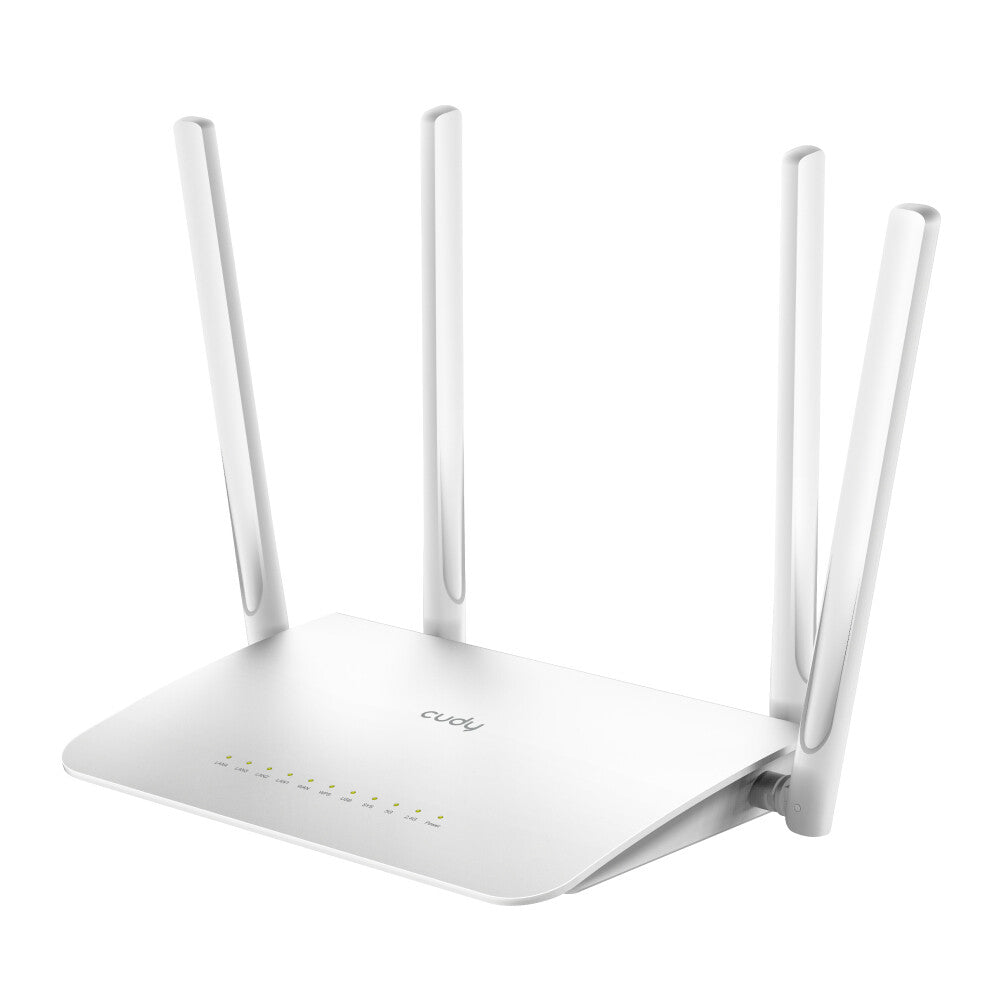

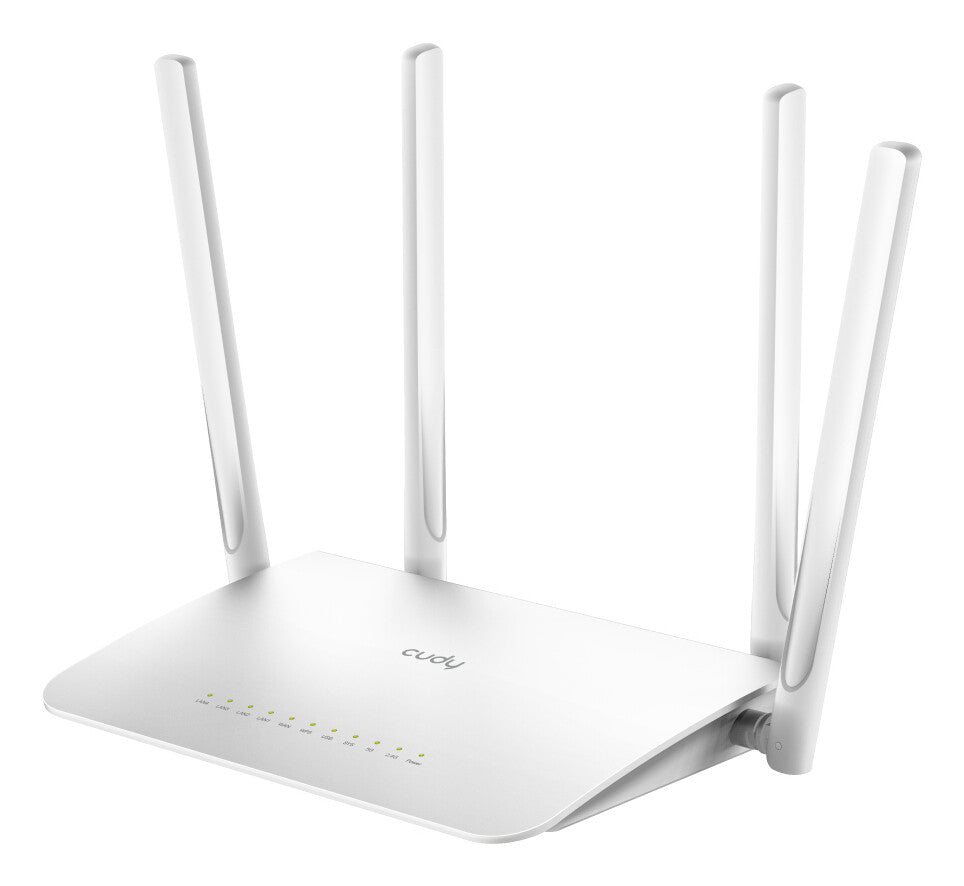

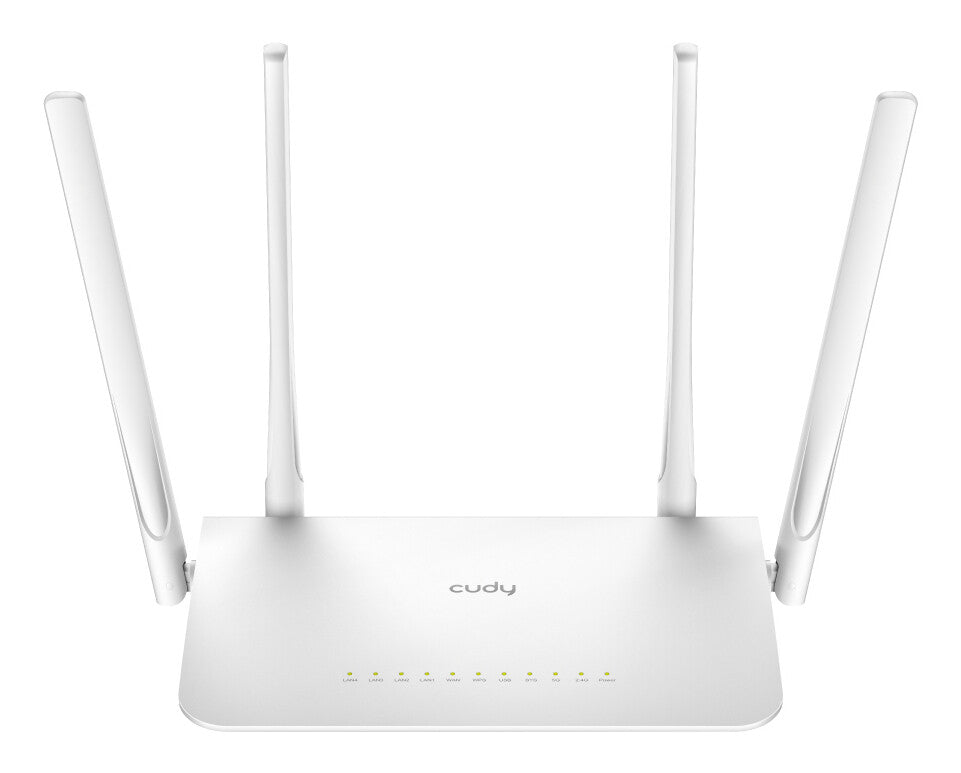

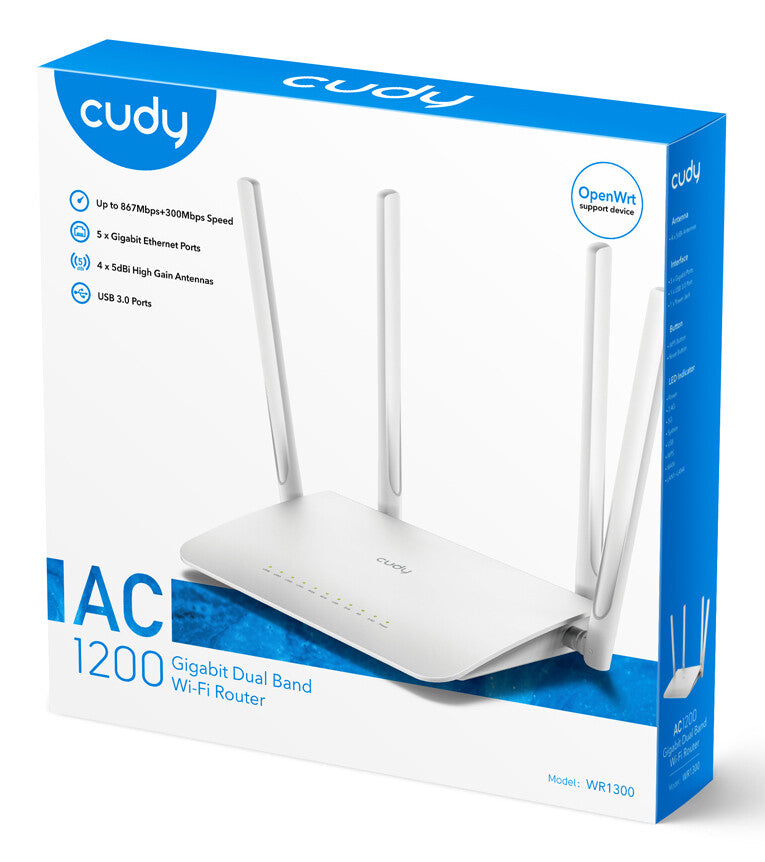

AC1200, Dual Band, Wi-Fi Router, Model: WR1300, White
Concurrent Dual Band WiFi
2.4GHz provides extremely long range, 5GHz reaches 867Mbps, ideal for gaming and 4K streaming.Simple tasks like web browsing can be handled by the 2.4GHz band, while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band at the same time.
2-IN-1 WiFi Router / Access Point
When working in router mode, it can quickly establish a connection with the Internet through dial-up, so that all devices connected to it can enjoy high-speed networks. When working in the access point mode, usually a modem or router is required in front of it to dial and play the role of DHCP server, it only undertakes the role of data forwarding.
High Performance CPU and Antennas
Powerful Dual-Core CPU ensures smooth 4K UHD streaming to Smart TVs, mobile devices and gaming consoles without buffering. 4x5dBi High gain antennas boost sensitivity of the WiFi router, create connections over greater distances, providing powerful penetration through walls.
Built-in VPN Clients
With built-in PPTP / L2TP VPN Clients, this router can easily establish a connection to VPN Server to transport all your online data and traffic, securing it with its encryption at the same time. You can use this function to connect your home network with your work network or school network. You only need to configure the router once, and all the devices in the network can be connected. Greatly facilitate your work, study and life.
20+ DDNS Support
When you apply for an Internet package from an operator, the operator will usually assign you an IP at random. A random and frequently changing IP cannot be used to remotely manage home networks and equipment. You can bind your home IP address to a custom domain name through the DDNS function. No matter how the IP changes, the domain name can point to your network, which makes remote management possible.
OpenWrt Ready
16MB Flash and 128MB DDR3 ensure the continuous operation of the operating system, makes the router runs faster and provides more possibilities for function expansion. And as bing built with such large flash and DDR, WR1300 makes it possible to install OpenWrt system. You can get related software from Cudy official website.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| WLAN data transfer rate (second band) |
867 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
867 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| VPN support |
PPTP/L2TP/OpenVPN/WireGuard |
| Wireless radio |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Mobile network |
|---|
| 5G |
No |
| 3G |
No |
| 4G |
No |

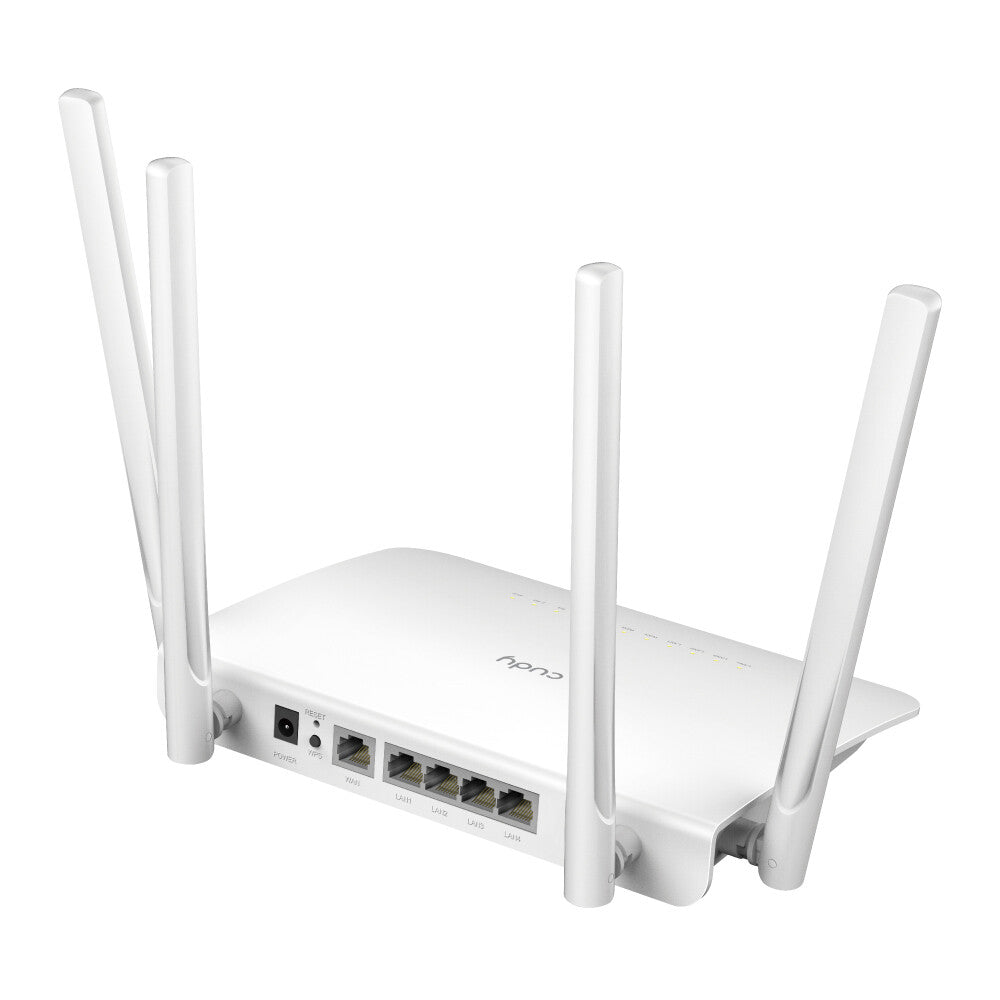

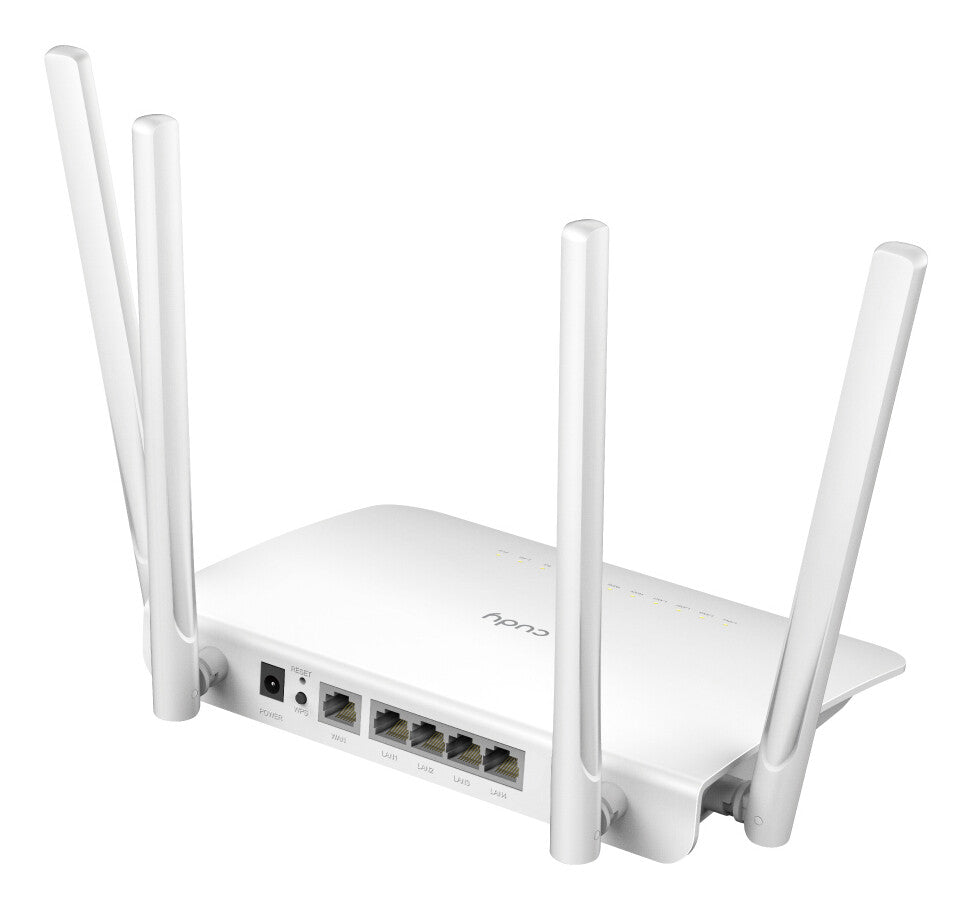

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB port |
No |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| WPS push button |
Yes |
| Reset button |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Web-based management |
Yes |
| Security |
|---|
| DMZ support |
Yes |
| Parental control |
Yes |
| Guest access |
Yes |
| Security algorithms |
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols |
|---|
| Universal Plug and Play (UPnP) |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| LED indicators |
LAN, Power, Status, WPS |
| Product colour |
White |
| Product type |
Tabletop router |

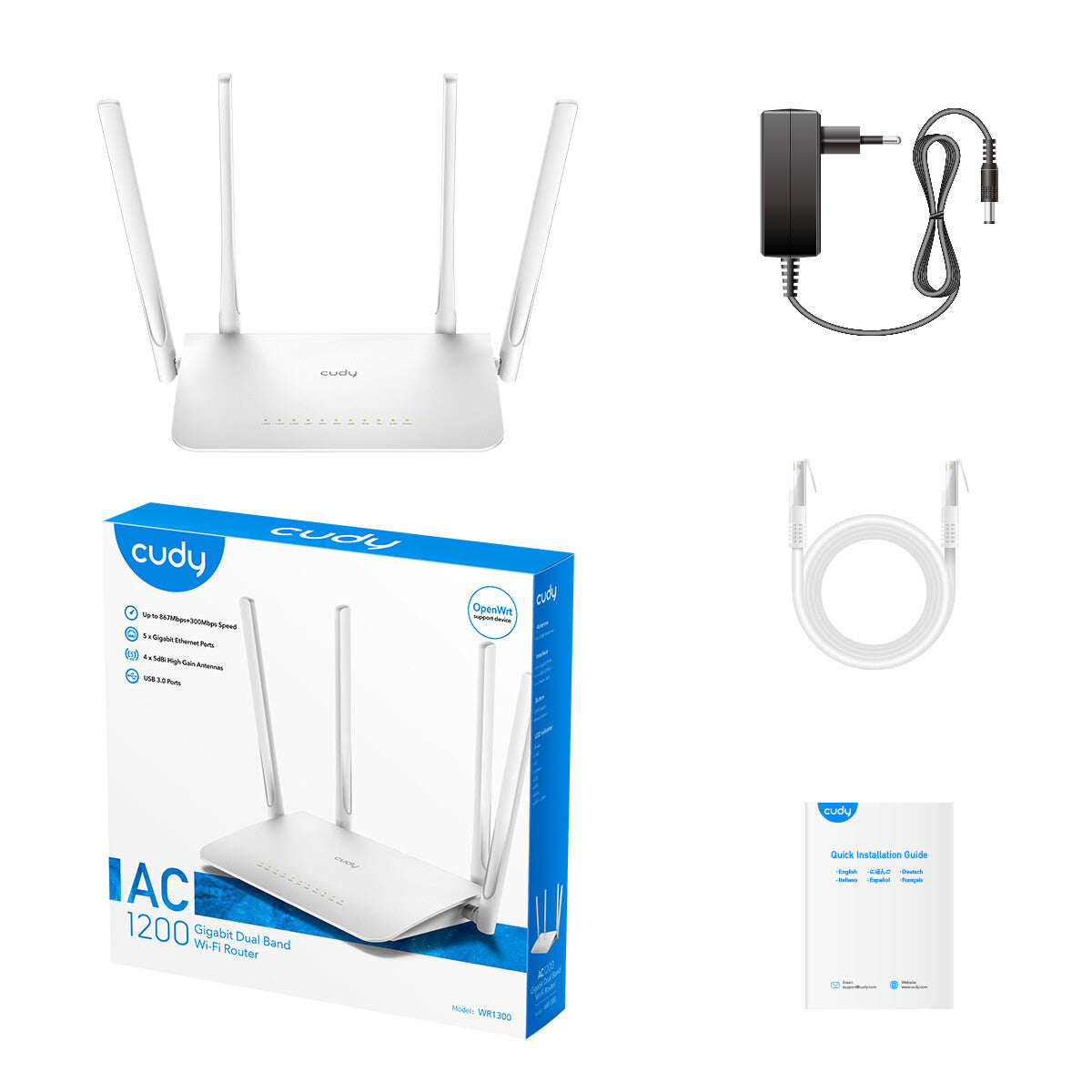

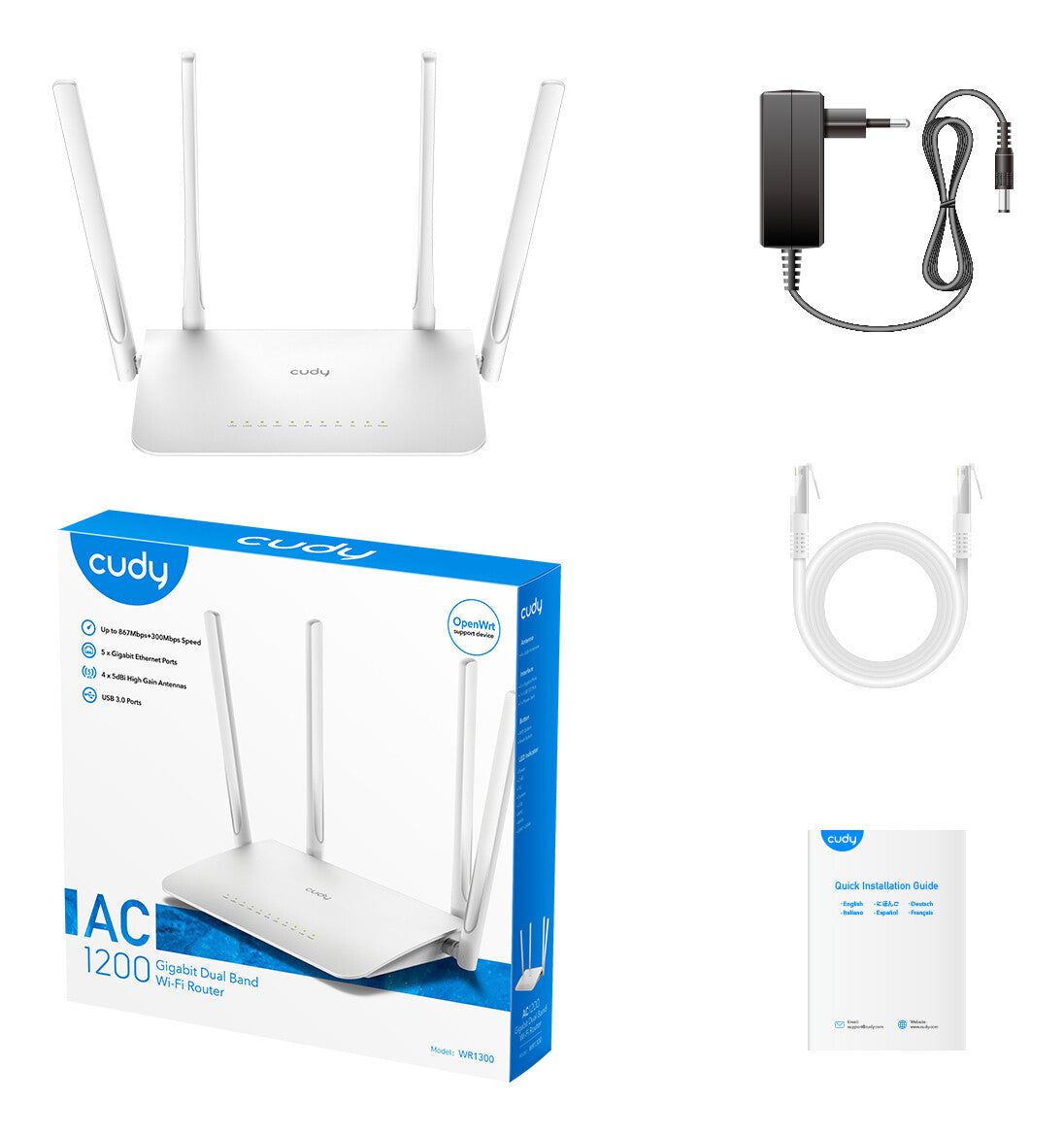

| Packaging content |
|---|
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Antenna |
|---|
| Antennas quantity |
4 |
| Antenna gain level (max) |
5 dBi |
| Antenna design |
External |
| Features |
|---|
| Flash memory |
16 MB |
| Internal memory |
128 MB |
| Power |
|---|
| Output current |
1 A |
| Output voltage |
12 V |
| Power source type |
DC |
| System requirements |
|---|
| Mac compatibility |
Yes |
| Mac operating systems supported |
MacOS |
| Windows operating systems supported |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Browser supported |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Weight & dimensions |
|---|
| Width |
204.8 mm |
| Depth |
137.5 mm |
| Height |
38.3 mm |
| Packaging data |
|---|
| Number of products included |
1 pc(s) |
| Package type |
Box |
| Other features |
|---|
| Supported WAN type |
Dynamic IP/Static IP/PPPoE |
