Cudy

Cudy MC220 network media converter 1000 Mbit/s 1310 nm Single-mode Black

R 231.32
R 231.32
R 231.32
Shipping calculated at checkout.

Incl VAT
10/100/1000Mbps Ethernet Media Converter

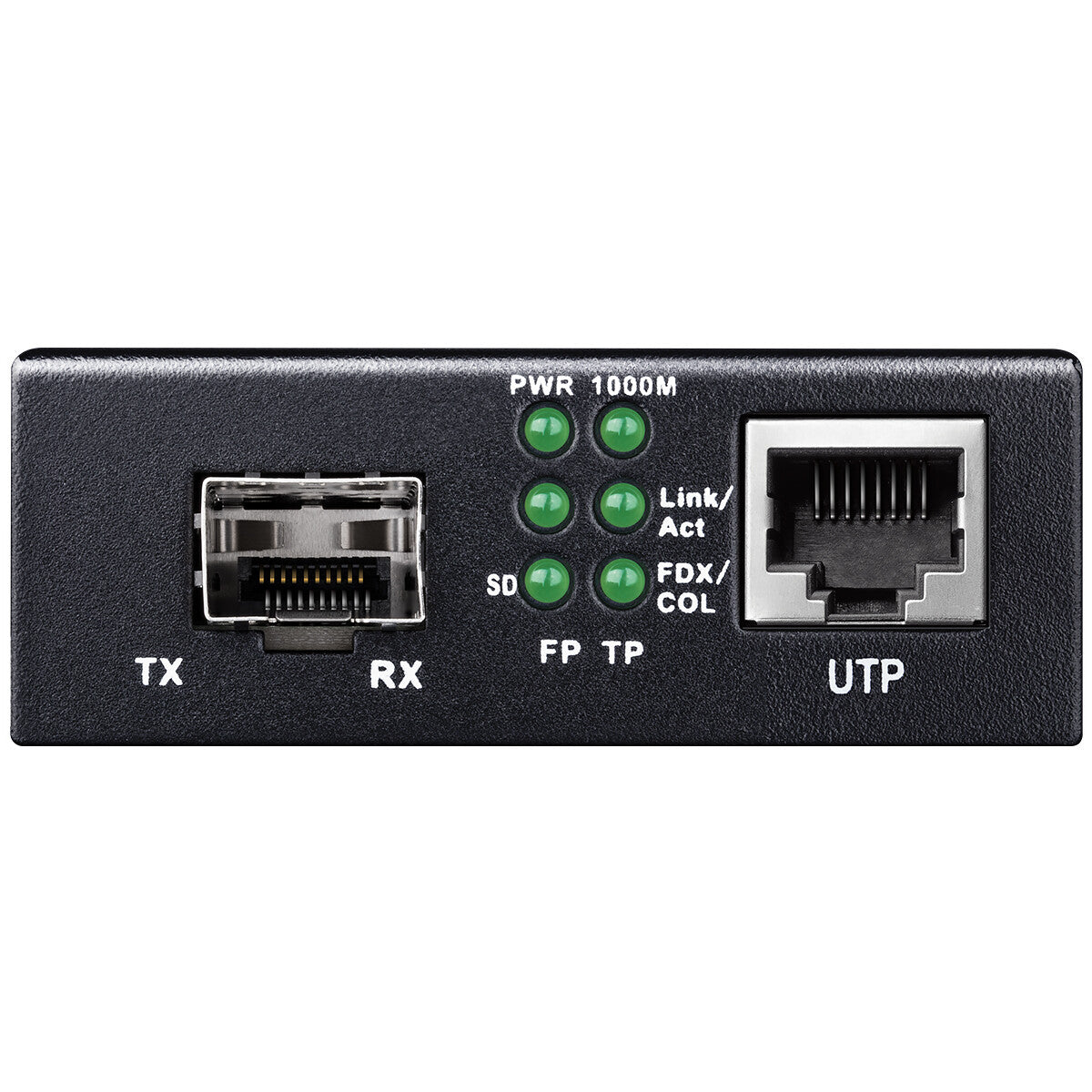

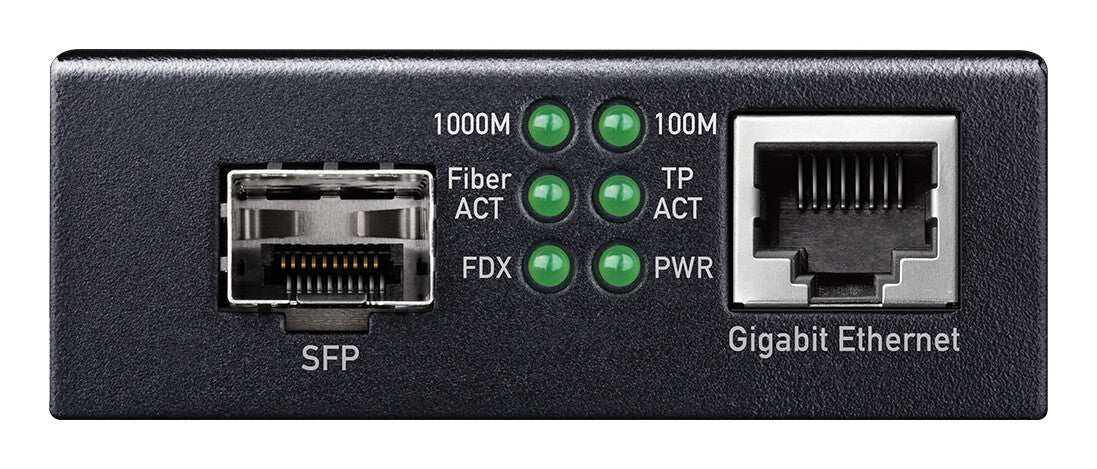

Instant Network Monitoring with Built-in LED Indicators
With built-in LED indicators, you can easily check the working status of the device. The network status is instantly visible, making it simple to monitor and troubleshoot at a glance.

Reliable, High-Speed Transmission with No Speed Loss
The all-in-one module delivers exceptional optical and electrical performance, ensuring long-term data transmission stability.

Plug and Play, No Setup Required
Simply plug in the port, and it’s ready to go—instant connection with no configuration needed. Easy to use, with fast and responsive performance.

Performance
Maximum transfer distance 20000 m
Wavelength 1310 nm
Fiber mode structure Single-mode
Sensitivity 24 dBmW
Buffer size 9 KB
Mean time between failures (MTBF) 50000 h
Features
Internal No
Plug and Play Yes
Product colour Black
LED indicators Yes
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 1
Fiber optic connector SFP
Network
Maximum data transfer rate 1000 Mbit/s
Converter input interface 1000Base-TX, 1000Base-FX
Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Copper ethernet cabling technology 100BASE-TX, 100BASE-FX, 1000BASE-TX
Flow control support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Cable types supported Cat5, Cat5e
Power
Input voltage 90 - 240 V
AC input frequency 50 - 60 Hz
Output voltage 5 V
Power consumption (typical) 4 W
Operational conditions
Operating temperature (T-T) 0 - 60 °C
Operating relative humidity (H-H) 5 - 90%
