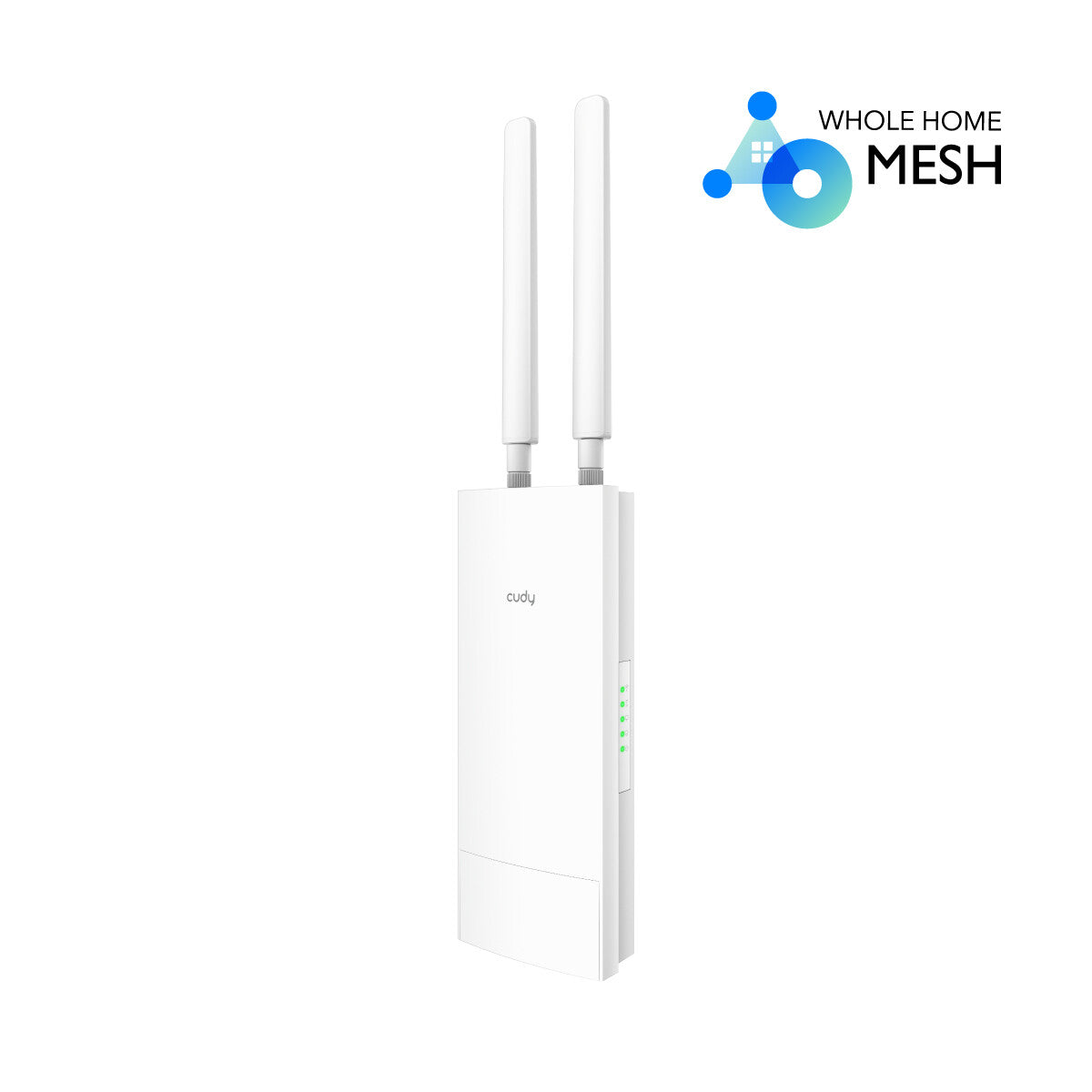

Indoor/Outdoor AX3000 High-Power Wi-Fi 6 Access Point
Super-Fast, Super-Efficient AX3000 Wi-Fi 6
Wi-Fi 6 with the highest 160 MHz channel width and 1024-QAM modulation provide up to 3 Gbps total throughput. OFDMA and MU-MIMO work on uplink plug download directions allowing it to connect over 100 devices while minimizing latency. (Max 512 devices)
High-Power Wi-Fi Coverage with Five PA
Equipped with five power amplifiers and a 3+2 antenna structure, this AP delivers top-notch capabilities to navigate its signal through physical obstacles.
Works in Rain, Thunder, Dust, Heat, Cold
The AP is protected by an IP65 standard case, shielding it from rain and dust when installed vertically. It also features 6 kV Lightning/Surge and 8 kV ESD protection for higher reliability in thunderstorms. Its working temperatures span from -40 °F to 158 °F (-40 ℃ to 70 ℃).
Mesh Networks
Seamless Roaming for Smooth Wi-Fi Experience
Enhance the Wi-Fi experience for your visitors by implementing a unified Wi-Fi name across your entire premises. With mesh technology, enjoy uninterrupted roaming as clients seamlessly connect to the strongest available Wi-Fi node without manual switching.
Plug-and-Play Mesh Installation
Simply Plug and Unplug for Mesh Setup
Connect the PoE adapter LAN port to a Cudy Mesh AP/router/Mesh unit/VPN Router/AC to add the new AP to the Mesh network. Feel free to unplug it or continue using the Ethernet backhaul after pairing.
Leave the Rest to Adaptive Routing
Adaptive Routing improves the system's awareness of the capacity used by each node. The system will automatically switch to a better path once the original backhaul path is congested.
Guide to Wiring and Physical Installation

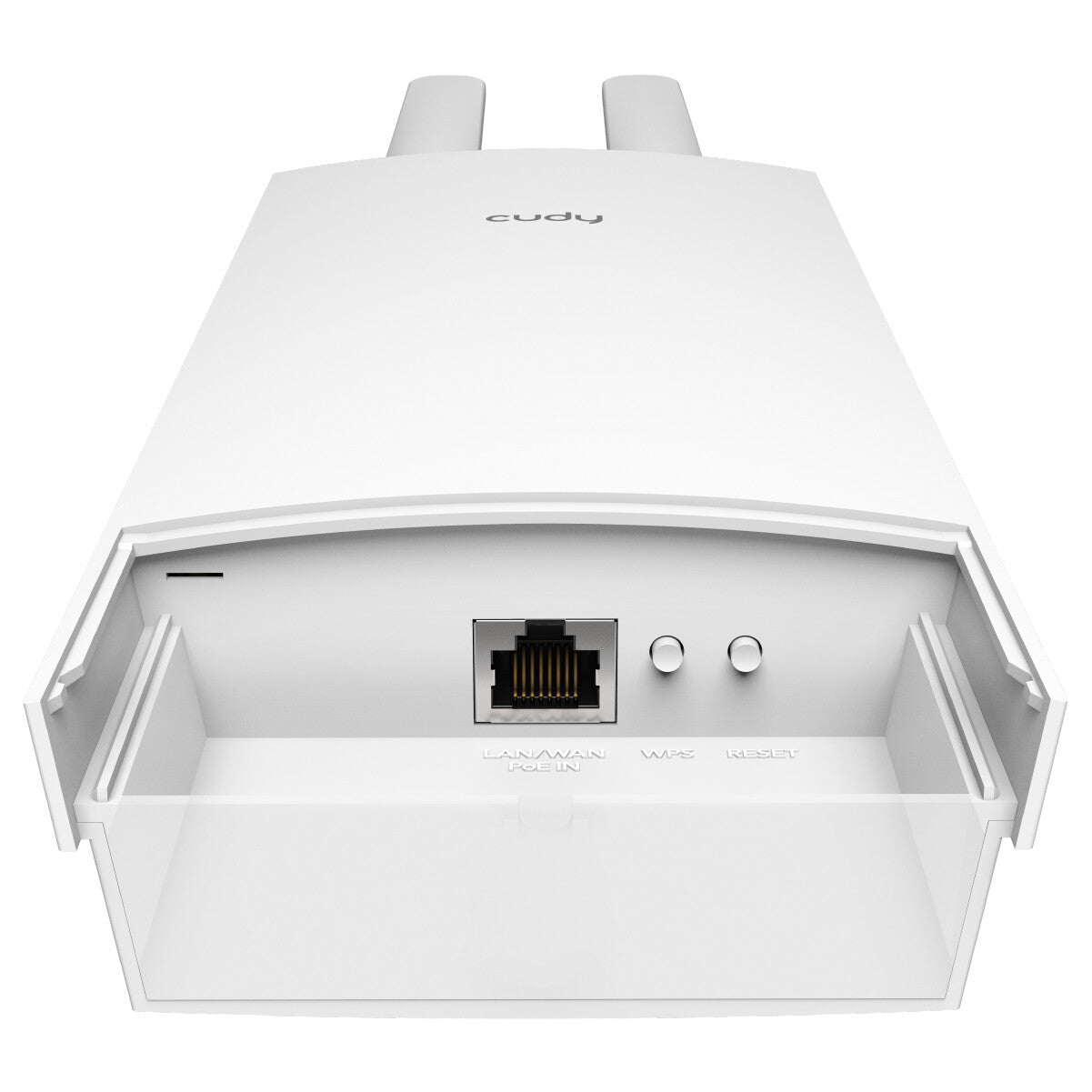

Gigabit Port with Two PoE Options
Supports two powering methods—
802.3at PoE (Max power: 18 W, Idle: 5 W)
48-57 V Passive PoE (Adapter included, not waterproof)
If you need to simplify the wiring, we recommend using a PoE Switch that powers multiple devices simultaneously. See Cudy PoE Switches for more information.

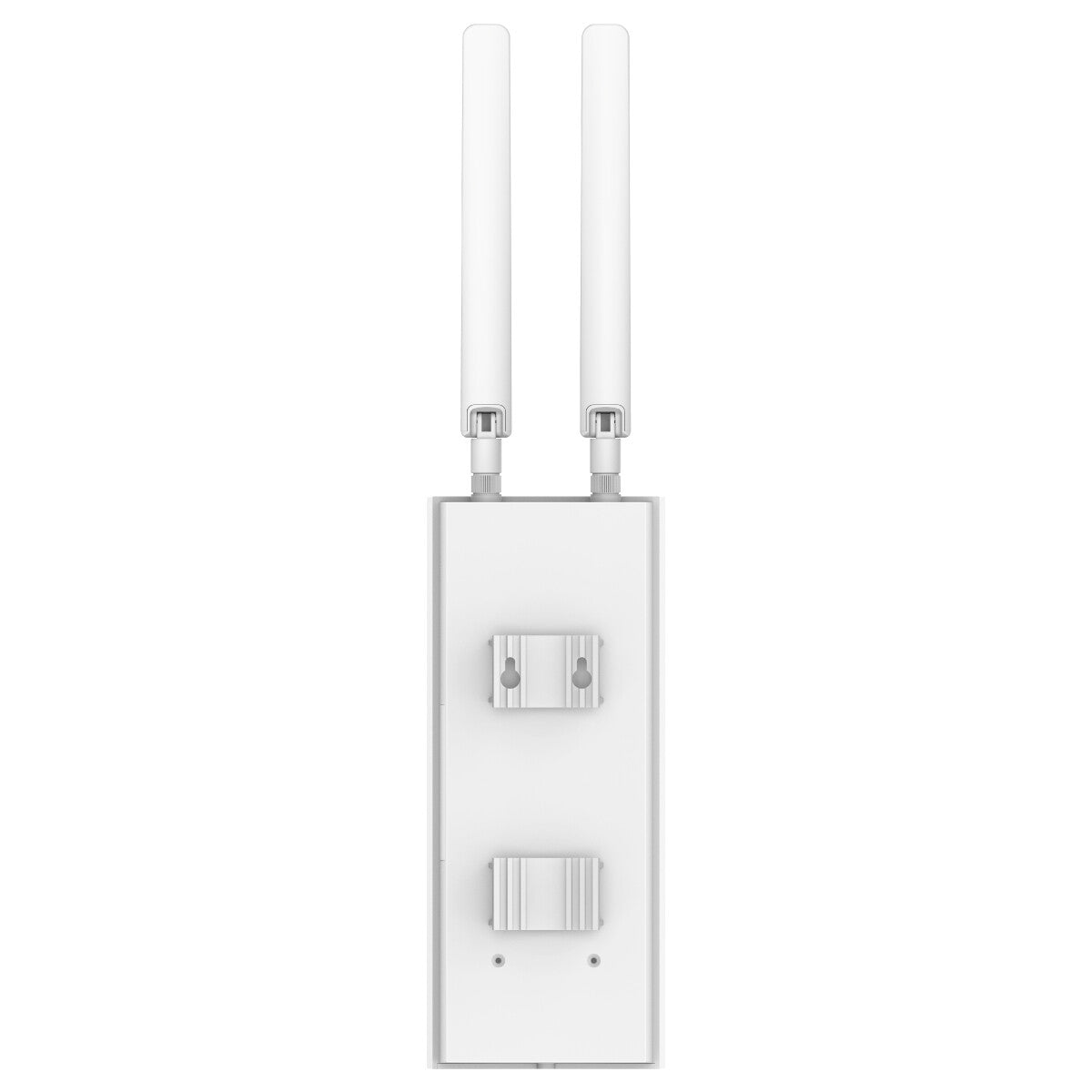

Mounting Kit Included
A mounting kit is included in the box, supporting—
Wall-Mounting

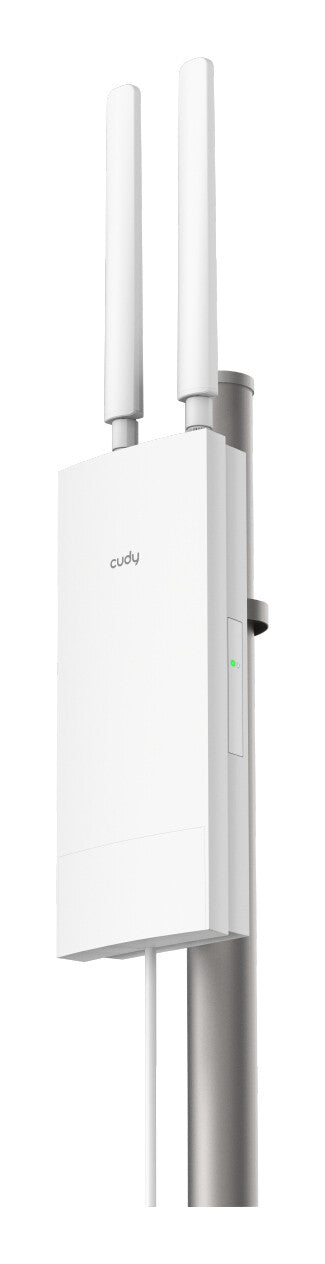

Pole-Mounting
Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.
| Features |
|---|
| 2.4 GHz |
Yes |
| 6 GHz |
No |
| 5 GHz |
Yes |
| Maximum data transfer rate |
2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2402 Mbit/s |
| Ethernet LAN data rates |
100,1000,2500,10 Mbit/s |
| Networking standards |
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Spread spectrum method |
OFDMA |
| VLAN support |
Yes |
| Virtual LAN features |
Tagged VLAN |
| Quality of Service (QoS) support |
Yes |
| Maximum outdoor range |
320 m |
| Security |
|---|
| Security algorithms |
IPSec, WPA, WPA2, WPA3, WPS |
| MAC address filtering |
Yes |
| IP address filtering |
Yes |
| Number of SSID supported |
8 |
| Guest access |
Yes |
| IGMP snooping |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Syslog |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| WAN connection |
Ethernet (RJ-45) |
| Power |
|---|
| Power over Ethernet (PoE) type supported |
Active PoE, Passive PoE |
| Power over Ethernet (PoE) |
Yes |
| DC voltage range |
48-57 V |
| Power consumption (typical) |
5 W |
| Power consumption (max) |
18 W |
| Design |
|---|
| Placement |
Pole, Wall |
| Product colour |
White |
| International Protection (IP) code |
IP65 |
| Reset button |
Yes |
| WPS push button |
Yes |
| Antenna |
|---|
| Antenna type |
Internal & external |
| Antenna features |
Detachable antenna |
| Antennas quantity |
2 |
| Antenna connector type |
RP-SMA |
| Performance |
|---|
| Chipset |
MT7981, IPQ5018 |
| Flash memory |
128 MB |
| Technical details |
|---|
| Products per shipping (inner) case |
20 pc(s) |
| Weight & dimensions |
|---|
| Width |
240 mm |
| Depth |
100 mm |
| Height |
53.7 mm |
| Weight |
455 g |
| Packaging data |
|---|
| Package width |
324 mm |
| Package depth |
107 mm |
| Package height |
86 mm |
| Package weight |
856 g |

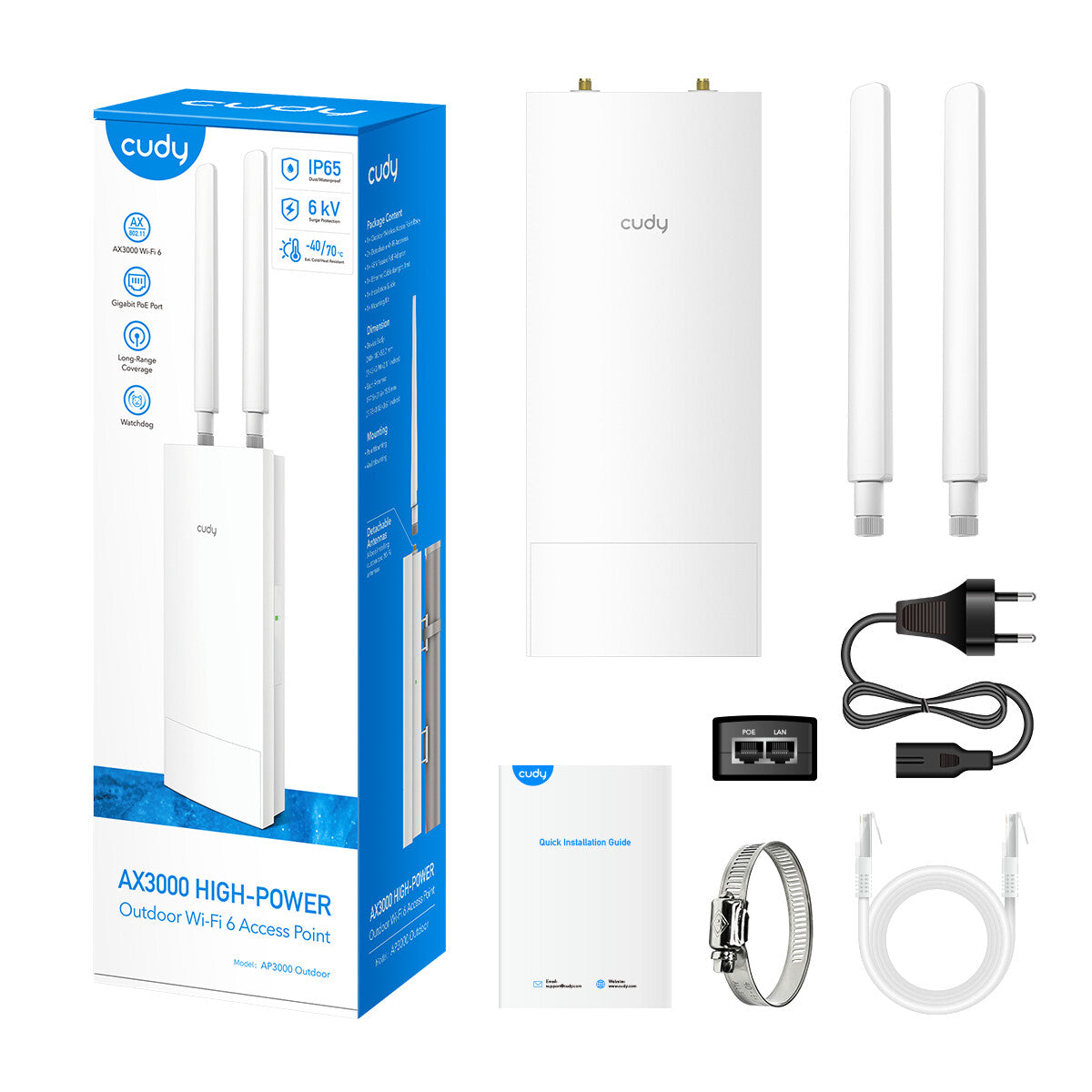

| Packaging content |
|---|
| AC adapter included |
No |
| PoE adapter included |
Yes |
| Cables included |
UTP |
| Mounting kit |
Yes |
| Quick start guide |
Yes |
| Bundled software |
Cudy Software |
| Logistics data |
|---|
| Country of origin |
China |
