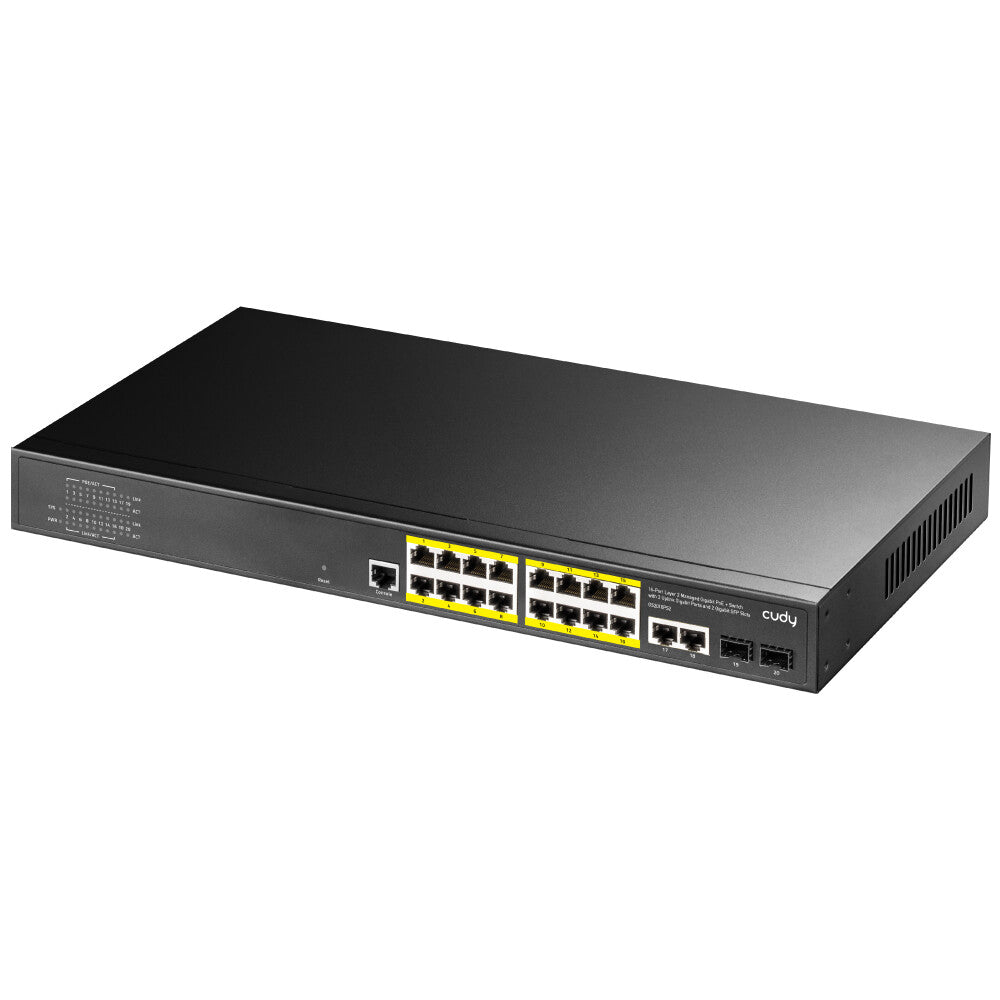

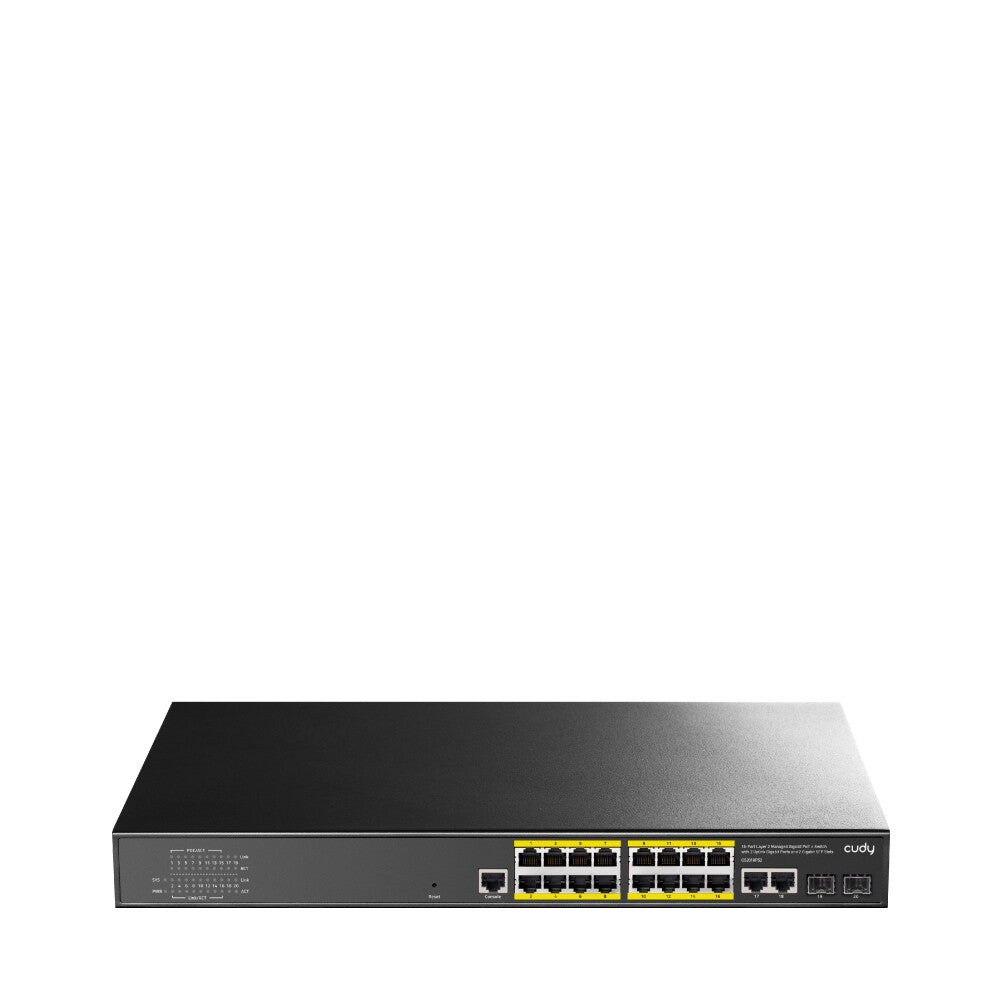

16 x 10/100/1000Mbps PoE, 2 x SFP, 2 x 1000Mbps Uplink, 1 x RJ-45 Console, 40Gbps, 128MB RAM, 16MB Flash, 4096 VLANs
16-Port PoE + 2-Port Uplink
- 10/100/1000Mbps Ethernet ports
- IEEE 802.3af / 802.3at compliant
- 200W total PoE power supply.
- Ideal for installing 16 PoE devices
- Auto-sensing technology delivers up to 30W of power to an 802.3at PoE + device with backwards compatibility for 802.3af PoE (15.4W) devices
Flexibility of Uplink Ports
- 2 Uplink Gigabit Ports
- 2 Gigabit SFP Slots
- 1 Console Port
Heat Dissipation
- Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment.
- Built-in fan and venting holes help to dissipate heat quickly and ensure stable product operation
High Quality TPS PoE chipset inside
- High Quality TPS PoE chipset inside ensure High performance and stable operation of the product.
Auto-sensing technology
- The port power prioritization technology ensures the continuous power supply of the key nodes.
Lightning protection
- Electrostatic standard: contact 6KV, air 8KV
- MTBF > 50000 hour
| Management features |
|---|
| System event log |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Console port |
RJ-45 |
| Uplink ports quantity |
2 |
| SFP module slots quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
|---|
| Number of VLANs |
4096 |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Voice VLAN |
| VLAN support |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Rate limiting |
Yes |
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Ethernet Ring Protection Switching (ERPS) |
Yes |
| Fast leave |
Yes |
| Port mirroring |
Yes |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Optical fiber |
|---|
| Fiber ethernet cabling technology |
1000BASE-X |
| Data transmission |
|---|
| Packet buffer memory |
4 MB |
| Jumbo frames |
9600 |
| Jumbo frames support |
Yes |
| Number of queues |
8 |
| Forwarding rate |
19.76 Mpps |
| Switching capacity |
40 Gbit/s |
| MAC address table |
8000 entries |
| Security |
|---|
| Security algorithms |
HTTPS, SSH, SSH-2 |
| IP-MAC-Port binding |
Yes |
| BPDU filtering/protection |
Yes |
| Packet filtering |
Y |
| Password protection |
Yes |
| Authentication type |
IEEE 802.1x, RADIUS |
| Queue scheduling algorithms |
PQ + WRR |
| MAC address entries |
Dynamic MAC address entries, Static MAC address entries |
| IGMP snooping |
Yes |
| Multicast features |
|---|
| Multicast Listener Discovery (MLD) snooping |
v1/v2 |
| Multicast features |
Multicast traffic suppression |
| Multicast support |
Yes |
| Protocols |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Management protocols |
HTTP, HTTPS, Telnet, SSH V1/V2, SNMP V1/V2/V3, RMON V2 |
| Design |
|---|
| LED indicators |
Activity, Link, PoE, Power, System |
| Reset button |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| Flash memory |
16 MB |
| Internal memory |
128 MB |
| Power |
|---|
| Surge protection voltage |
15 kV |
| Surge protection |
Yes |
| AC input frequency |
50/60 Hz |

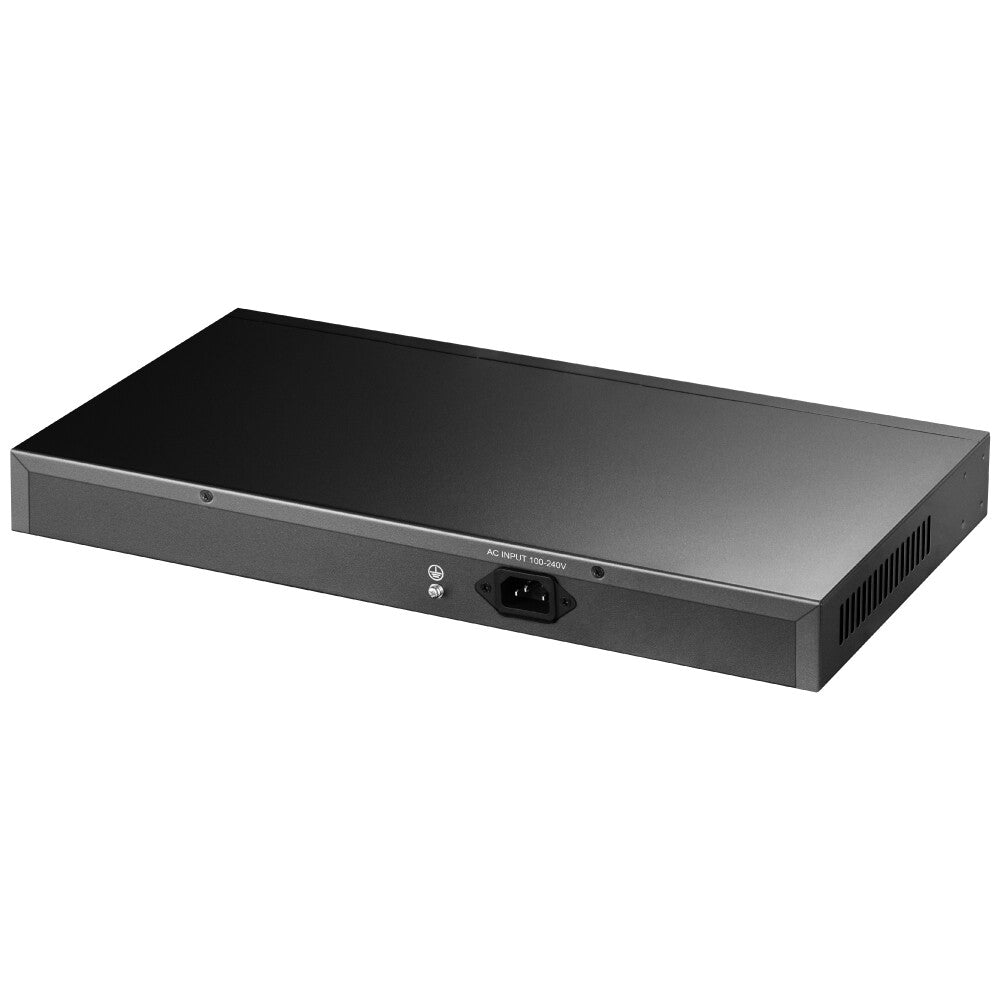

| AC input voltage |
100 - 240 V |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
200 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) ports quantity |
16 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Non-operating altitude |
0 - 3048 m |
| Operating altitude |
0 - 3048 m |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-20 - 50 °C |
