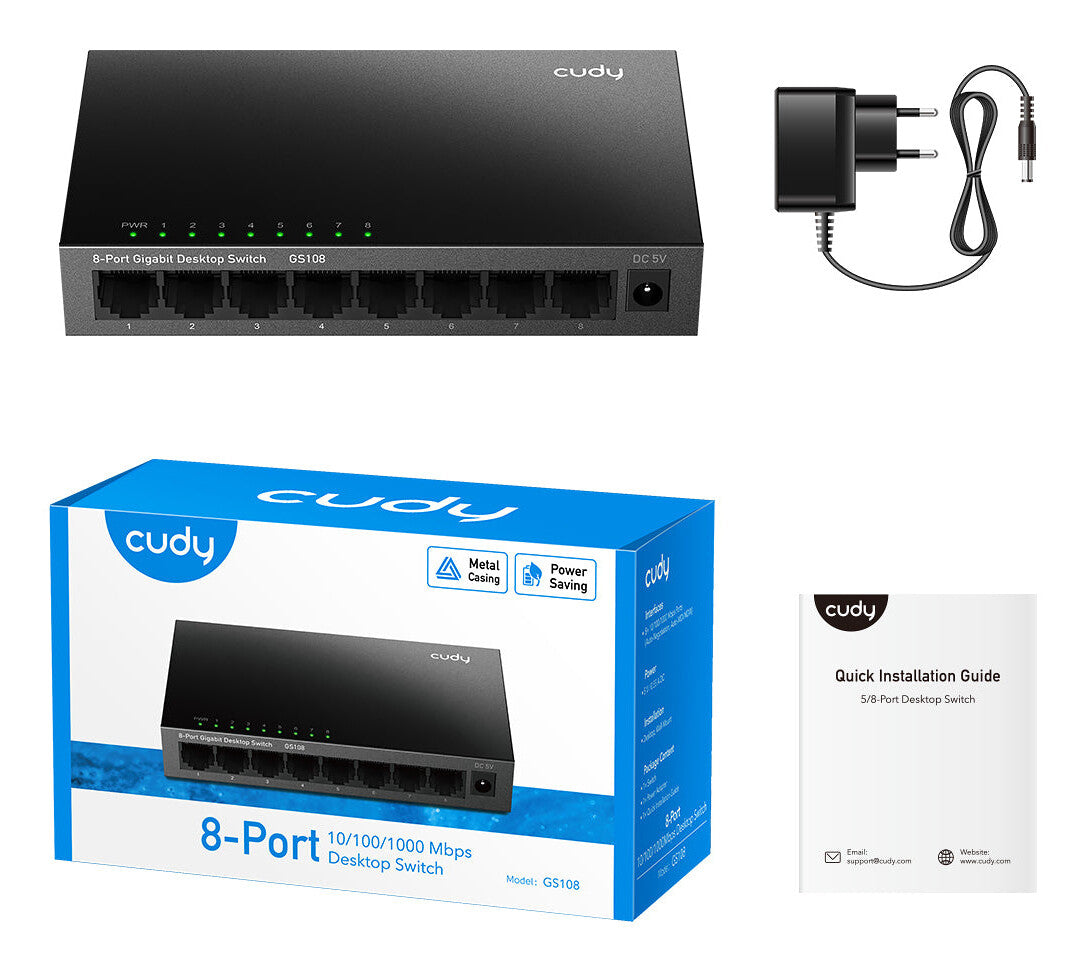

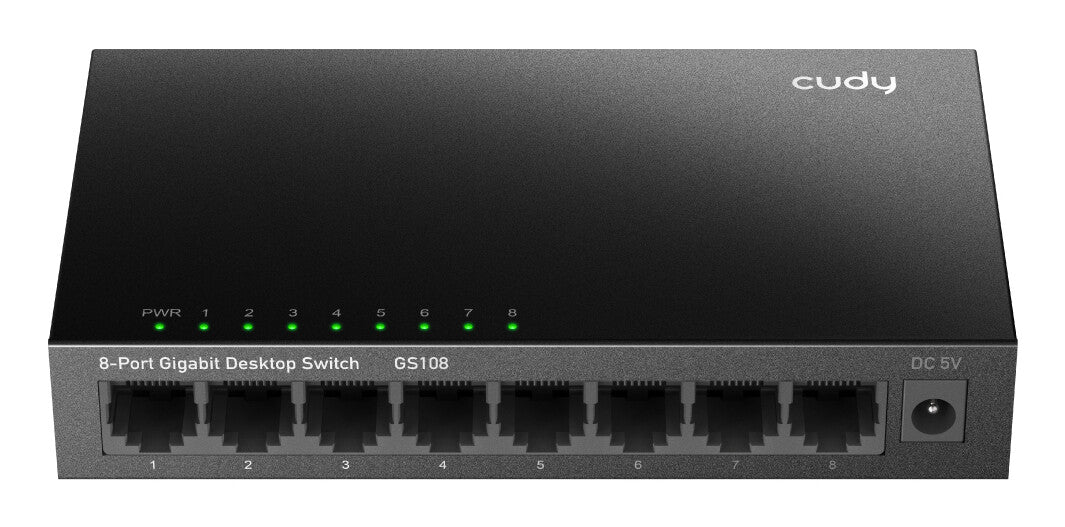

8-Port, Gigabit, Desktop Switch, Model: GS108, Black
A Long-Distance Switch with Power Saving
Super-Fast Gigabit
Eight 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.
Extra Transmission Distance
170 meters of Gigabit transmission adding 70% longer distance compared to a standard switch, simplifies wiring for larger premises.
Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.
Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.
A Plug and Play Network Hub
Connect Office Computers to Wired Network
Boost Home Devices with Stable Ethernet

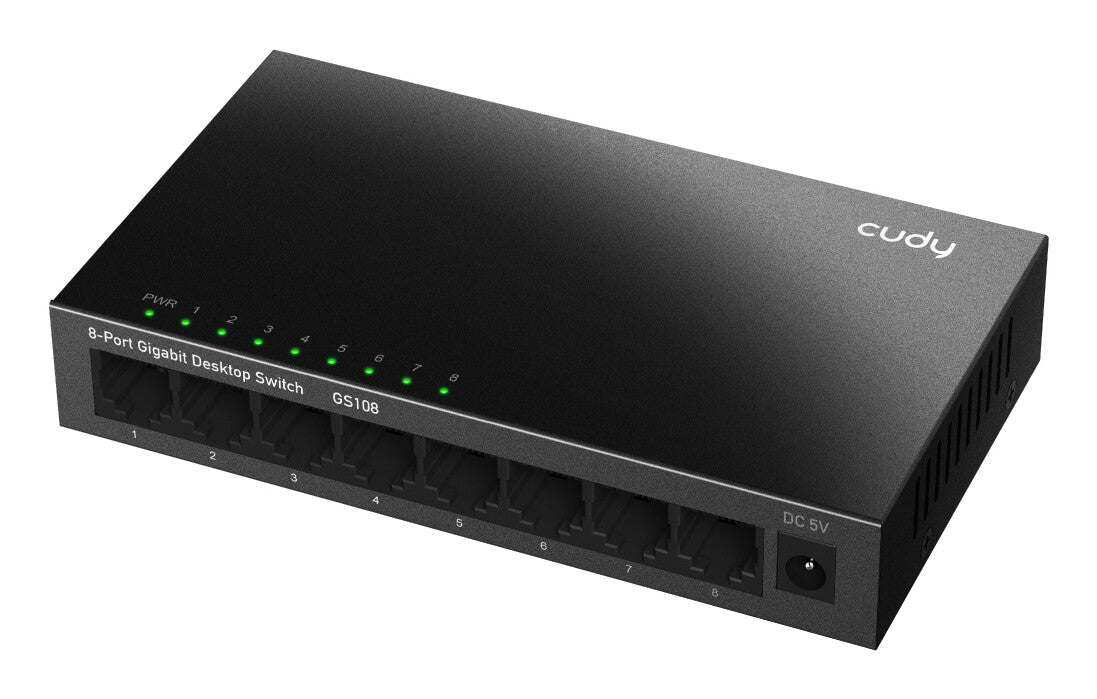

Robust Metal. Compact Size.
Compact enough to fit in most home network distribution boxes. Metal casing delivers simplicity and protection for your network hub.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Power connector |
DC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported |
Cat3, Cat5, Cat5e |
| Half duplex |
Yes |
| Full duplex |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Data transmission |
|---|
| MAC address table |
4096 entries |
| Switching capacity |
16 Gbit/s |
| Forwarding rate |
11.904 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
15000 |
| Packet buffer memory |
0.18 MB |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Black |
| LED indicators |
Loop, Link, Power |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Power |
|---|
| Power source |
DC |
| Power supply included |
Yes |
| DC input voltage |
5 V |
| Input current |
0.55 A |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
0 - 100% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3048 m |
| Weight & dimensions |
|---|
| Width |
138 mm |
| Depth |
78 mm |
| Height |
25 mm |
| Weight |
300 g |
| Packaging data |
|---|
| Cables included |
DC |
| Quick start guide |
Yes |
| Package type |
Box |
| Package width |
175 mm |
| Package depth |
120 mm |
| Package height |
63 mm |
| Package weight |
500 g |
| Logistics data |
|---|
| Master (outer) case width |
505 mm |
| Master (outer) case length |
320 mm |
| Master (outer) case height |
400 mm |
| Master (outer) case gross weight |
21 kg |
| Products per master (outer) case |
40 pc(s) |
