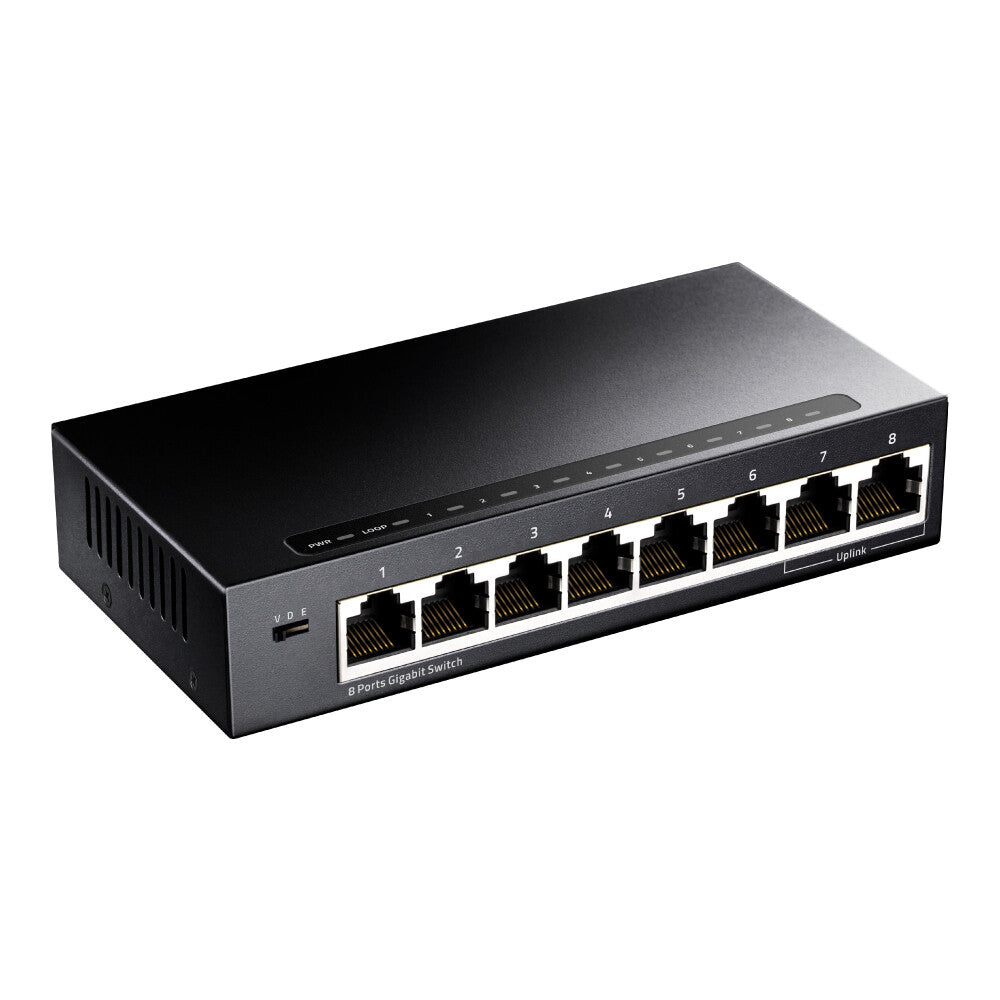

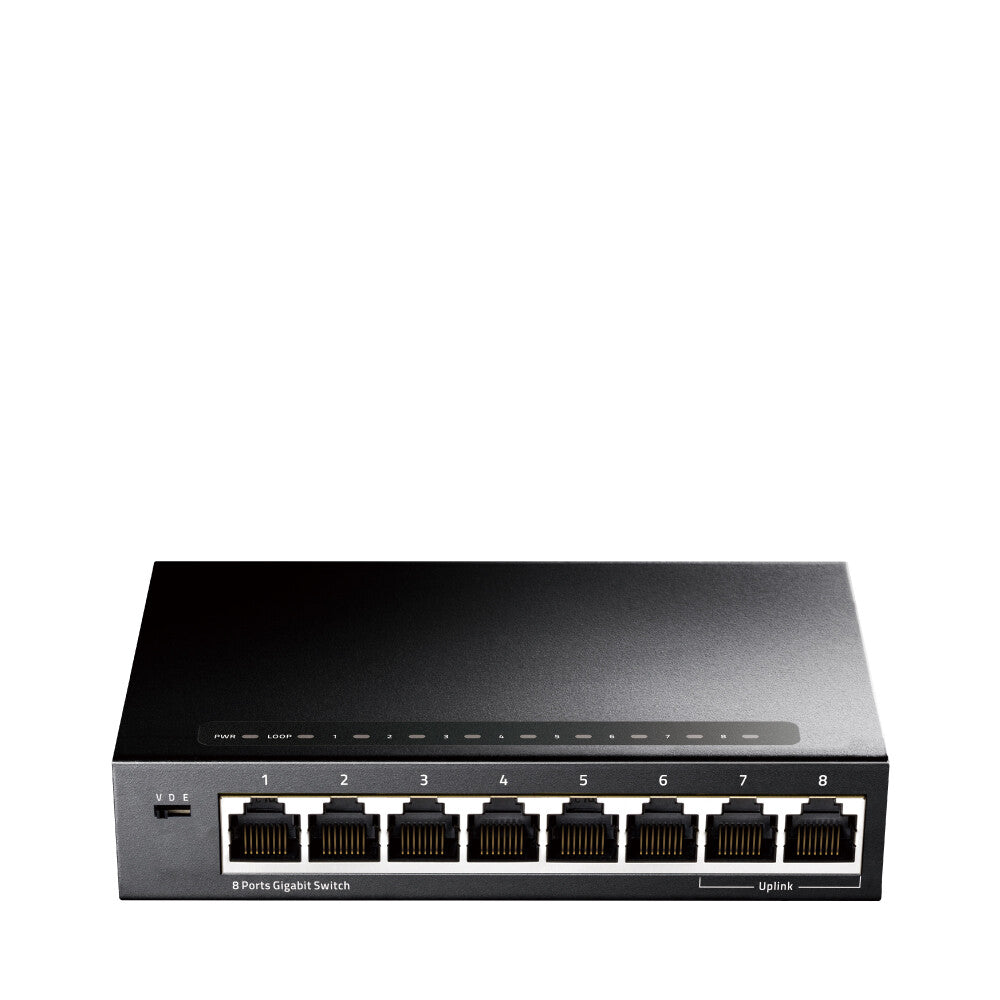

8-Port, Gigabit, Desktop Switch, Model: GS108, Black
Gigabit Ports for Faster Speed
Increase the speed of your network with the 8-port Gigabit switch. Non-blocking, 8 10/100/1000Mbps ports enables instant transferring of large, bandwidth intensive files without interference.
High Performance
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.
Support Loop Alarm
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.
Surveillance
Works with IP Cameras for home and office, small business
VoIP Conference Call
Works with VoIP phones for business conference
Wi-Fi Coverage
Works with WiFi APs for office and business
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| VLAN support |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Half duplex |
Yes |
| Full duplex |
Yes |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-TX |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Packet buffer memory |
2.5 MB |
| Jumbo frames |
2000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Throughput |
11.9 Mpps |
| Switching capacity |
16 Gbit/s |
| MAC address table |
1000 entries |
| Design |
|---|
| LED indicators |
Loop, Link, Power |
| Product colour |
Black |
| Rack mounting |
No |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Power |
|---|

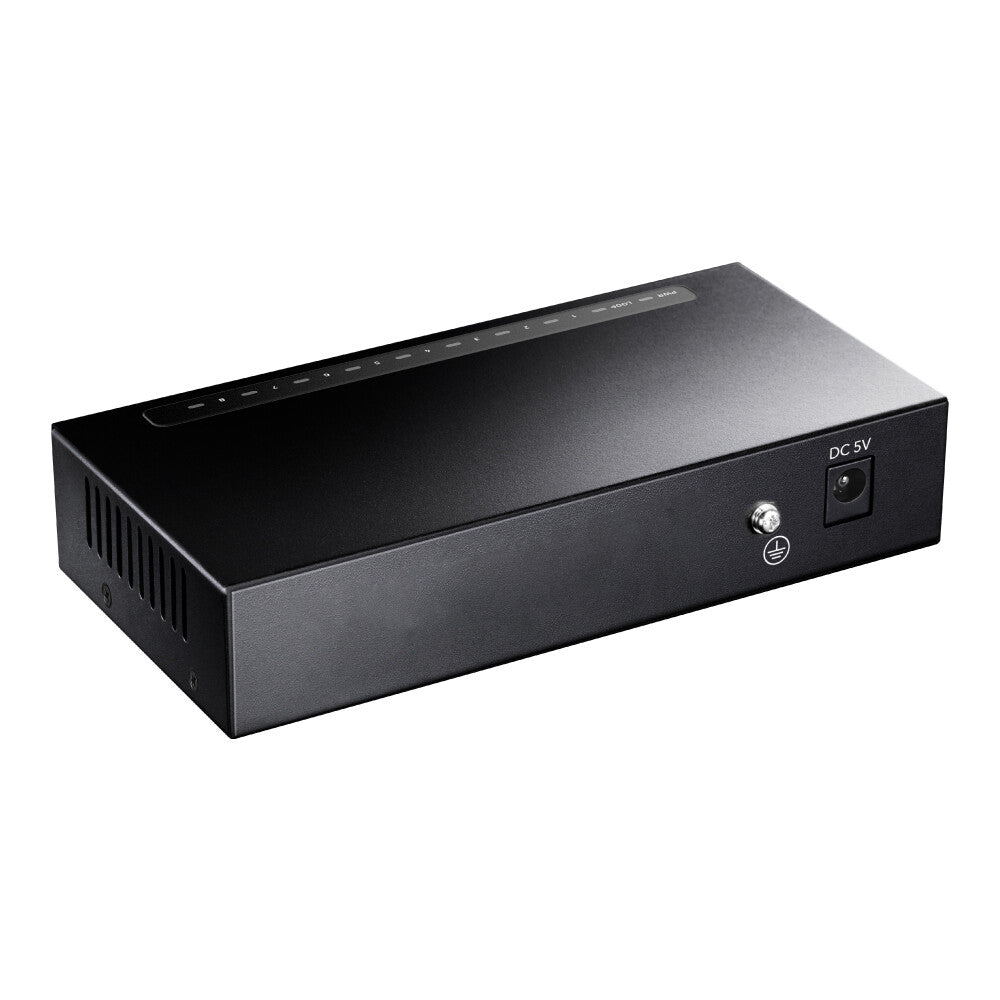

| DC input voltage |
5 V |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating altitude |
0 - 3048 m |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-10 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
300 g |
| Height |
25 mm |
| Depth |
77 mm |
| Width |
137 mm |
| Packaging data |
|---|
| Package weight |
500 g |
| Package height |
63 mm |
| Package depth |
120 mm |
| Package width |
175 mm |
| Package type |
Box |

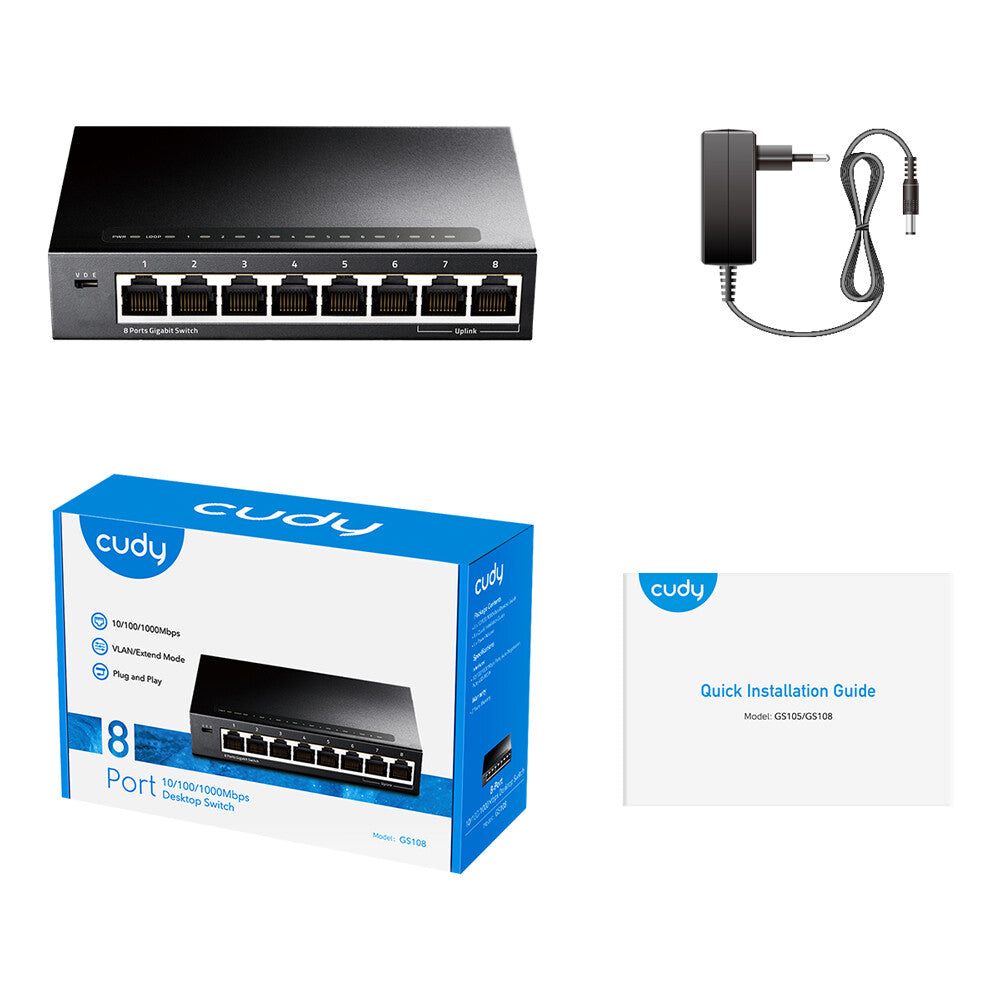

| Quick start guide |
Yes |
| Cables included |
DC |
| Logistics data |
|---|
| Products per master (outer) case |
40 pc(s) |
| Master (outer) case gross weight |
21 kg |
| Master (outer) case height |
400 mm |
| Master (outer) case length |
320 mm |
| Master (outer) case width |
505 mm |
