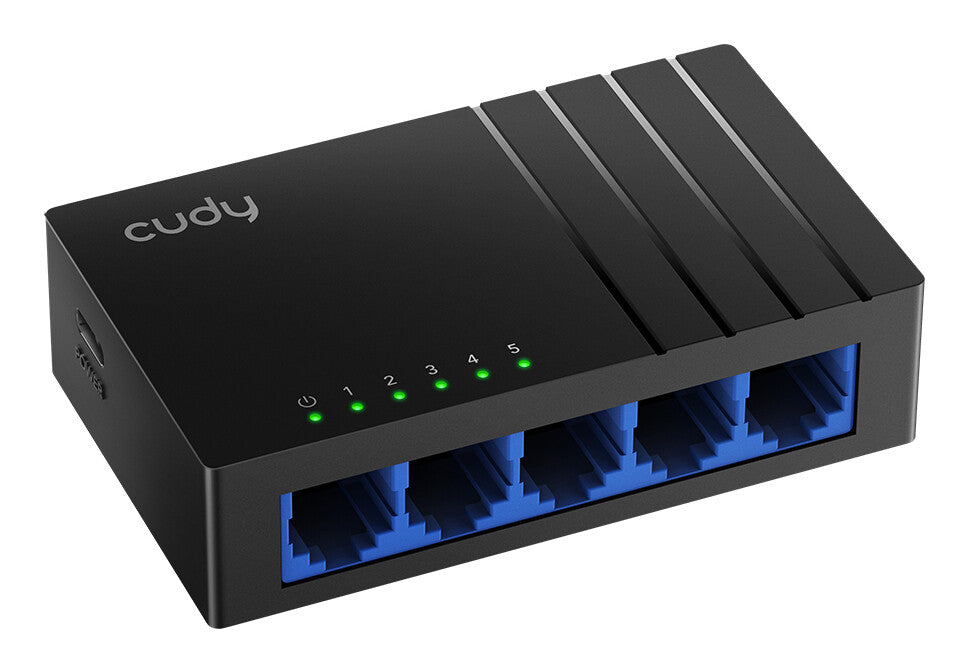

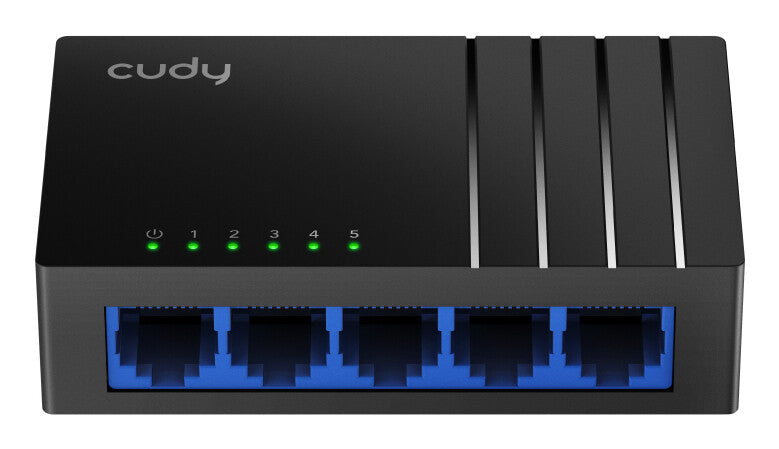

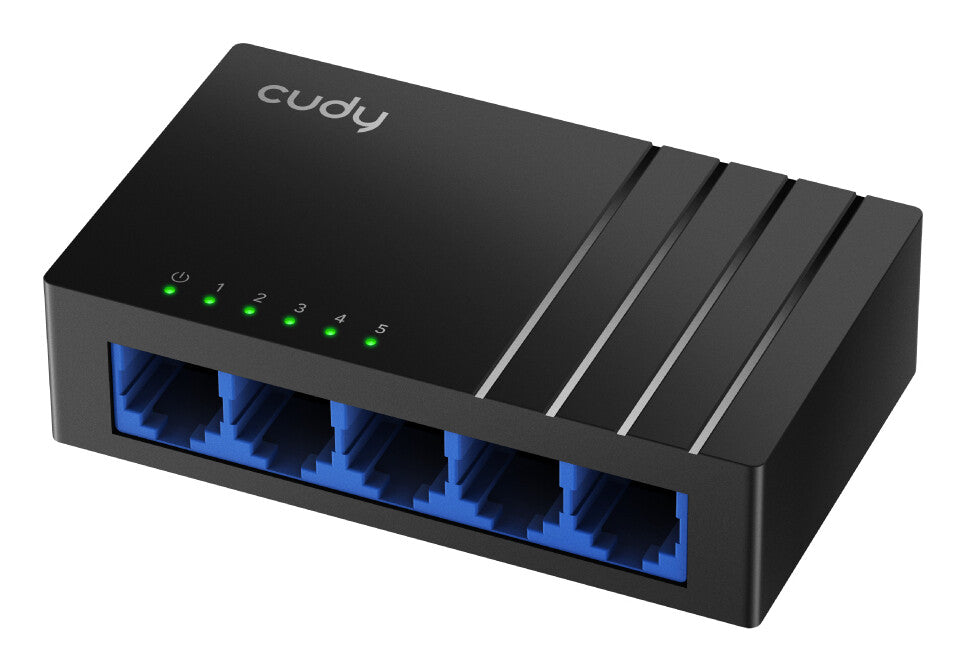

5-Port, Gigabit, Desktop Switch, GS105D, Black
No Sockets Nearby? No Worries

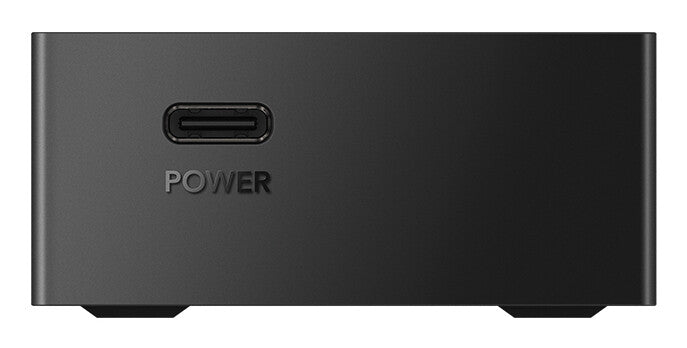

No power sockets nearby? Use the USB port on your PC/TV/router/printer to power the switch and expand the connection with ease.
A Moving Network Hub
Do maintenance and troubleshooting more easily with a power bank-powered switch. It can operate for a full day with a 10,000 mAh power bank.
A Long-Distance Switch with Power Saving
Super-Fast Gigabit
Five 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.
Extra Transmission Distance
140 meters of Gigabit transmission adding 40% longer distance compared to a standard switch, simplifies wiring for larger premises.
Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.
Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.
Compact Size. Modern Design.
Compact enough to fit in most home network distribution boxes. The wave line white casing casts a modern aesthetic. The retail package comes with a USB-A to USB-C power cable.
Expand Network for More Devices
Connect Office Computers to Wired Network
Boost Home Devices with Stable Ethernet
A 5-GbE long-distance switch with USB-C power input and a modern design, supporting full Gigabit speeds on all five ports over distances up to 140 m, and featuring a super-efficient chipset with idle power consumption of just 0.2 W.
| Packaging content |
|---|
| Manual |
Yes |
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Power connector |
DC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3i |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T, 1000BASE-T |
| Cable types supported |
Cat5, Cat5e, Cat3 |
| Half duplex |
Yes |
| Full duplex |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Auto-negotiation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Data transmission |
|---|
| MAC address table |
2048 entries |
| Switching capacity |
10 Gbit/s |
| Forwarding rate |
7.44 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
15000 |
| Packet buffer memory |
3 MB |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Black |
| LED indicators |
Activity, Link, Power |
| Performance |
|---|
| Plug and Play |
Yes |
| Power |
|---|
| Power source |
DC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| DC input voltage |
5 V |
| Input current |
0.55 A |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
88 mm |
| Depth |
52.5 mm |
| Height |
24 mm |
| Weight |
52 g |
| Packaging data |
|---|
| Cables included |
DC |
| Package type |
Box |
| Package width |
92 mm |
| Package depth |
88 mm |
| Package height |
57 mm |
| Package weight |
137 g |
| Other features |
|---|
| Bandwidth |
1 Gbit/s |
