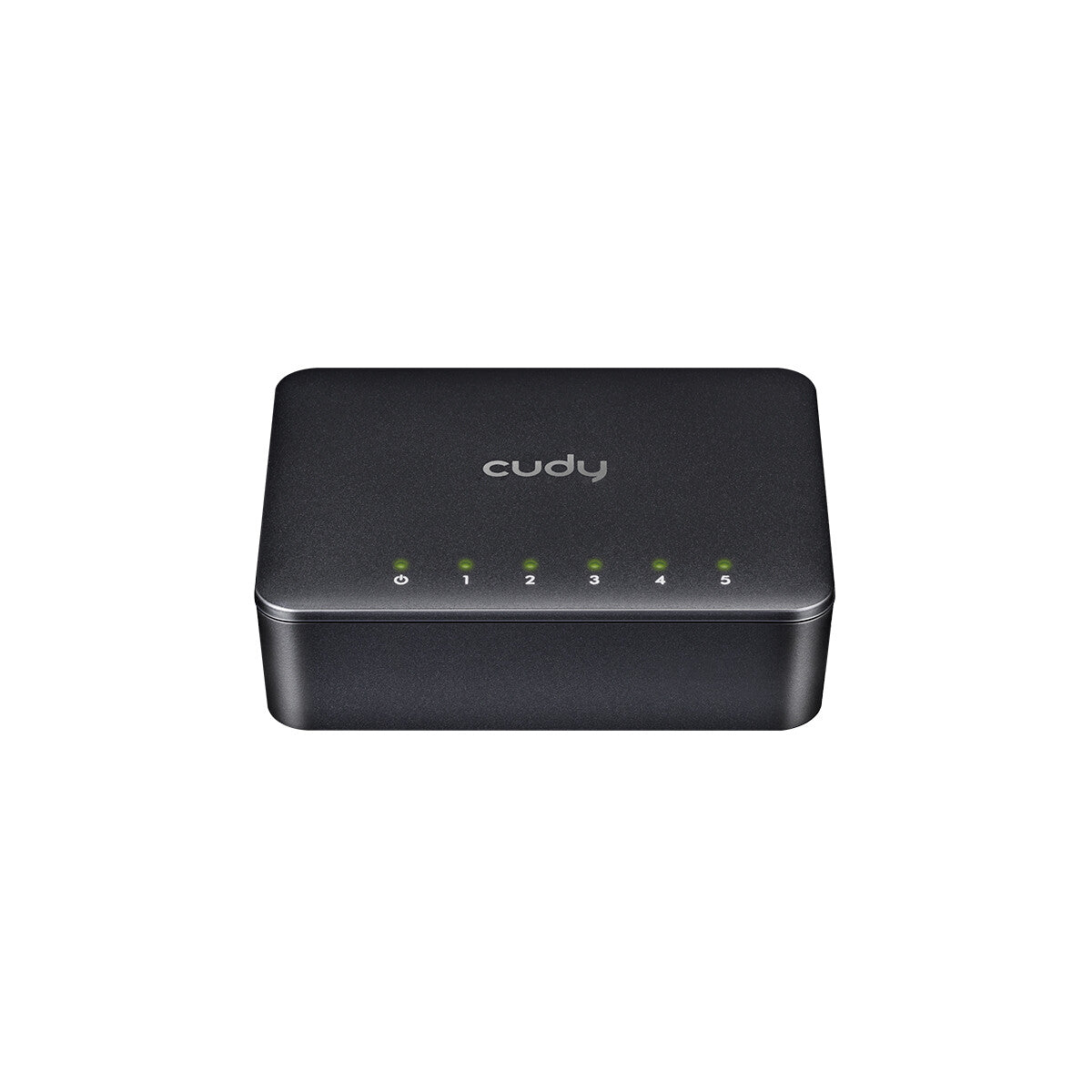

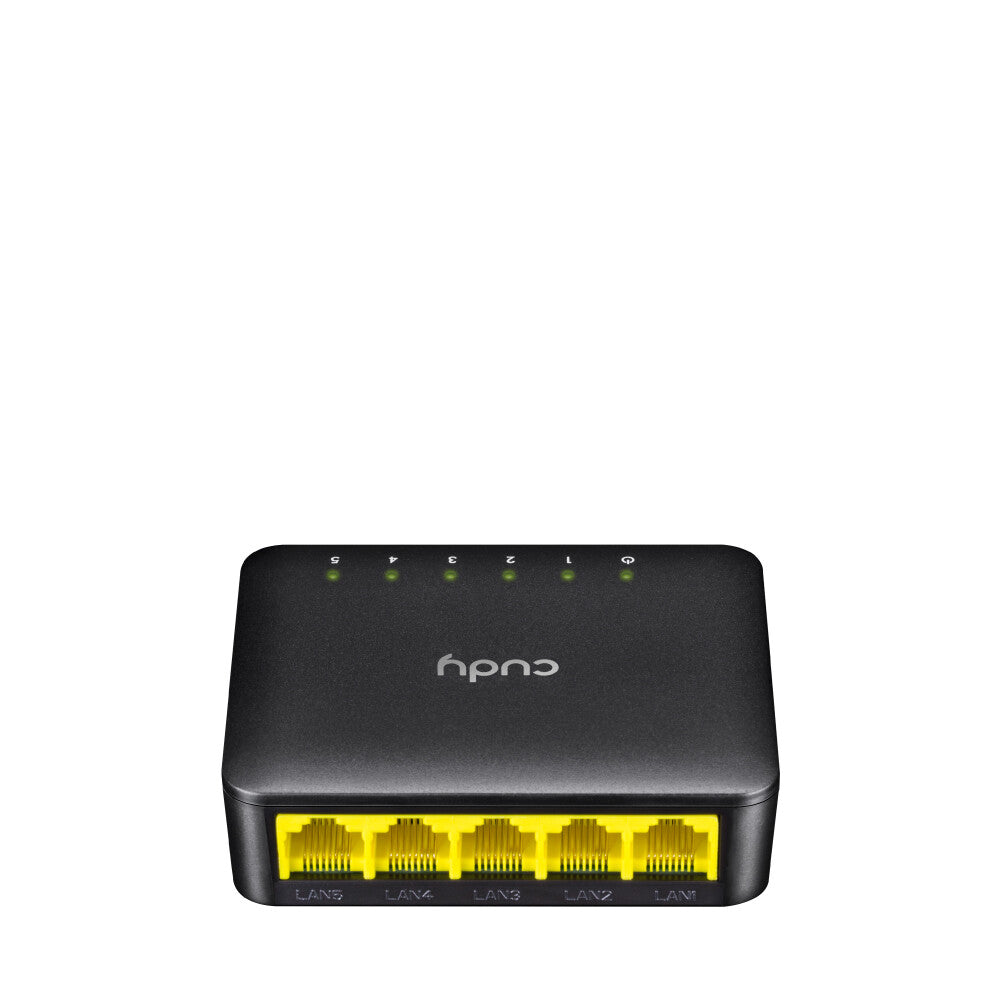

5-Port, Gigabit, Desktop Switch, GS105D, Black
Easy to Use
Plug and play, hassle-free, no configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port detects the link speed of a network device (10/100/1000Mbps) and intelligently adjusts for compatibility and optimal performance.
High Performance
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices. Featuring non-blocking switching architecture, the product forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.
Gigabit Ports for Faster Speed
Increase the speed of your network with the 5-port Gigabit switch. Non-blocking, 5 10/100/1000Mbps ports enables instant transferring of large, bandwidth intensive files without interference.
Smooth Online Experience
The switch connects up to 5 devices with a speed of up to 1000 Mbps. Provides you with an extremely smooth experience to enjoy a powerful, seamless, affordable and easy-to- use 1000Mbps network, ideal for multimedia, graphics, HD video and other applications that require large transfer allocation.
Energy Efficient and Power Saving
Automatically adjusts Power consumption according to the link status and cable length.This Gigabit Desktop Switch features the innovative energy-efficient technologies that can greatly expand your network capacity with much less power.
| Packaging content |
|---|
| Manual |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
|---|
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Half duplex |
Yes |
| Full duplex |
Yes |
| Copper ethernet cabling technology |
10BASE-TX, 100BASE-TX |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Store-and-forward |
Yes |
| MAC address table |
2000 entries |
| Protocols |
|---|
| Switching protocols |
CSMA/CD |
| Design |
|---|
| LED indicators |
Activity, Link, Power |
| Product colour |
Black |
| Rack mounting |
No |
| Performance |
|---|
| Plug and Play |
Yes |
| Power |
|---|
| Input current |
0.5 A |
| DC input voltage |
5 V |
| Power supply included |
Yes |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
135 g |
| Height |
27 mm |
| Depth |
74 mm |
| Width |
100 mm |
| Packaging data |
|---|
| Package type |
Box |
| Cables included |
DC |
| Other features |
|---|
| Bandwidth |
1 Gbit/s |
