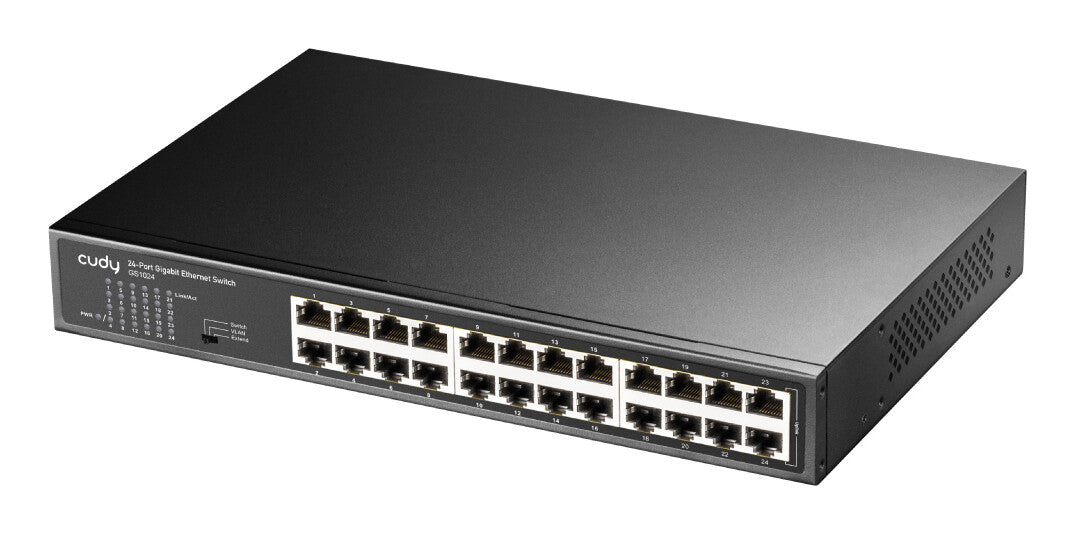

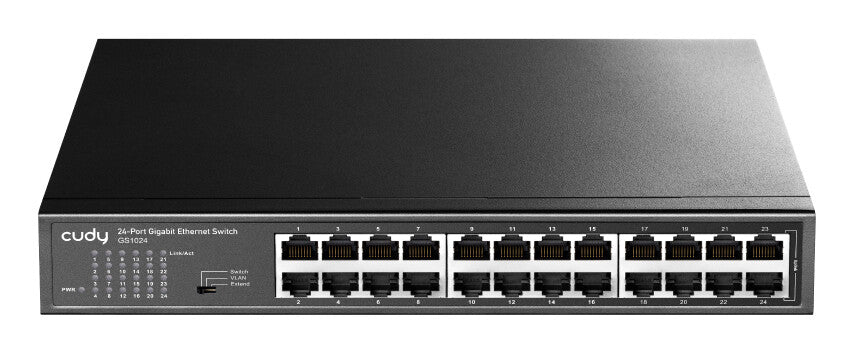

24 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart, RJ45, Black, 270x180x44mm
Default/VLAN/Extend Multi-Mode
VLAN Mode
Protect clients from attack from client-side hacking. With VLAN mode, downlink ports 1-22 can only communicate with uplink ports.
Extend Mode
Prolong the transmission distance of ports 1-22 to a maximum of 250 meters and simplify installation. (These ports' speed will be capped at 10 Mbps)
DSCP/802.1p QoS
Itentify the packets with DSCP headers and forward those with higher priority first.
IGMP Snooping
Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.
Loop Prevention
Blocks the ports automatically when it detects a loop in the network, preventing downtime caused by misoperation.
Fanless Cooling
Low heat generation and fanless design cater to noise-sensitive enironments.
Installation and Dimension
Mounting Brackets Included
Standard 1U Rackmount
Versatile Scenarios
Office Network
Mall Wi-Fi
Surveillance
ISP FTTB

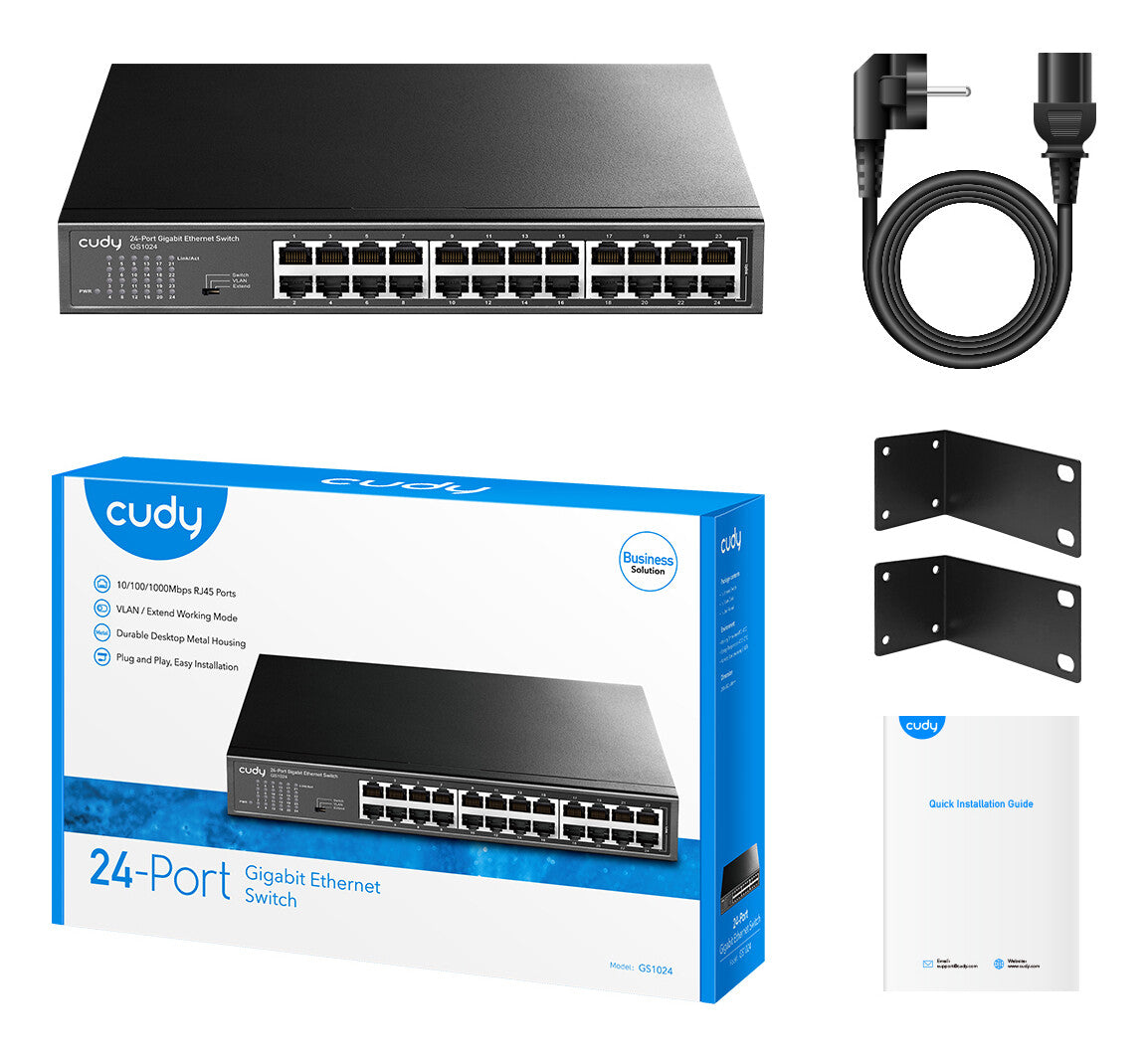

| Packaging content |
|---|
| Manual |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X |
Yes |
| Optical fiber |
|---|
| Transmission distance (max) |
0.1 km |
| Data transmission |
|---|
| MAC address table |
8 entries |
| Switching capacity |
48 Gbit/s |
| Store-and-forward |
Yes |
| Packet forwarding rate (10 Mbps) |
14.88 pps |
| Packet forwarding rate (100 Mbps) |
148.8 pps |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Black |

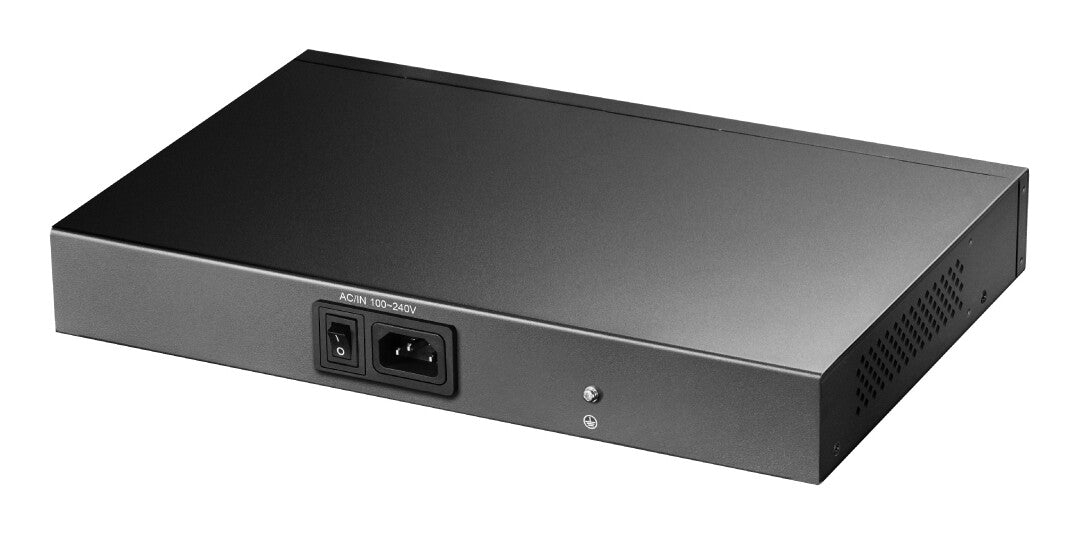

| Power |
|---|
| Power source |
AC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| Power consumption (typical) |
15 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage relative humidity (H-H) |
5 - 85% |
| Weight & dimensions |
|---|
| Width |
180 mm |
| Depth |
270 mm |
| Height |
44 mm |
| Packaging data |
|---|
| Cables included |
AC |
