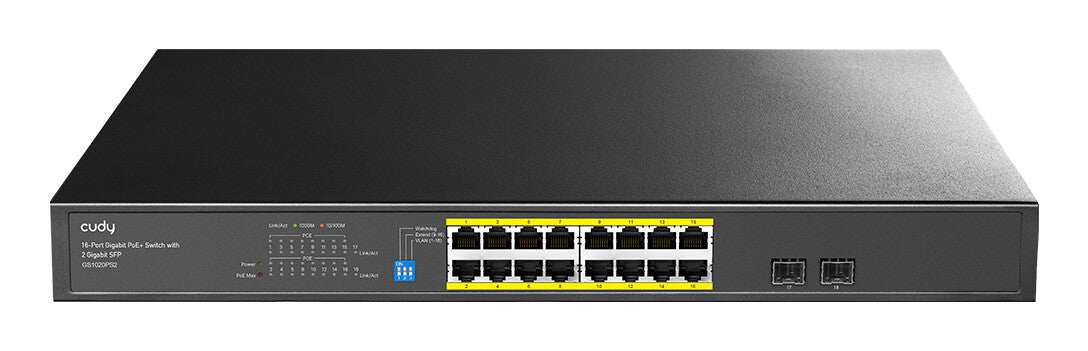

16-Port, Gigabit, PoE+ Switch with 2 Gigabit SFP Ports, Model: GS1020PS2, Black
Reliable PoE for 24/7 Consistent Operation
IEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.
PoE Auto Recovery
Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.
Streamlined PoE Management Loved by Installers
Built-In Modes for Practical Use Cases
VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.
Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.
Exceptional Built-Quality for Stable Operation
Build Robust Systems with Outstanding EMC
Improves service reliability and reduces downtime caused by power surges and ESD.
ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Shielded Ports. Solid Metal Casing.
Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.
Versatile Scenarios
Surveillance
Office Networking
Campuses Wi-Fi
Accesses and Signages

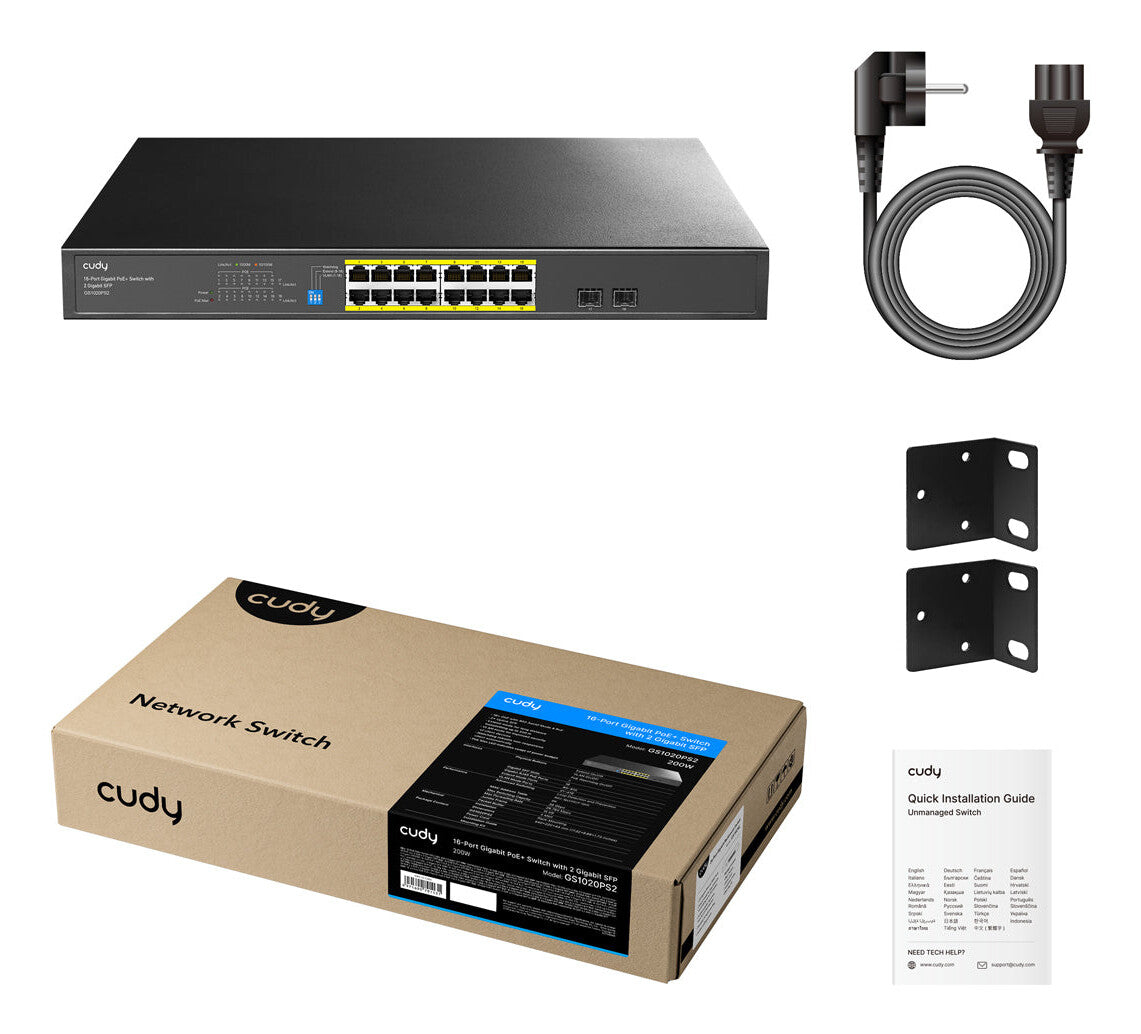

| Packaging content |
|---|
| Rack mount kit |
Yes |
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity |
2 |
| Fiber uplink ports quantity |
2 |
| Power connector |
AC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-TX |
| Cable types supported |
Cat5, Cat3, Cat4 |
| Auto-sensing |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Auto MDI/MDI-X |
Yes |
| VLAN support |
Yes |
| Optical fiber |
|---|
| Switching optical modules type |
Gigabit Ethernet |
| Fiber type |
Multi-mode |
| Transmission distance (max) |
120 km |
| Maximum transfer distance (Multi-mode) |
2000 m |
| Maximum transfer distance (Single-mode) |
120000 m |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Switching capacity |
36 Gbit/s |
| Forwarding rate |
26.784 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
9600 |
| Packet buffer memory |
4 MB |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Activity, Link, Power |
| Airflow direction |
Side-to-side airflow |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| Power |
|---|
| Power source |
AC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| DC input voltage |
52 V |
| Input current |
3.85 A |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
200 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating altitude |
0 - 3000 m |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
204 mm |
| Height |
44 mm |
| Weight |
2.6 kg |
| Packaging data |
|---|
| Cables included |
AC |
| Package width |
500 mm |
| Package depth |
290 mm |
| Package height |
85 mm |
| Package weight |
3.2 kg |
