16 10/100/1000Mbps Auto Negotiation, Auto MDI/MDIX, RJ-45, Black
Provide a variety of installation methods for easy deployment in any environment
● Support 8-inch Rack-mount Steel Case
● Support Desktop installation
High Performance
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.
Power Saving
Save power up to 40% - The GS1016 uses green Ethernet technology to make your network compatible without compromising performance. The switch automatically powers down the ports that are idle and budgets power output for different Ethernet cable lengths. It helps you save power up to 40%.

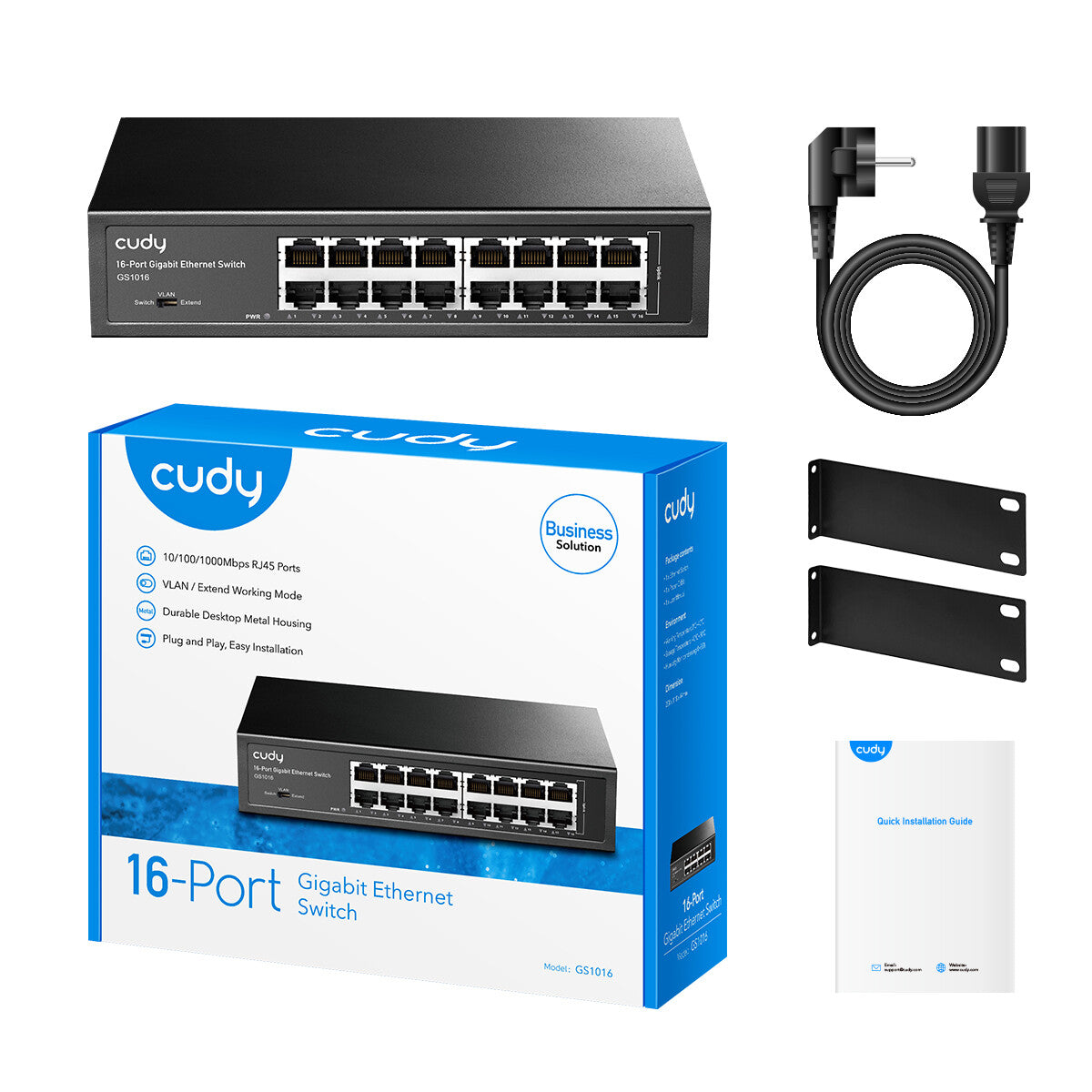

| Packaging content |
|---|
| Manual |
Yes |
| Ports & interfaces |
|---|
| Gigabit Ethernet (copper) ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
|---|
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Optical fiber |
|---|
| Transmission distance (max) |
0.1 km |
| Data transmission |
|---|
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Switching capacity |
32 Gbit/s |
| MAC address table |
8 entries |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (typical) |
15 W |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 85% |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
44 mm |
| Depth |
200 mm |
| Width |
118 mm |
| Packaging data |
|---|
| Cables included |
AC |
