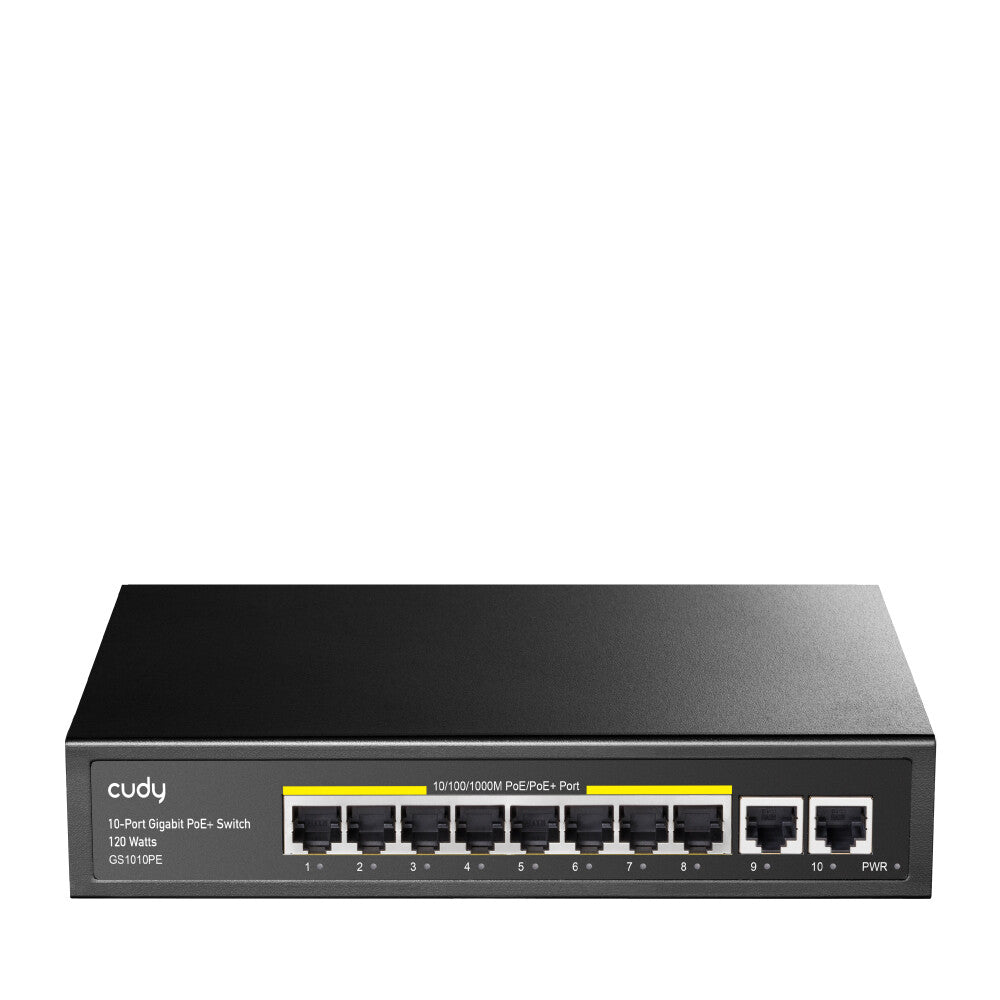

10-Port, Gigabit, PoE+ Switch, Model: GS1010PE, Black
120W Power budget & 30W Maximum One Port
Supports 120W total PoE power and up to 30W for one PoE port.Auto detect power device; will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard
Rack Mount & Wall Mount & Desktop
- Provide a variety of installation methods for easy deployment in any environment
- Support Wall mount installation
- Support Desktop installation
Plug&Play, Fanless design
Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)
Surveillance
Works with IP Cameras for home and office, small business
VoIP Conference Call
Works with VoIP phones for business conference
Wi-Fi Coverage
Works with WiFi APs for office and business
| Ports & interfaces |
|---|

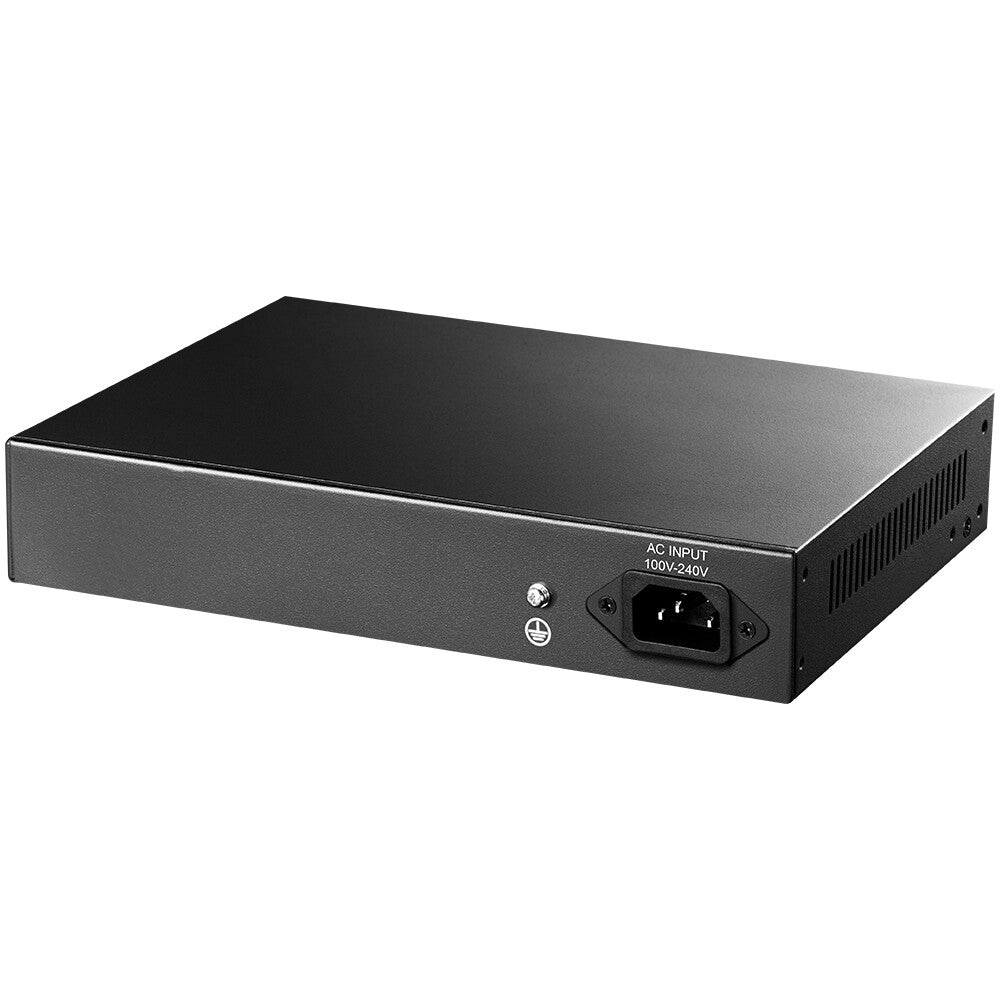

| Power connector |
AC-in jack |
| Uplink ports quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
10 |
| Network |
|---|
| VLAN support |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Packet buffer memory |
0.25 MB |
| Store-and-forward |
Yes |
| MAC address table |
2000 entries |
| Design |
|---|
| Wall mountable |
Yes |
| LED indicators |
Activity, Link, Power |
| Housing material |
Metal |
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
Yes |
| Performance |
|---|
| Fanless |
Yes |
| Plug and Play |
Yes |
| Power |
|---|
| Output current |
2.3 A |
| Output voltage |
52 V |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
120 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating temperature (T-T) |
-20 - 50 °C |
| Weight & dimensions |
|---|
| Height |
40 mm |
| Depth |
163 mm |
| Width |
222 mm |
| Packaging data |
|---|
| Cables included |
AC |
| Other features |
|---|
| Bandwidth |
20 Gbit/s |
