5-Port, Gigabit, POE+ Switch, Model: GS1005P, Grey
60W Power budget & 30W Maximum One Port
Supports 60W total PoE power and up to 30W for one PoE port.Auto detect power device; will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard
Gigabit Switching Performance
The switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, each cudy switch supports up to 5 Gbps with a switching capacity of 10 Gbps
Plug&Play, Fanless design
Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)
Surveillance
Works with IP Cameras for home and office, small business
VoIP Conference Call
Works with VoIP phones for business conference
Wi-Fi Coverage
Works with WiFi APs for office and business
| Packaging content |
|---|
| User guide |
Yes |
| Rack mount kit |
Yes |
| Ports & interfaces |
|---|
| Uplink ports quantity |
1 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
|---|
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Data transmission |
|---|
| Packet forwarding rate (1 Gbps) |
1488000 pps |
| Packet forwarding rate (100 Mbps) |
148800 pps |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Switching capacity |
10 Gbit/s |
| MAC address table |
2000 entries |
| Design |
|---|
| LED indicators |
Activity, Link, PoE, Power |
| Housing material |
Metal |
| Product colour |
Grey |
| Rack mounting |
Yes |
| Performance |
|---|
| Fanless |
Yes |
| Plug and Play |
Yes |
| Power |
|---|
| Power consumption (typical) |
5 W |
| DC input voltage |
48 - 57 V |
| Power supply included |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
60 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
1 |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
28 mm |
| Depth |
85 mm |
| Width |
119 mm |
| Packaging data |
|---|
| Package type |

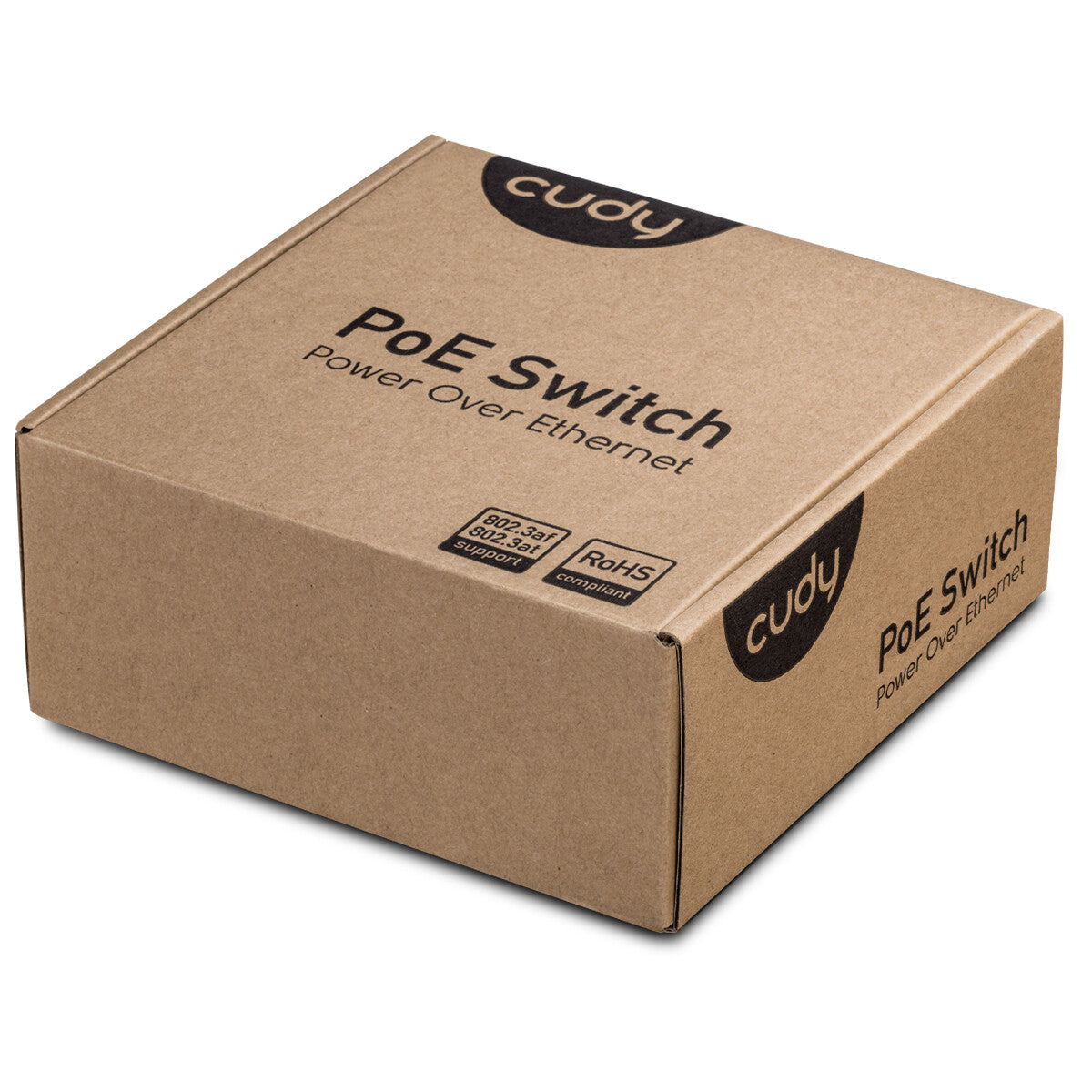

Box |
| Cables included |
AC, DC |
