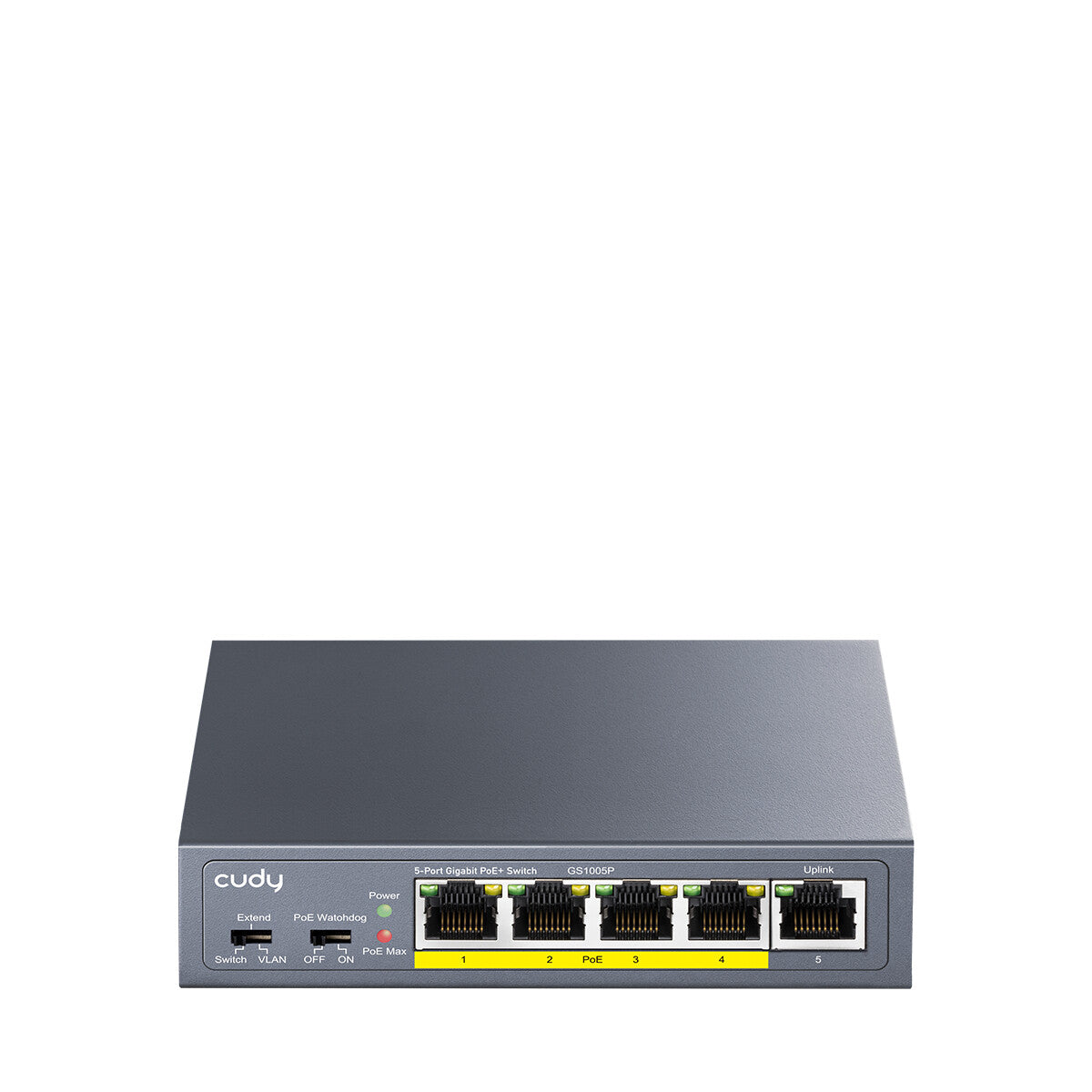

5-Port Gigabit PoE+ Switch
A wall-mounted PoE switch with a 60W power supply and a silent cooling system, featuring Default/Extend/VLAN mode switch and Watchdog on/off switch.

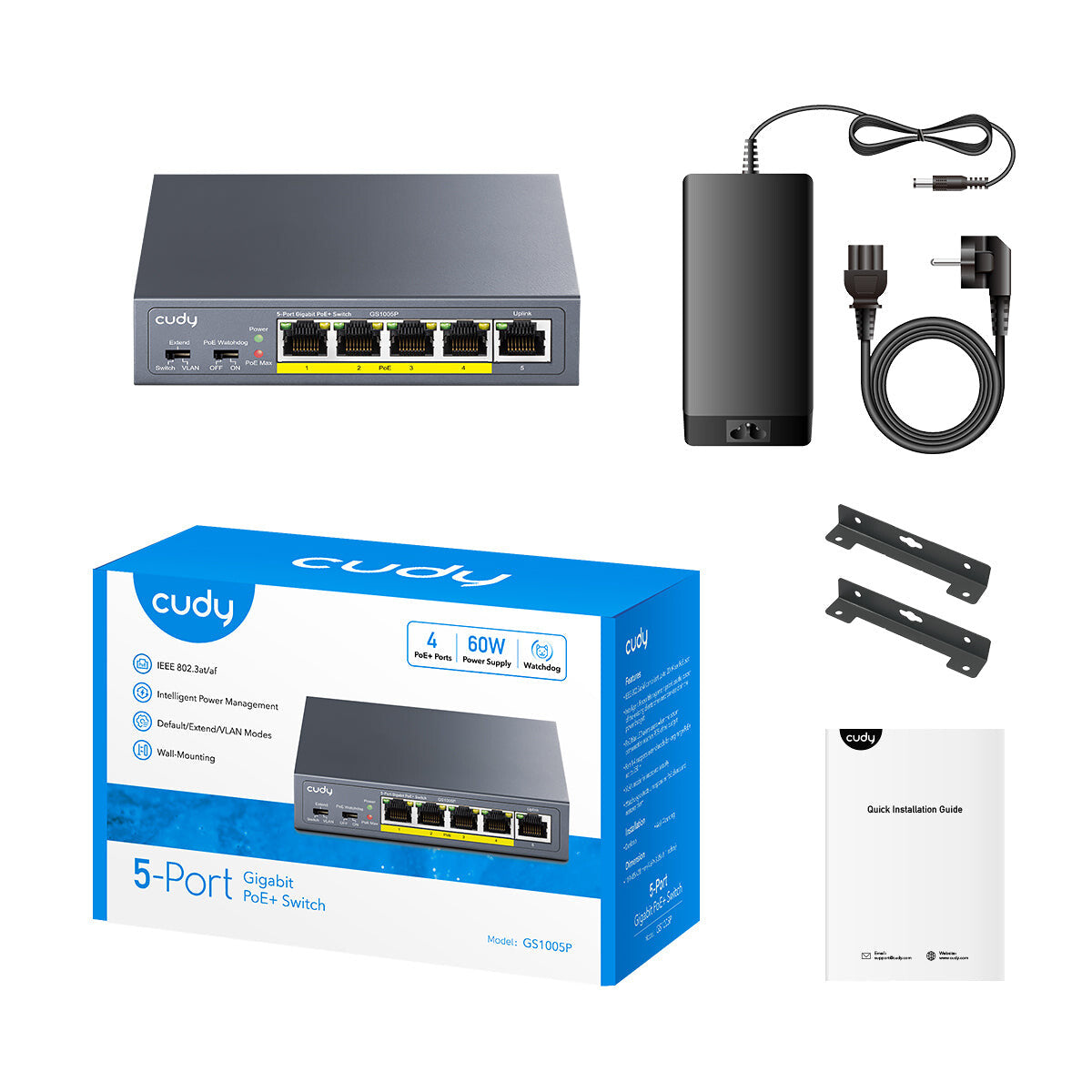

| Packaging content |
|---|
| Rack mount kit |
Yes |
| User guide |
Yes |
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Cloud-managed |
No |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Uplink ports quantity |
1 |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Flow control support |
Yes |
| Data transmission |
|---|
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Packet forwarding rate (100 Mbps) |
148800 pps |
| Packet forwarding rate (1 Gbps) |
1488000 pps |
| Security |
|---|
| Password protection |
No |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Grey |
| Housing material |
Metal |
| LED indicators |
Activity, Link, PoE, Power |
| Performance |
|---|
| Plug and Play |
Yes |
| Fanless |
Yes |
| Power |
|---|
| Power source |
DC |
| Power supply included |
Yes |
| DC input voltage |
48 - 57 V |
| Power consumption (typical) |
5 W |
| Power consumption (max) |
60 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet plus (PoE+) ports quantity |
1 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
60 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Width |
119 mm |
| Depth |
85 mm |
| Height |
28 mm |
| Weight |
253 g |
| Packaging data |
|---|
| Cables included |
AC, DC |
| Package type |
Box |
| Package width |
165 mm |
| Package depth |
123 mm |
| Package height |
60 mm |
| Package weight |
890 g |
| Logistics data |
|---|
| Country of origin |
China |
| Other features |
|---|
| Warranty period |
1 year(s) |
