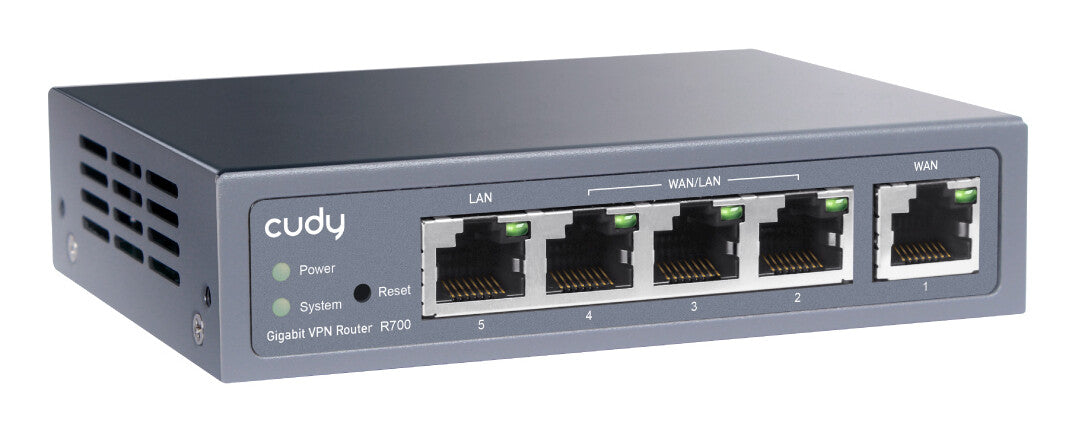

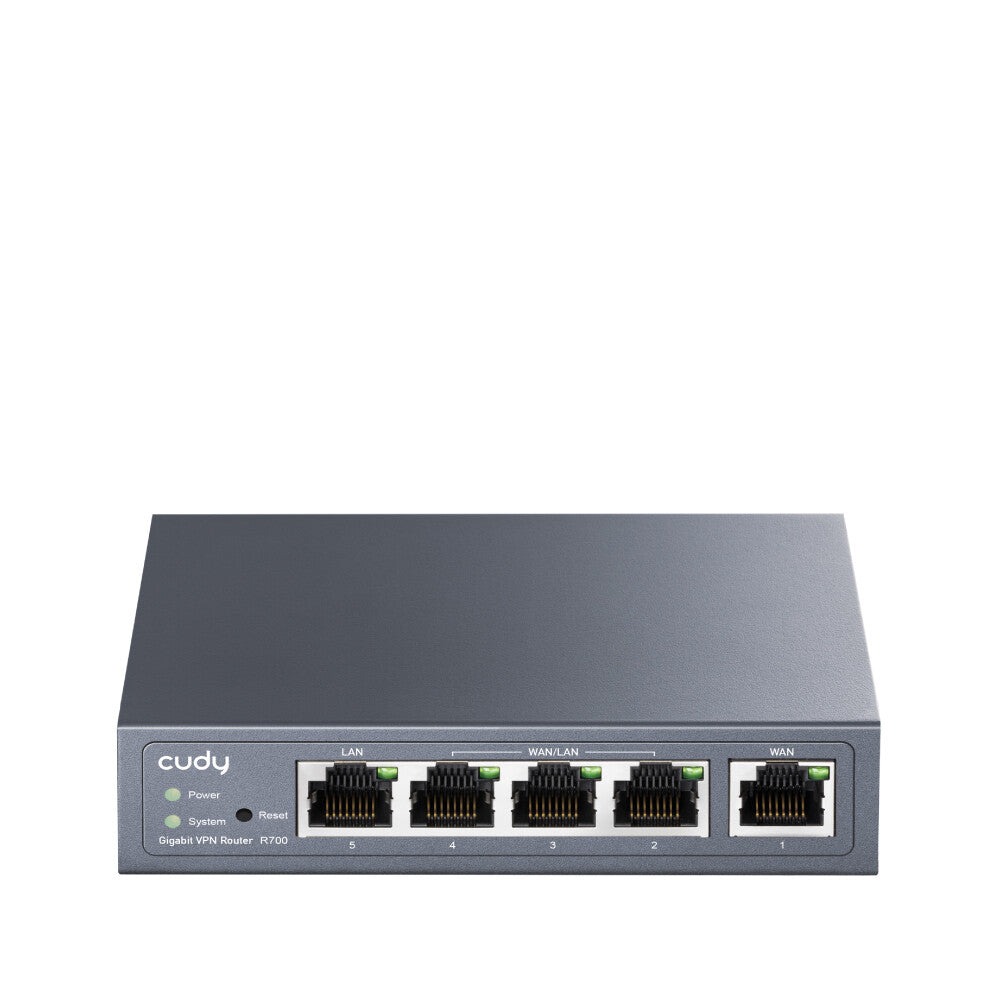

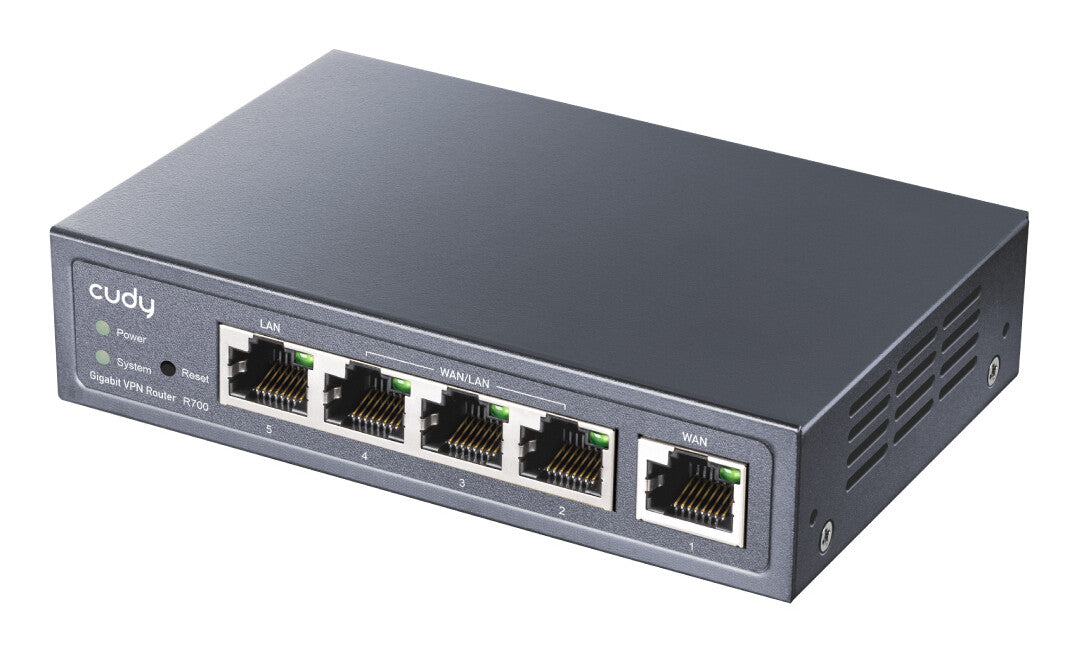

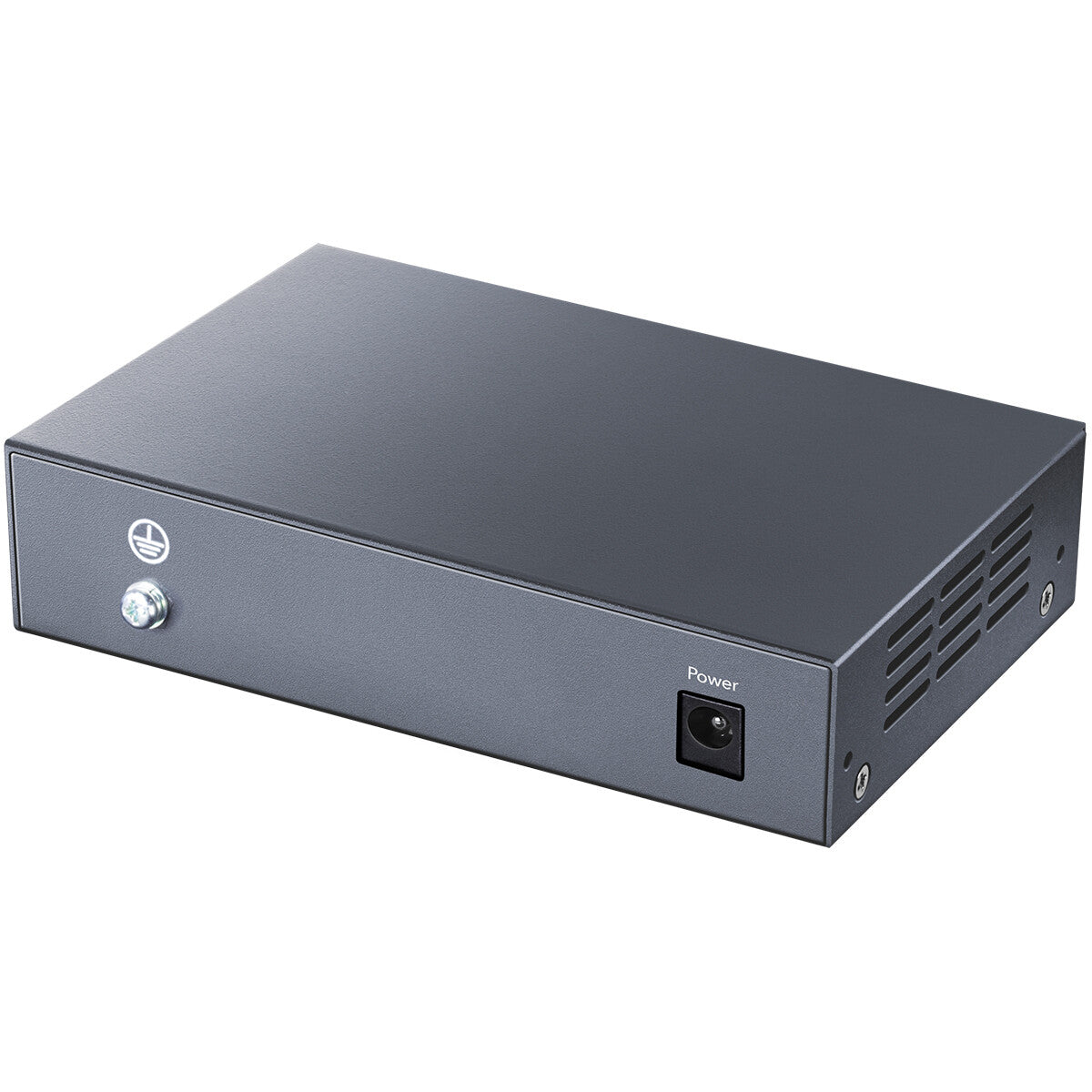

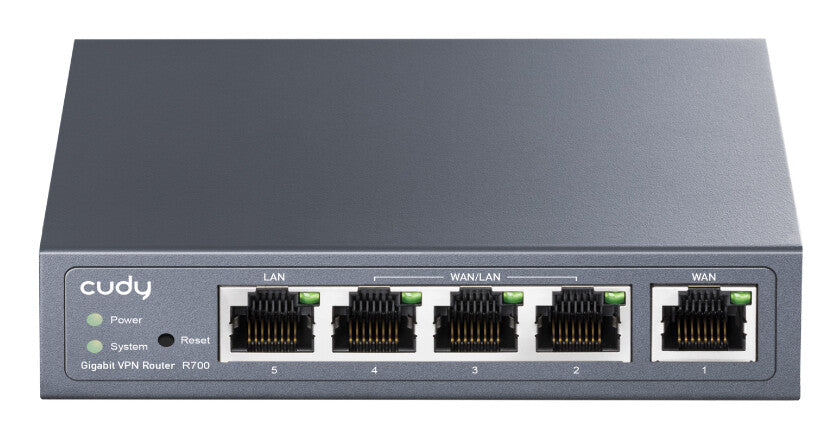

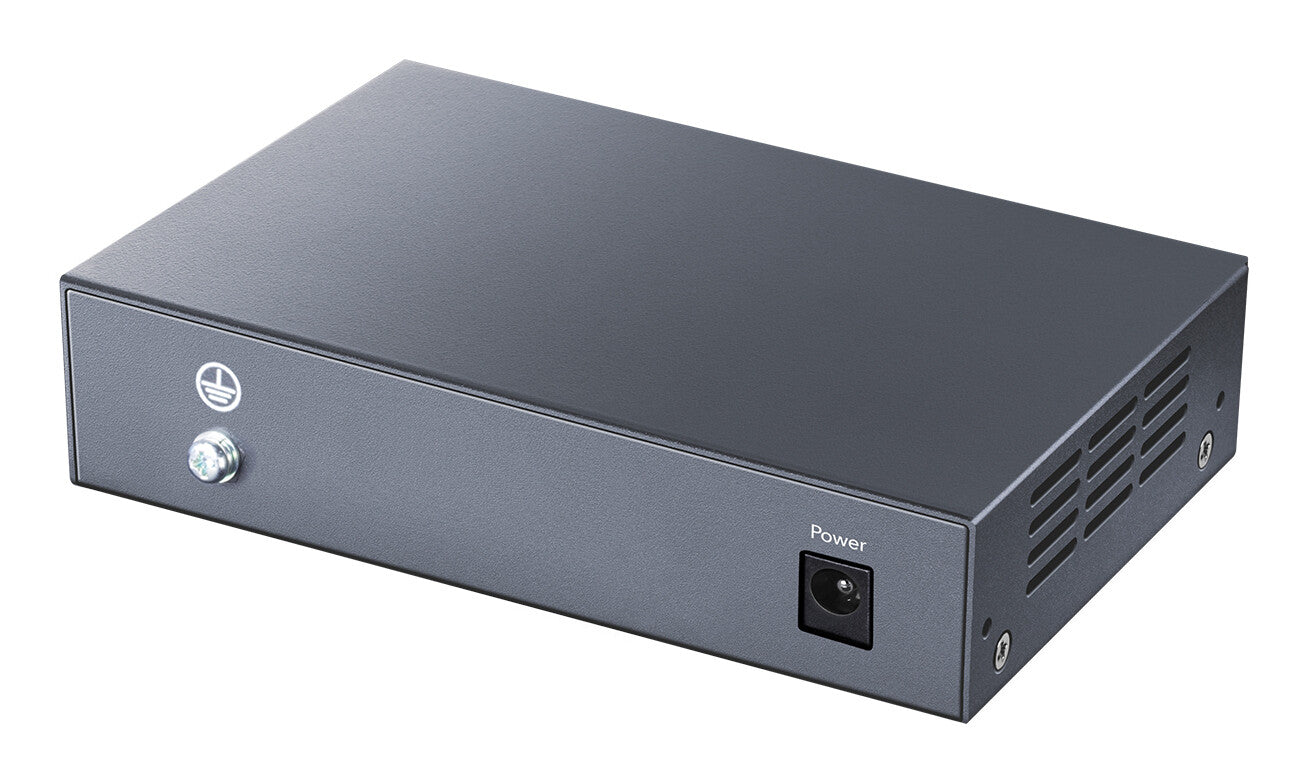

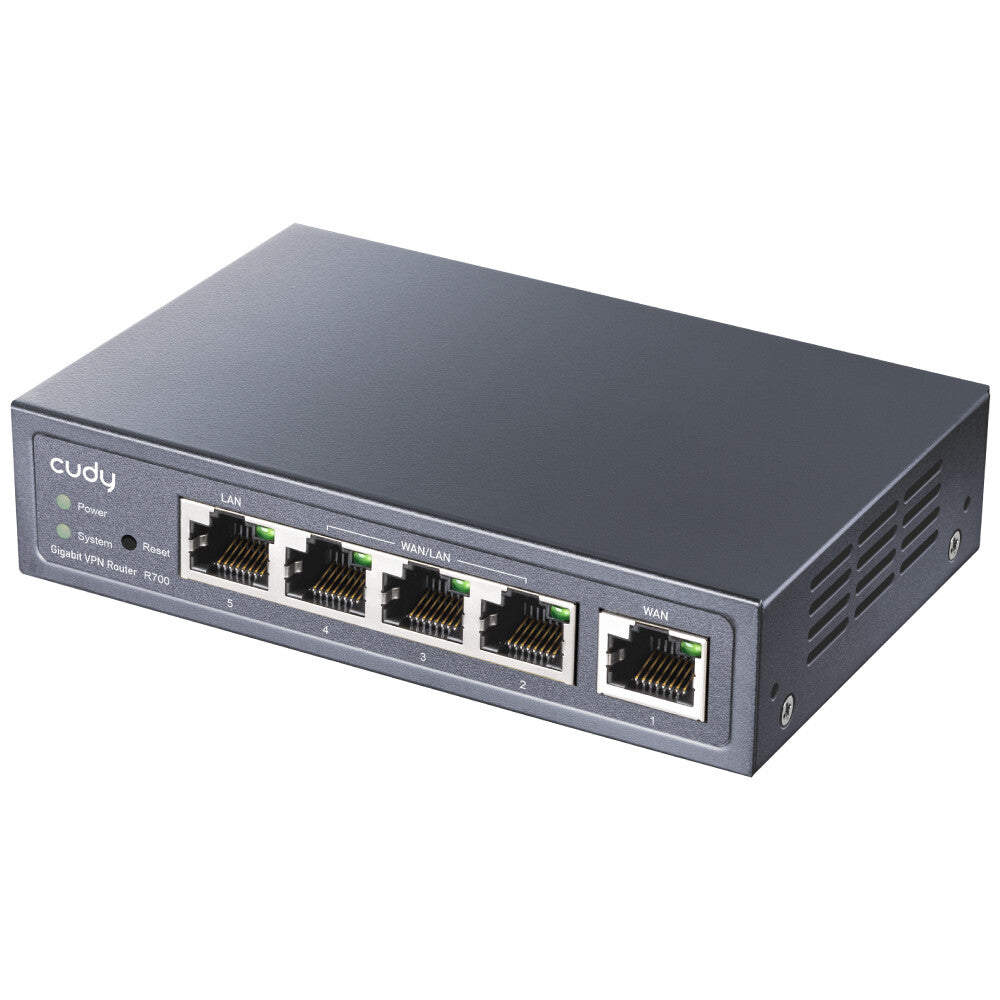

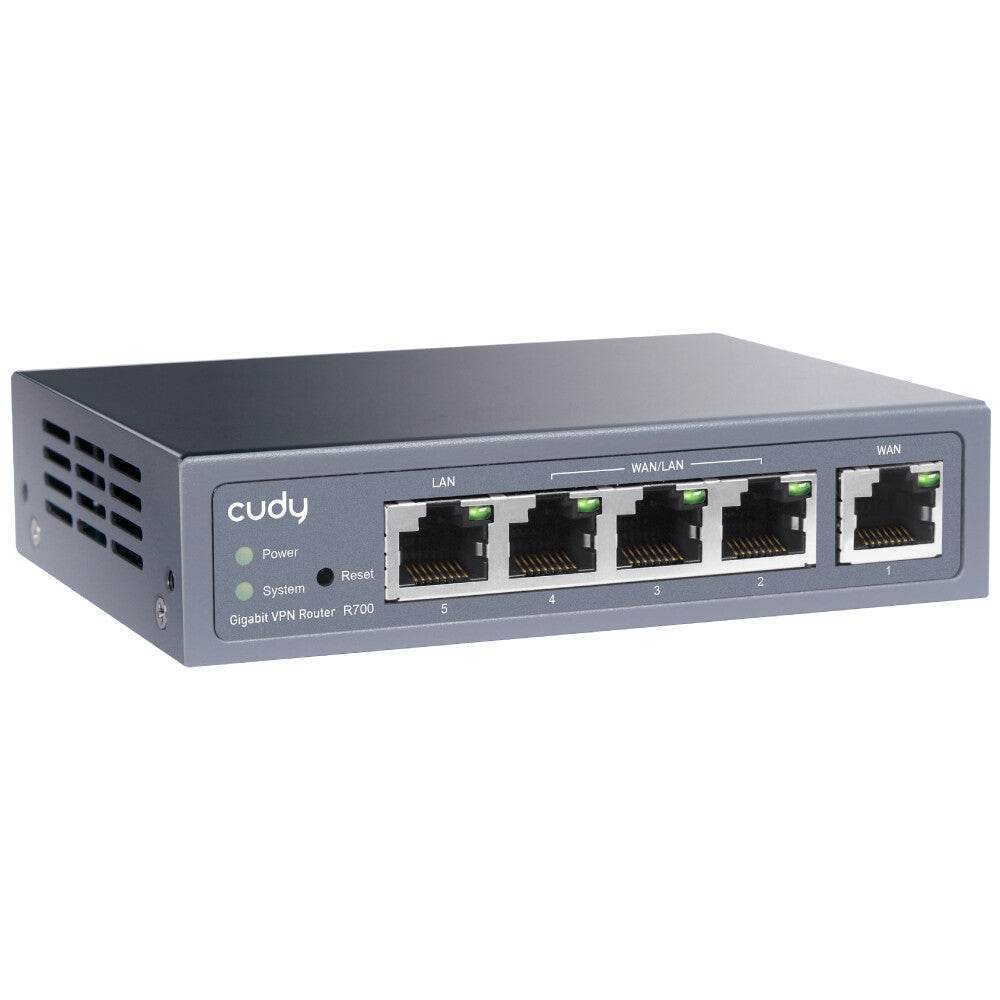

1 x 1000 Mbps WAN, 3 x 1000 Mbps LAN/WAN, 1 x 1000 Mbps LAN, 16 MB NOR Flash, 128MB DRAM, 119 x 85 x 28 mm
Flexible Traffic Control
Bandwidth Control and Session Limit enables the administrators to flexibly manage network bandwidth to optimize usage.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL).
Multi-Wan Load Balancing
Intelligent load balancing function distributes data streams according to the bandwidth proportion of each WAN port to raise the utilization rate of multi-line broadband allowing one device to satisfy various internet requirements.
Compact Desktop Design
Durable metal casing and desktop/wall-mounting design suited for different environments.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| SFP WAN |
No |
| Network |
|---|
| Networking standards |
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Static route |
Yes |
| Policy-based routing |
Yes |
| Concurrent connections |
15360 |
| Management features |
|---|
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Reset button |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
4 |
| WAN/Ethernet LAN ports quantity |
3 |
| WAN ports quantity |
1 |
| Protocols |
|---|
| DHCP server |
Yes |
| DMZ support |
Yes |
| Supported network protocols |
/IP, DHCP, ICMP, NAT, PPPoE,HTTP, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, Zerotier |
| Security |
|---|
| Security algorithms |
3DES, 128-bit AES, 192-bit AES, 256-bit AES, SHA-1, SHA-2, SHA-512 |
| Firewall |
Yes |
| MAC address filtering |
Yes |
| URL filtering |
Yes |
| IP address filtering |
Yes |
| DoS attack prevention |
Yes |
| System event log |
Yes |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Sustainability compliance |
Yes |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Technical details |
|---|
| Warranty period |
1 year(s) |
| Features |
|---|
| Flash memory |
16 MB |
| Internal memory |
128 MB |
| Internal memory type |
DRAM |
| Design |
|---|
| Product colour |
Grey |
| Housing material |
Metal |
| LED indicators |
Activity, Link, Power, System, WAN |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
119 mm |
| Depth |
85 mm |
| Height |
28 mm |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Other features |
|---|
| Connectivity technology |
Wired |
