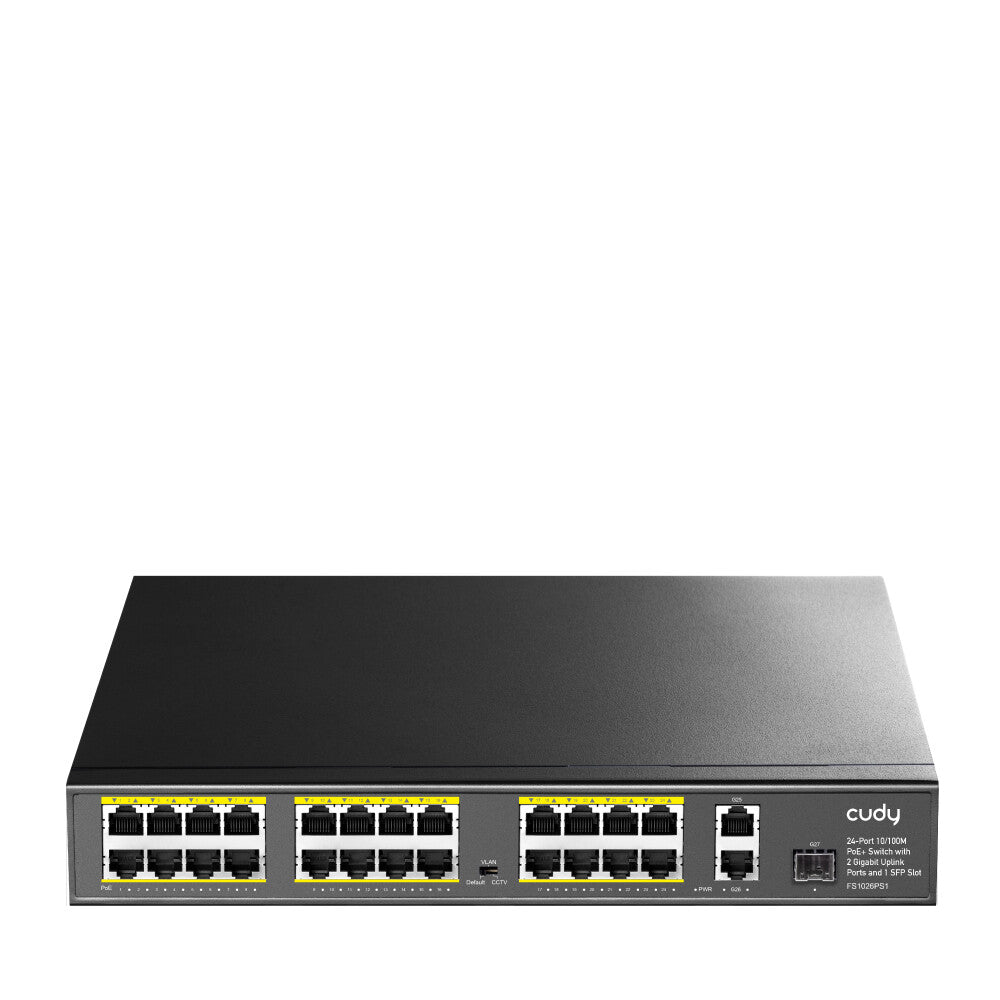

24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot
300 W Power budget & 30 W Maximum One Port
Supports a total PoE power of 300 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.
Watchdog guarantees uninterrupted operation of the PoE devices
The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.
Plug&Play, Fanless design
Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)
Surveillance
Works with IP Cameras for home and office, small business
VoIP Conference Call
Works with VoIP phones for business conference
Wi-Fi Coverage
Works with WiFi APs for office and business
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| SFP module slots quantity |
1 |
| Installed SFP modules quantity |
1 |
| Gigabit Ethernet (copper) ports quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
|---|
| Cable types supported |
Cat5, Cat6 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-TX |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Optical fiber |
|---|
| Maximum transfer distance (Single-mode) |
1550 m |
| Maximum transfer distance (Multi-mode) |
1310 m |
| Transmission distance (max) |
120 km |
| Fiber type |
Multi-mode |
| Data transmission |
|---|
| Packet buffer memory |
1 MB |
| Switching capacity |
10.8 Gbit/s |
| MAC address table |
2000 entries |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Power |
|---|
| Power consumption (typical) |
300 W |
| DC input voltage |
48 - 55 V |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-20 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
1.9 kg |
| Height |
46 mm |
| Depth |
320 mm |
| Width |
210 mm |
| Packaging data |
|---|
| Package weight |
2.4 kg |
| Package height |
85 mm |
| Package depth |
375 mm |
| Package width |
270 mm |
