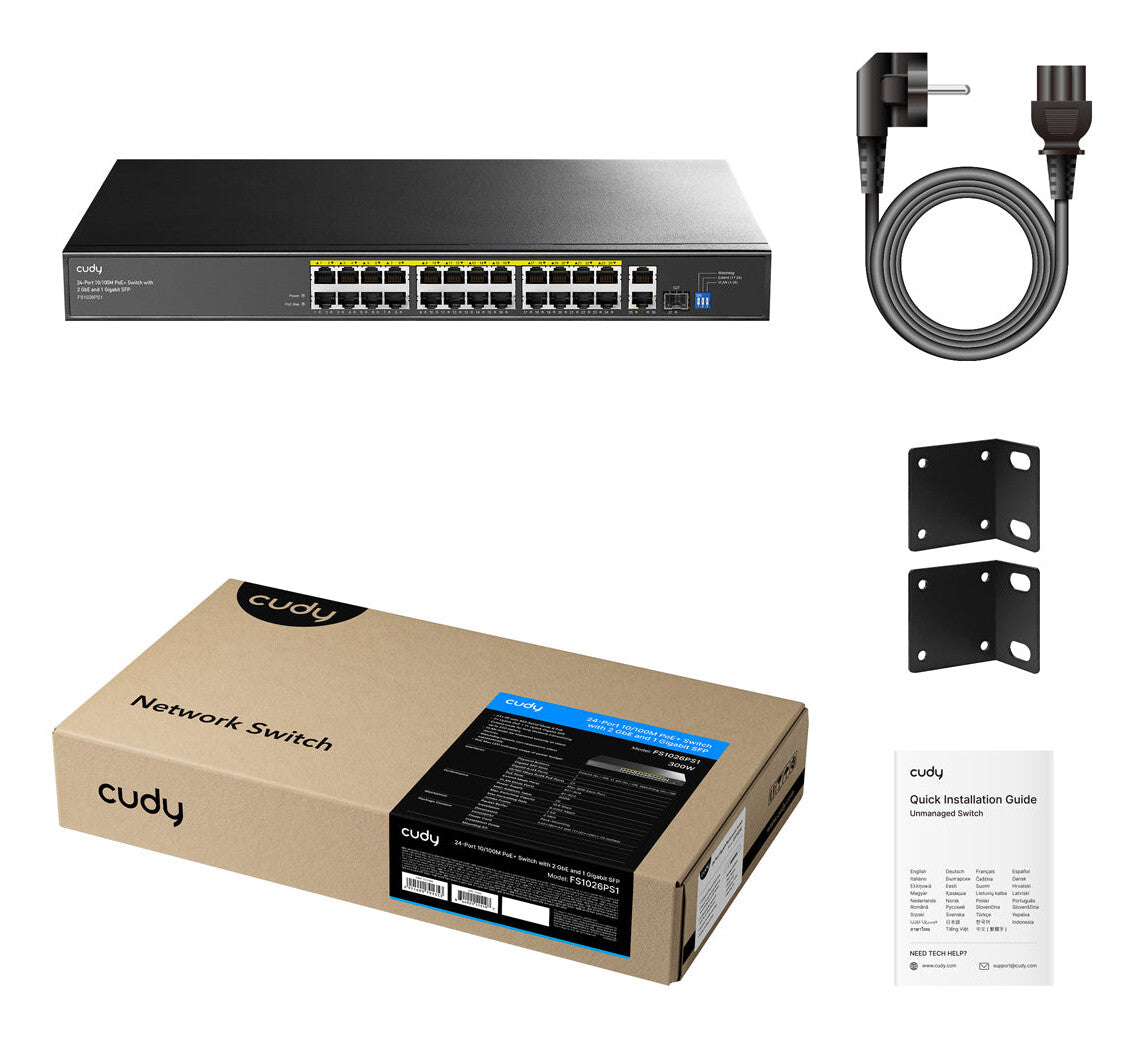

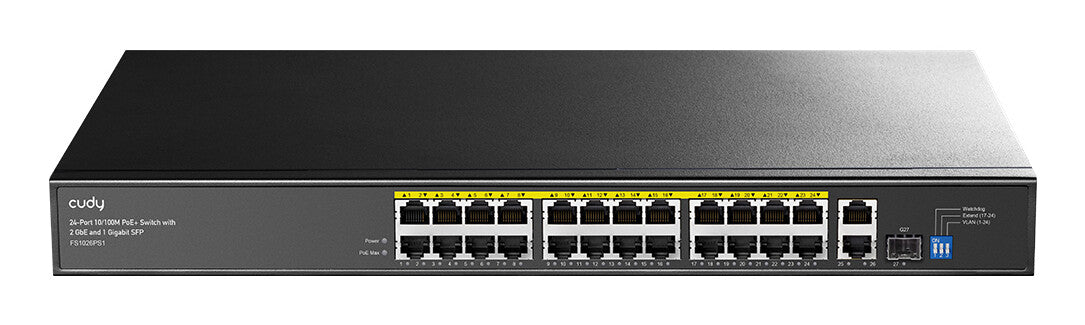

24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot
Reliable PoE for 24/7 Consistent Operation
IEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.
PoE Auto Recovery
Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.
PoE Insights Made Easy for Installers
Extend PoE Reach. Enhance Client Security.
VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.
Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.
Exceptional Built-Quality for Stable Operation
Build Robust Systems with Outstanding EMC
Improves service reliability and reduces downtime caused by power surges and ESD.
ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Shielded Ports. Solid Metal Casing.
Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
2 |
| Installed SFP modules quantity |
1 |
| SFP module slots quantity |
1 |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-TX |
| Cable types supported |
Cat5, Cat6 |
| Optical fiber |
|---|
| Fiber type |
Multi-mode |
| Transmission distance (max) |
120 km |
| Maximum transfer distance (Multi-mode) |
1310 m |
| Maximum transfer distance (Single-mode) |
1550 m |
| Data transmission |
|---|
| MAC address table |
2000 entries |
| Switching capacity |
10.8 Gbit/s |
| Packet buffer memory |
1 MB |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
Yes |
| Product colour |
Black |
| LED indicators |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Power |
|---|
| Power source |
AC/DC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| DC input voltage |
48 - 55 V |
| Power consumption (typical) |
300 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) power per port |
30 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 50 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Weight & dimensions |
|---|
| Width |
210 mm |
| Depth |
320 mm |
| Height |
46 mm |
| Weight |
1.9 kg |
| Packaging data |
|---|
| Package width |
270 mm |
| Package depth |
375 mm |
| Package height |
85 mm |
| Package weight |
2.4 kg |
