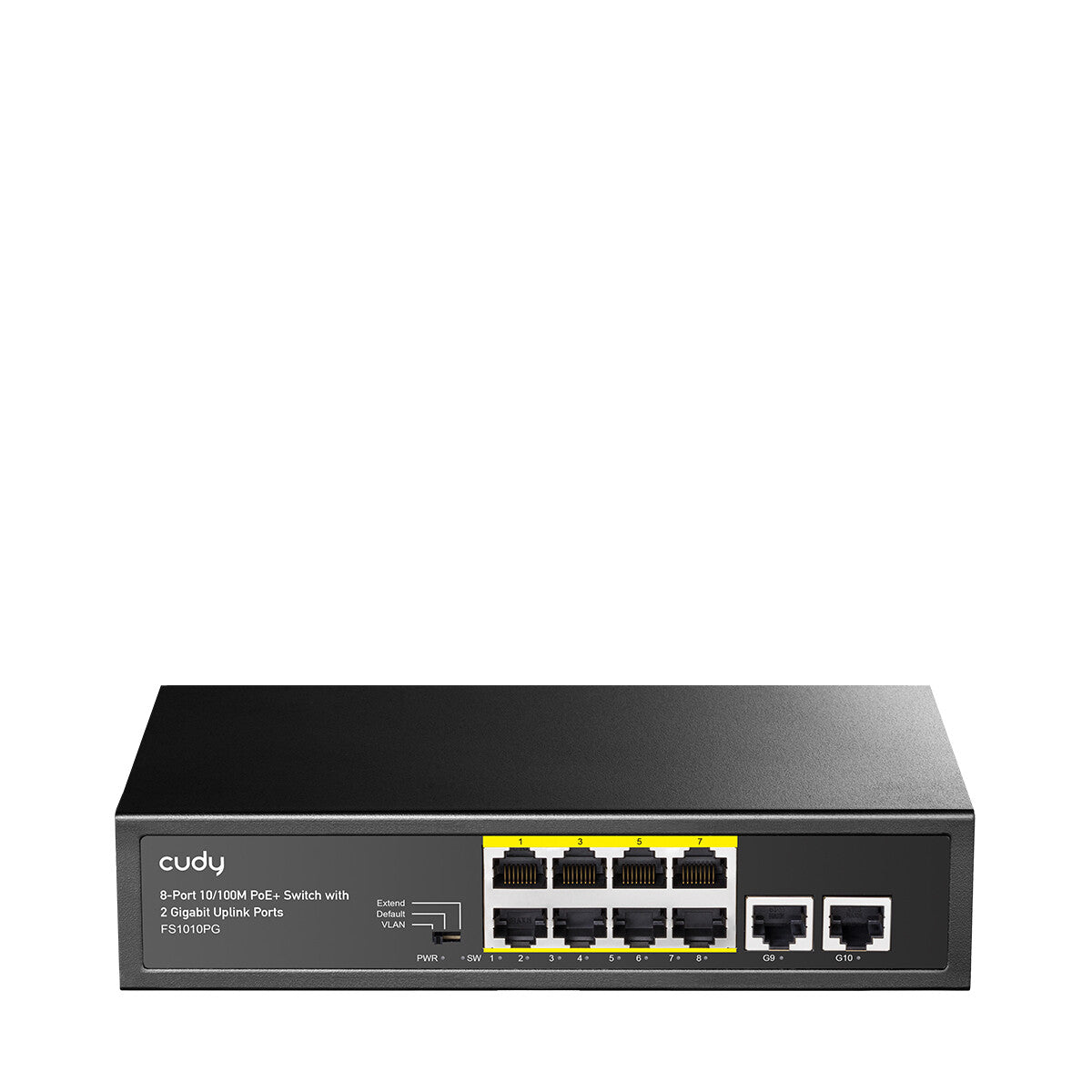

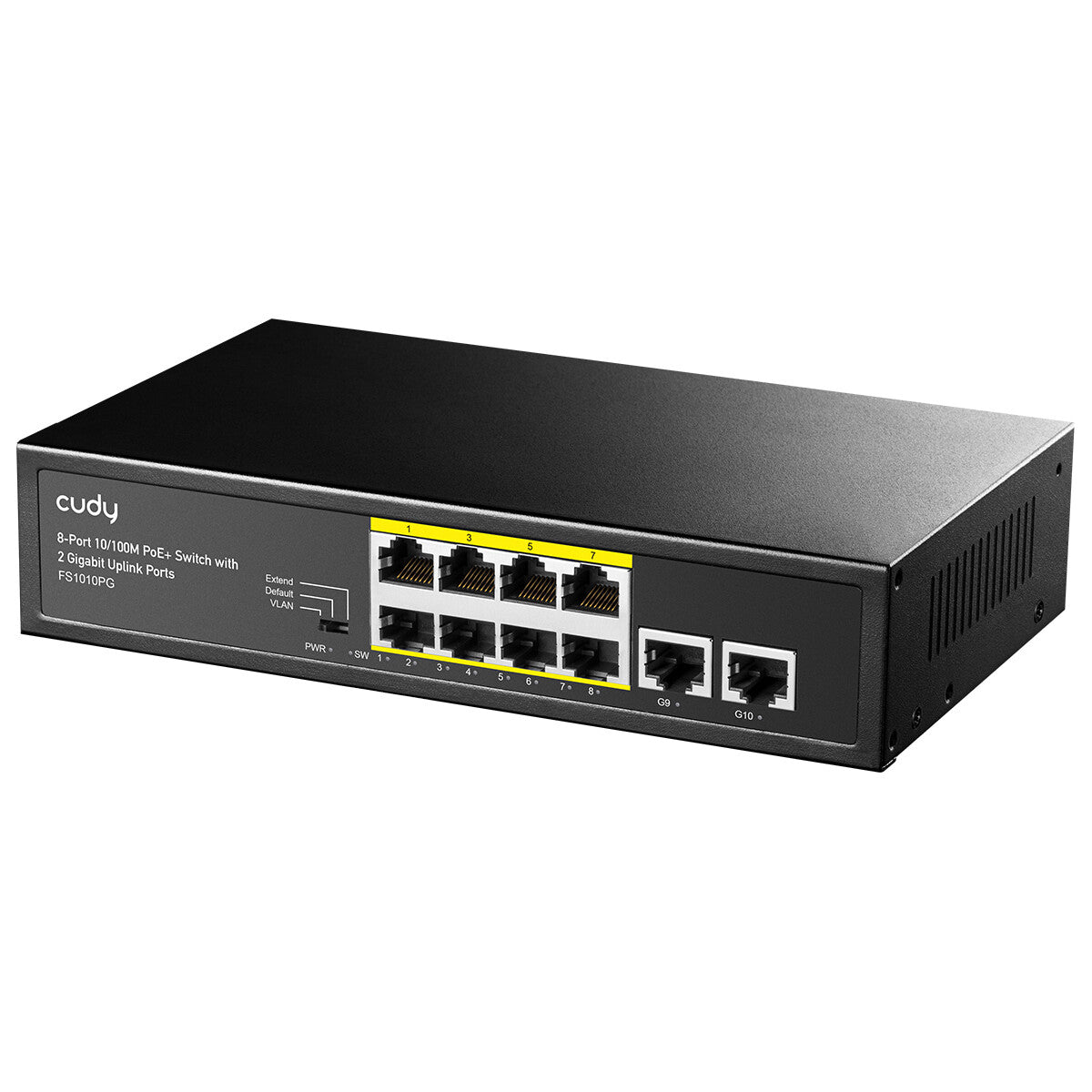

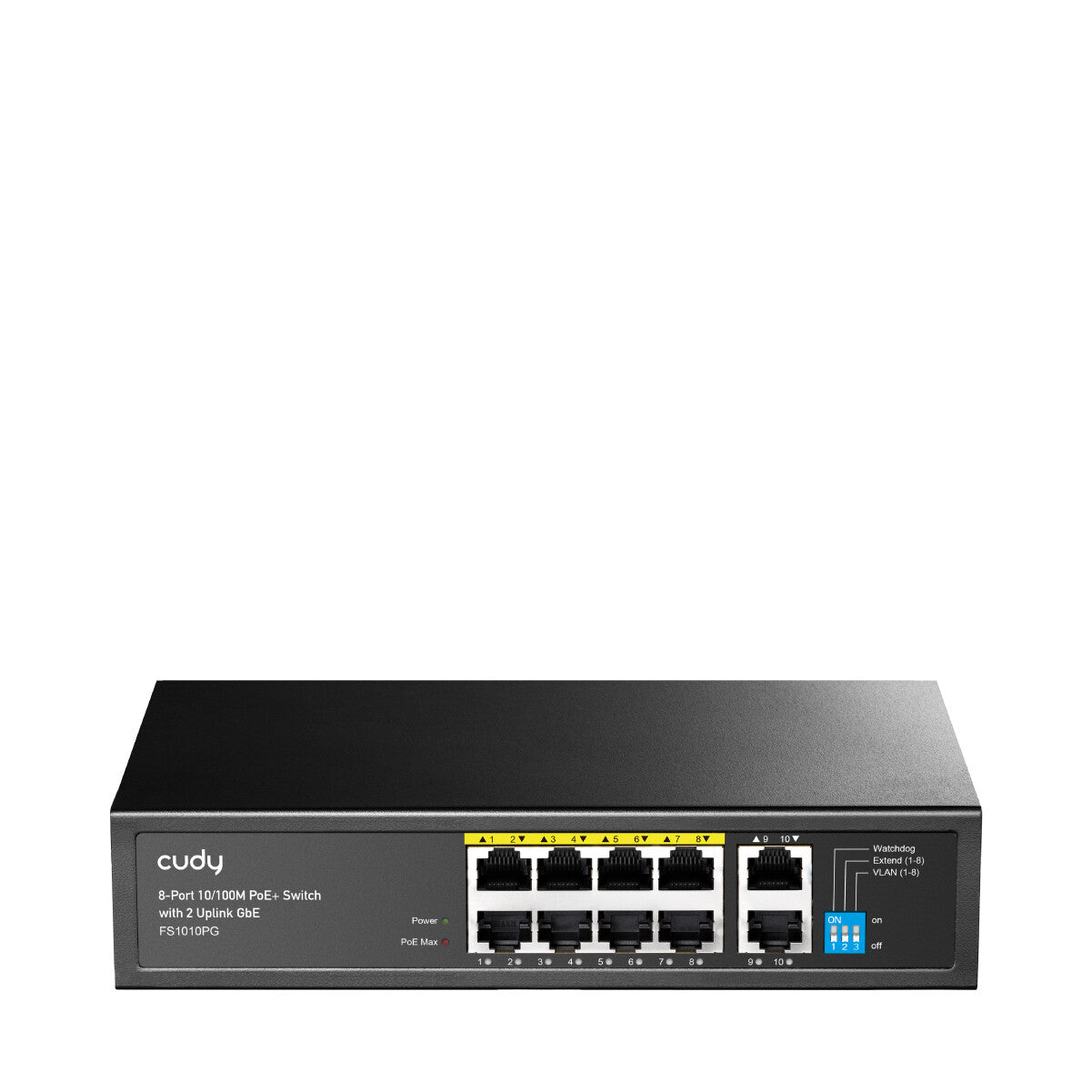

8-Port, 10/100M, PoE+ Switch with 2 Uplink Ports, Model: FS1010PG, Black
120 W Power budget & 30 W Maximum One Port
Supports a total PoE power of 120 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.
Watchdog guarantees uninterrupted operation of the PoE devices
The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.
Plug&Play, Fanless design
Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)
Surveillance
Works with IP Cameras for home and office, small business
VoIP Conference Call
Works with VoIP phones for business conference
Wi-Fi Coverage
Works with WiFi APs for office and business
| Ports & interfaces |
|---|

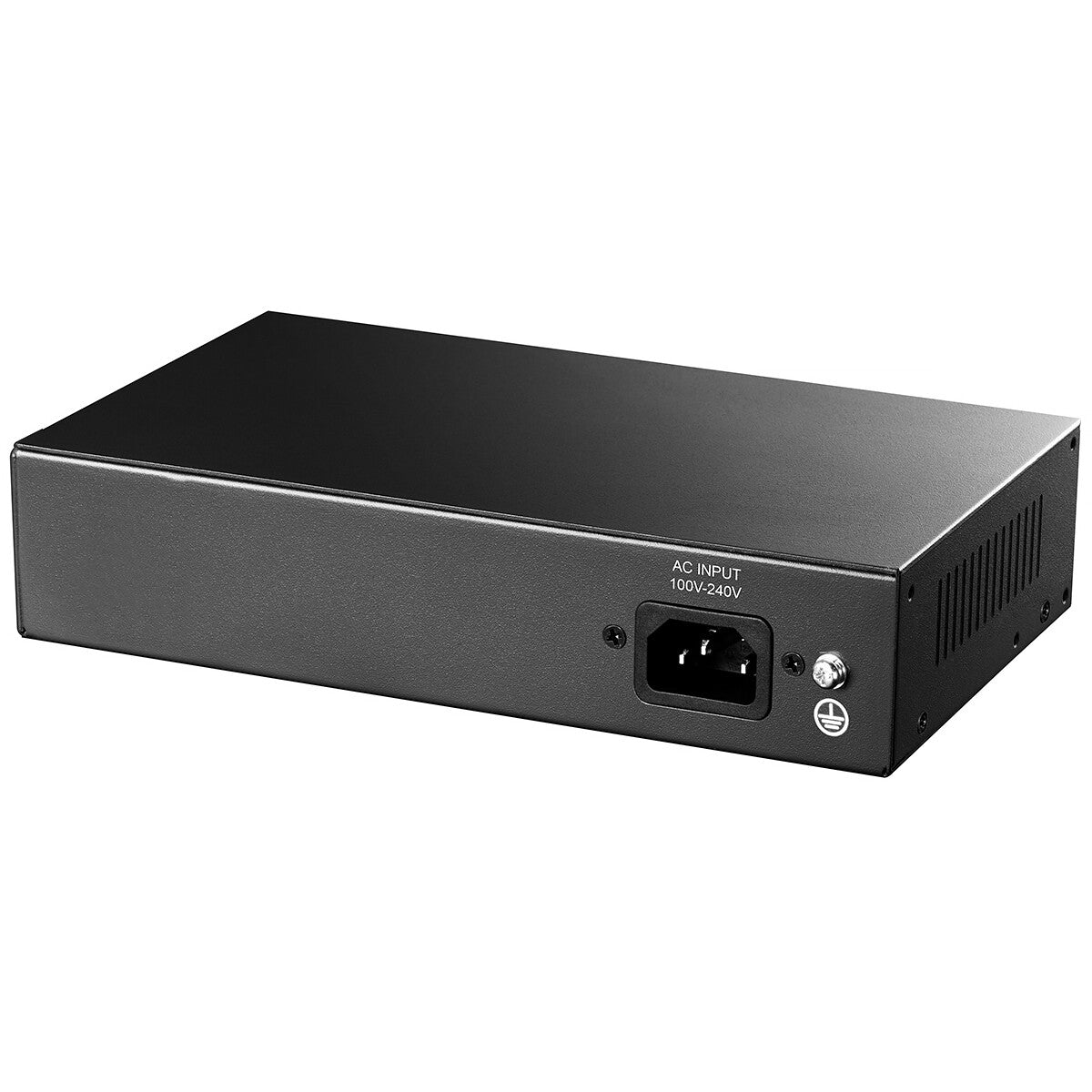

| Power connector |
AC-in jack |
| Uplink ports quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| VLAN support |
Yes |
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Half duplex |
Yes |
| Full duplex |
Yes |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
| Networking standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Data transmission |
|---|
| Packet buffer memory |
0.25 MB |
| Jumbo frames |
1528 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
1.48 Mpps |
| MAC address table |
8000 entries |
| Design |
|---|
| LED indicators |
Activity, Link, PoE, Power |
| Housing material |
Metal |
| Product colour |
Black |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| Fanless |
Yes |
| Plug and Play |
Yes |
| Power |
|---|
| Surge protection voltage |
4 kV |
| Surge protection |
Yes |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
120 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
1 |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
44 mm |
| Depth |
150 mm |
| Width |
220 mm |
| Packaging data |
|---|

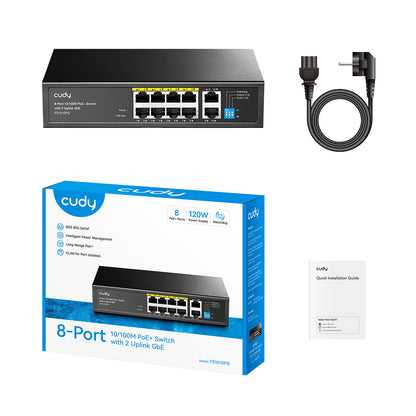

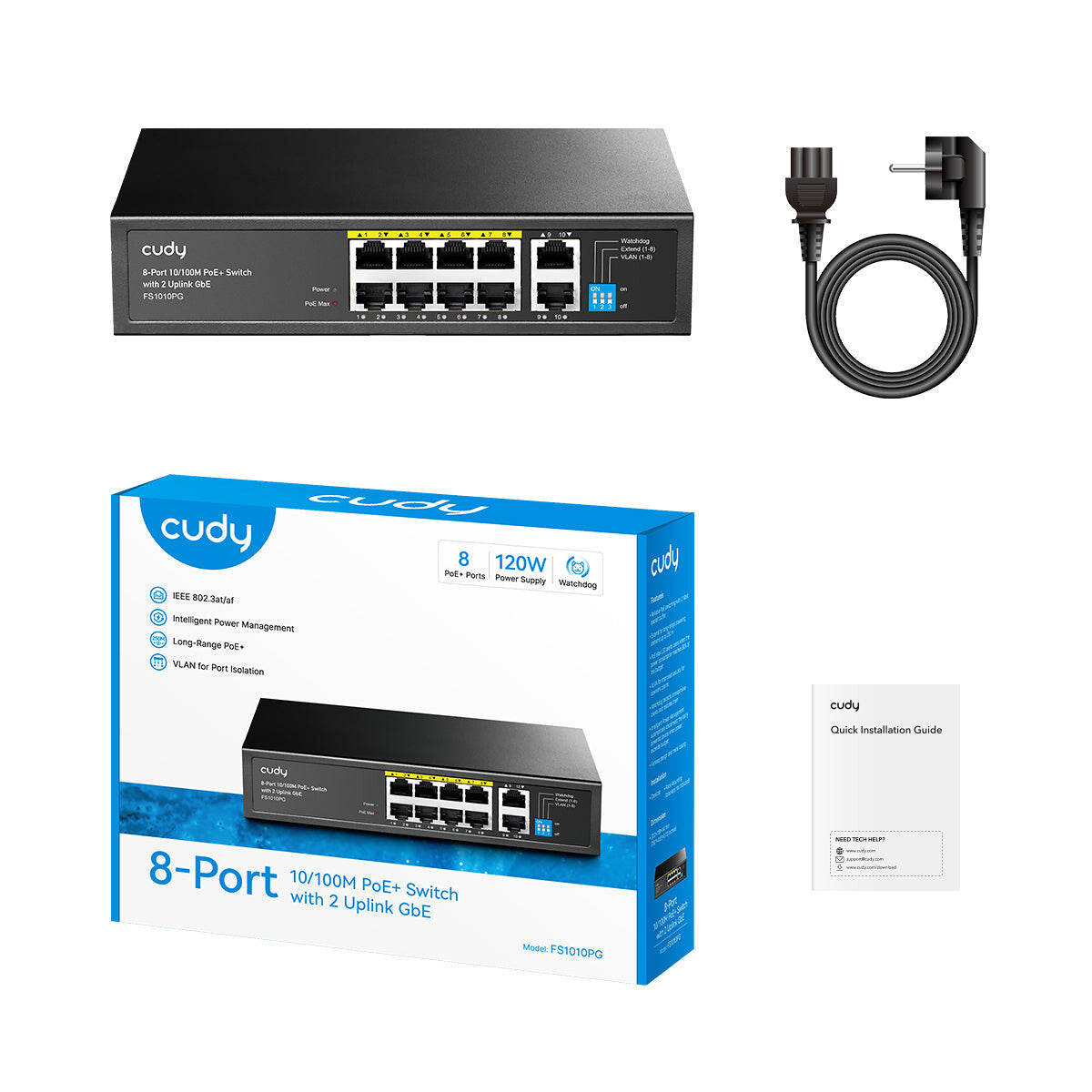

| Cables included |
AC |
| Other features |
|---|
| Bandwidth |
2 Gbit/s |
